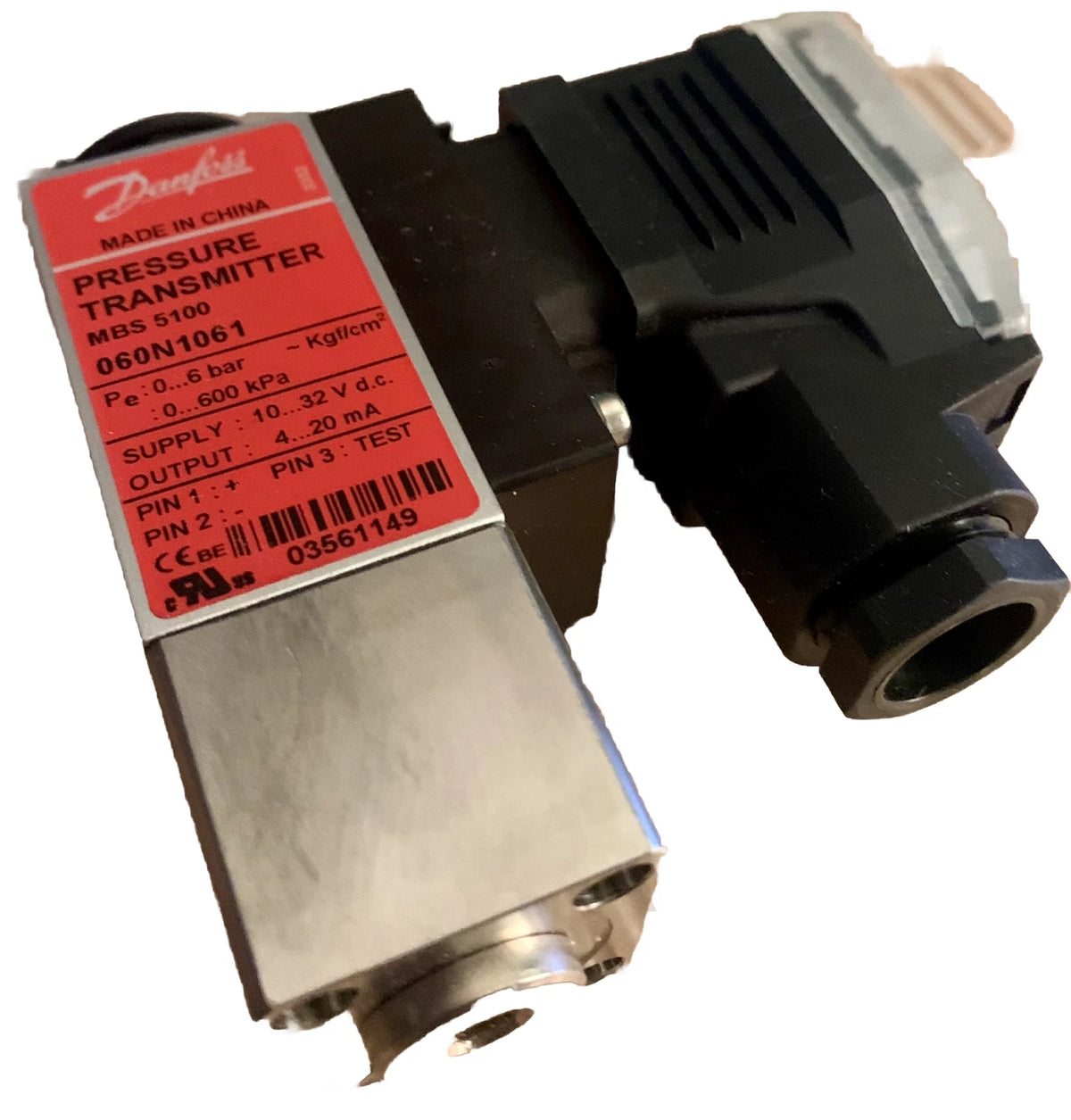

Danfoss 060N1061 MBS 5100 Marine Pressure Transmitter 0-87 PSI 4-20mA G1/4 Flange IP65
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060N1061
Description
The Danfoss 060N1061 is an MBS 5100 Series pressure transmitter designed for accurate gauge pressure measurement in marine and industrial control systems. Featuring a 0–6 bar (0–87 psi) measurement range, 4–20 mA current output, and G1/4 pressure connection, it provides continuous pressure feedback for hydraulic equipment, pumps, and process monitoring applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Sensors & Transmitters |
|
Part Number |
060N1061 |
|
Subcategory |
Pressure Transmitters |
|
Series |
MBS 5100 |
|
Product Type |
Industrial and Marine Pressure Transmitter |
|
Specification Key |
MBS 5100-1811-A9DB04-4 |
|
Pressure Measurement Range |
0–6 bar (0–87 psi) |
|
Pressure Reference |
Gauge (Relative) |
|
Output Signal |
4–20 mA DC |
|
Supply Voltage |
9–32 VDC |
|
Typical Accuracy |
±0.1% Full Scale |
|
Maximum Accuracy |
±0.3% Full Scale |
|
Maximum Overload Pressure |
20 bar (290 psi) |
|
Maximum Response Time |
4 ms |
|
Pressure Connection |
G1/4 Female with Flange |
|
Pressure Connection Standard |
ISO 228-1 |
|
Electrical Connection |
Angular DIN Connector, Pg 13.5 |
|
Electrical Connection Standard |
EN 175301-803-A |
|
Electrical Wiring |
Pin 1: Positive Supply; Pin 2: Common; Pin 3: Test Signal |
|
Enclosure Protection |
IP65 |
|
Ambient Temperature Range |
-40°C to +85°C (-40°F to +185°F) |
|
Media Temperature Range |
-40°C to +85°C (-40°F to +185°F) |
|
Compensated Temperature Range |
0°C to +80°C (32°F to 176°F) |
|
Non-Linearity |
±0.2% Full Scale (BFSL) |
|
Approvals |
CE, cULus UL Recognized |
|
Weight |
0.78 lb |
Information About 060N1061
The 060N1061 is part of the Danfoss MBS 5100 Series of compact pressure transmitters engineered for demanding industrial and marine environments. Its robust construction incorporates a pressure-sensing element, an angular electrical connector, and a G1/4 process connection for integration into compatible pressure measurement systems. The transmitter uses a two-wire current output to communicate measured pressure to PLCs, monitoring devices, and industrial controllers. With typical accuracy of ±0.1% full scale, IP65 protection, and an ambient operating temperature range of -40°C to +85°C, it supports pressure monitoring in equipment exposed to challenging environmental conditions.
Key Features:
-
0–6 Bar Measurement Range: Measures gauge pressure from 0 to 6 bar (0–87 psi).
-
High Measurement Accuracy: Provides typical accuracy of ±0.1% full scale and maximum accuracy of ±0.3% full scale.
-
4–20 mA Analog Output: Transmits pressure readings through a standardized industrial current signal.
-
Gauge Pressure Reference: Measures pressure relative to atmospheric pressure.
-
G1/4 Process Connection: Features a threaded pressure interface for compatible instrumentation installations.
-
Angular Electrical Connector: Provides a compact electrical interface for industrial wiring.
-
Wide Ambient Temperature Range: Supports operation from -40°C to +85°C (-40°F to +185°F).
-
Marine Application Design: Developed for pressure monitoring in demanding marine and industrial machinery.
-
IP65 Enclosure Protection: Provides dust-tight protection and resistance to water jets when properly connected.
-
Two-Wire Electrical Interface: Uses Pin 1 for positive supply and Pin 2 for common.
-
Fixed Factory Calibration: Features a factory-set measuring range without adjustable zero point or span.
-
Industrial Control Integration: Interfaces with compatible controllers equipped with 4–20 mA analog inputs.
The 060N1061 delivers the reliability and precision required for marine pressure instrumentation, hydraulic system monitoring, and industrial process control.
