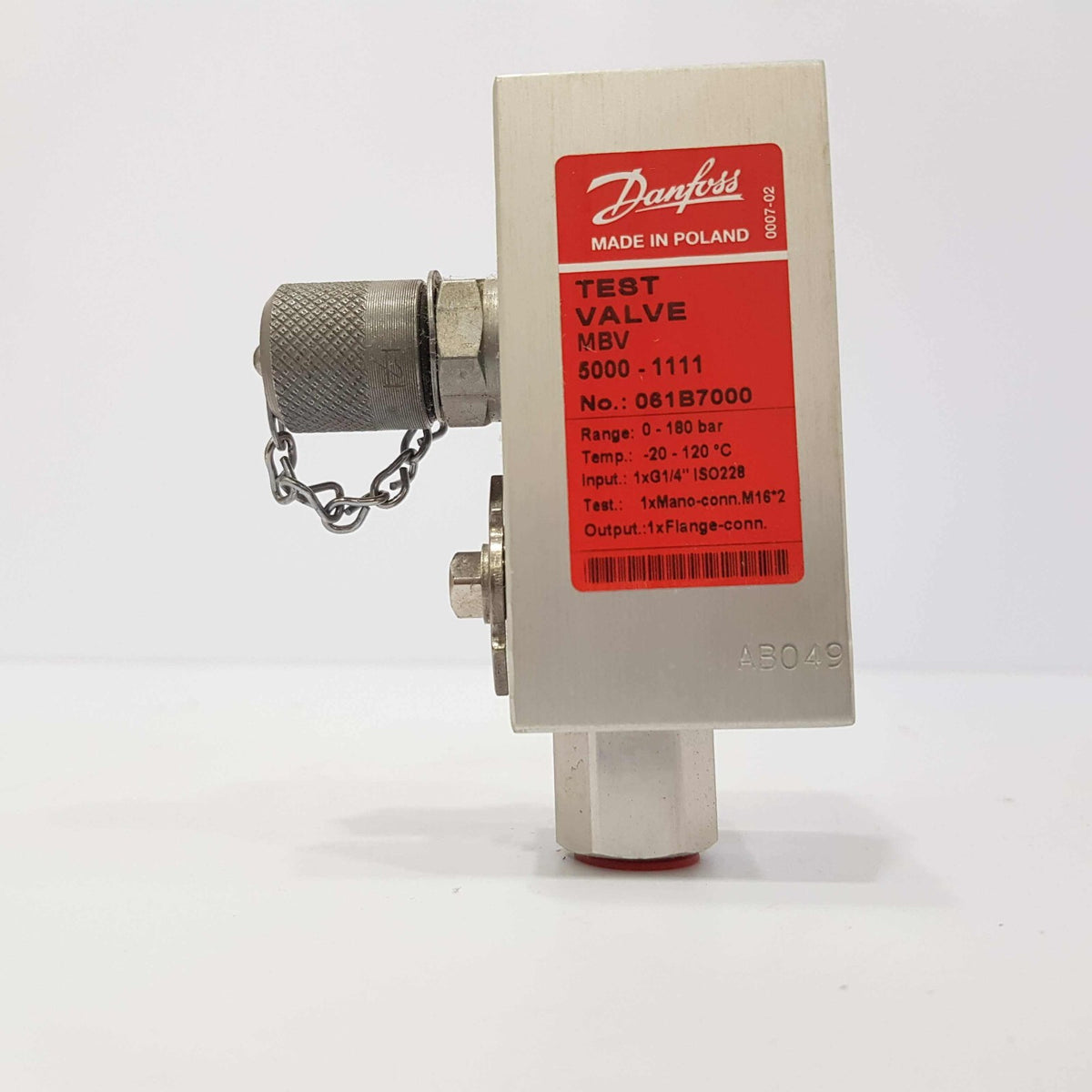

Danfoss 061B7000 MBV 5000 Pressure Test Isolation Valve G1/4 120 Bar Minimess Flange
- Regular price
- $375.00
- Sale price
- $375.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 061B7000
Description
The Danfoss 061B7000 is an MBV 5000 Series test valve designed for pressure measurement, isolation, and maintenance in industrial hydraulic and process control systems. Featuring a G1/4 pressure inlet, flanged outlet, and integrated Minimess test connection, it allows pressure instruments to be serviced without shutting down the entire system.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Valves & Flow Control |
|
Part Number |
061B7000 |
|
Subcategory |
Test & Isolation Valves |
|
Series |
MBV 5000 |
|
Product Type |
Pressure Test and Isolation Valve |
|
Valve Function |
Shut-Off, Pressure Testing, Instrument Isolation |
|
Pressure Range |
0–120 bar (0–1,740 psi) |
|
Pressure Connection Size |
G1/4 |
|
Pressure Connection Type |
G Thread |
|
Pressure Connection Standard |
DIN 3852-E |
|
Outlet Connection |
Flange |
|
Number of Inputs |
1 |
|
Number of Outputs |
1 |
|
Integrated Test Connection |
Minimess Included |
|
Operating Mechanism |
Manual Mechanical Shut-Off |
|
Ambient Temperature Range |
-20°C to +120°C (-4°F to +248°F) |
|
Instrument Compatibility |
Compatible Danfoss Pressure Switches and Transmitters |
|
Maintenance Function |
Instrument Isolation and Replacement |
|
Pressure Testing Capability |
External Pressure Gauge and Test Equipment Connection |
|
Approvals |
EAC, RoHS, UA |
|
Primary Applications |
Industrial Pressure Instrumentation, Hydraulic Systems, Process Monitoring, Pressure Switch Testing |
|
Weight |
0.87 lb |
Information About 061B7000
The 061B7000 is part of the Danfoss MBV 5000 Series of test and isolation valves developed for industrial pressure instrumentation applications. Its compact construction combines a mechanical shut-off function with a pressure testing interface, allowing compatible pressure switches and transmitters to be isolated during inspection or replacement. The valve features a G1/4 threaded inlet conforming to DIN 3852-E, a flanged outlet, and an integrated Minimess connection for attaching pressure measurement equipment. With a pressure range of 0–120 bar and an ambient temperature capability of -20°C to +120°C, it supports maintenance and pressure testing in industrial machinery, hydraulic installations, and process monitoring systems.
Key Features:
-
Pressure Isolation Function: Allows connected pressure instruments to be isolated from the process line during servicing.
-
Integrated Minimess Connection: Provides a dedicated test point for connecting compatible pressure gauges and diagnostic equipment.
-
0–120 Bar Pressure Range: Supports pressure monitoring applications within a specified range of 0–120 bar (0–1,740 psi).
-
G1/4 Pressure Inlet: Features a threaded pressure connection for installation into compatible hydraulic and process systems.
-
Flanged Outlet Connection: Provides a mounting interface for compatible Danfoss pressure switches and transmitters.
-
Instrument Replacement Support: Allows pressure instruments to be exchanged without disconnecting the main process piping.
-
Single Inlet and Outlet: Incorporates one pressure input and one output for a compact instrumentation arrangement.
-
High Temperature Capability: Supports ambient temperatures from -20°C to +120°C (-4°F to +248°F).
-
Mechanical Shut-Off Operation: Provides pressure isolation without requiring electrical power.
-
Pressure Switch Testing: Enables connection of test equipment for checking and adjusting pressure switch operating points.
-
Industrial Approvals: Includes EAC and UA approvals, with RoHS listed in the product approval information.
-
Compact Valve Construction: Supports installation in industrial pressure monitoring assemblies with limited mounting space.
The 061B7000 delivers the reliability and precision required for pressure instrument isolation, diagnostic testing, and maintenance of industrial pressure monitoring systems.
