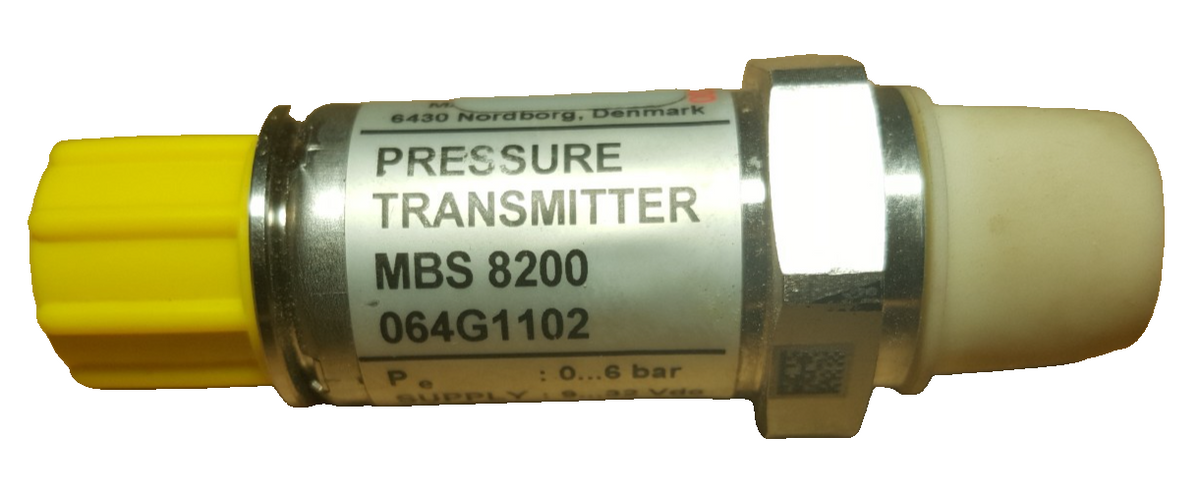

Danfoss 064G1102 MBS 8200 Gauge Pressure Transmitter for Industrial Control
- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 064G1102
Description
The Danfoss 064G1102 pressure transmitter measures gauge pressure from 0 to 6 bar and converts it into a 4–20 mA signal. Its 1 ms maximum response time supports pressure monitoring and control in industrial equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Sensors & Switches |
| Part Number | 064G1102 |
| Subcategory | Pressure Transmitters |
| Series | MBS 8200 |
| Specification Key | MBS 8200-1811-C1GB04-1 |
| Pressure Range | 0–6 bar gauge (0–87.02 psig) |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | G 1/4 male; DIN 3852-E |
| Electrical Connection | M12 × 1 male, four-pin; EN 60947-5-2 |
| Pin Assignment | Pin 1: positive supply; pin 4: common |
| Maximum Accuracy Deviation | ±1% FS |
| Non-Linearity | ±0.2% FS, BFSL |
| Maximum Response Time | 1 ms |
| Maximum Overload Pressure | 36 bar (522 psi) |
| Temperature Limits | Ambient: -40 to 105°C; medium: -20 to 125°C; compensated: -10 to 70°C |
| Enclosure Rating | IP67 |
| Weight | 0.064 kg (0.14 lb) |
Information About 064G1102
The 064G1102 is an MBS 8200 series transmitter with a threaded process fitting and detachable electrical connection. Its G 1/4 male pressure connection follows DIN 3852-E, while the four-pin M12 interface connects to compatible control wiring. The IP67-rated enclosure supports installation in environments exposed to dust and moisture. Temperature compensation maintains the specified measurement performance within a range of -10 to 70°C.
Key Features:
- Gauge Pressure Measurement: Measures 0–6 bar relative to atmospheric pressure.
- Standard Current Output: Provides a 4–20 mA signal for compatible controllers and monitoring devices.
- Measurement Accuracy: Specified maximum accuracy deviation is ±1% of full scale.
- Fast Response: Maximum response time is 1 ms.
- Threaded Pressure Fitting: Uses a G 1/4 male connection with a 22 mm hex.
- M12 Electrical Interface: Provides a four-pin male connector with supply on pin 1 and common on pin 4.
- Environmental Protection: IP67 enclosure resists dust ingress and temporary water immersion.
- DC Supply Compatibility: Operates from a 9–32 VDC power source.
The 064G1102 delivers the reliability and precision required for industrial pressure feedback and equipment monitoring.
