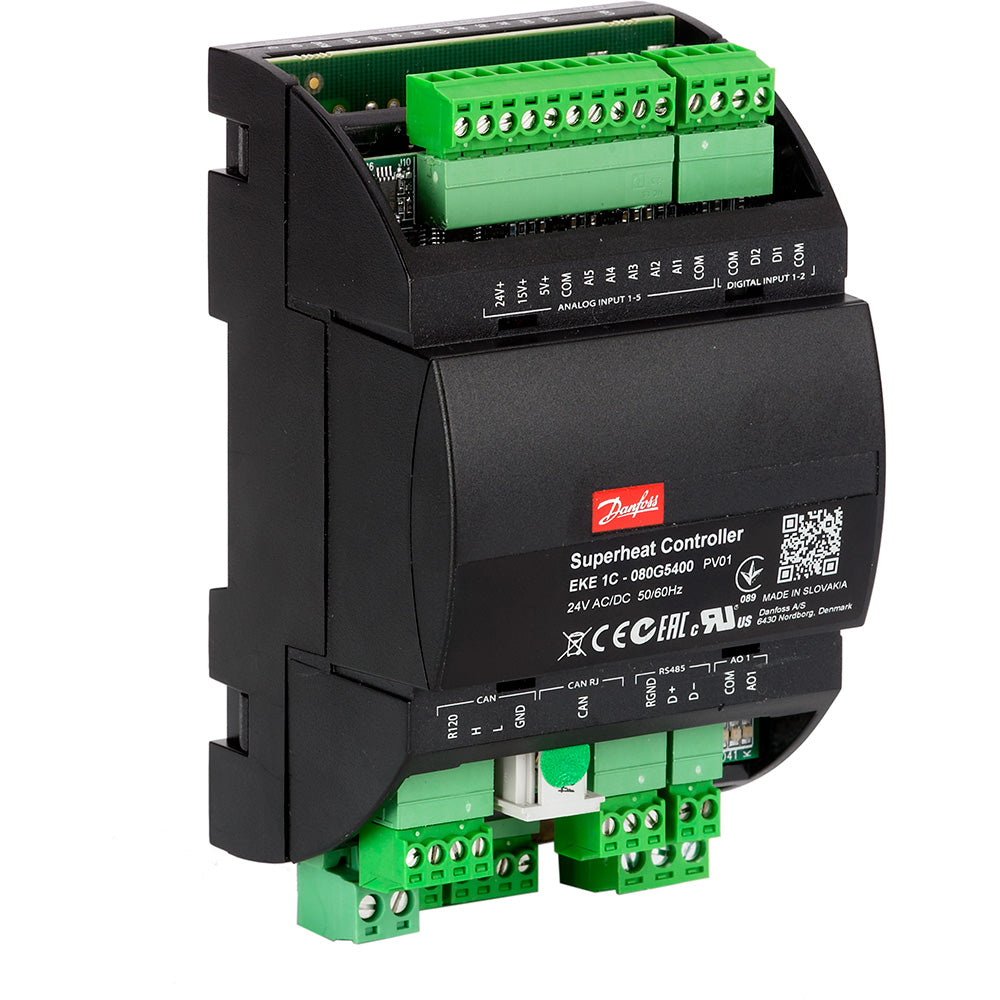

Danfoss 080G5400 EKE Superheat Controller and Electronic Expansion Valve Driver
- Regular price
- $555.00
- Sale price
- $555.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 080G5400
Description
The Danfoss 080G5400 is an EKE 1C superheat controller and valve driver for regulating refrigerant injection in compatible refrigeration and air-conditioning systems. It processes sensor measurements and adjusts an electronic expansion valve to maintain the configured operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Refrigeration Controls |
| Part Number | 080G5400 |
| Subcategory | Superheat Controllers |
| Product Type | EKE 1C |
| Product Group | Electronic valve control |
| Supply Voltage | 24 VAC/DC |
| AC Supply Frequency | 50/60 Hz |
| External Backup Supply | 18–24 VDC |
| Analog Inputs | 2, per supplied product record |
| Digital Inputs | 2 |
| Digital Outputs | 1 |
| Communication Interfaces | CANbus; Modbus RS485 RTU; RJ11 CAN user-interface connection |
| Temperature Sensor Configuration | S2, S3, and S4 |
| Programming Tool | KoolProg |
| Mounting Method | DIN rail |
| Housing Protection | IP40 |
| Weight | 0.165 kg (0.36 lb) |
Information About 080G5400
The 080G5400 is part of the Danfoss EKE electronic valve-control family. It operates from a 24 VAC/DC supply and supports external backup power. CANbus and Modbus RS485 RTU provide interfaces for compatible supervisory systems. Configuration uses KoolProg, with an optional MMIGRS2 display available for local interaction.
Key Features:
- Superheat Regulation: Controls refrigerant injection using the configured superheat reference.
- Integrated Valve Driver: Operates a compatible electronic expansion valve.
- Sensor Interfaces: Supports temperature measurements and compatible pressure-transmitter signals.
- Network Communication: Provides CANbus and Modbus RS485 RTU connectivity.
- Digital Connections: Includes two digital inputs and one digital output.
- Backup Power Support: Accepts an external 18–24 VDC backup supply.
- Configuration Tools: Supports KoolProg for parameter setup.
- DIN-Rail Installation: Uses a rail-mounted format for installation within a control assembly.
The 080G5400 delivers the reliability and precision required for electronic refrigerant-injection and superheat control in compatible cooling systems.
