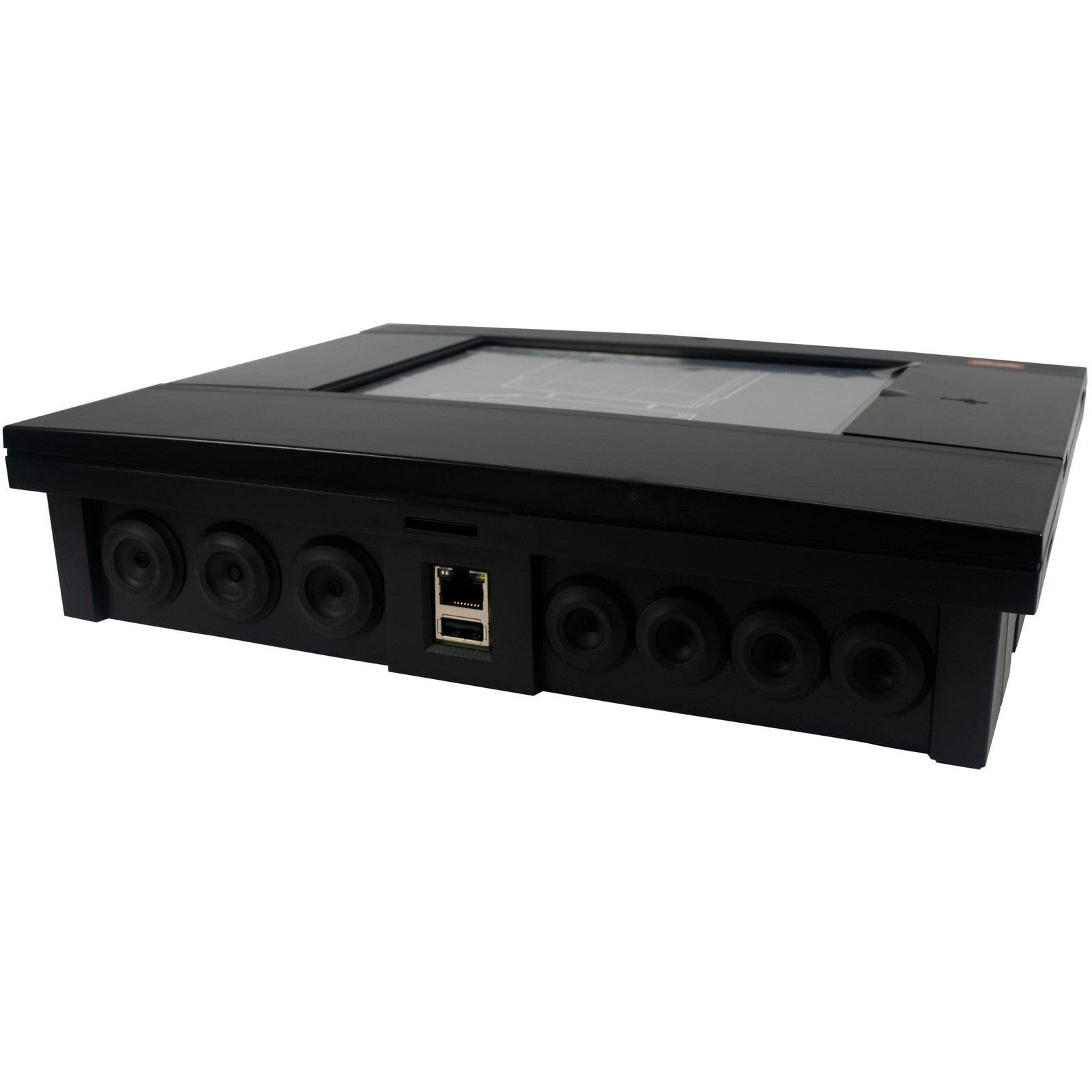

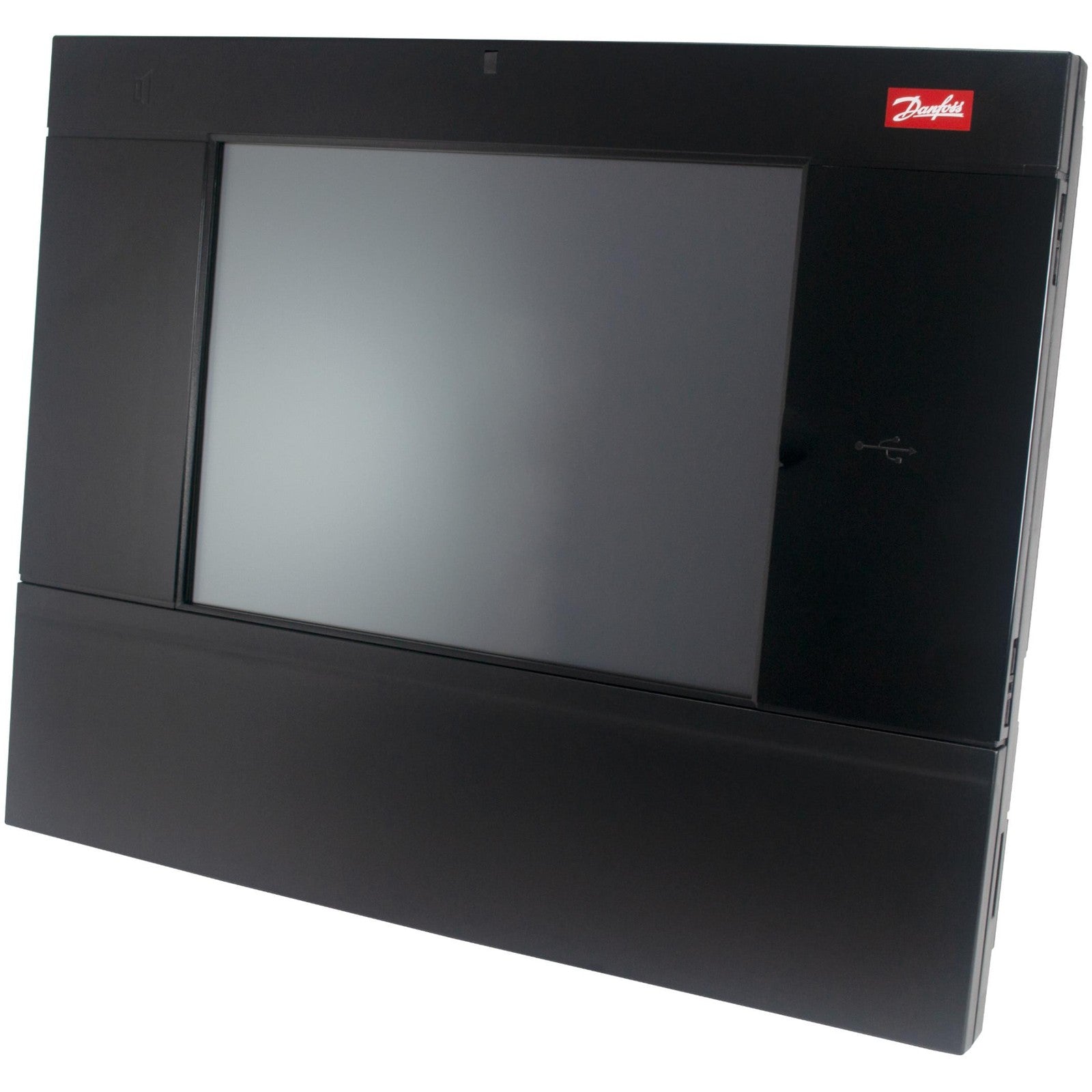

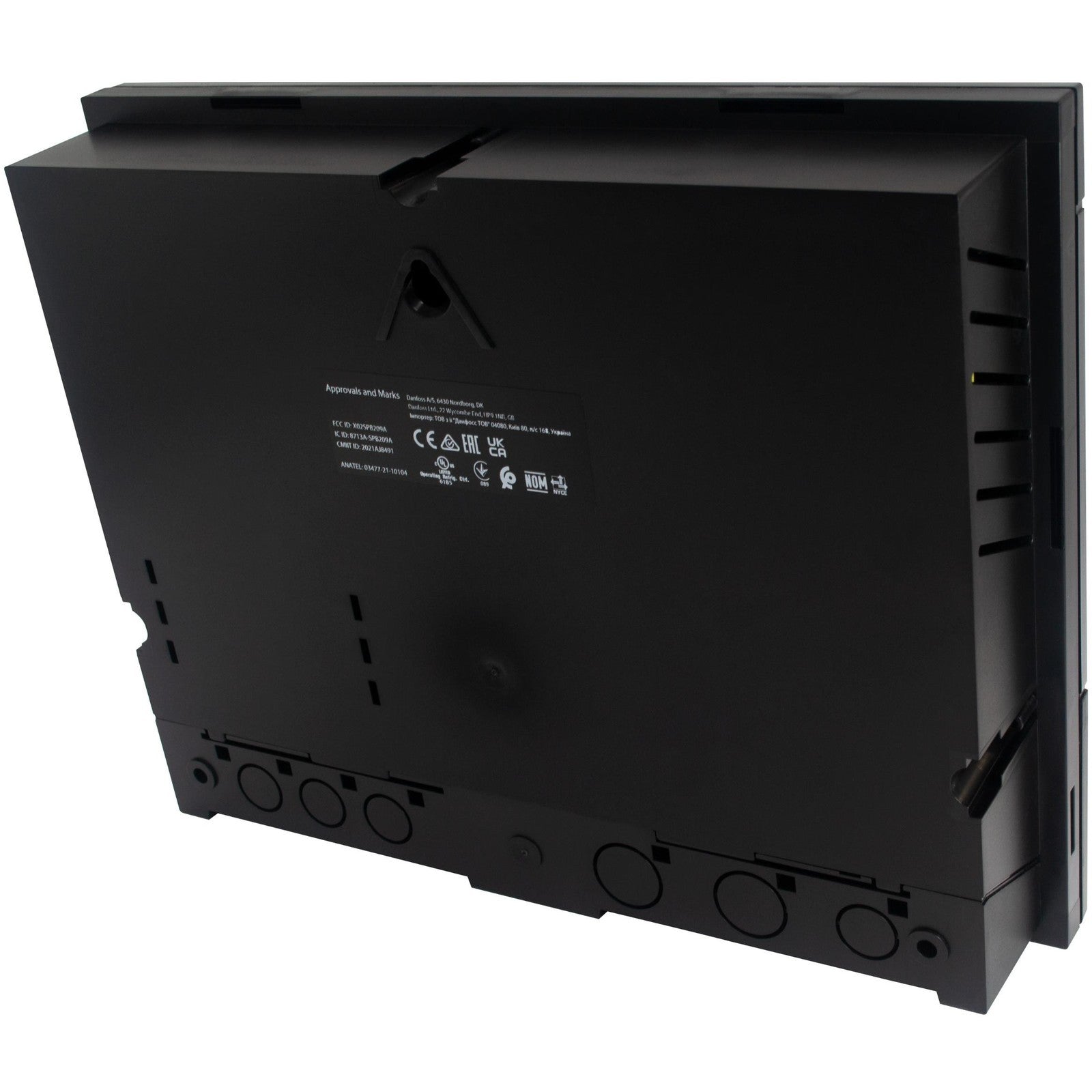

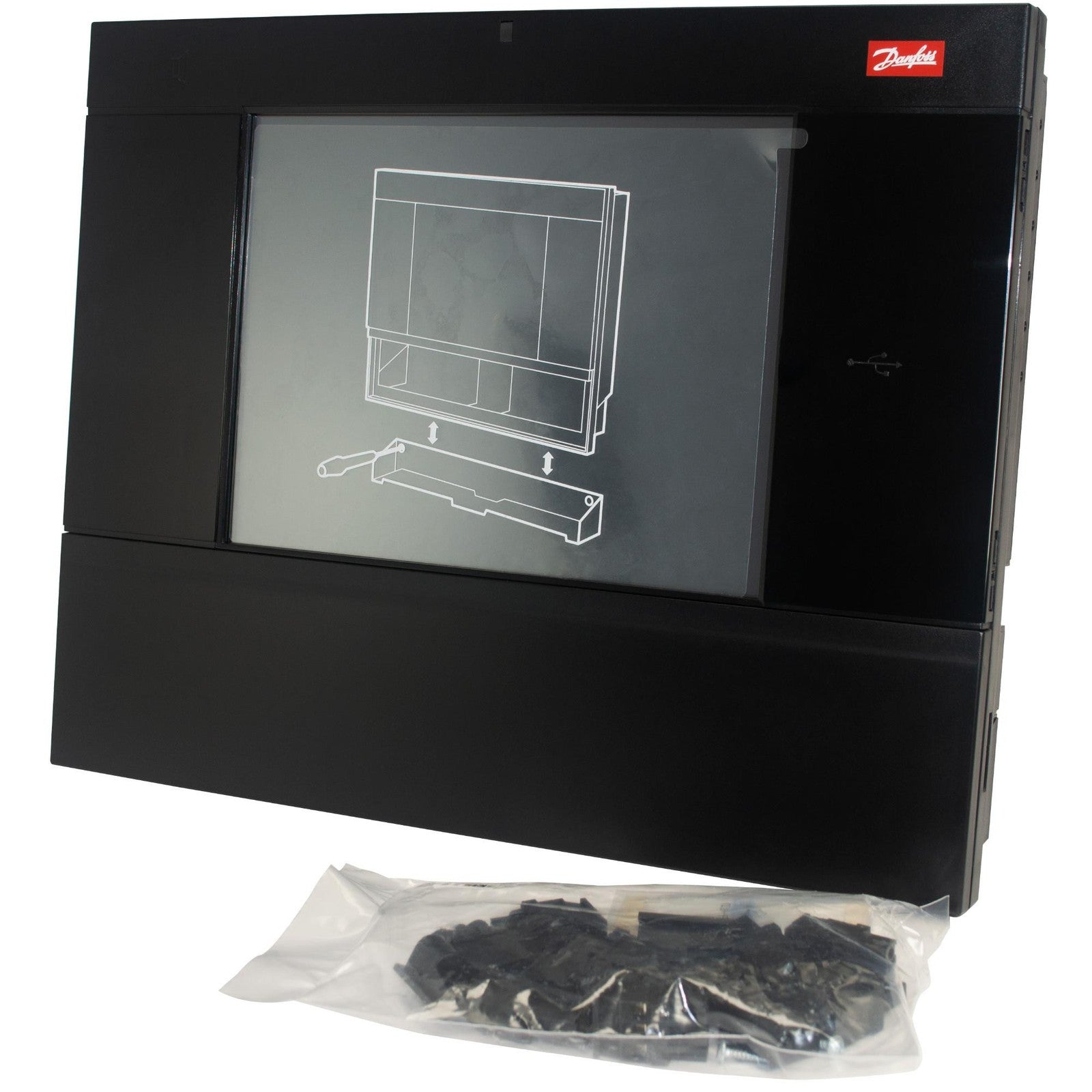

Danfoss 080Z4029 System Manager Monitor Unit LON TP78 2 DO IP20 Process Controller
- Regular price
- $3,599.00
- Sale price
- $3,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 080Z4029
Description
The Danfoss 080Z4029 is a robust system manager monitor unit designed for centralized supervision and regulation in full-store and retro-fit refrigeration installations. Utilizing a LON TP78 communication interface, this process controller manages complex store systems while delivering two digital outputs for reliable alarming and secondary equipment control. Its IP20-rated construction and integrated front display make it an essential solution for commercial refrigeration and process monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Controls & Indicators |
| Part Number | 080Z4029 |
| Subcategory | Temperature/Process Control |
| Controller Type | System Manager |
| Application Area | Full Store / Retro-fit TP78 |
| Communication Type | LON TP78 |
| Digital Outputs (DO) | 2 pc |

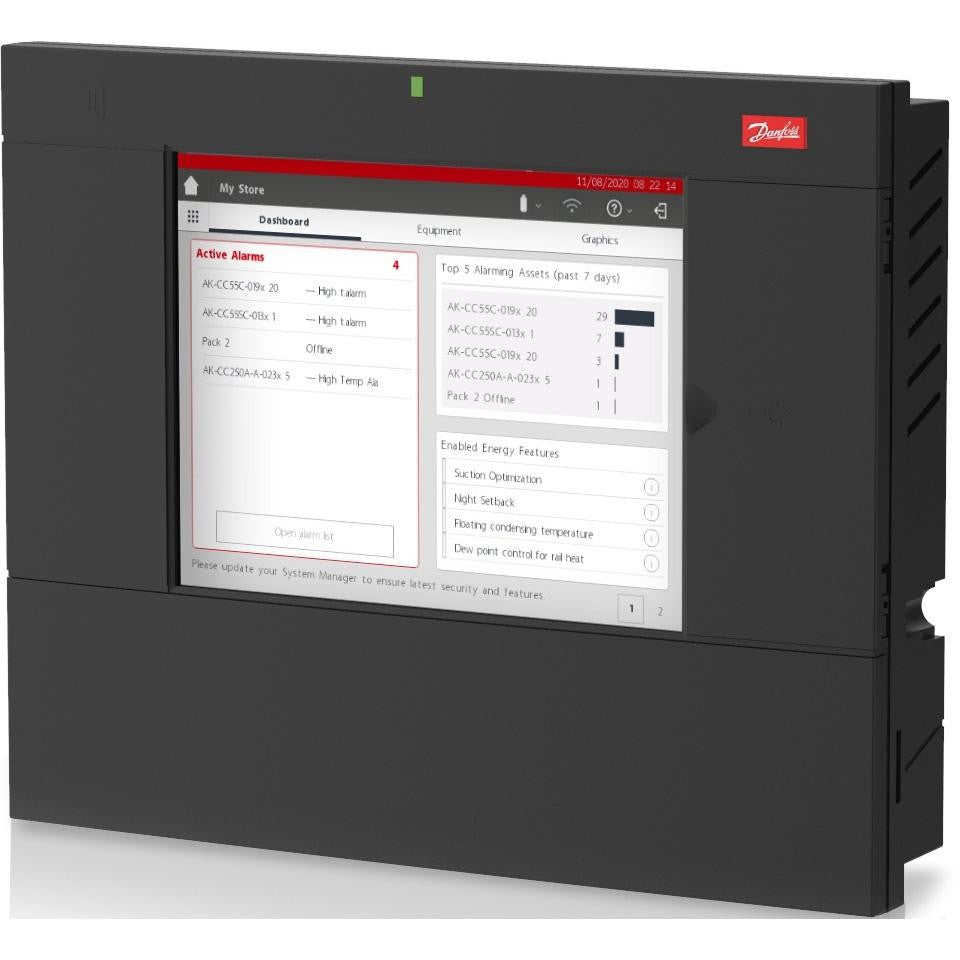

| Display | Front Display Included |
| Supply Frequency | 50/60 Hz |
| Enclosure Rating | IP20 |
| Approvals | C UL US LISTED, C-TICK, CE |
| Batteries Included | No |
| Weight | 2.27 kgs |
Information About 080Z4029
The 080Z4029 is part of the Danfoss system manager product lineup, engineered to provide comprehensive control and data acquisition across commercial facilities. Housed in a durable IP20 enclosure, this unit operates on standard 50/60 Hz supply frequencies without requiring internal battery power. The controller incorporates a clear front display interface, allowing operators to monitor system parameters directly from the control cabinet. Integrated LON TP78 networking technology enables seamless data transmission between distributed controllers and central management nodes.
Key Features:
- System Controller Architecture: Functions as a centralized monitoring hub for retro-fit and full-store setups.
- LON TP78 Communication: High-speed twisted-pair networking ensures stable data exchange across system nodes.
- Dual Digital Outputs: Provides 2 discrete digital outputs for external signaling, alarms, or equipment triggers.
- Front Display Interface: Features an integrated visual panel for direct local parameter monitoring and inspection.
- Global Standards Compliance: Fully CE marked, C-UL-US listed, and C-Tick certified for worldwide installation.
Compact IP20 Enclosure: Protective housing prevents solid particle ingress inside standard electrical enclosures. The 080Z4029 delivers the reliability and precision required for critical refrigeration monitoring and commercial store automation.
