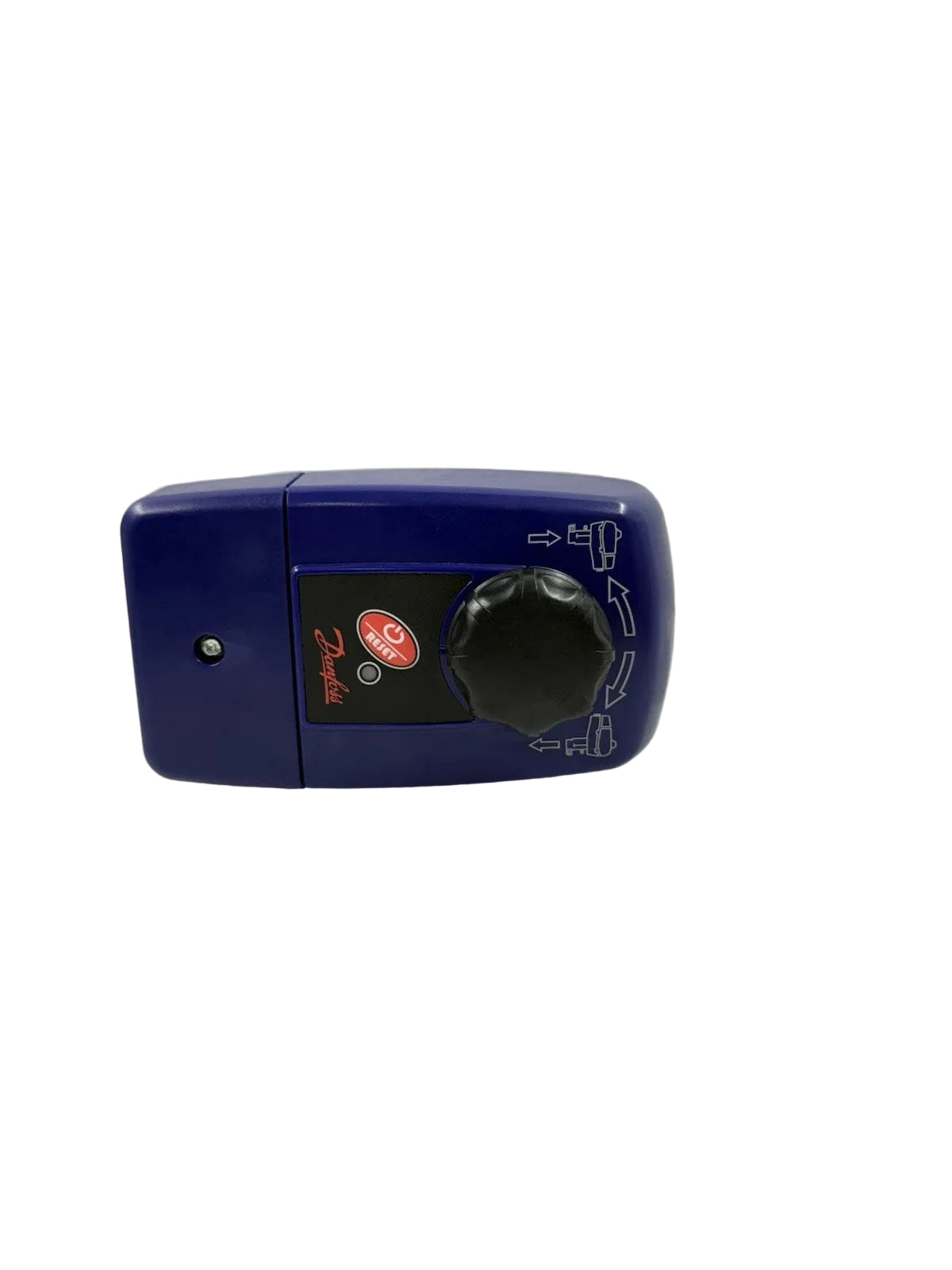

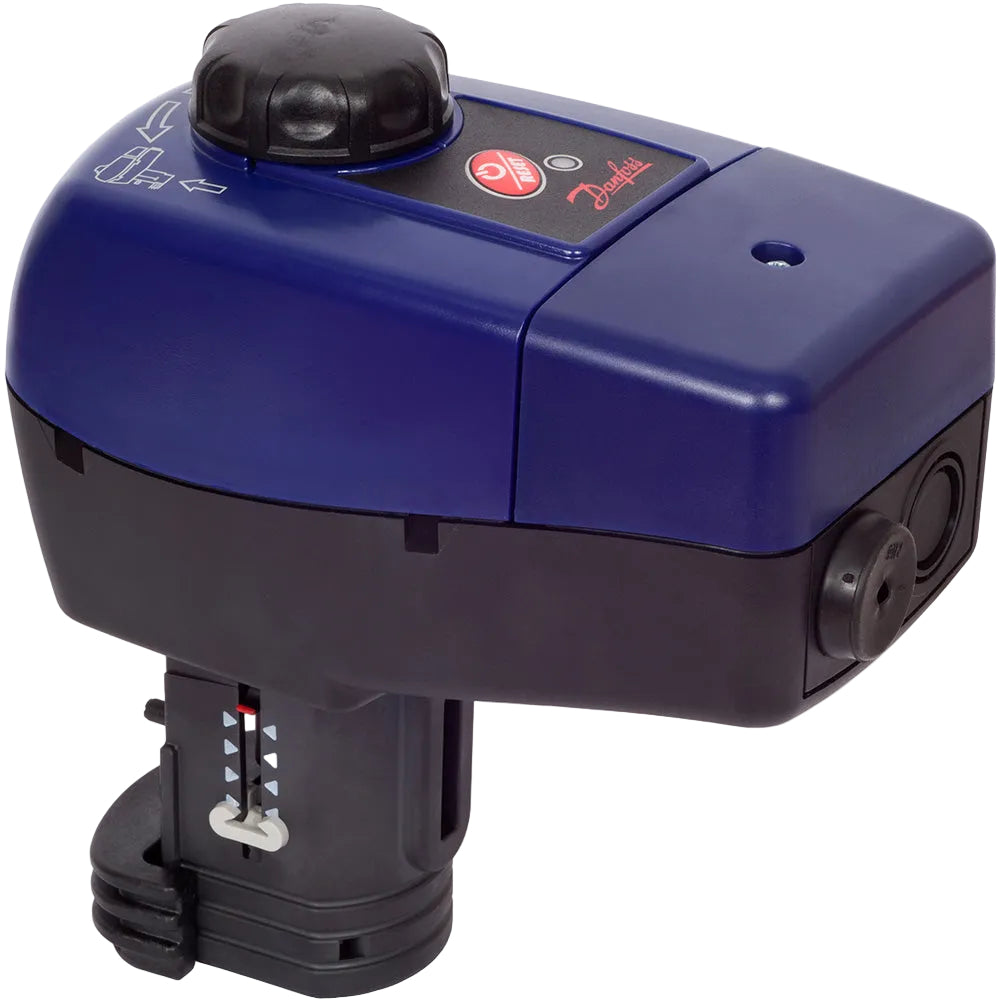

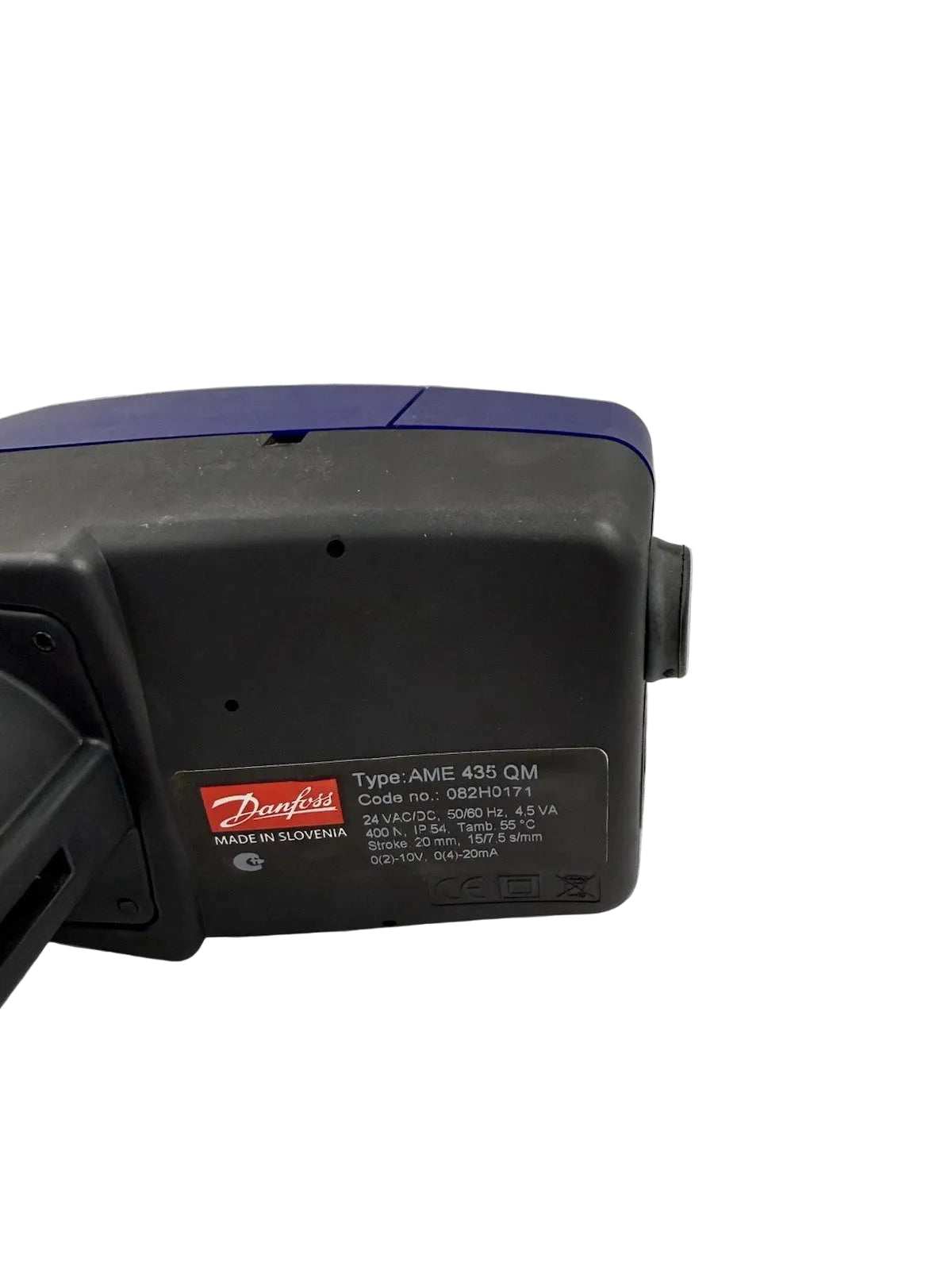

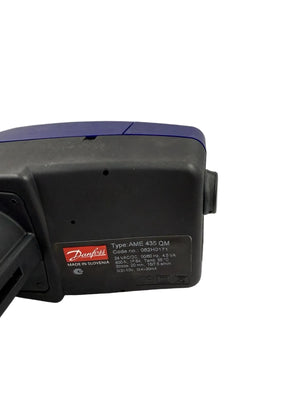

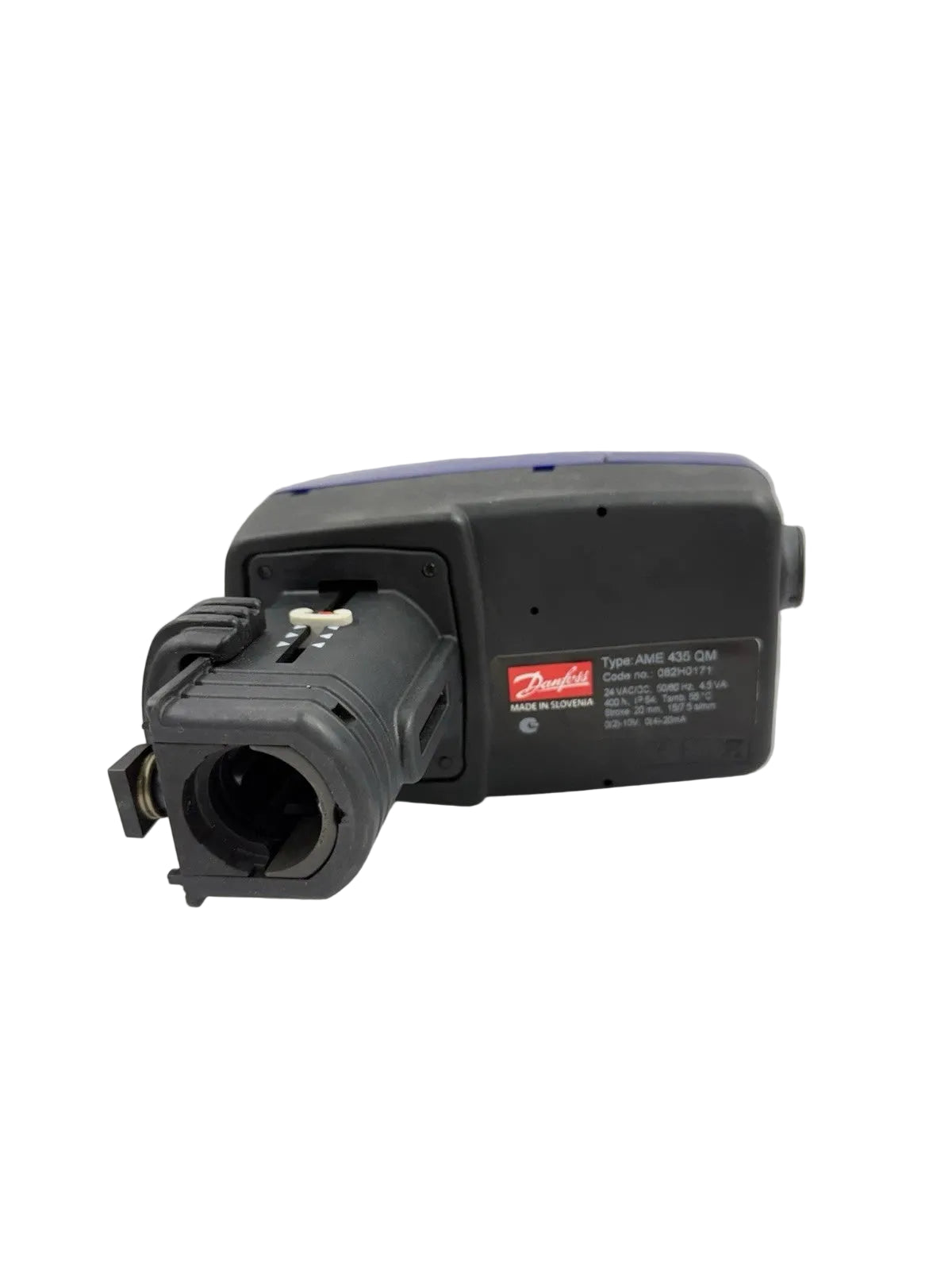

Danfoss 082H0171 AME 435 QM Modulating Valve Actuator
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 082H0171
Description.
The Danfoss 082H0171 is an AME 435 QM electric actuator for modulating control of compatible AB-QM valves from DN 40 to DN 100. It operates on 24 V AC/DC, provides 400 N closing force, and supports a maximum actuator travel of 20 mm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC Controls |
| Part Number | 082H0171 |
| Subcategory | Valve Actuators |
| Actuator Model | AME 435 QM |
| Compatible Valve Series | AB-QM |
| Compatible Valve Size | DN 40–DN 100 |
| Power Supply | 24 V AC/DC |
| Power Consumption | 4.5 VA |
| Control Input | 0–10 V / 2–10 V; 0–20 mA / 4–20 mA |
| Position Output | 0–10 V |
| Closing Force | 400 N |
| Maximum Stroke | 20 mm |
| Actuator Speed | Selectable: 7.5 s/mm or 15 s/mm |
| Maximum Medium Temperature | 120°C |
| Ambient Temperature | 0°C to 55°C |
| Protection Rating | IP54, NEMA 2 |
| Weight | 0.70 kg |
Information About 082H0171
The 082H0171 belongs to Danfoss’s AME 435 QM actuator range for proportional valve control. It accepts 0–10 V or 0–20 mA control input, with selectable alternate ranges of 2–10 V or 4–20 mA. The actuator provides a 0–10 V position output and adjusts to a maximum 20 mm stroke. It is designed for AB-QM valves in sizes DN 40–100, with a listed medium temperature limit of 120°C.
Key Features:
- Modulating Valve Actuation: Controls compatible AB-QM valves in response to an analog control signal.
- Valve Compatibility: Designed for Danfoss AB-QM valves in sizes DN 40–100.
- 24 V AC/DC Supply: Operates on 24 V AC or DC power with a listed consumption of 4.5 VA.
- Selectable Control Input: Accepts 0–10 V or 0–20 mA, with selectable 2–10 V or 4–20 mA signal ranges.
- Position Feedback Output: Provides a 0–10 V output signal to indicate actuator position.
- 20 mm Maximum Stroke: Supports valve travel up to 20 mm for the specified actuator configuration.
- 400 N Closing Force: Provides the specified actuator force for compatible valve operation.
- HVAC Operating Conditions: Rated for ambient temperatures from 0°C to 55°C, with IP54 protection and NEMA 2 classification.
The 082H0171 delivers the reliability and precision required for modulating control of compatible HVAC valves.
