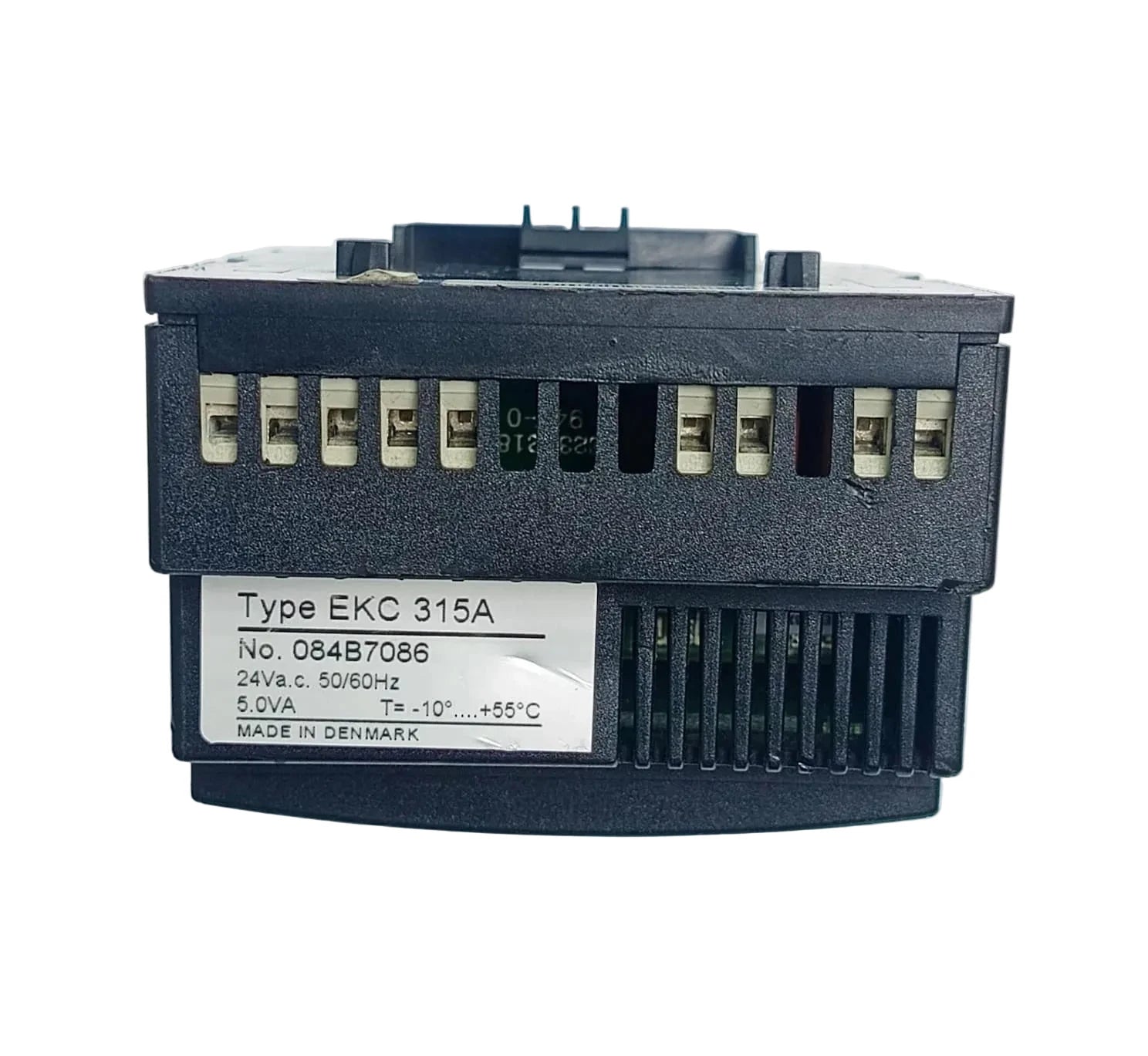

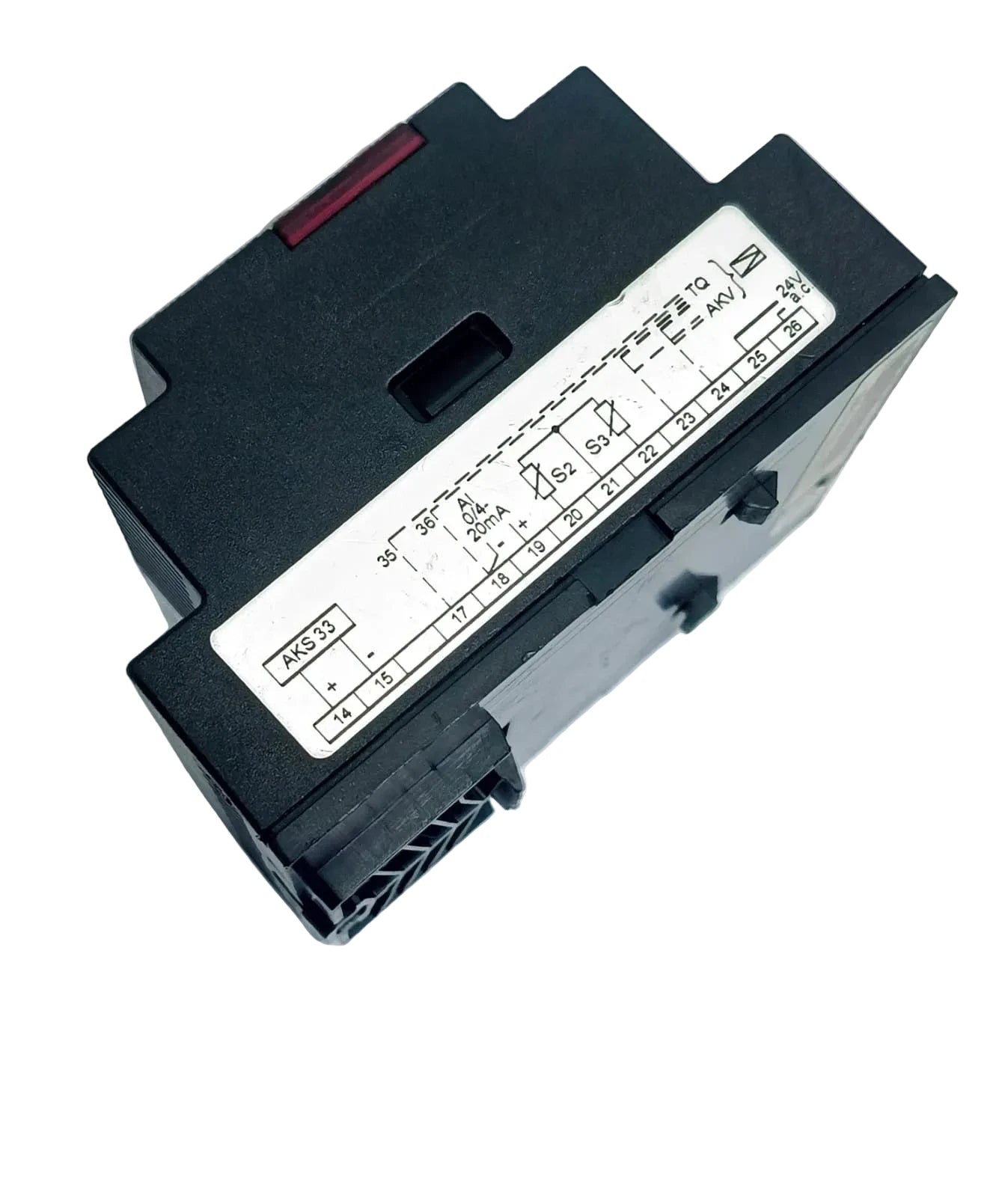

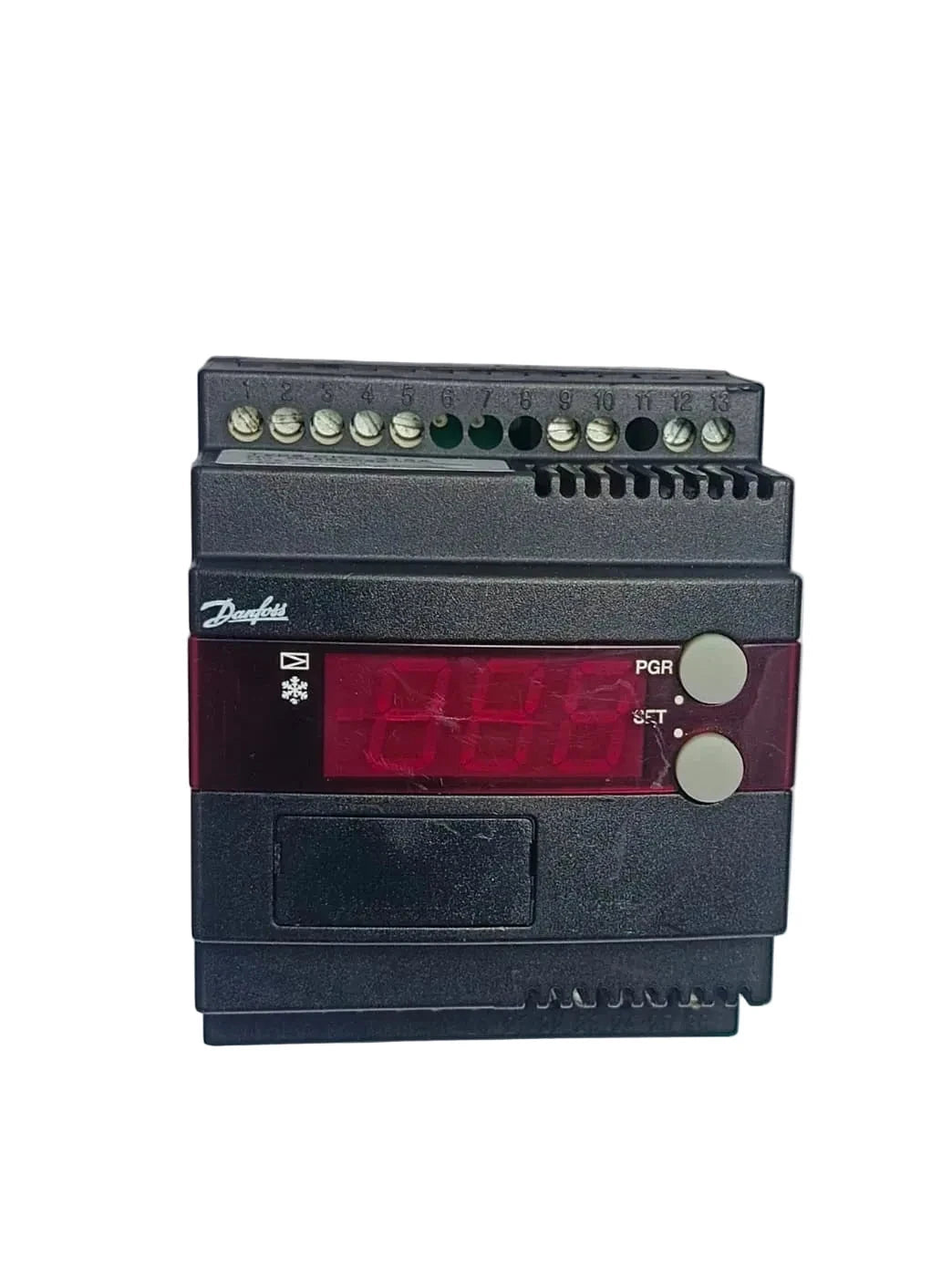

Danfoss 084B7086 EKC 315A Electronic Superheat Controller
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 084B7086
Description
The Danfoss 084B7086 EKC 315A Superheat Controller is designed to regulate evaporator superheat and temperature in refrigeration systems using electronically controlled expansion valves. It operates on a 24 V AC supply and supports analog inputs, relay outputs, and communication options for integration with compatible refrigeration controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC & Refrigeration |
| Part Number | 084B7086 |
| Subcategory | Superheat Controllers |
| Product Model | EKC 315A |
| Product Type | Electronic Superheat Controller |
| Application | Refrigeration and evaporator control |
| Supply Voltage | 24 V AC |
| Operating Frequency | 50/60 Hz |
| Power Consumption | 5 VA |
| Analog Inputs | 2 |
| Digital Inputs | 1 |
| Relay Outputs | 2 × SPST |
| Analog Output Signal | 0–20 mA or 4–20 mA |
| Communication Options | LON, RS-485 |
| Compatible Valve Types | AKV, AKVA, ICM with ICAD |
| Mounting Method | DIN rail |
| Display | 3-digit LED display with status indicators |
| Operating Temperature | -10°C to +55°C |
| Enclosure Protection | IP20 |
| Certifications and Markings | CE, EAC, UKCA and other listed approvals |
| Weight | 0.71 lb |
Information About 084B7086
The 084B7086 is an electronic valve controller from Danfoss's EKC 315A series. It supports compatible valves such as AKV, AKVA, and ICM with ICAD, depending on the system configuration. The controller provides two analog inputs and one digital input, with LON and RS-485 communication options listed for the model. It is designed for DIN rail mounting and is a discontinued product.
Key Features:
-
Superheat Regulation: Controls evaporator superheat and temperature in compatible refrigeration systems.
-
Electronic Valve Control: Supports specified expansion and motorized valve configurations.
-
24 V AC Supply: Operates from a 24 V AC power source.
-
Analog Inputs: Provides two analog inputs for connected sensors and control signals.
-
Digital Input: Includes one digital input for compatible control functions.
-
Communication Options: Supports LON and RS-485 communication.
-
DIN Rail Mounting: Designed for installation inside electrical control panels.
-
Compact Design: Weighs approximately 0.32 kg (0.71 lb) net.
The 084B7086 delivers the reliability and precision required for electronic expansion valve control in refrigeration systems.
