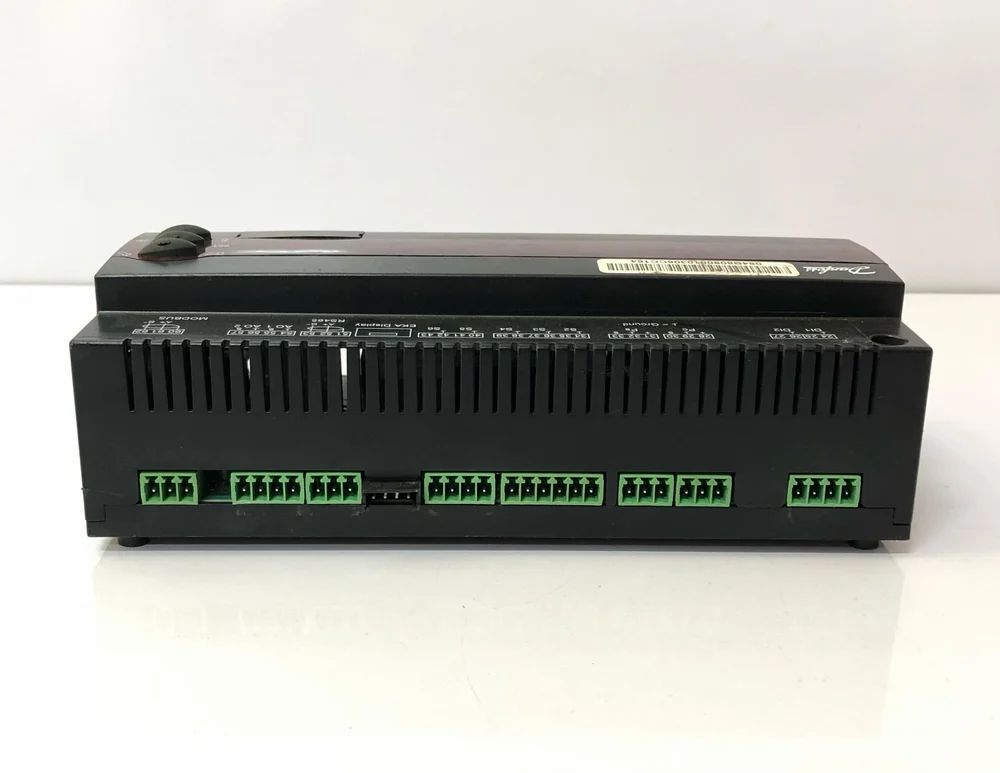

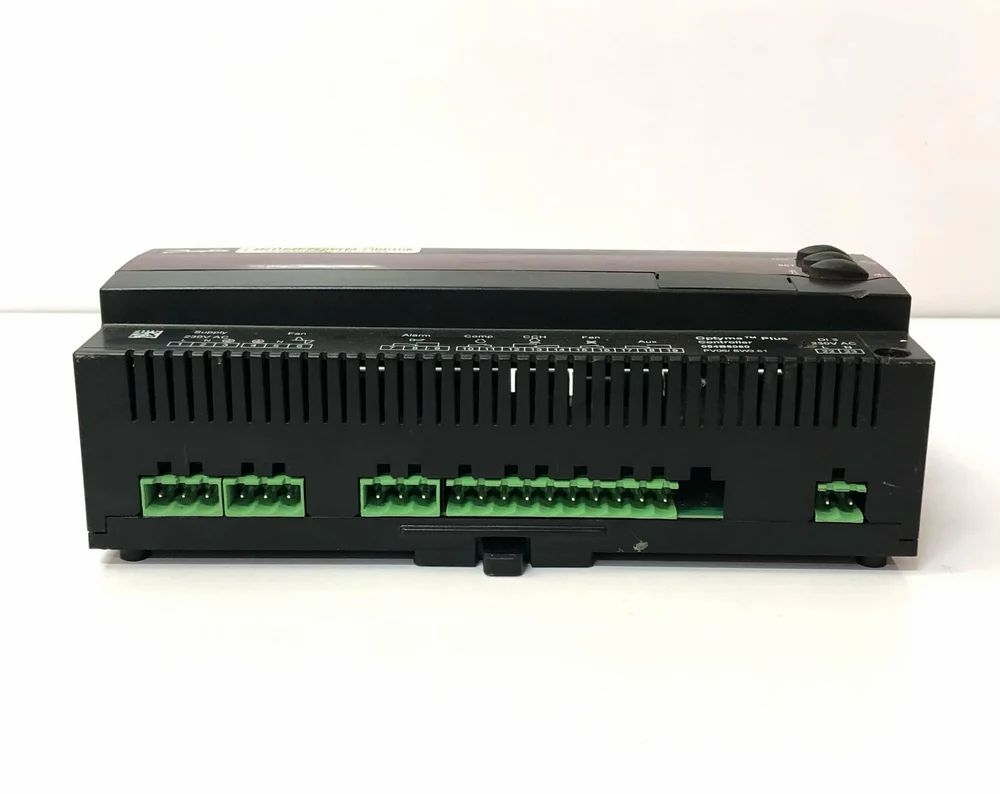

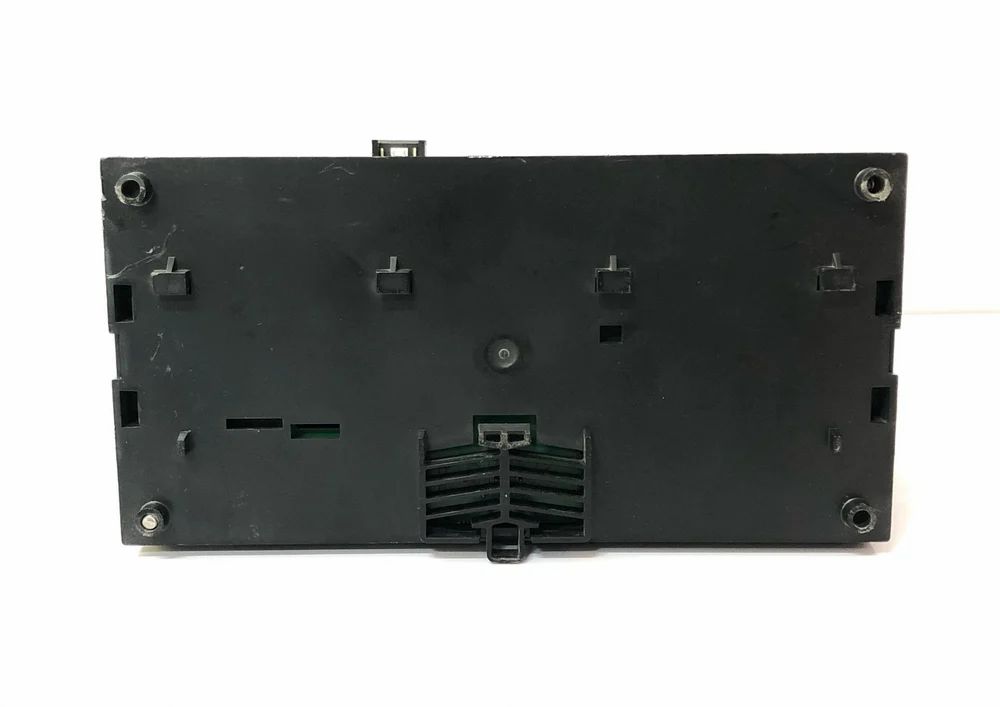

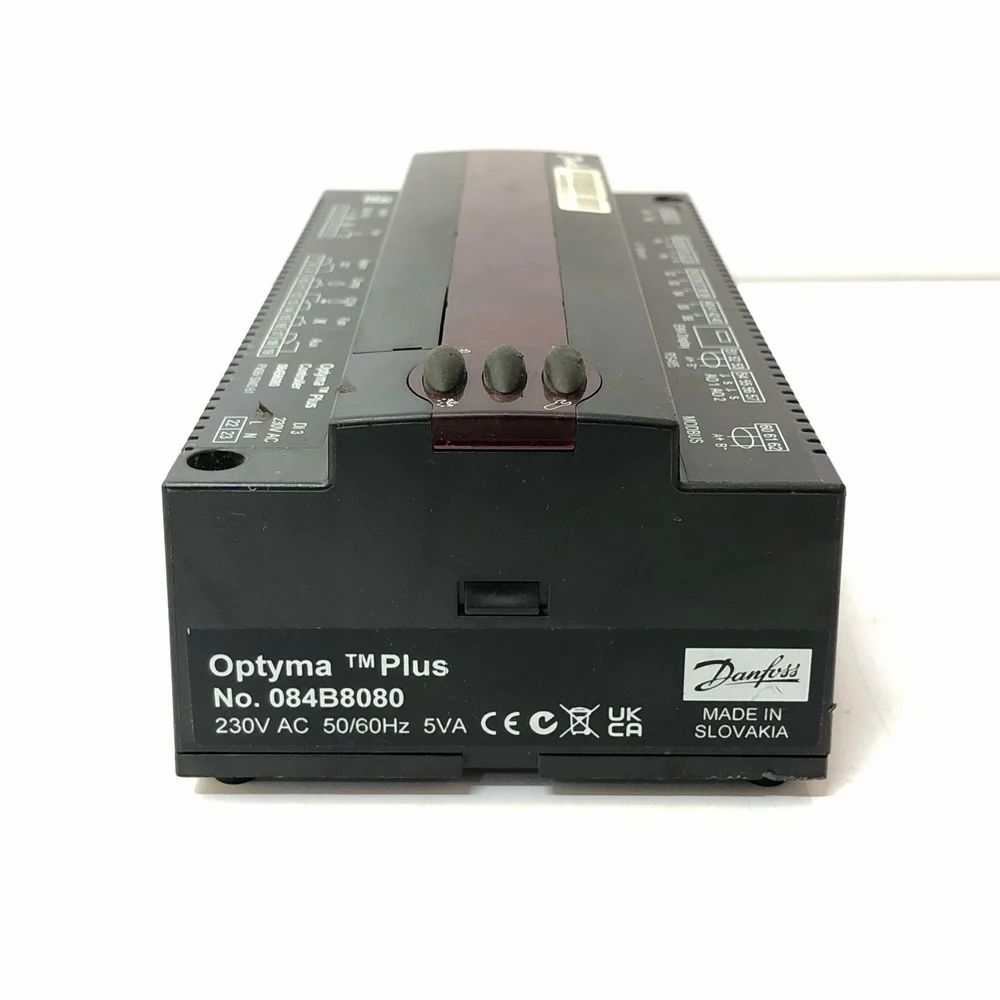

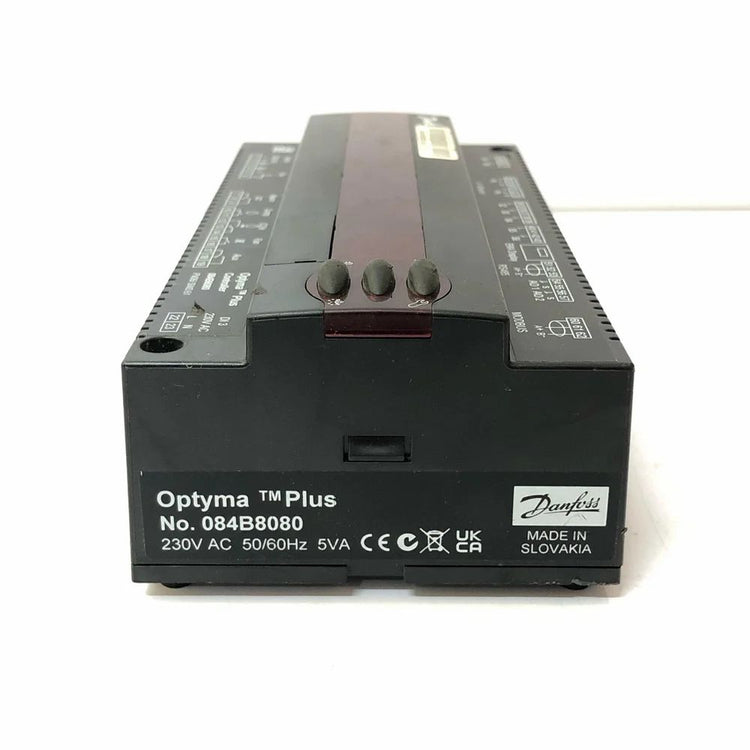

Danfoss 084B8080 Optyma Plus Condensing Unit Controller with Modbus RS485 Communication
- Regular price
- $565.00
- Sale price
- $565.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 084B8080
Description
The Danfoss 084B8080 is an Optyma Plus controller designed to manage compressor and condensing unit operation in commercial refrigeration systems. It provides integrated monitoring and control of refrigeration components using multiple analog and digital inputs and outputs, helping maintain stable system performance and efficient operation. The controller supports Modbus RS485 communication for seamless integration into refrigeration control networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC/Refrigeration Controls |
| Part Number | 084B8080 |
| Subcategory | Condensing Unit Controller |
| Product Type | Optyma Plus Controller |
| Application Area | Condensing Unit |
| Controller Type | Condensing Unit Controller |
| Supply Voltage | 230 VAC |
| Operating Frequency | 50/60 Hz |
| Power Consumption | 5 VA |
| Analog Inputs | 7 |
| Analog Outputs | 2 |
| Digital Inputs | 3 |
| Digital Outputs | 5 |
| TRIAC Outputs | 1 |
| Communication Protocol | Modbus RS485 |
| Display | Integrated Front Display |
| Optional Display Modules | EKA 163B, EKA 164B |
| Approvals | CE, C-TICK, CMIM |
| Included | Controller with Terminals |
| Weight | 0.63 kg (1.39 lbs) |
Information About 084B8080
The 084B8080 is a Danfoss Optyma Plus condensing unit controller developed for commercial refrigeration applications requiring dependable compressor and condenser management. It operates from a 230 VAC power supply and incorporates seven analog inputs, three digital inputs, five digital outputs, two analog outputs, and one TRIAC output to support comprehensive equipment control. The controller features a built-in front display and is compatible with optional Danfoss EKA 163B and EKA 164B display modules for enhanced system monitoring and configuration. Designed for integration into modern refrigeration systems, it supports Modbus RS485 communication and complies with CE, C-TICK, and CMIM approvals for international installations.
Key Features:
- Optyma Plus Platform: Designed specifically for Danfoss Optyma Plus refrigeration control systems.
- Condensing Unit Control: Provides centralized management of compressors, condensers, and associated refrigeration components.
- Extensive Input Capacity: Includes 7 analog inputs and 3 digital inputs for comprehensive system monitoring.
- Multiple Output Channels: Features 5 digital outputs, 2 analog outputs, and 1 TRIAC output for flexible equipment control.
- Modbus RS485 Communication: Enables integration with supervisory and building management systems.
- Front Display Interface: Includes an integrated display and supports optional EKA 163B and EKA 164B display modules.
- 230 VAC Power Supply: Operates on standard 230 VAC, 50/60 Hz electrical systems.
- International Compliance: Certified with CE, C-TICK, and CMIM approvals for commercial refrigeration applications.
The 084B8080 delivers the reliability and precision required for efficient compressor and condensing unit control in commercial refrigeration systems.
