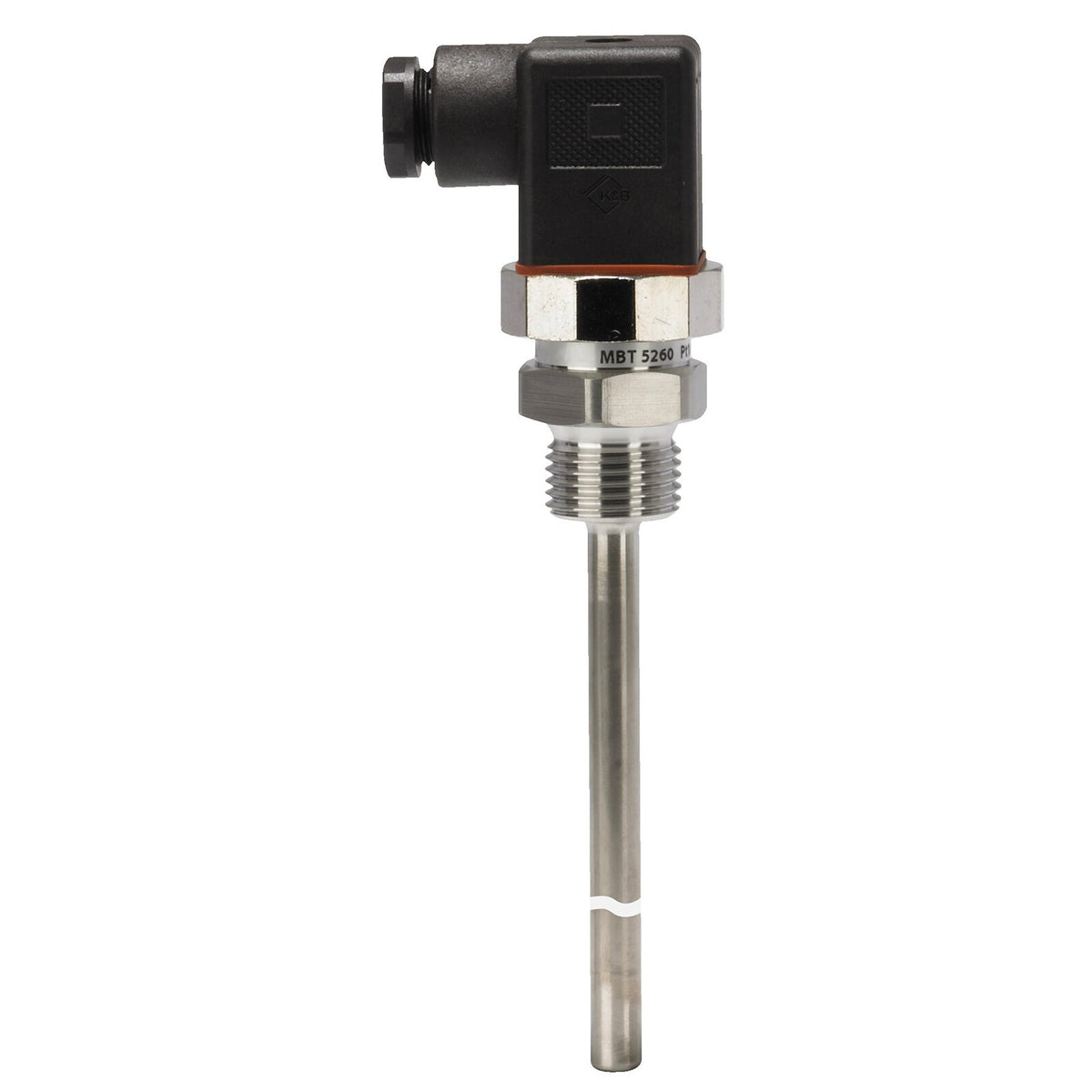

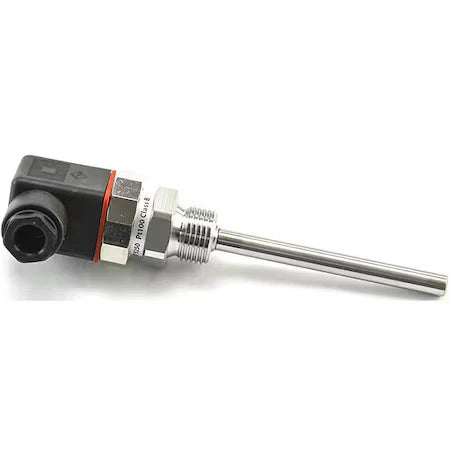

Danfoss 084Z8012 MBT 5250 Pt100 Temperature Sensor With 100 mm Probe and G 1/2 A Process Connection
- Regular price
- $359.00
- Sale price
- $359.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 084Z8012
Description
The Danfoss 084Z8012 is an MBT 5250 resistance temperature sensor for monitoring cooling water, lubricating oil, hydraulic oil, and refrigeration systems. Its Pt100 sensing element measures temperatures from −50°C to 200°C through a 100 mm stainless steel insertion probe.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Sensors & Switches |
| Part Number | 084Z8012 |
| Subcategory | Thermocouple/RTD |
| Series | MBT 5250 |
| Type Designation | MBT 5250-0000-100-120 |
| Sensor Type | Platinum resistance temperature detector, Pt100 |
| Nominal Resistance | 100 ohms at 0°C |
| Measuring Range | −50°C to 200°C / −58°F to 392°F |
| Accuracy Class | Class B according to EN 60751 |
| Insertion Length | 100 mm / approximately 3.94 inches |
| Process Connection | Male G 1/2 A, ISO 228-1 |
| Protection Tube | AISI 316 Ti stainless steel, 8 mm outside diameter |
| Electrical Connection | EN 175301-803-A angular connector with Pg 9 cable entry |
| Wiring Configuration | 2-wire sensing element; 3 connector terminals |
| Output Signal | Resistance, in ohms |
| Measuring Insert | Exchangeable |
| Enclosure Rating | IP65 |
| Weight | 2.00 lbs |
Information About 084Z8012
The 084Z8012 is a member of Danfoss’s MBT 5250 industrial temperature sensor family. Its AISI 316 Ti protection tube and stainless steel process connection provide the wetted construction. The replaceable measuring insert uses a silicone cable to improve resistance to vibration. Integration requires a compatible Pt100 resistance input, with electrical connection through an EN 175301-803-A angular connector and Pg 9 cable entry.
Key Features:
- Platinum Sensing Element: Uses one Pt100 element with a nominal resistance of 100 ohms at 0°C.
- Measuring Range: Covers process temperatures from −50°C to 200°C.
- Insertion Length: Provides a fixed 100 mm insertion depth.
- Threaded Connection: Mounts through a male G 1/2 A process connection.
- Replaceable Insert: Allows replacement of the measuring insert within the sensor assembly.
- Stainless Steel Protection: Uses an AISI 316 Ti protection tube with an 8 mm outside diameter.
- Environmental Protection: Features an IP65 enclosure rating when correctly assembled.
The 084Z8012 delivers the reliability and precision required for temperature monitoring in industrial fluid systems and marine machinery.
