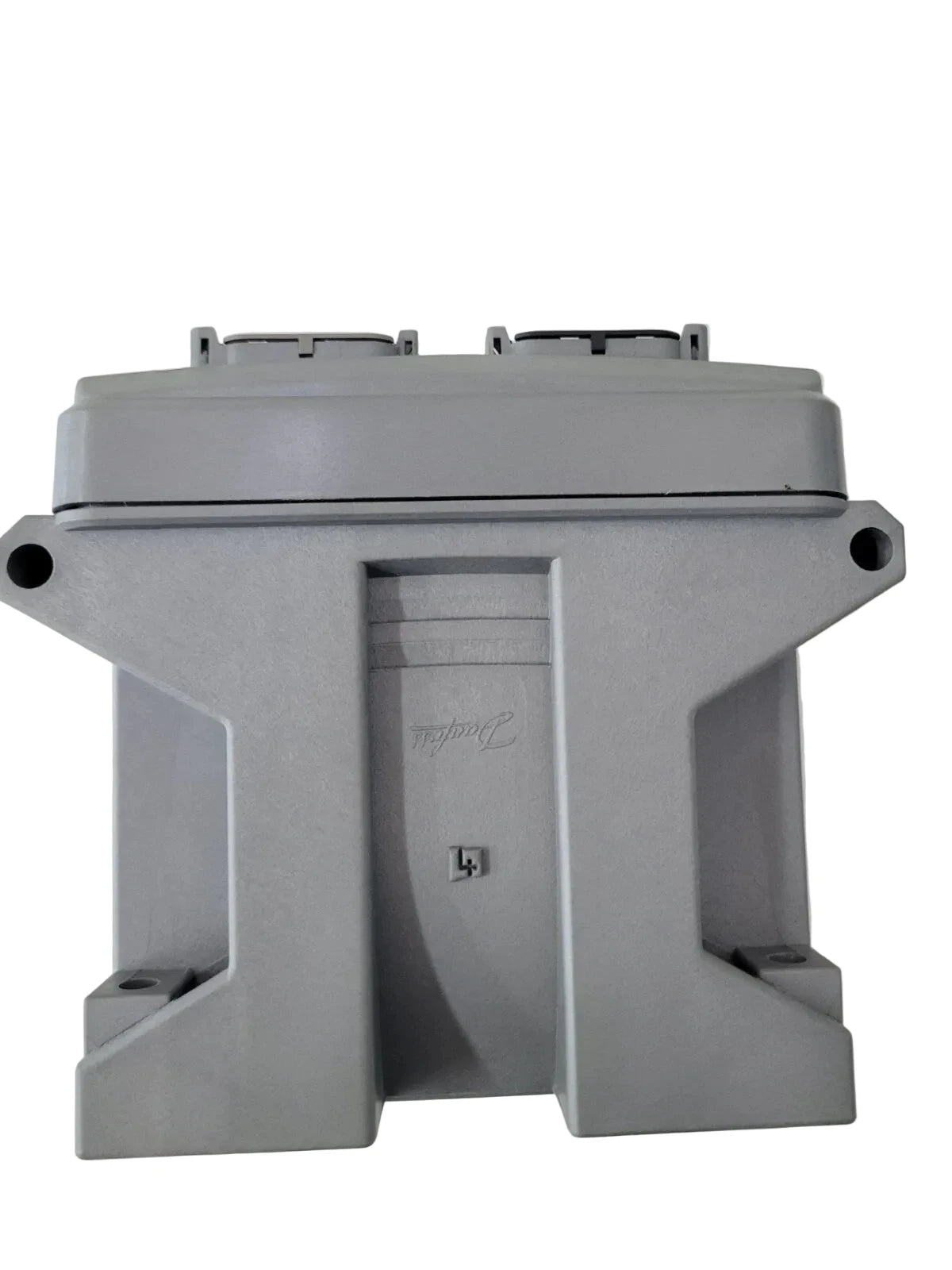

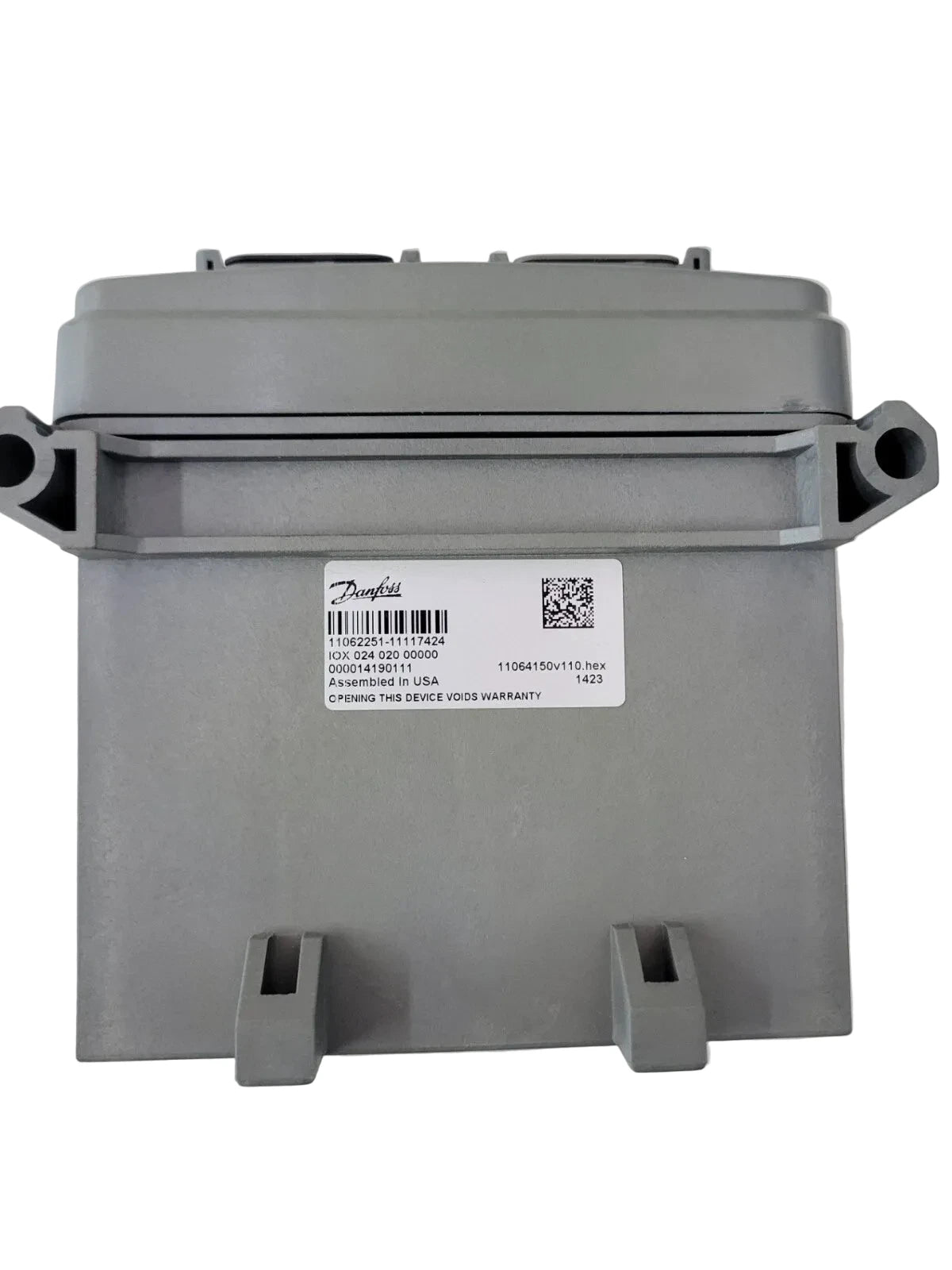

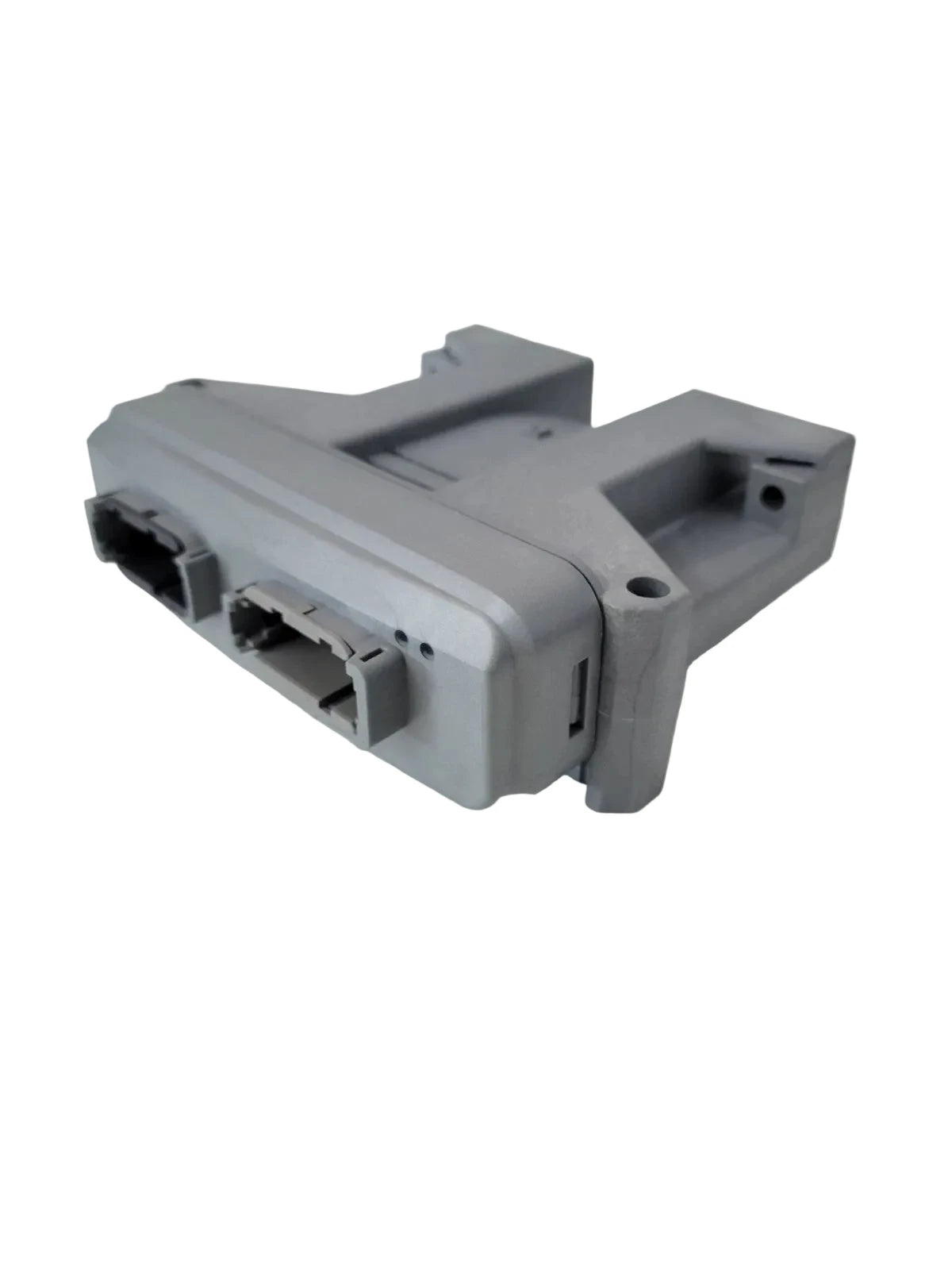

Danfoss 11062251 PLUS+1 IOX024-020 Input/Output Expansion Module
- Regular price
- $929.00
- Sale price
- $929.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11062251
Description
The Danfoss 11062251 PLUS+1 IOX024-020 is an input/output expansion module designed to extend the control capabilities of compatible mobile machine management systems. It provides eight configurable inputs, eight configurable outputs, and CAN 2.0B communication, supporting flexible signal processing for hydraulic and other mobile equipment control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Industrial Automation |
| Part Number | 11062251 |
| Subcategory | I/O Expansion Modules |
| Product Family | PLUS+1 |
| Model | IOX024-020 |
| Product Type | Input/Output Expansion Module |
| Number of Connection Pins | 24 |
| Connectors | 2 × DEUTSCH DTM 12-pin |
| Supply Voltage | 9–36V DC |
| Communication Interface | 1 × CAN 2.0B |
| Total Inputs | 8 |
| Universal Inputs | 5 |
| Digital Inputs | 2 |
| Fixed-Range Analog Inputs | 1 |
| Total Outputs | 8 |
| Digital Output Rating | 3A, configurable source or sink |
| PWM Frequency | 30–4,000Hz |
| Frequency Input Range | 1Hz–10kHz |
| Analog Input Ranges | 0–5.25V DC or 0–36V DC |
| External Sensor Supply | Regulated 5V DC, up to 200mA |
| Mounting Options | Stack, end, or side |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Ingress Protection Rating | IP67 |
| EMI/RFI Rating | 100V/m |
| Compliance | CE |
| Programming Environment | PLUS+1 GUIDE |
| Weight | 0.88 lb |
Information About 11062251
The 11062251 is part of the Danfoss PLUS+1 family of mobile machine management products and is identified as the IOX024-020 expansion module. It connects to a compatible PLUS+1 controller, allowing its inputs and outputs to be configured through the PLUS+1 GUIDE development environment. Two individually keyed DEUTSCH DTM 12-pin connectors provide 24 connection pins, while stack, end, and side mounting options accommodate different installation layouts. Its internally monitored 9–36V DC supply, configurable signal interfaces, and regulated 5V sensor power support integration with compatible sensors, actuators, and proportional valve control systems.
Key Features:
-
Configurable Inputs: Provides eight inputs, including five universal, two digital, and one fixed-range analog input.
-
Universal Outputs: Includes eight configurable outputs supporting digital, PWM, and PVG valve control functions.
-
CAN Communication: Features one CAN 2.0B port for communication with compatible PLUS+1 control systems.
-
Wide Supply Voltage: Operates from a 9–36V DC power supply with internal voltage monitoring.
-
Flexible Signal Configuration: Supports analog ranges of 0–5.25V DC or 0–36V DC and frequency inputs from 1Hz to 10kHz.
-
PWM Control: Supports PWM frequencies from 30Hz to 4,000Hz, including configurable current-controlled operation.
-
Sensor Power Supply: Provides regulated 5V DC output for external sensors, rated up to 200mA.
-

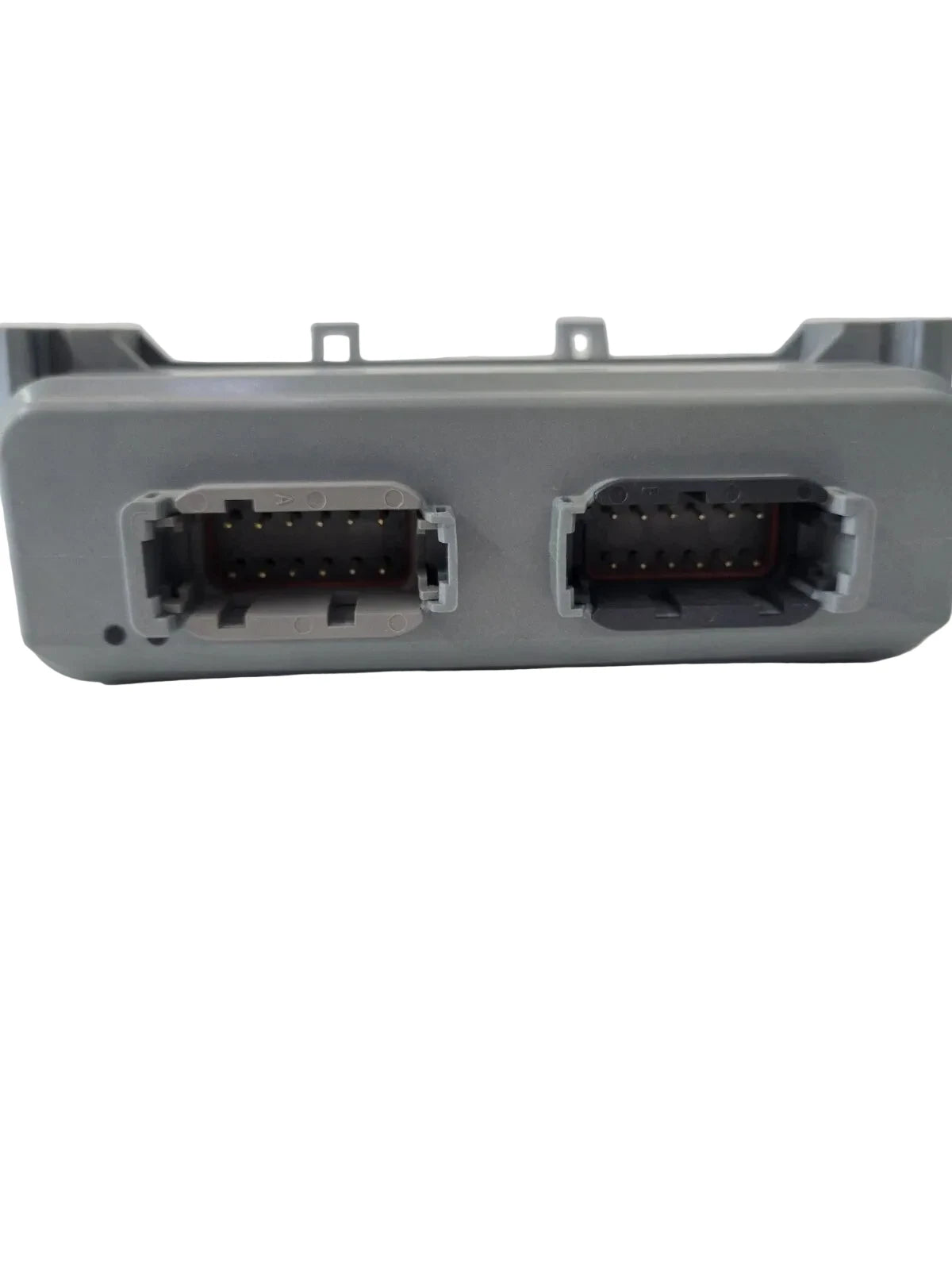

Flexible Mounting: Supports stack, end, or side mounting and uses two keyed DEUTSCH DTM 12-pin connectors.
The 11062251 delivers the reliability and precision required for configurable input/output expansion in mobile machinery and industrial control systems.
