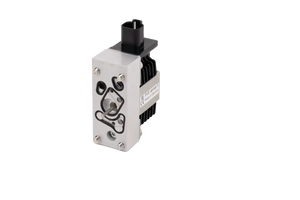

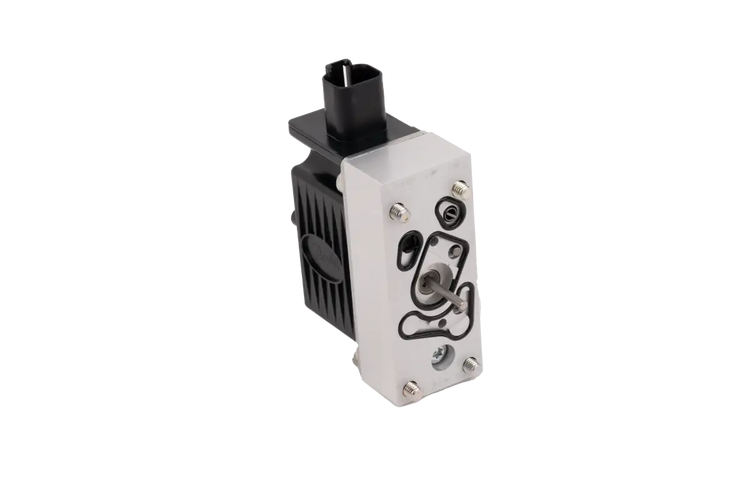

Danfoss 11103692 PVEA16 Series 6 Proportional Electrohydraulic Actuator for PVG 16 Valves

Description

The Danfoss 11103692 is a PVEA16 Series 6 proportional electrohydraulic actuator designed for precise spool positioning in PVG 16 directional control valves. Operating with an 11–32 VDC power supply and ratiometric control signal, it regulates hydraulic flow by converting electrical commands into proportional valve movement. Its integrated spool position feedback, IP67 protection, and power-saving functionality support reliable hydraulic control in mobile machinery and industrial equipment.

Technical Specifications

Information About 11103692

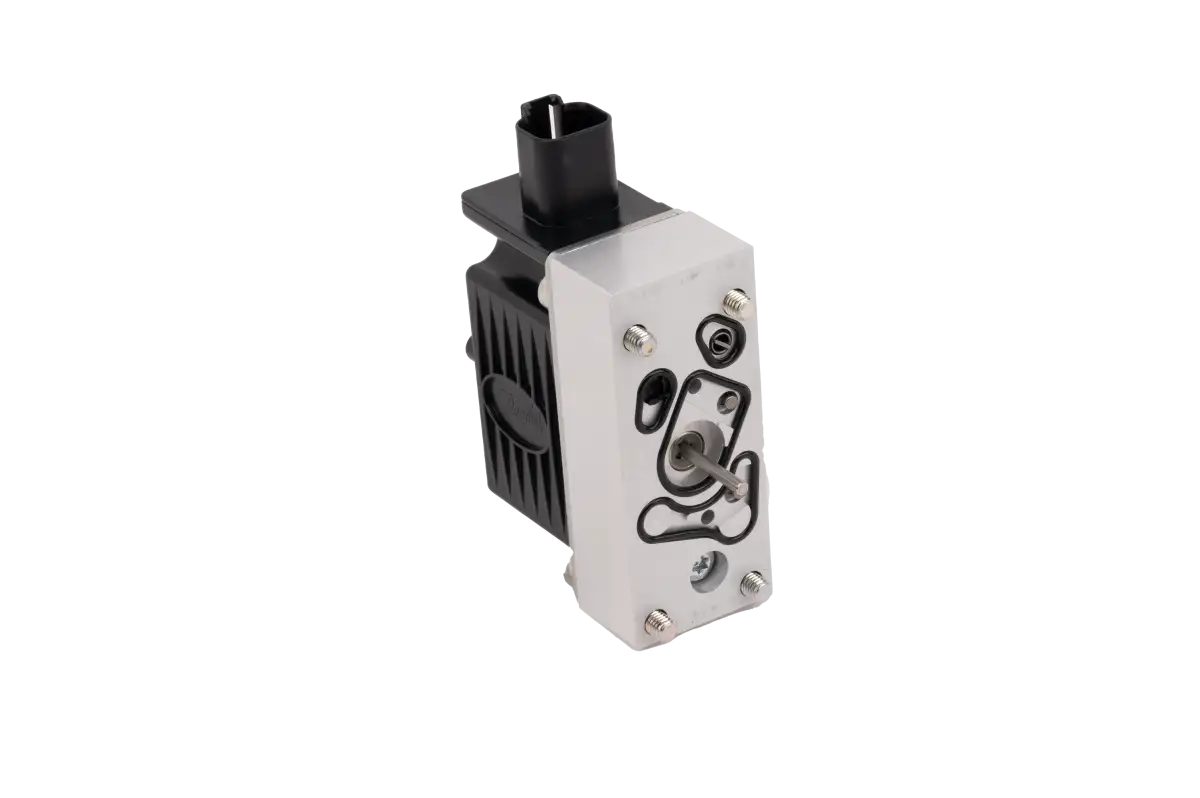

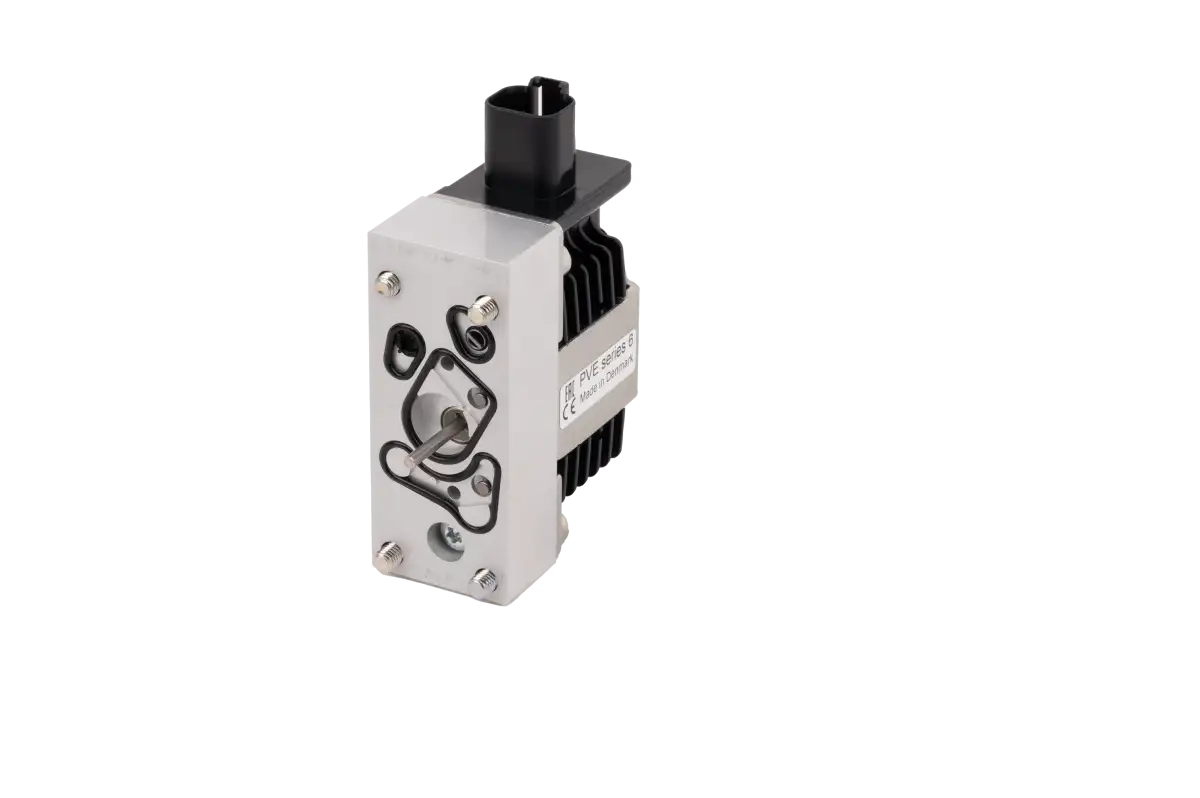

The 11103692 is a PVEA16 Series 6 electrical actuator developed by Danfoss Power Solutions for integration with PVG 16 proportional hydraulic valve assemblies. It features a compact 79 mm housing, a four-pin Deutsch DT04 electrical connector oriented 90 degrees upward, and a sealed PVE16 O-ring valve interface. The actuator incorporates proportional ratiometric control, spool position indication, passive fault monitoring, and an electrical disable function with power-saving capability. Designed for electrohydraulic control systems, it supports bidirectional spool operation with defined response characteristics and is identified by Danfoss as a phased-out product with replacement part number 11313922.

Key Features:

• Proportional Hydraulic Control: Converts ratiometric electrical input signals into controlled spool displacement for accurate hydraulic flow regulation.

• Wide Operating Voltage: Supports an 11–32 VDC supply range for integration with different mobile and industrial electrical systems.

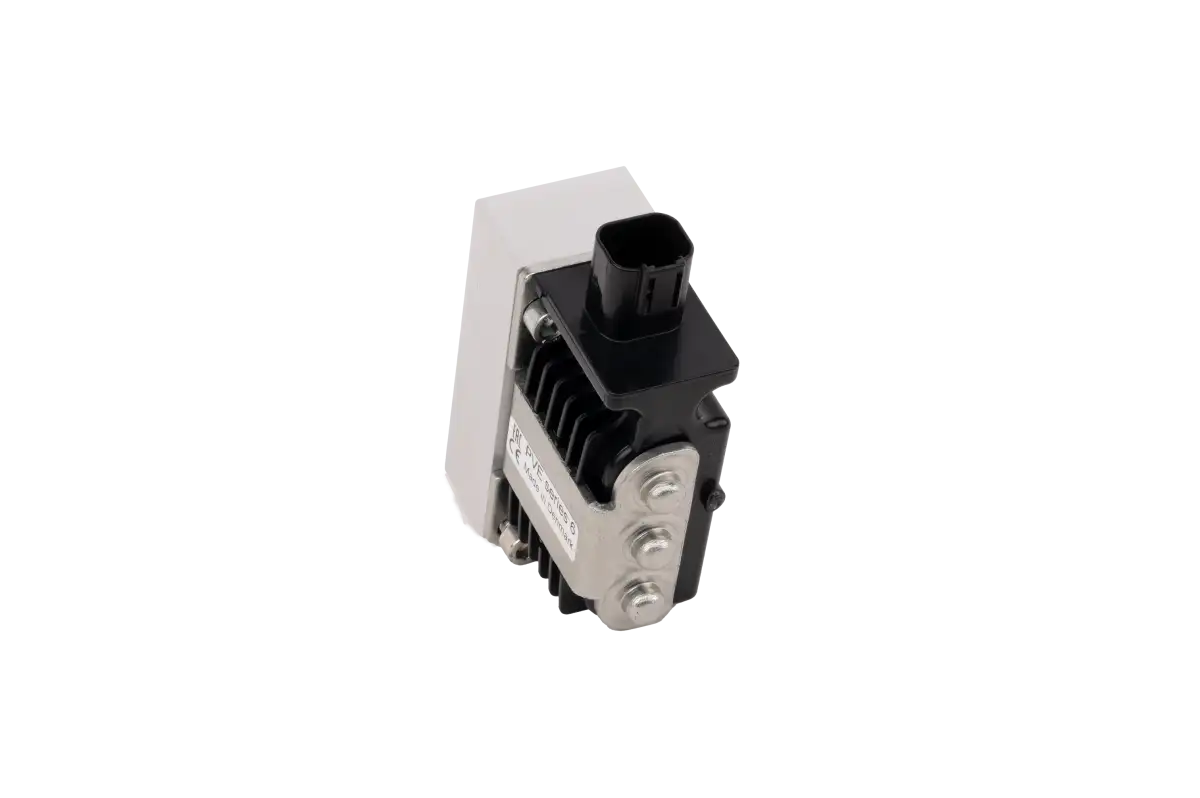

• Deutsch Electrical Connector: Incorporates a four-pin Deutsch DT04 connection with a 90-degree upward orientation.

• Defined Response Characteristics: Provides 120 ms on-stroke response and 225 ms de-stroke reaction in both A and B directions.

• Integrated Spool Position Feedback: Supplies a spool position output signal for monitoring valve movement during operation.

• Environmental Protection: Features an IP67-rated enclosure for resistance to dust ingress and temporary water immersion under specified conditions.

• Fault Indication and Power Saving: Includes indication-only fault reaction and disable functionality to reduce unnecessary electrical consumption.

• Hydraulic Valve Compatibility: Uses a PVE16 O-ring interface for installation on compatible Danfoss PVG 16 valve assemblies.

The 11103692 delivers the reliability and precision required for proportional hydraulic valve actuation, controlled spool positioning, and electrohydraulic operation in mobile and industrial machinery.
