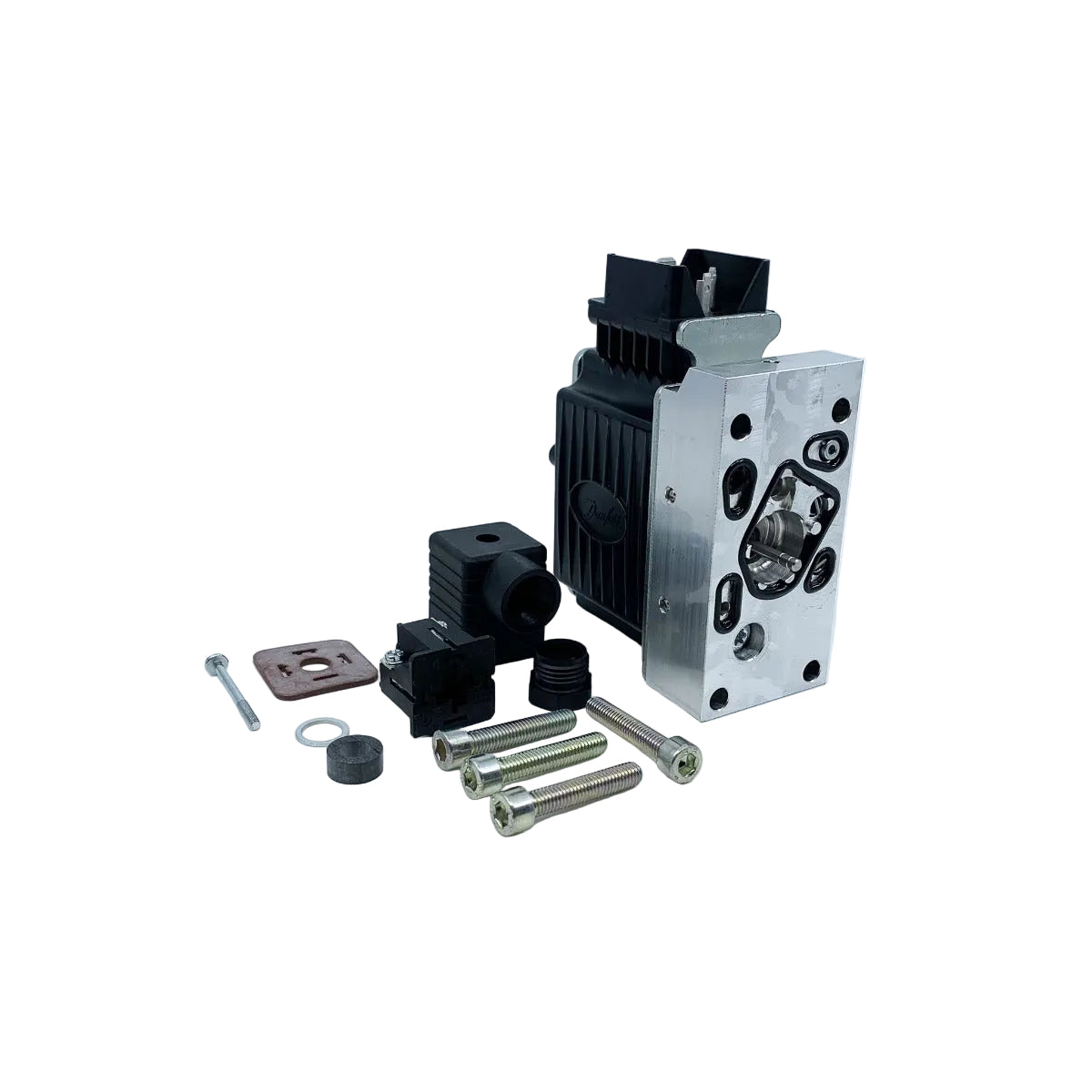

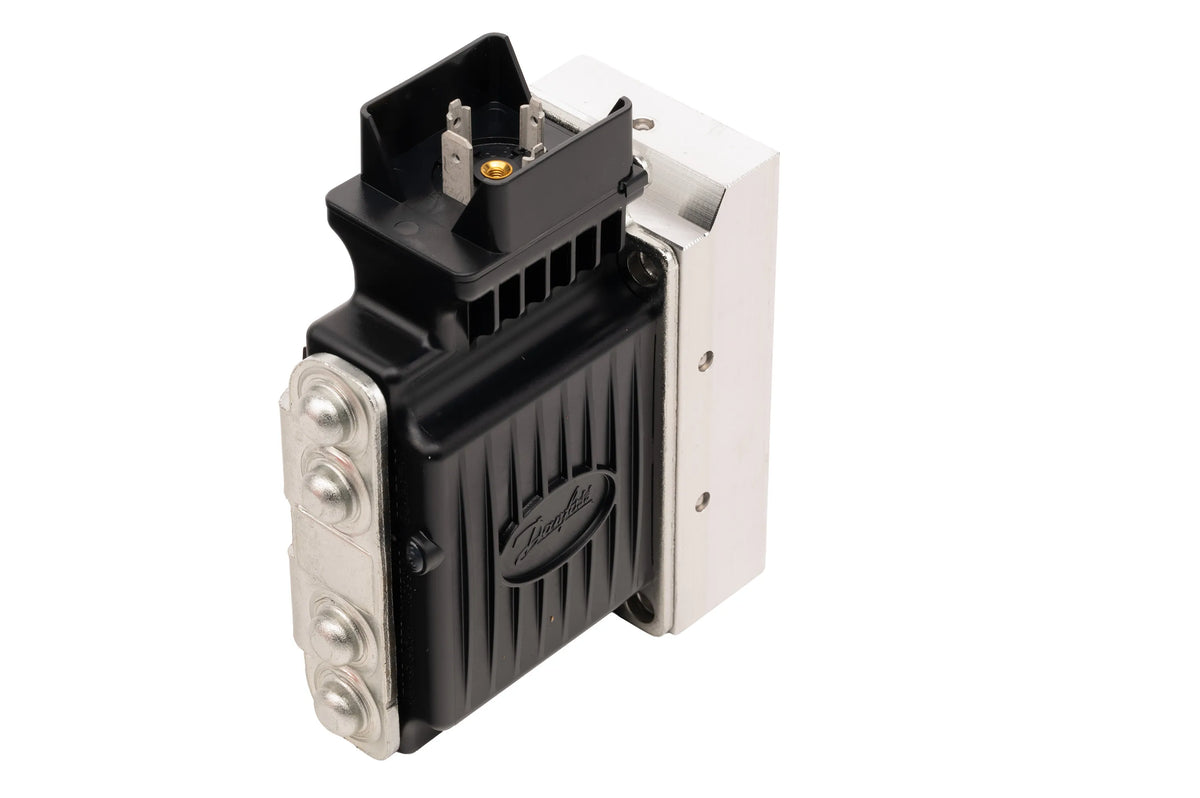

Danfoss 11166824 PVEH 32 Series 7 Electrohydraulic Actuator
- Regular price
- $979.00
- Sale price
- $979.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11166824
Description
The Danfoss 11166824 PVEH 32 Series 7 Electrohydraulic Actuator provides ratiometric proportional control for Danfoss PVG 32 and PVG 100 valve groups. Designed as a plug-and-play replacement for the Series 4 Danfoss 157B4033 actuator, it supports precise valve operation with enhanced corrosion protection and robust construction.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Industrial Automation |
| Part Number | 11166824 |
| Subcategory | Electrohydraulic Actuators |
| Product Type | PVEH 32 Electrohydraulic Actuator |
| Series | Series 7 |
| Control Type | Ratiometric proportional control |
| Compatible Valve Groups | Danfoss PVG 32 and PVG 100 |
| Replacement Part | 157B4033 (Series 4) |
| Item Reference | 10R-05310 |
| Operating Voltage | 11–32 V |
| Coil Power Consumption | 8 W |
| Connector Type | 1x4 DIN 43650-A/ISO 4400 |
| Connector Direction | 90° upward |
| Protection Rating | IP65 |
| Certification | ISO 13849 compliant |
| Product Markings | CE, EAC |
| De-stroke Reaction A | 120 ms |
| De-stroke Reaction B | 120 ms |
| On-stroke Response A | 120 ms |
| On-stroke Response B | 120 ms |
| Nominal A Stroke | 7.0 mm |
| Nominal B Stroke | 7.0 mm |
| Hysteresis | 4.0% |
| Maximum Intermittent Oil Pressure Spikes | 60 bar |
| Pilot Pressure | 13.5 bar |
| Resolution | 250 |
| Valve-Side Interface | PVE32 O-ring |
| Module Length | 89 mm |
| Fault Reaction and Recovery | Indication only |
| Coil Power-Off Function | Power Save |
| Country of Origin | Denmark |
| HS Code | 84819000 |
| Weight | 1.65 lb |
Information About 11166824
The 11166824 is a Series 7 PVEH electrohydraulic actuator designed for proportional control of compatible Danfoss hydraulic valve systems. It operates on an 11–32 V supply and uses a ratiometric control signal to provide stable actuation. The actuator features a 1x4 DIN 43650-A/ISO 4400 connector oriented at 90 degrees upward and includes a Power Save function when the coils are switched off. With IP65 protection and ISO 13849 compliance, it is suited to demanding hydraulic applications requiring dependable control and compatibility with legacy equipment.
Key Features:
-
Series 7 Design: Provides enhanced robustness and corrosion protection for metal components.
-
Ratiometric Control: Supports precise, stable proportional actuation of compatible hydraulic valves.
-
Electrical Connector: Uses a 1x4 DIN 43650-A/ISO 4400 connector with a 90-degree upward orientation.
-
Operating Voltage: Supports an 11–32 V supply range for compatible control systems.
-
Power Save Function: Reduces coil power use when the PVE coils are switched off.
-
Valve Compatibility: Designed for Danfoss PVG 32 and PVG 100 valve groups.
-
Safety and Protection: Features IP65 protection and ISO 13849 compliance, with CE and EAC markings.
-
Replacement Compatibility: Serves as a one-for-one interchangeable replacement for the Danfoss 157B4033 Series 4 actuator.
The 11166824 delivers the reliability and precision required for electrohydraulic proportional valve control in industrial and mobile hydraulic systems.
