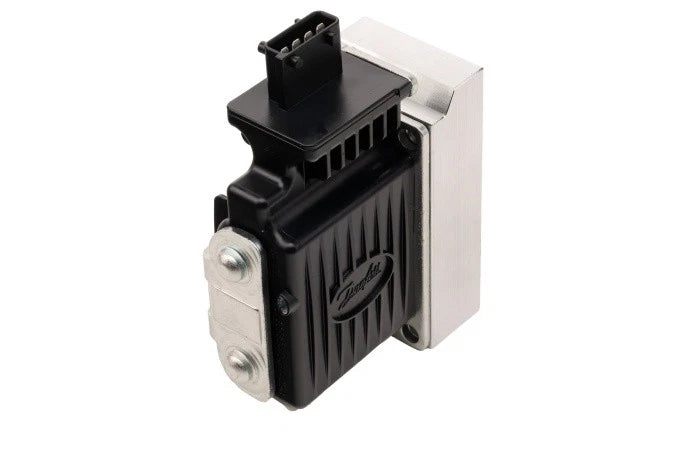

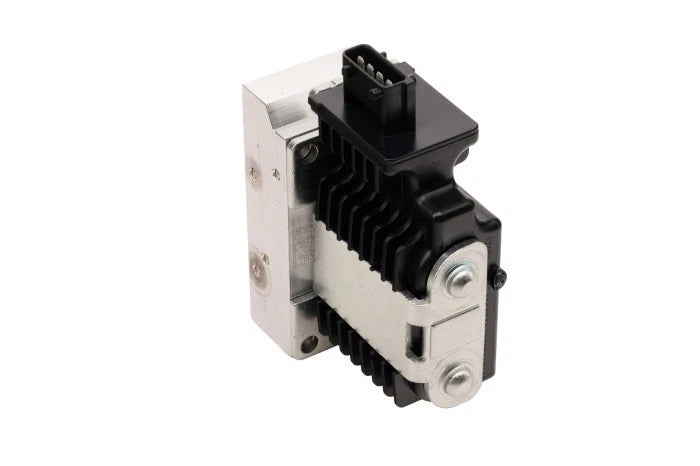

Danfoss 11166866 PVEO32 Series 7 On/Off Electrohydraulic Valve Actuator
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11166866
Description
The Danfoss 11166866 is a PVEO32 Series 7 electrohydraulic actuator for on/off operation of compatible PVG hydraulic valve assemblies. It uses a 12 VDC supply and a single four-pin AMP connector to provide electrically commanded valve actuation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Controls |
| Part Number | 11166866 |
| Subcategory | Electrohydraulic Valve Actuators |
| Product Designation | PVEO32-ACTUATOR--S7-1x4AMP-3W.O-12V |
| Actuator Type | PVEO |
| Series | PVE Series 7 |
| Control Signal | On/Off |
| Nominal Supply Voltage | 12 VDC |
| Electrical Connector | 1 × 4-pin AMP |
| Listed Valve Compatibility | Compatible PVG 32 and PVG 100 configurations |
| Ingress Protection | IP66 |
| Weight | 0.70 kg (1.54 lb) |
Information About 11166866
The 11166866 is part of the Danfoss PVE Series 7 actuator family and carries the PVEO designation. This configuration provides discrete switching rather than proportional positioning. It is listed for compatible PVG 32 and PVG 100 valve arrangements, with selection dependent on the installed valve configuration. The supplied specification identifies an IP66 enclosure without fault monitoring or direction-indication output.
Key Features:
- On/Off Control: Provides discrete electrical commands for compatible hydraulic valve operation.
- Low-Voltage Supply: Operates from a nominal 12 VDC power source.
- Series 7 Configuration: Uses the PVEO32 S7 actuator configuration.
- AMP Connector: Incorporates one four-pin AMP electrical connection.
- Valve Compatibility: Intended for supported Danfoss PVG 32 and PVG 100 arrangements.
- IP66 Protection: Provides dust-tight protection and resistance to powerful water jets when correctly installed.
- Cable Configuration: Supplied without an attached cable.
- Standard Function Set: Has no float-position function, hydraulic ramp, or CAN communication.
The 11166866 delivers the reliability and precision required for on/off electrohydraulic valve actuation in compatible hydraulic systems.
