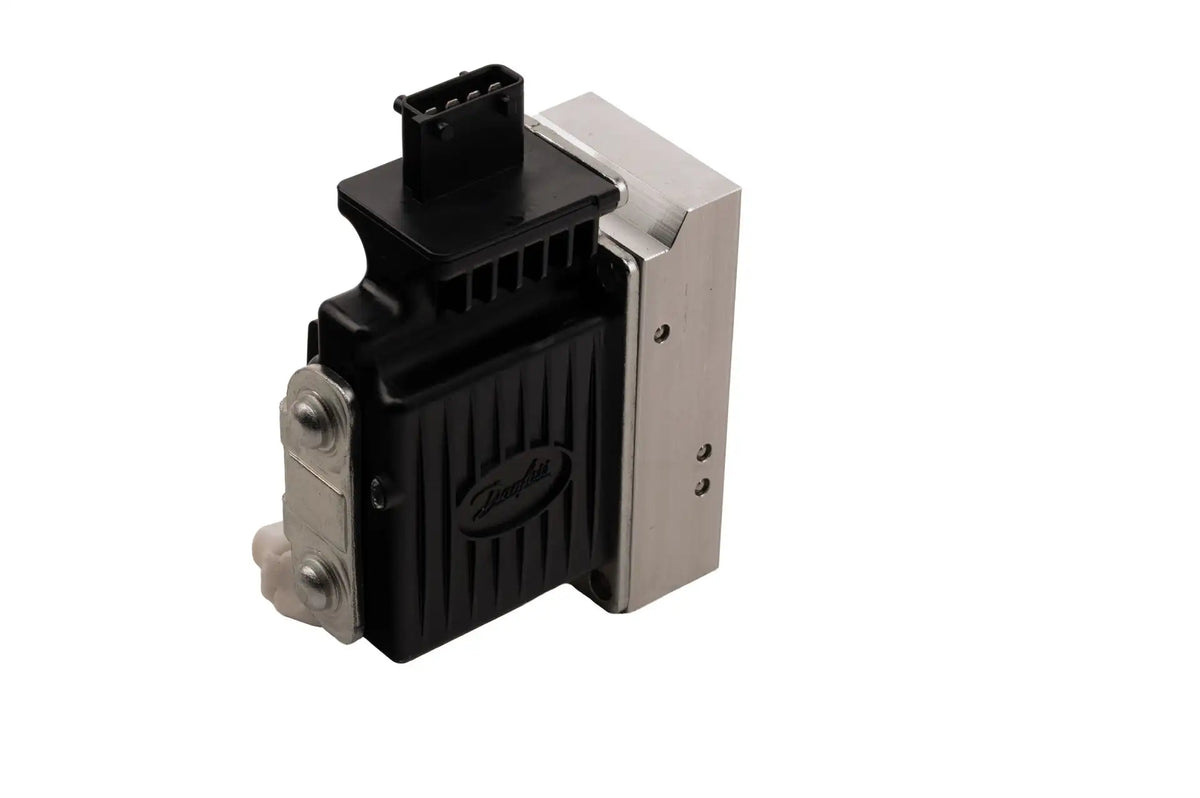

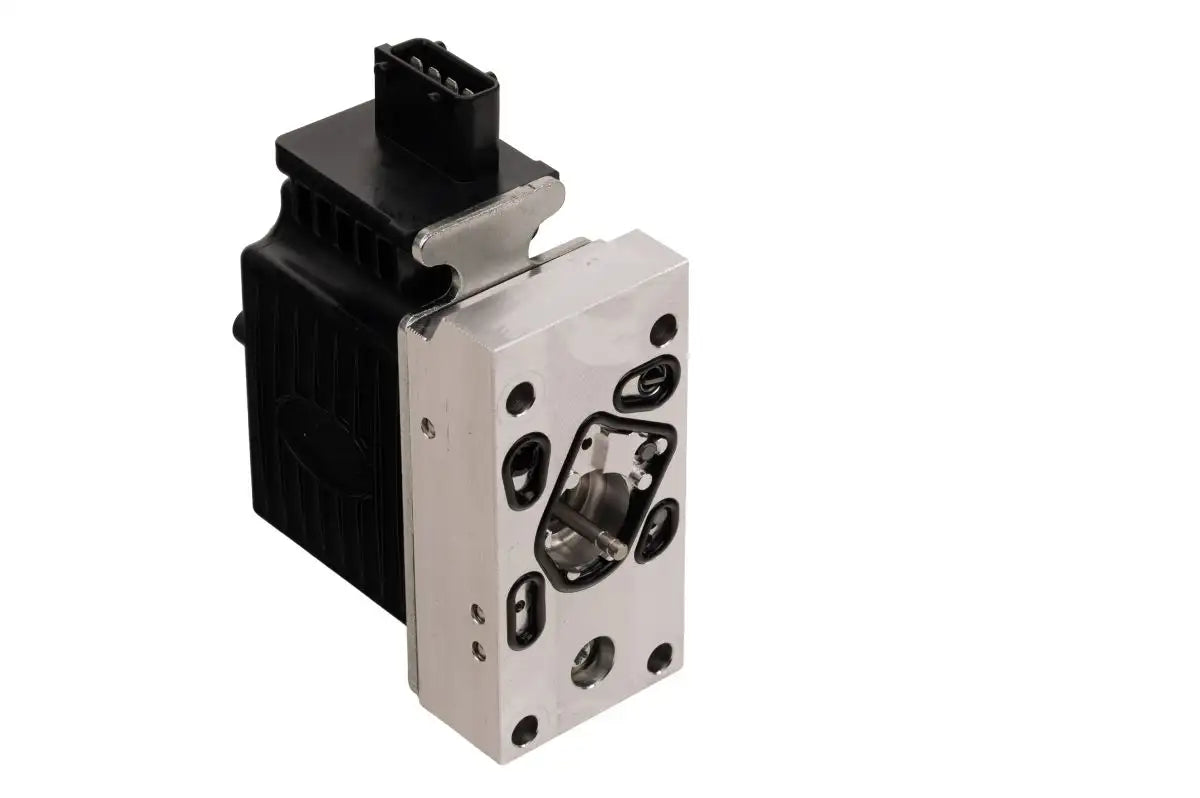

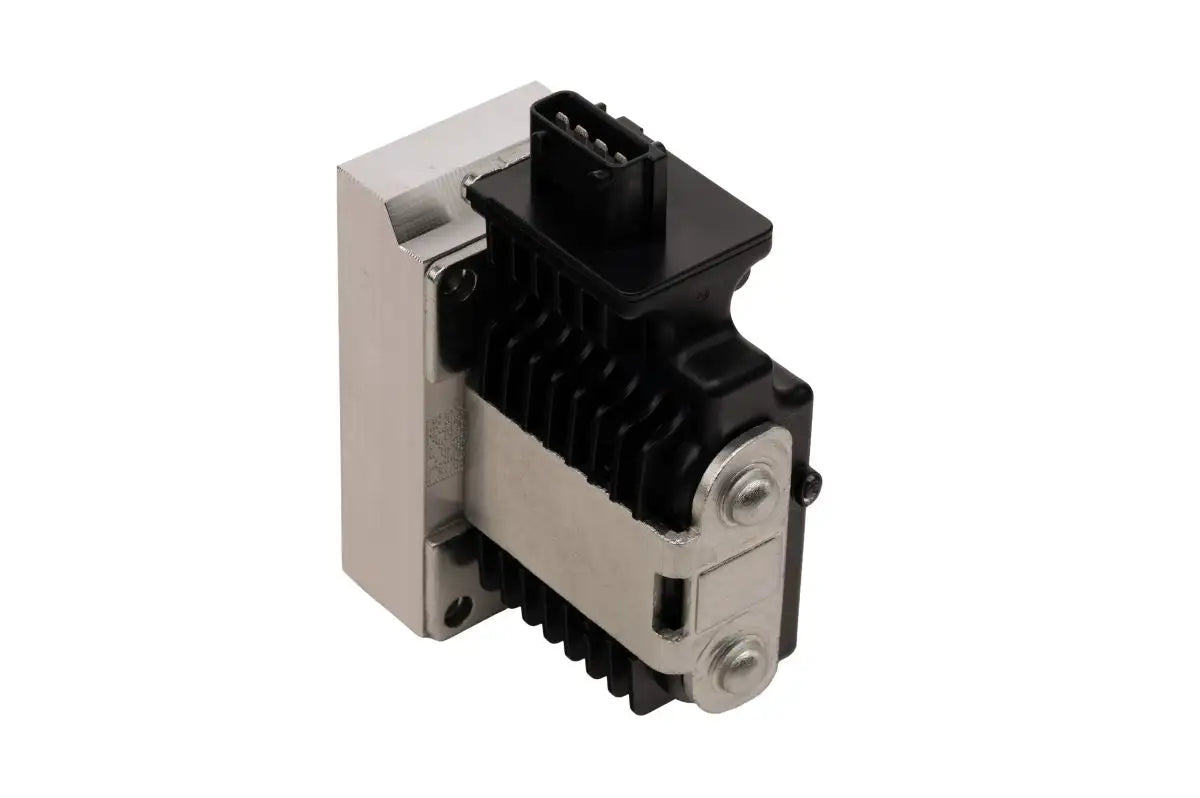

Danfoss 11177348 PVEA Series 7 Electrohydraulic Valve Actuator with Active Fault Monitoring and AMP Connector
- Regular price
- $1,132.00
- Sale price
- $1,132.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11177348
Description
Danfoss 11177348 is a PVEA Series 7 electrohydraulic actuator for proportional control of compatible hydraulic valve sections. It translates a ratiometric electrical command into controlled spool movement to regulate hydraulic flow in mobile machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulics |
| Part Number | 11177348 |
| Subcategory | Electrohydraulic Valve Actuators |
| Actuator Type | PVEA32 |
| Series | PVE Series 7 |
| Valve Compatibility | Compatible PVG 32 and PVG 100 assemblies |
| Supply Voltage | 11–32 volts direct current |
| Nominal Pilot Pressure | 13.5 bar |
| Electrical Connector | One four-pin AMP JPT SAAB connector, oriented 90 degrees upward |
| Control Signal | Ratiometric analog voltage |
| Hysteresis | 2.0% |
| On-Stroke Response | 350 milliseconds, directions A and B |
| De-Stroke Reaction | 225 milliseconds, directions A and B |
| Maximum Oil Consumption | 1.0 liter per minute |
| Maximum Steady-State Oil Consumption | 0.4 liters per minute |
| Fault Reaction and Recovery | Solenoid disable and power reset |
| Ingress Protection | IP66 |
| Weight | 2.2 Ibs |
Information About 11177348
The 11177348 is a PVEA32 actuator designed for compatible Danfoss PVG 32 and PVG 100 valve assemblies. Its integrated electronics use closed-loop spool control to coordinate electrical input with hydraulic actuation. This configuration incorporates a four-pin AMP JPT SAAB connector oriented upward at 90 degrees. Active fault monitoring disables the solenoids when a monitored fault occurs, with recovery requiring a power reset.
Key Features:
- Ratiometric Input: Uses a proportional command signal referenced to the supply voltage.
- Closed-Loop Regulation: Uses spool-position feedback to adjust hydraulic actuation.
- Supply Voltage Range: Operates from an 11–32 volt direct current supply.
- Active Fault Monitoring: Disables solenoid operation following a detected fault.
- Defined Response Times: Specifies 350 milliseconds on-stroke and 225 milliseconds de-stroke in both directions.
- Controlled Hysteresis: Provides a specified hysteresis of 2.0%.
- Environmental Protection: Incorporates an IP66 enclosure rating.
- Power Save Function: Includes the cataloged power-saving disable function.
The 11177348 delivers the reliability and precision required for proportional hydraulic valve actuation in compatible mobile equipment.
