Danfoss 11186708 OMP X 200 Orbital Hydraulic Motor
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11186708
Description

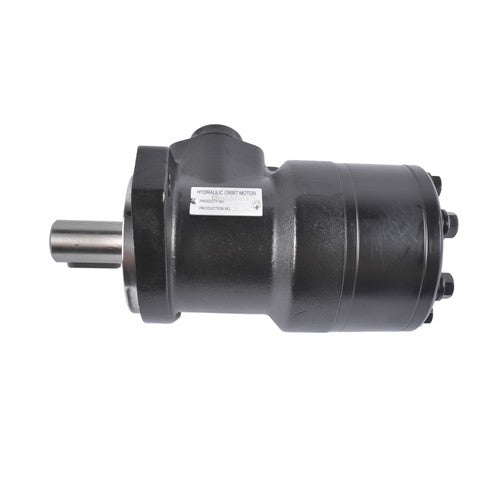

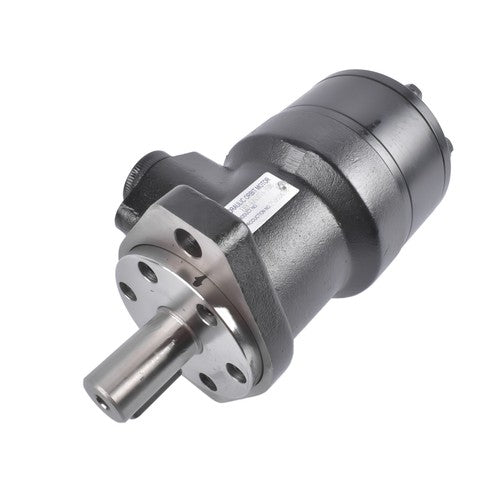

The Danfoss 11186708 is an OMP X 200 orbital hydraulic motor with a nominal displacement of 200 cm³/rev. It converts hydraulic flow into rotary motion for mobile and industrial hydraulic equipment requiring a 25 mm keyed shaft and side-offset ports.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Motors |
| Part Number | 11186708 |
| Subcategory | Orbital Hydraulic Motors |
| Series | OMP X |
| Motor Size | 200 |
| Motor Type | Standard orbital motor |
| Displacement | 200 cm³/rev nominal |
| Mounting Type | A2 flange; 82.5 mm pilot; 106.4 mm bolt circle |
| Output Shaft | 25 mm cylindrical, straight key, M8 threaded end |
| Main Ports | G 1/2, side-offset |
| Shaft Seal | NBR high-pressure seal |
| Dust Seal | Integrated in shaft seal |
| Drain Port | G 1/4 |
| Check Valve | Yes |
| Weight | 6.5 kg |
Information About 11186708
The 11186708 belongs to Danfoss’s OMP X orbital motor series and is configured as a standard OMPX-200 motor. Its A2 flange mounting, 25 mm cylindrical keyed shaft, and G 1/2 side-offset ports define its mechanical and hydraulic interfaces. The configuration includes an NBR high-pressure shaft seal, integrated dust seal, G 1/4 drain port, and check valve. Danfoss lists this specific product as discontinued, so confirm dimensions and configuration when sourcing it for a replacement installation.
Key Features:
- OMP X 200 Orbital Motor: Converts pressurized hydraulic flow into rotary output for compatible hydraulic equipment.
- 200 cm³/rev Displacement: Provides a nominal displacement of 200 cm³ per revolution for sizing the motor within a hydraulic circuit.
- A2 Flange Mounting: Uses an A2 flange with an 82.5 mm pilot and a 106.4 mm bolt-circle diameter.
- 25 mm Keyed Shaft: Features a cylindrical 25 mm output shaft with a straight key and an M8 threaded shaft end.
- Side-Offset Ports: Uses G 1/2 main ports in a side-offset arrangement to match the specified hose or tubing layout.
- High-Pressure Shaft Seal: Includes an NBR shaft seal and an integrated dust seal for the specified motor configuration.
- Drain and Check Valve: Has a G 1/4 drain port and an internal check valve as specified in the Danfoss model code.
- Compact Motor Weight: Danfoss technical information lists a weight of approximately 6.5 kg for part 11186708.
The 11186708 delivers the reliability and precision required for rotary hydraulic drive applications using a compatible OMP X motor configuration.
