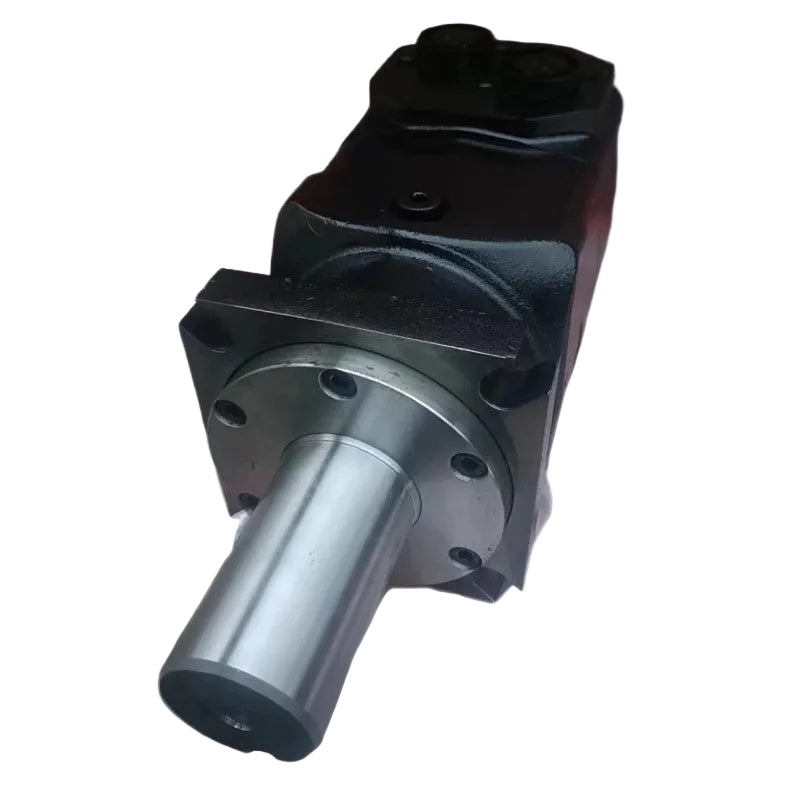

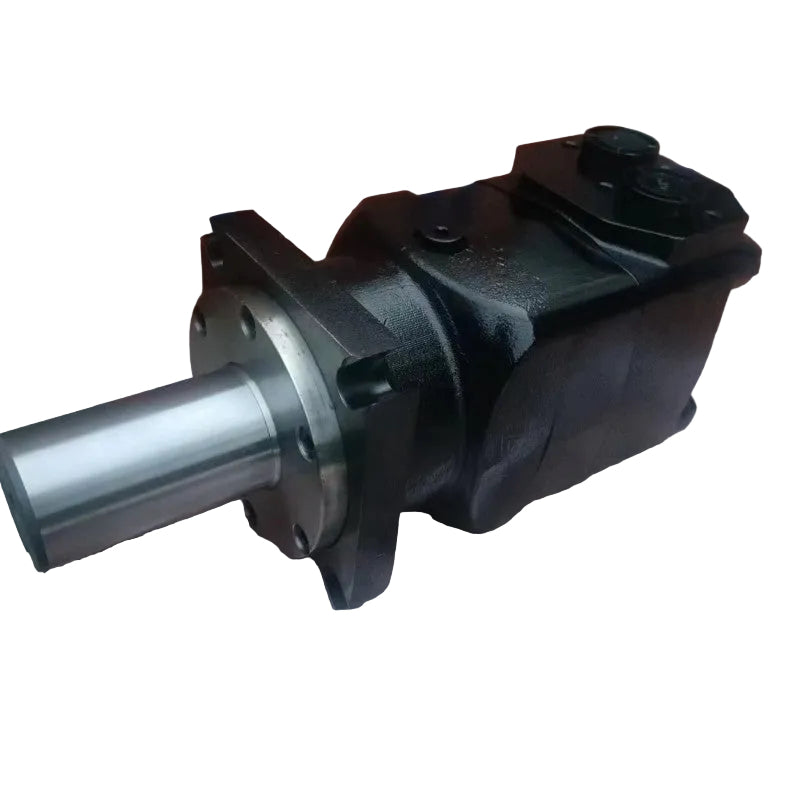

Danfoss 119-1031-003 Char-Lynn 10000 Series Hydraulic Motor
- Regular price
- $1,425.00
- Sale price
- $1,425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 119-1031-003
Description
The Danfoss 119-1031-003 is a Char-Lynn 10000 Series hydraulic motor designed for industrial and mobile hydraulic systems requiring high torque at low speeds. It features a Geroler motor design, standard 4-bolt mounting, and a straight keyed output shaft for compatible machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Components |
| Part Number | 119-1031-003 |
| Subcategory | Hydraulic Motors |
| Product Series | Char-Lynn 10000 |
| Product Type | Geroler Hydraulic Motor |
| Motor Configuration | Standard |
| Displacement | 57.41 in³/rev (listed by Motion) |
| Mounting Type | Standard 4-bolt flange |
| Pilot Diameter | 5.000 in |
| Output Shaft | Straight, keyed |
| Hydraulic Port Type | SAE O-ring |
| Motor Port Size | 1-5/16-12 UN-2B |
| Case Drain Port | 9/16-18 UNF-2B |
| Continuous Flow Rate | 170 L/min |
| Intermittent Pressure | 240 bar |
| Housing Material | Cast iron |
| Overall Dimensions | 17.74 × 5.91 × 5.79 in |
| Weight | 104 lb |
Information About 119-1031-003
The 119-1031-003 is a Danfoss-branded Char-Lynn hydraulic motor from the 10000 Series. Its Geroler mechanism converts hydraulic energy into rotary mechanical output for demanding equipment applications. The listed configuration includes a 4-bolt mounting flange, SAE O-ring hydraulic ports, and a straight keyed output shaft. It is used in industrial machinery and mobile equipment where low-speed rotation and high torque are required.
-
Brand and Series: Danfoss Char-Lynn 10000 Series.
-
Part Number: 119-1031-003.
-
Motor Design: Geroler hydraulic motor for high-torque output.
-
Displacement: Listed as 57.41 in³/rev by one distributor.
-
Mounting: Standard 4-bolt flange.
-
Output Shaft: Straight shaft with key.
-
Hydraulic Connections: SAE O-ring ports with staggered port orientation.
-
Housing Material: Cast iron, according to supplier specifications.
The 119-1031-003 provides hydraulic rotary power for compatible industrial and mobile equipment requiring high torque.
