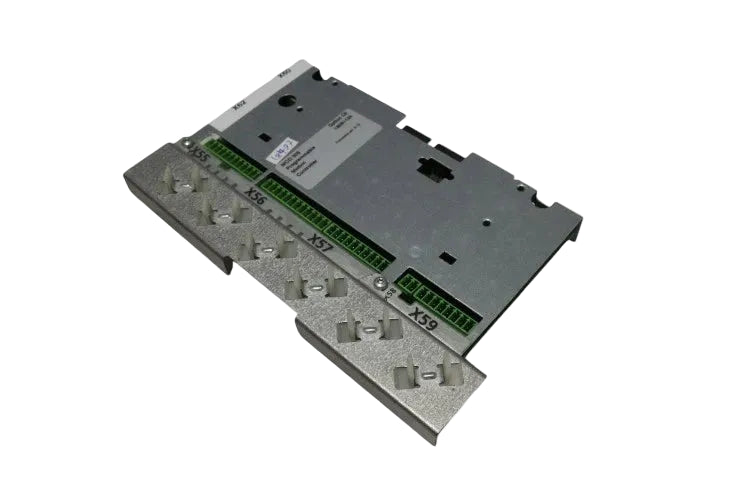

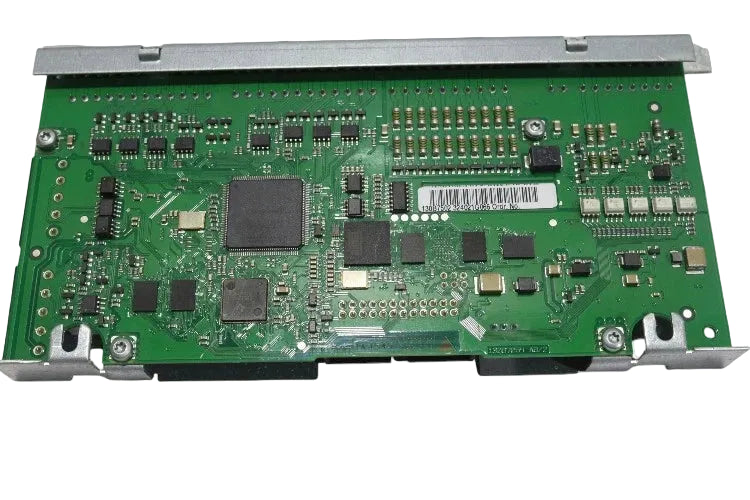

Danfoss 130B1134 VLT Motion Control MCO 305 Programmable CPU Control Board for FC 301 and FC 302 Drives
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 130B1134
Description
The Danfoss 130B1134 is a VLT® Motion Control MCO 305 programmable control board designed to expand the motion control capabilities of Danfoss VLT® AutomationDrive FC 301 and FC 302 variable frequency drives. It provides advanced positioning, synchronization, and electronic cam control functions for demanding industrial automation applications. The uncoated control board integrates directly into compatible drives to deliver flexible programmable motion control without requiring an external motion controller.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Controls & Indicators |
| Part Number | 130B1134 |
| Subcategory | CPU/Control Board |
| Product Series | VLT® Motion Control MCO 305 |
| Product Type | Programmable Motion Control Board |
| Board Version | Uncoated |
| Compatible Drives | VLT® AutomationDrive FC 301 and FC 302 |
| Motion Functions | Positioning, Synchronization, Electronic Cam Control |
| Encoder Interfaces | 2 (Incremental and Absolute Encoder Support) |
| Encoder Output | 1 Virtual Master Output |
| Digital Inputs | 10 |
| Digital Outputs | 8 |
| Communication Protocol | CANopen Motion Bus |
| Programming | Structured Programming Language |
| Software Tools | Program Editor and Cam Editor |
| Application | Industrial Motion Control |
| Weight | 3.00 lbs |
Information About 130B1134
The 130B1134 is a Danfoss VLT® Motion Control MCO 305 option board developed for VLT® AutomationDrive FC 301 and FC 302 frequency converters. It is a programmable CPU/control board that supports positioning, electronic shaft synchronization, electronic cam control, and motion sequencing through structured programming. The module features two encoder interfaces compatible with incremental and absolute encoders, one virtual master encoder output, ten digital inputs, eight digital outputs, and CANopen motion bus support for integration with distributed automation systems. Its programmable architecture and dedicated software tools make it suitable for packaging machinery, material handling equipment, converting systems, and other precision motion control applications.
Key Features:
- VLT® Motion Control MCO 305: Expands the motion control functionality of compatible VLT® drives.
- FC 301 and FC 302 Compatibility: Designed specifically for VLT® AutomationDrive FC 301 and FC 302 series.
- Programmable Motion Controller: Supports custom application programming with cyclic and event-driven execution.
- Advanced Positioning Functions: Provides relative positioning, absolute positioning, synchronization, and electronic cam control.
- Dual Encoder Interfaces: Supports both incremental and absolute encoder feedback devices.
- CANopen Communication: Integrates with CANopen motion networks, encoders, and remote I/O modules.
- Flexible Digital I/O: Includes 10 digital inputs and 8 digital outputs for machine control.
- Uncoated Board Design: Standard uncoated version for installation in protected industrial environments.
The 130B1134 delivers the reliability and precision required for advanced motion control, positioning, and synchronization in industrial automation systems.
