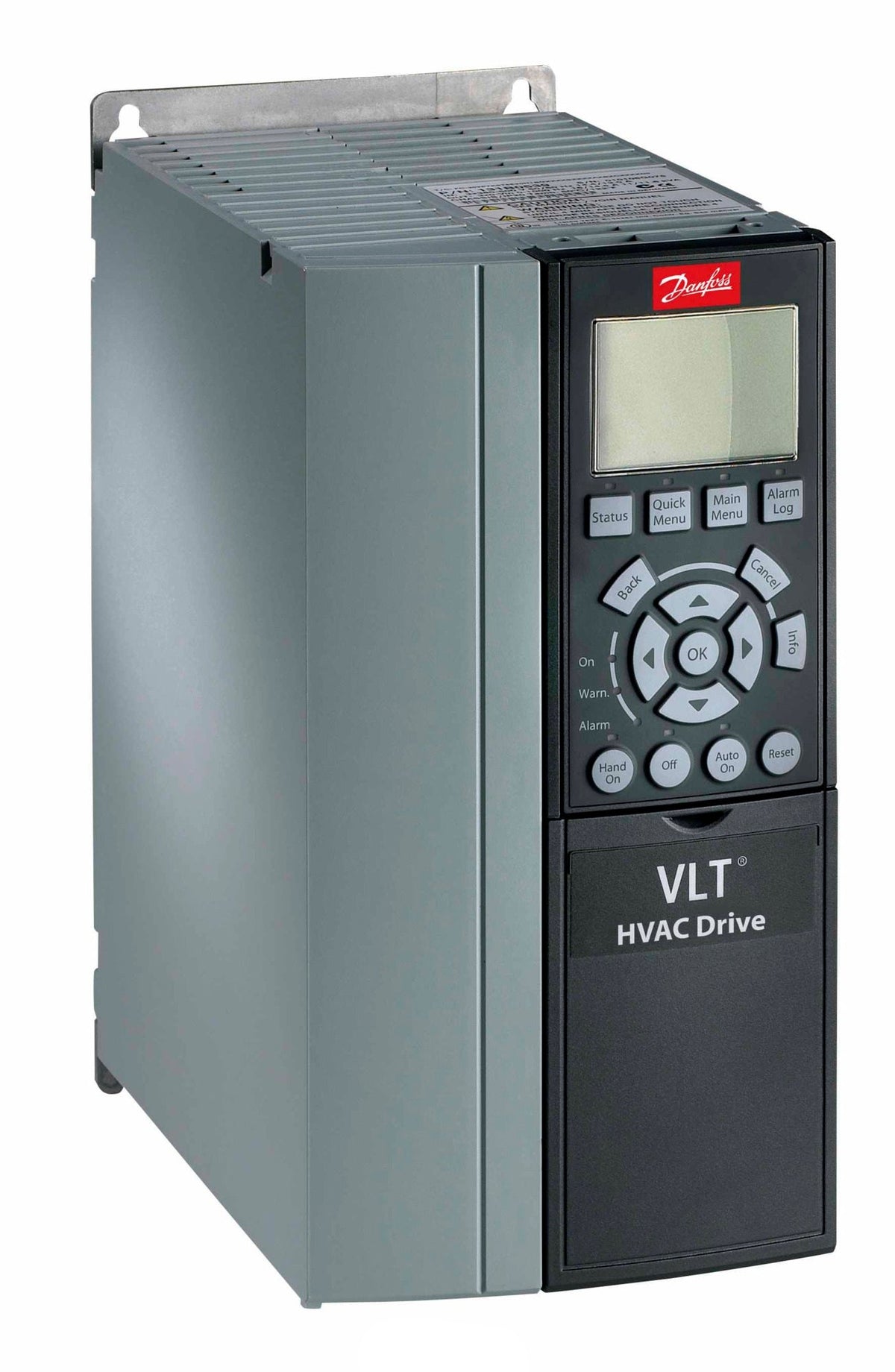

Danfoss 131F0670 VLT HVAC Drive FC 102 7.5 HP Variable Frequency Drive
- Regular price
- $2,499.00
- Sale price
- $2,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 131F0670
Description
The Danfoss 131F0670 is a VLT HVAC Drive FC 102 variable frequency drive rated for 7.5 HP (5.5 kW) motors on 380–480 V three-phase power. It controls motor speed in HVAC applications such as fans and pumps.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Motor Control |
| Part Number | 131F0670 |
| Subcategory | Variable Frequency Drives |
| Product Series | VLT HVAC Drive FC 102 |
| Drive Type | Variable frequency drive |
| Rated Motor Power | 5.5 kW (7.5 HP) |
| Supply Voltage | 380–480 V AC |
| Input Phase | 3-phase |
| Current Rating | 11 A (configuration reference; verify nameplate) |
| Enclosure | NEMA 1 |
| Frame Size | A3 |
| Typical Applications | HVAC fan and pump motor control |
| Weight | 6.7 kg |
Information About 131F0670
The 131F0670 is a Danfoss VLT HVAC Drive FC 102 with a NEMA 1 enclosure and A3 frame designation. It varies the frequency and voltage supplied to a connected motor to regulate motor speed. Product references identify this configuration as 5.5 kW (7.5 HP), 380–480 V, three-phase, with an 11 A rating. It is intended for HVAC motor-control installations; confirm the drive’s nameplate, motor requirements, and installation conditions before replacement.
Key Features:
- VLT HVAC Drive FC 102: Variable frequency drive for controlling compatible motors in heating, ventilation, and air-conditioning equipment.
- 7.5 HP Motor Rating: Rated for motors up to 7.5 HP (5.5 kW) in the specified 380–480 V configuration.
- Three-Phase Supply: Designed for three-phase input power; verify the actual supply voltage and frequency against the unit nameplate.
- Variable-Speed Control: Adjusts motor operating speed by varying the output frequency for compatible HVAC loads.
- NEMA 1 Enclosure: Enclosed-drive configuration intended for suitable indoor installations.
- A3 Frame: Uses the A3 frame format; check mounting and clearance dimensions against the existing panel or equipment.
- 11 A Rating: Product references associate this model configuration with an 11 A current rating; verify input/output current requirements from the drive nameplate.
- HVAC Application: Suited to fan and pump motor control in compatible HVAC systems.
The 131F0670 delivers the reliability and precision required for variable-speed motor control in HVAC applications.
