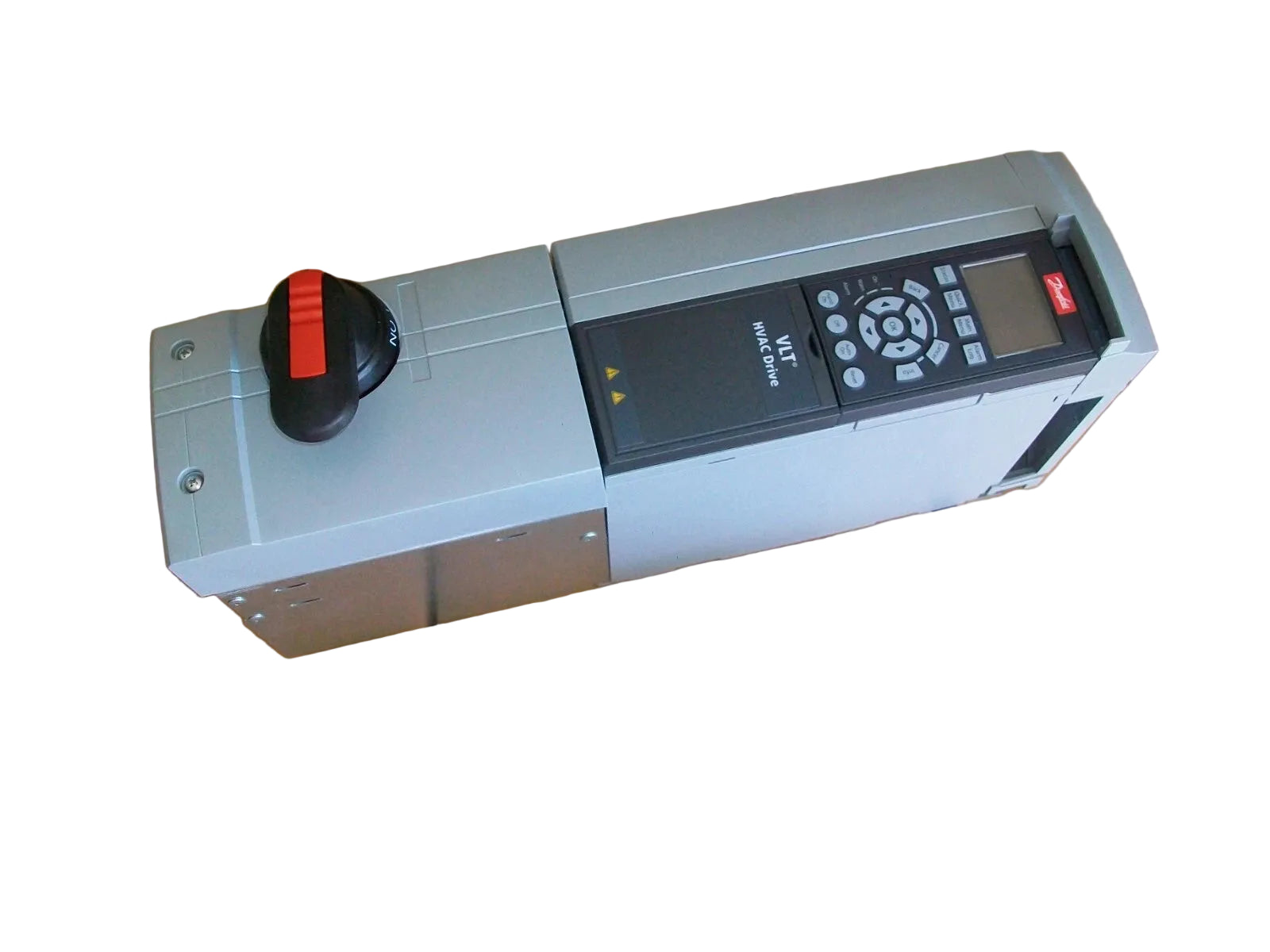

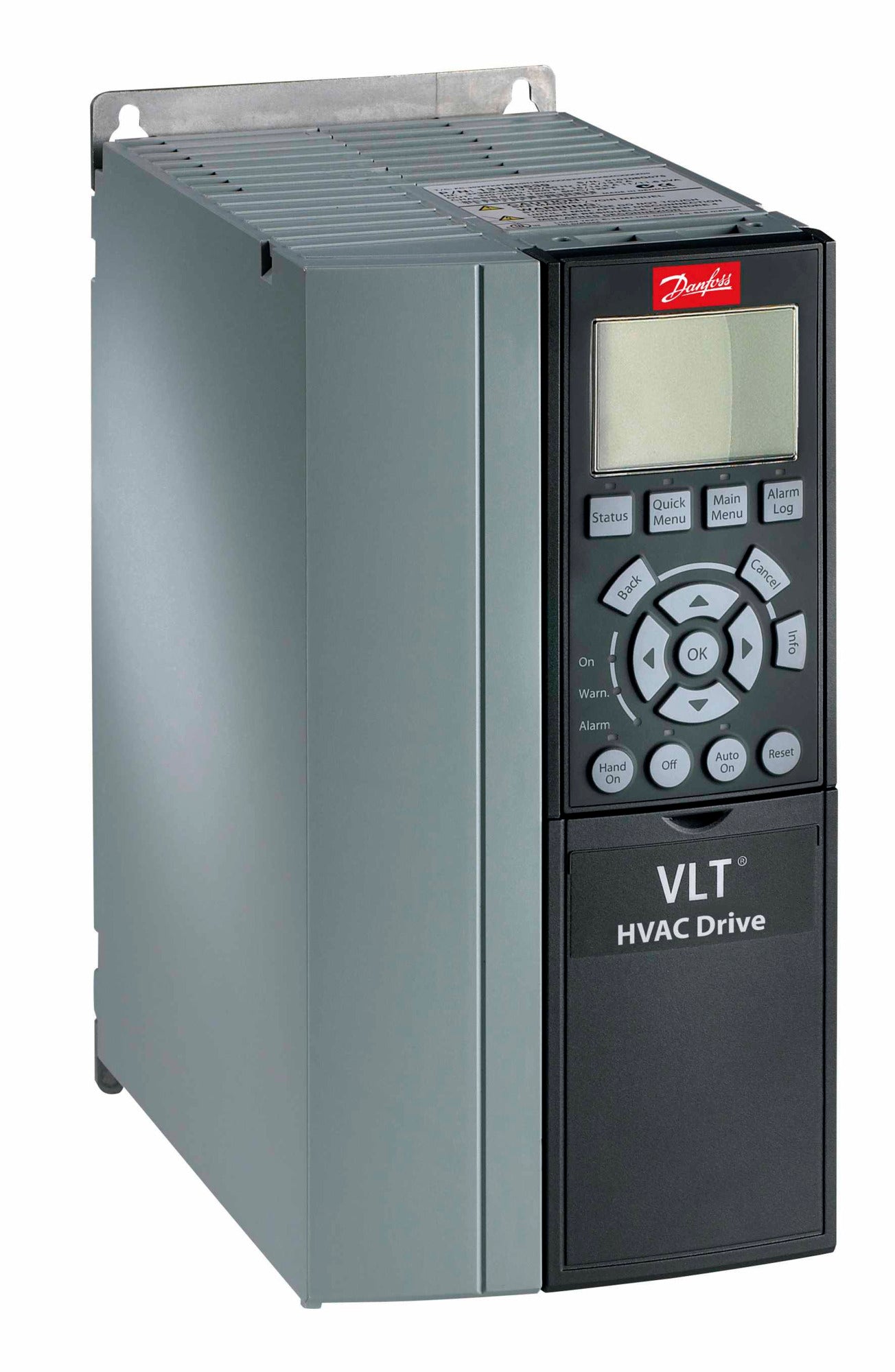

Danfoss 131F0727 VLT HVAC Drive FC 102 5 HP Variable Frequency Drive with Fused Disconnect
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 131F0727
Description
The Danfoss 131F0727 is a VLT® HVAC Drive FC 102 variable frequency drive designed to provide precise speed control for HVAC motors in commercial and industrial facilities. Rated at 4.0 kW (5 HP), it operates from a three-phase 380–480 VAC power supply and includes a factory-installed fused mains disconnect for enhanced electrical protection and simplified installation. The drive is engineered to improve motor efficiency, optimize energy consumption, and support reliable HVAC system performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Machine Parts |
| Part Number | 131F0727 |
| Subcategory | Machine Part |
| Product Series | VLT® HVAC Drive FC 102 |
| Product Type | Variable Frequency Drive |
| Power Rating | 4.0 kW (5 HP) |
| Input Voltage | 380–480 VAC |
| Input Phase | Three Phase |
| Enclosure Rating | IP21 / Type 1 |
| Frame Size | A2 |
| Continuous Output Current | 10 A |
| Intermittent Output Current | 11 A |
| Integrated Features | Fused Mains Disconnect, RFI Filter, Graphical Local Control Panel |
| Motor Applications | Pumps, Fans, Compressors, Air Handling Units |
| Dimensions (H × W × D) | 375 × 90 × 207 mm |
| Net Weight | 5.15 kg (11.35 lbs) |
| Weight | 5.996 kg (13.22 lbs Gross) |
Information About 131F0727
The 131F0727 is a Danfoss VLT® HVAC Drive FC 102 frequency converter built specifically for heating, ventilation, and air conditioning applications requiring dependable variable speed motor control. It belongs to the FC 102 series and features an IP21 (Type 1) enclosure, an integrated graphical local control panel, an RFI filter, and a fused mains disconnect for convenient commissioning and maintenance. The drive utilizes advanced motor control technology to regulate pumps, fans, compressors, and air handling equipment while reducing mechanical wear and electrical energy consumption. Designed for integration into building automation systems, it delivers stable performance with comprehensive protection functions and configurable operating parameters for demanding HVAC environments.
Key Features:
- VLT® HVAC Drive FC 102 Series: Designed specifically for commercial and industrial HVAC motor control.
- 4.0 kW (5 HP) Output: Supports variable speed operation of motors rated up to 5 horsepower.
- Three-Phase 380–480 VAC Input: Compatible with standard industrial three-phase electrical systems.
- Integrated Fused Disconnect: Includes a factory-installed mains disconnect with fuse protection for increased safety.
- Graphical Local Control Panel: Provides intuitive configuration, monitoring, and diagnostics directly from the drive.
- Built-In RFI Filter: Reduces electromagnetic interference for improved system compatibility.
- IP21 / Type 1 Enclosure: Suitable for installation in indoor electrical control environments.
- Advanced HVAC Control: Optimized for pumps, fans, compressors, and air handling equipment.
The 131F0727 delivers the reliability and precision required for efficient HVAC motor control and variable frequency drive applications.
