Danfoss 132F0007 VLT Micro Drive FC 51 3 HP Variable Frequency Drive
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 132F0007
Description

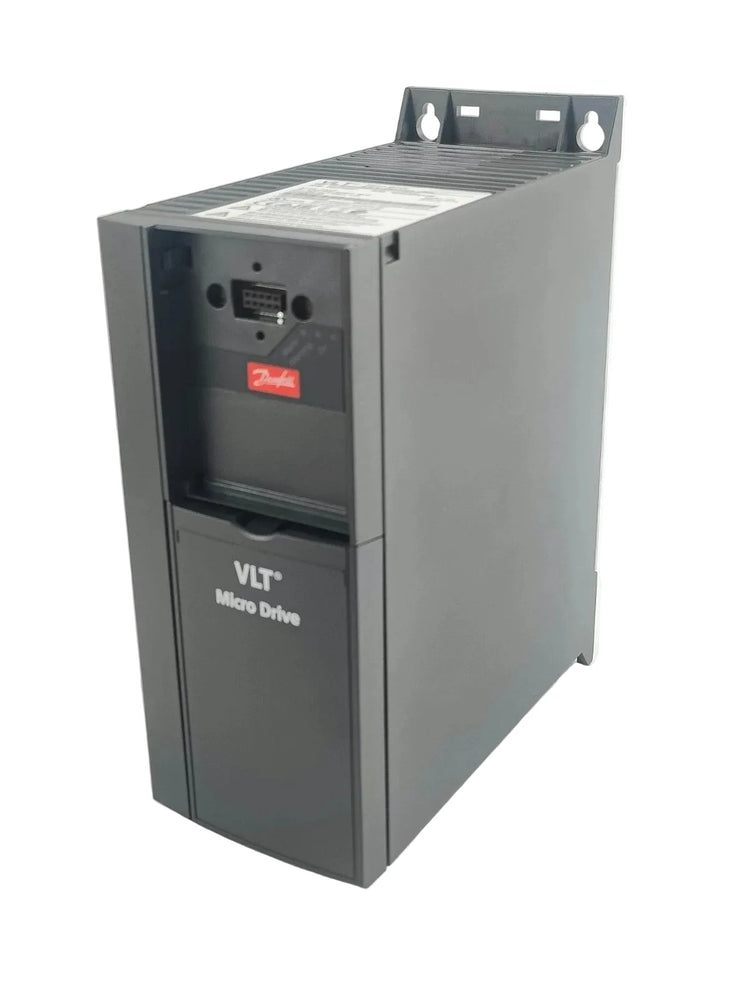

The Danfoss 132F0007 VLT Micro Drive FC 51 is a variable frequency drive designed to control the speed and operation of compatible AC motors. It features a 2.2 kW (3 HP) power rating, single-phase 200–240 V AC input, an IP20 enclosure, and an integrated brake chopper.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Industrial Automation |
| Part Number | 132F0007 |
| Subcategory | Variable Frequency Drive |
| Product Series | VLT Micro Drive FC 51 |
| Model Code | FC-051P2K2S2E20H3BXCXXXSXXX |
| Rated Power | 2.2 kW |
| Rated Horsepower | 3 HP |
| Input Voltage | 200–240 V AC |
| Input Phase | Single-phase |
| Supply Frequency | 50/60 Hz |
| Rated Output Current | 9.6 A |
| Enclosure Rating | IP20 |
| RFI Filter | H3, Class A1/B (C1) |
| Brake Chopper | Integrated |
| PCB Coating | Coated |
| Weight | 6.64 lb |
Information About 132F0007
The 132F0007 is part of the Danfoss VLT Micro Drive FC 51 series. It is designed for adjustable-speed control of AC motors in industrial and HVAC applications. The drive provides a 2.2 kW (3 HP) output rating and operates from a single-phase 200–240 V AC supply. Its configuration includes an RFI filter, a brake chopper, and a coated printed circuit board for compatible installation environments.
Key Features:
-
Variable Frequency Control: Adjusts AC motor speed by controlling output frequency and voltage.
-
VLT Micro Drive FC 51: Belongs to Danfoss's compact general-purpose drive series.
-
3 HP Power Rating: Supports compatible motors rated up to 3 HP.
-
Single-Phase Input: Operates on a 200–240 V AC single-phase supply.
-
Integrated Brake Chopper: Supports compatible braking configurations.
-
RFI Filtering: Includes an H3 RFI filter rated for Class A1/B (C1).
-
IP20 Enclosure: Designed for installation inside suitable electrical cabinets.
-
Coated Circuit Board: Includes a coated PCB as specified by the model configuration.
The 132F0007 delivers the motor speed control and electrical regulation required for compatible industrial and HVAC applications.
Description
The Danfoss 132F0007 VLT Micro Drive FC 51 is a variable frequency drive designed to control the speed and operation of compatible AC motors. It features a 2.2 kW (3 HP) power rating, single-phase 200–240 V AC input, an IP20 enclosure, and an integrated brake chopper.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Industrial Automation |
| Part Number | 132F0007 |
| Subcategory | Variable Frequency Drive |
| Product Series | VLT Micro Drive FC 51 |
| Model Code | FC-051P2K2S2E20H3BXCXXXSXXX |
| Rated Power | 2.2 kW |
| Rated Horsepower | 3 HP |
| Input Voltage | 200–240 V AC |
| Input Phase | Single-phase |
| Supply Frequency | 50/60 Hz |
| Rated Output Current | 9.6 A |
| Enclosure Rating | IP20 |
| RFI Filter | H3, Class A1/B (C1) |
| Brake Chopper | Integrated |
| PCB Coating | Coated |
| Weight | 6.64 lb |
Information About 132F0007
The 132F0007 is part of the Danfoss VLT Micro Drive FC 51 series. It is designed for adjustable-speed control of AC motors in industrial and HVAC applications. The drive provides a 2.2 kW (3 HP) output rating and operates from a single-phase 200–240 V AC supply. Its configuration includes an RFI filter, a brake chopper, and a coated printed circuit board for compatible installation environments.
Key Features:
-
Variable Frequency Control: Adjusts AC motor speed by controlling output frequency and voltage.
-
VLT Micro Drive FC 51: Belongs to Danfoss's compact general-purpose drive series.
-
3 HP Power Rating: Supports compatible motors rated up to 3 HP.
-
Single-Phase Input: Operates on a 200–240 V AC single-phase supply.
-
Integrated Brake Chopper: Supports compatible braking configurations.
-
RFI Filtering: Includes an H3 RFI filter rated for Class A1/B (C1).
-
IP20 Enclosure: Designed for installation inside suitable electrical cabinets.
-
Coated Circuit Board: Includes a coated PCB as specified by the model configuration.
The 132F0007 delivers the motor speed control and electrical regulation required for compatible industrial and HVAC applications.
