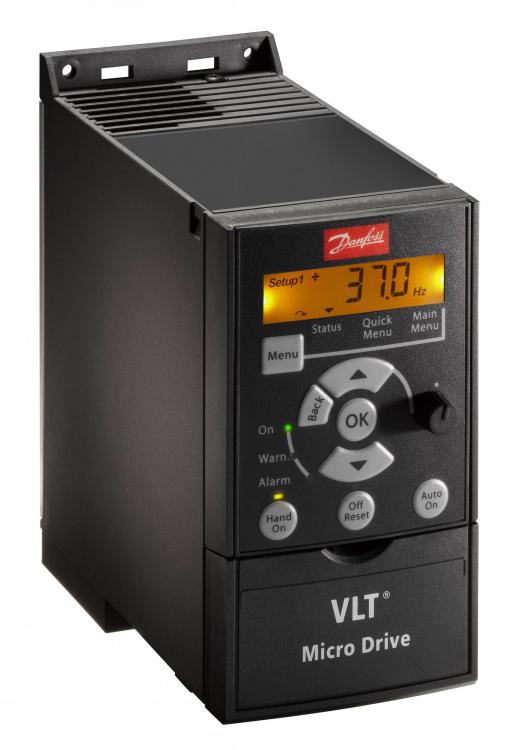

Danfoss 132F0009 VLT Micro Drive FC 51 0.37 kW Frequency Converter
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 132F0009
Description
The Danfoss 132F0009 VLT® Micro Drive FC 51 is a compact frequency converter designed to regulate the speed and operation of compatible AC motors. It provides three-phase motor control for light industrial machinery, HVAC equipment, pumps, and fans.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Motor Control Equipment |
| Part Number | 132F0009 |
| Subcategory | Variable Frequency Drives |
| Product Series | VLT® Micro Drive FC 51 |
| Model Code | FC-051PK37T2E20H3XXCXXXSXXX |
| Product Type | Frequency Converter |
| Rated Power | 0.37 kW / 0.5 HP |
| Input Voltage | 200–240 V AC |
| Input Phases | 3-phase |
| Rated Current | 2.2 A |
| Maximum Output Frequency | 400 Hz |
| Enclosure Rating | IP20 / Chassis |
| Frame Size | M1 |
| RFI Filter | Class A1/B (C1) |
| PCB Coating | Coated |
| Mounting Type | Panel mounting |
| Weight | 2.43 lb |
Information About 132F0009
The 132F0009 belongs to the Danfoss VLT® Micro Drive FC 51 series and uses an M1-frame chassis design for panel installation. It operates from a three-phase 200–240 V AC supply and supports motor power ratings up to 0.37 kW (0.5 HP). The drive incorporates an RFI filter classified as A1/B (C1) and a coated printed circuit board for use in compatible industrial environments. This configuration does not include a brake chopper or local control panel, and its output frequency can reach 400 Hz.
Key Features:
-
Motor Power: Rated for 0.37 kW (0.5 HP) AC motor applications.
-
Input Voltage: Supports a three-phase 200–240 V AC power supply.
-
Rated Current: 2.2 A current rating for the specified drive configuration.
-
Variable-Speed Control: Regulates the operating speed of compatible AC motors.
-
Frequency Range: Supports output frequencies up to 400 Hz.
-
EMC/RFI Filtering: Includes an RFI filter classified as A1/B (C1).
-
Enclosure Rating: IP20 chassis enclosure for installation inside suitable electrical cabinets.
-
Frame and PCB: M1 frame with a coated printed circuit board; no built-in brake chopper or local control panel.
The 132F0009 delivers the reliability and precision required for variable-speed control of compatible industrial AC motors and auxiliary machinery.
