Danfoss 132F0018 VLT Micro Drive FC-51 Variable Frequency Drive
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 132F0018
Description

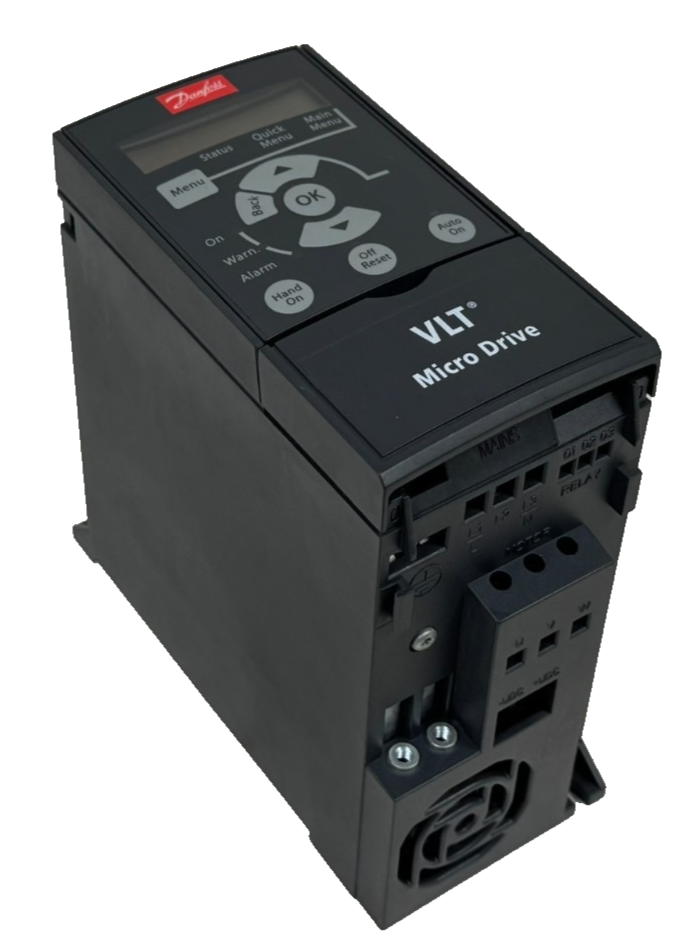

The Danfoss 132F0018 is a VLT Micro Drive FC-51 frequency converter for controlling compatible three-phase AC motors. It is rated for 0.75 kW (1 HP) operation from a 380–480 VAC three-phase supply and provides adjustable motor speed for machinery and HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Drives |
| Part Number | 132F0018 |
| Subcategory | Variable Frequency Drives |
| Product Series | VLT Micro Drive FC-51 |
| Rated Motor Power | 0.75 kW / 1 HP |
| Input Voltage | 380–480 VAC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Nominal Output Current | 2.2 A |
| Motor Output Phase | Three-phase |
| Frame Size | M1 |
| Enclosure Rating | IP20 / chassis |
| RFI Filter | H3; Class A1/B (C1) |
| PCB Protection | Coated printed circuit boards |
| Weight | 1.083 kg (2.39 lb) |
Information About 132F0018
The 132F0018 is part of the Danfoss FC-51 compact drive range and uses the M1 frame. This configuration includes an H3 RFI filter and coated printed circuit boards. Its IP20 chassis construction is intended for installation within an appropriate equipment enclosure. The local control panel is supplied separately, and this version does not include a brake chopper.
Key Features:
- Variable-Speed Control: Adjusts the speed of a compatible AC motor through frequency conversion.
- Motor Power Rating: Supports a nominal motor power of 0.75 kW (1 HP).
- Three-Phase Supply: Accepts 380–480 VAC three-phase input power.
- Rated Output Current: Provides a nominal current rating of 2.2 A.
- Compact Frame: Uses the M1 frame for panel-mounted installations.
- RFI Filter: Includes the H3 filter configuration, designated Class A1/B (C1).
- Coated Electronics: Features coated printed circuit boards.
- Optional Control Panel: Supports a separately purchased local control panel for setup and operation.
The 132F0018 delivers the reliability and precision required for adjustable AC motor speed control in compatible industrial and HVAC equipment.
