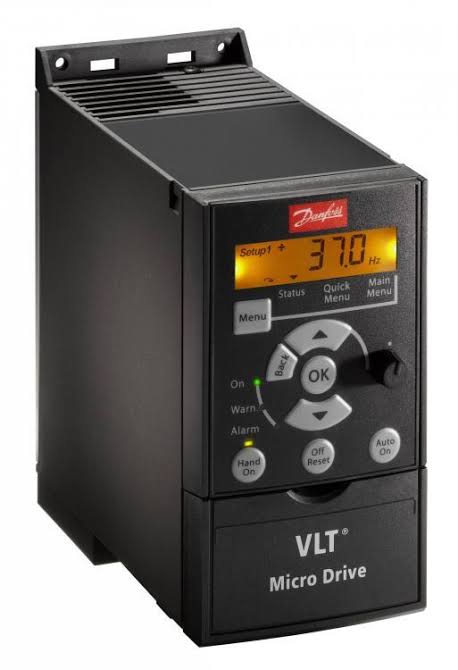

Danfoss 132F0026 VLT Micro Drive FC-51 Variable Frequency Drive with Brake Chopper
- Regular price
- $635.00
- Sale price
- $635.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 132F0026
Description
The Danfoss 132F0026 is a VLT Micro Drive FC-51 frequency converter for variable-speed operation of compatible three-phase AC motors. Rated at 4.0 kW, it accepts a 380–480 VAC supply and supports applications such as centrifugal pumps, fans, and blowers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Drives |
| Part Number | 132F0026 |
| Subcategory | Variable Frequency Drives |
| Product Series | VLT Micro Drive FC-51 |
| Rated Motor Power | 4.0 kW |
| Input Voltage | 380–480 VAC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Continuous Output Current | 9.0 A at 380–440 V; 8.2 A at 440–480 V |
| Motor Output Phase | Three-phase |
| Frame Size | M3 |
| Enclosure Rating | IP20 / chassis |
| RFI Filter | H3; Class A1/B (C1) |
| Brake Chopper | Included |
| PCB Protection | Coated circuit boards |
| Weight | 2.716 kg (5.99 lb) |
Information About 132F0026
The 132F0026 is part of the Danfoss FC-51 drive family and uses the M3 frame. Its configuration includes an H3 RFI filter, coated circuit boards, and a built-in brake chopper. The IP20 chassis requires an installation environment appropriate to its protection rating. A local control panel is available separately for commissioning and operation.
Key Features:
- Motor Speed Regulation: Varies output frequency to control a compatible AC motor.
- Rated Motor Power: Provides a nominal 4.0 kW drive rating.
- Three-Phase Input: Operates from a 380–480 VAC three-phase supply.
- Voltage-Dependent Current Rating: Supplies 9.0 A at 380–440 V or 8.2 A at 440–480 V.
- Integrated Brake Chopper: Supports connection of an appropriately selected external braking resistor.
- RFI Filtering: Includes the H3 configuration, designated Class A1/B (C1).
- Coated Circuit Boards: Features PCB coating for additional protection of electronic components.
- Separate Operator Panel: Supports optional LCP accessories without including a display as standard.
The 132F0026 delivers the reliability and precision required for adjustable motor-speed control in compatible pumping, ventilation, and industrial systems.
