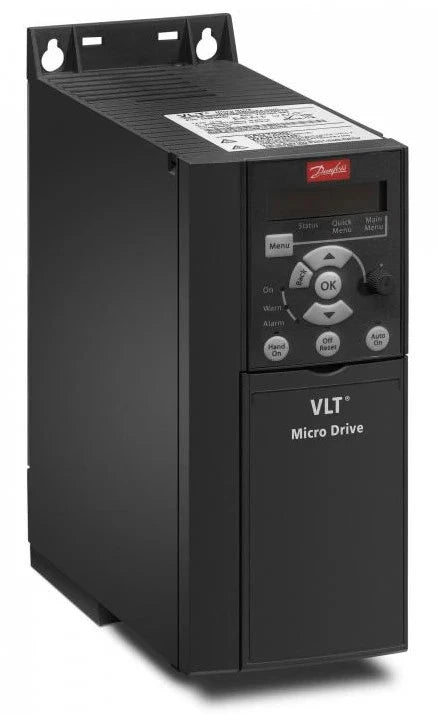

Danfoss 132F0028 VLT Micro Drive FC 51 Frequency Converter
- Regular price
- $725.00
- Sale price
- $725.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 132F0028
Description
The Danfoss 132F0028 is a VLT Micro Drive FC 51 frequency converter for controlling three-phase AC motors. It provides 5.5 kW output for 380–480 V AC systems and includes a braking chopper and coated PCB.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Industrial Automation |
| Part Number | 132F0028 |
| Subcategory | Variable Frequency Drives |
| Drive Series | VLT Micro Drive FC 51 |
| Model Code | FC-051P5K5T4E20H3BXCXXXSXXX |
| Rated Power | 5.5 kW (7.5 hp) |
| Input Voltage | 3-phase, 380–480 V AC |
| Enclosure Rating | IP20 |
| RFI Filter | Class A1/B (C1) |
| Braking Chopper | Included |
| PCB | Coated |
| Frame Size | M3 |
| Weight | 3.3 kg |
Information About 132F0028
The 132F0028 is part of the Danfoss VLT Micro Drive FC 51 series. This model is rated for 5.5 kW (7.5 hp) and uses a three-phase 380–480 V AC supply. Its IP20 chassis includes an RFI filter, braking chopper, and coated printed circuit board. It is supplied without a local control panel, which is available separately.
Key Features:
- Motor Control: Adjusts the speed of compatible three-phase AC motors through variable-frequency operation.
- Rated Output: Supports motor applications up to 5.5 kW (7.5 hp) for controlled operation across a range of load requirements.
- Input Supply: Designed for three-phase 380–480 V AC power in compatible electrical systems.
- IP20 Enclosure: Uses a chassis enclosure suited to installation inside an appropriate electrical cabinet.
- RFI Filter: Includes Class A1/B (C1) radio-frequency interference filtering to support operation in the specified installation environment.
- Braking Chopper: Includes an integrated braking chopper for applications that require controlled motor deceleration.
- Coated PCB: Uses a coated printed circuit board to help protect the electronics within the drive.
- Local Control Panel: Supplied without a local control panel; a compatible panel can be added separately for local operation and adjustment.
The 132F0028 delivers the reliability and precision required for variable-speed control of three-phase AC motors in compatible applications.
