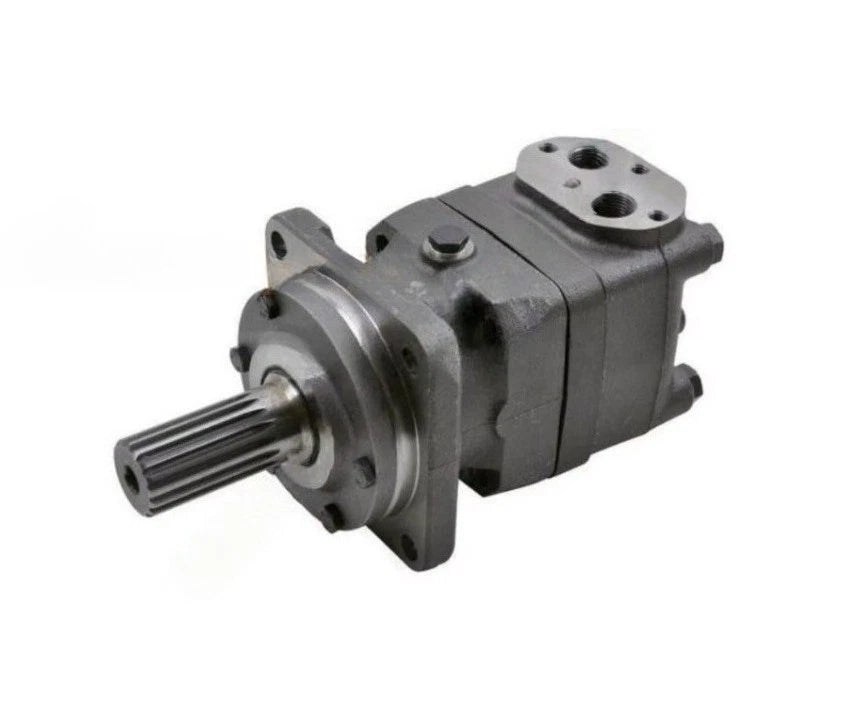

Danfoss 151B3011 OMT 500 Hydraulic Orbital Motor 523.6 cm³/rev
- Regular price
- $1,942.00
- Sale price
- $1,942.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 151B3011
Description
The Danfoss 151B3011 OMT 500 Hydraulic Orbital Motor converts hydraulic energy into mechanical rotation for demanding mobile and industrial hydraulic applications. It features a 523.6 cm³/rev displacement, a splined 1½-inch shaft with 17 teeth, and a standard four-bolt mounting flange.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Equipment |
| Part Number | 151B3011 |
| Subcategory | Hydraulic Orbital Motors |
| Product Series | OMT |
| Model | OMT 500 |
| Motor Type | Hydraulic orbital motor |
| Motor Design | Geroler gear set, disc valve |
| Geometric Displacement | 523.6 cm³/rev |
| Shaft Type | Splined |
| Shaft Size | 1½ inch |
| Number of Splines | 17 |
| Shaft-End Thread | M12 × 1.75 |
| Mounting Flange | Standard, four-bolt square |
| Pilot Diameter | 125 mm |
| Bolt Circle Diameter | 160 mm |
| Main Port Type | G 3/4 BSPP, side ports |
| Drain Port | G 1/4 |
| Seal Kit Reference | 151B0113 |
| Weight | 52.9 lb |
Information About 151B3011
The 151B3011 is part of Danfoss's OMT series of low-speed, high-torque orbital motors. Its Geroler gear set and disc-valve design support controlled rotary output in hydraulic systems. The motor uses side ports with G 3/4 BSPP connections and a G 1/4 drain port. Its configuration includes a standard mounting flange with a 125 mm pilot diameter and a 160 mm bolt circle.
Key Features:
-
High-Torque Operation: Designed for hydraulic applications requiring high torque at low to medium speeds.
-
OMT 500 Design: Part of the Danfoss OMT orbital motor series.
-
Displacement: Provides a geometric displacement of 523.6 cm³/rev.
-
Splined Shaft: Features a 1½-inch shaft with 17 splines and an M12 × 1.75 threaded end.
-
Mounting Flange: Uses a standard four-bolt square flange with a 125 mm pilot diameter.
-
Hydraulic Connections: Includes G 3/4 side ports and a G 1/4 drain port.
-
Geroler Gear Set: Uses a Geroler gearwheel system and disc-valve design.
-
Hydraulic System Integration: Suitable for compatible mobile and industrial hydraulic machinery.
The 151B3011 delivers the reliability and precision required for high-torque hydraulic drive applications.
