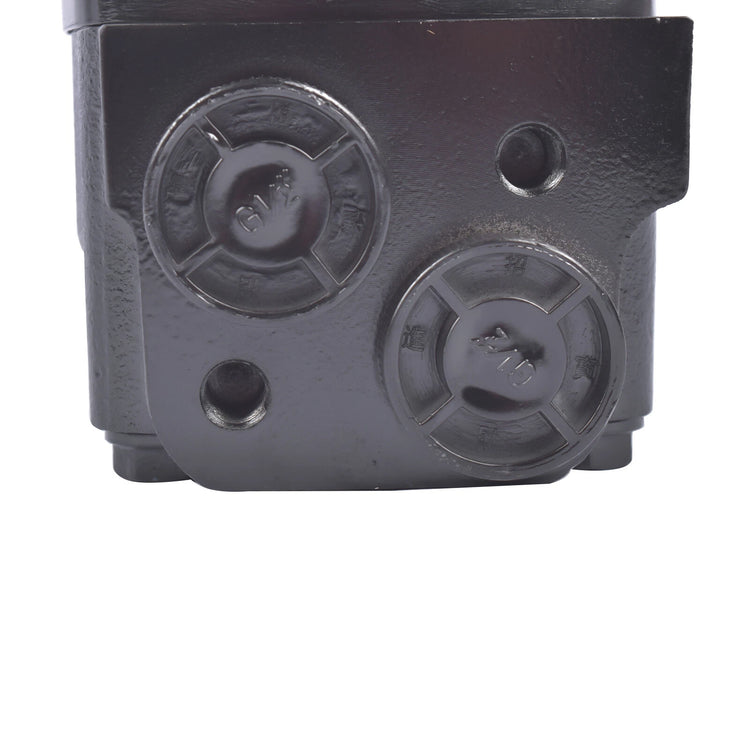

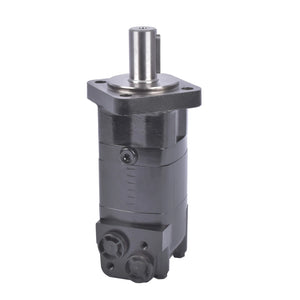

Danfoss 151F0506 OMS 315 Hydraulic Orbital Motor 315cc
- Regular price
- $649.00
- Sale price
- $649.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 151F0506
Description

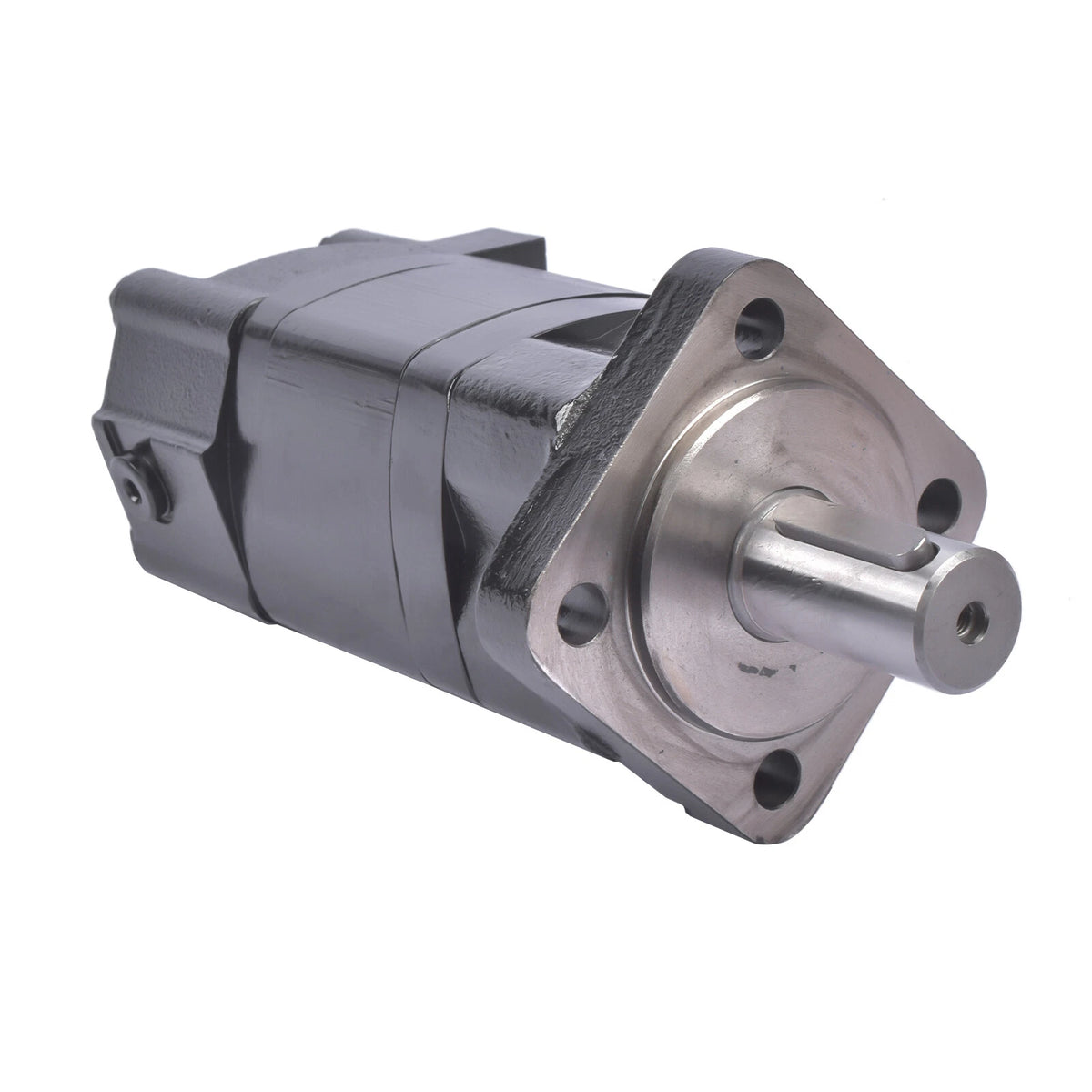

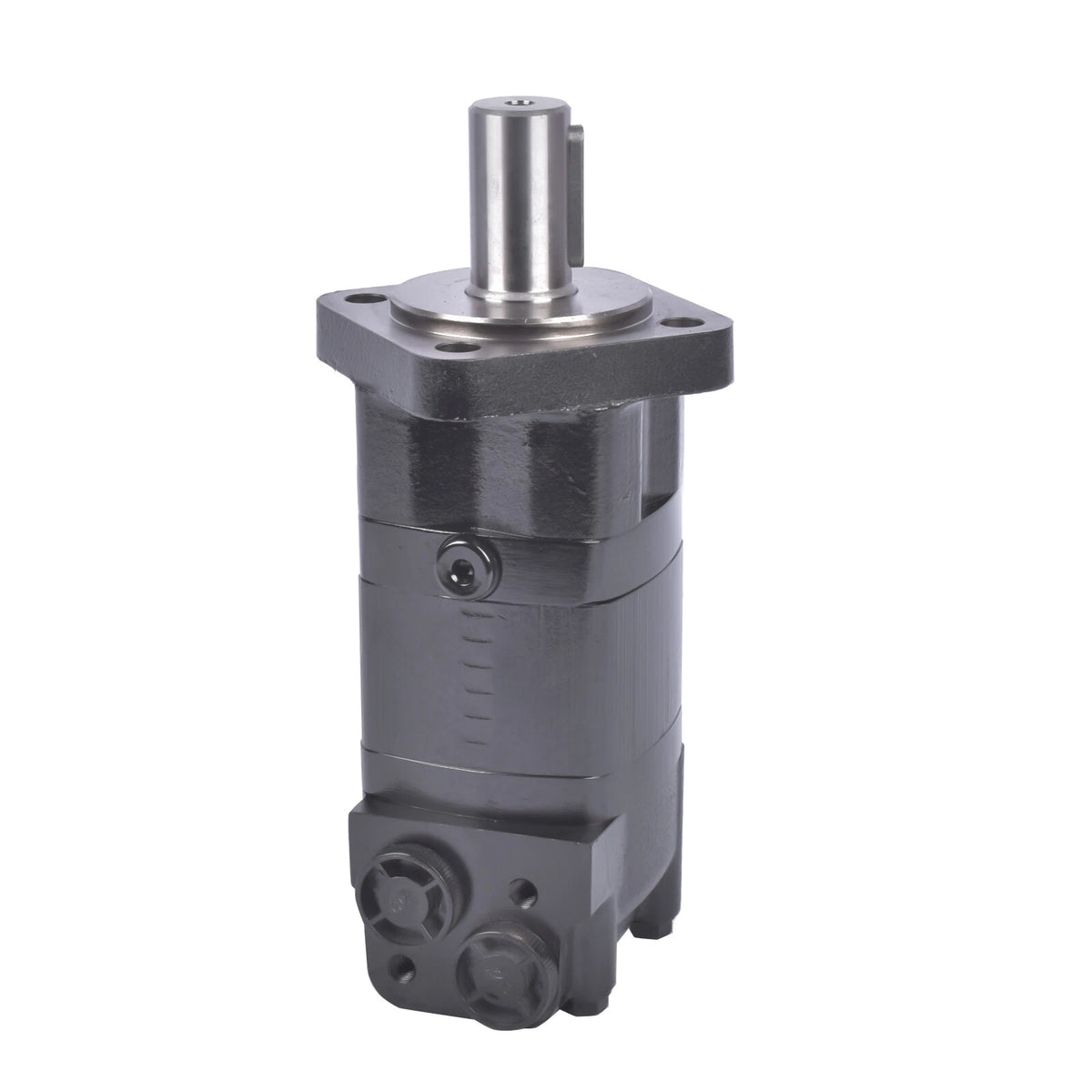

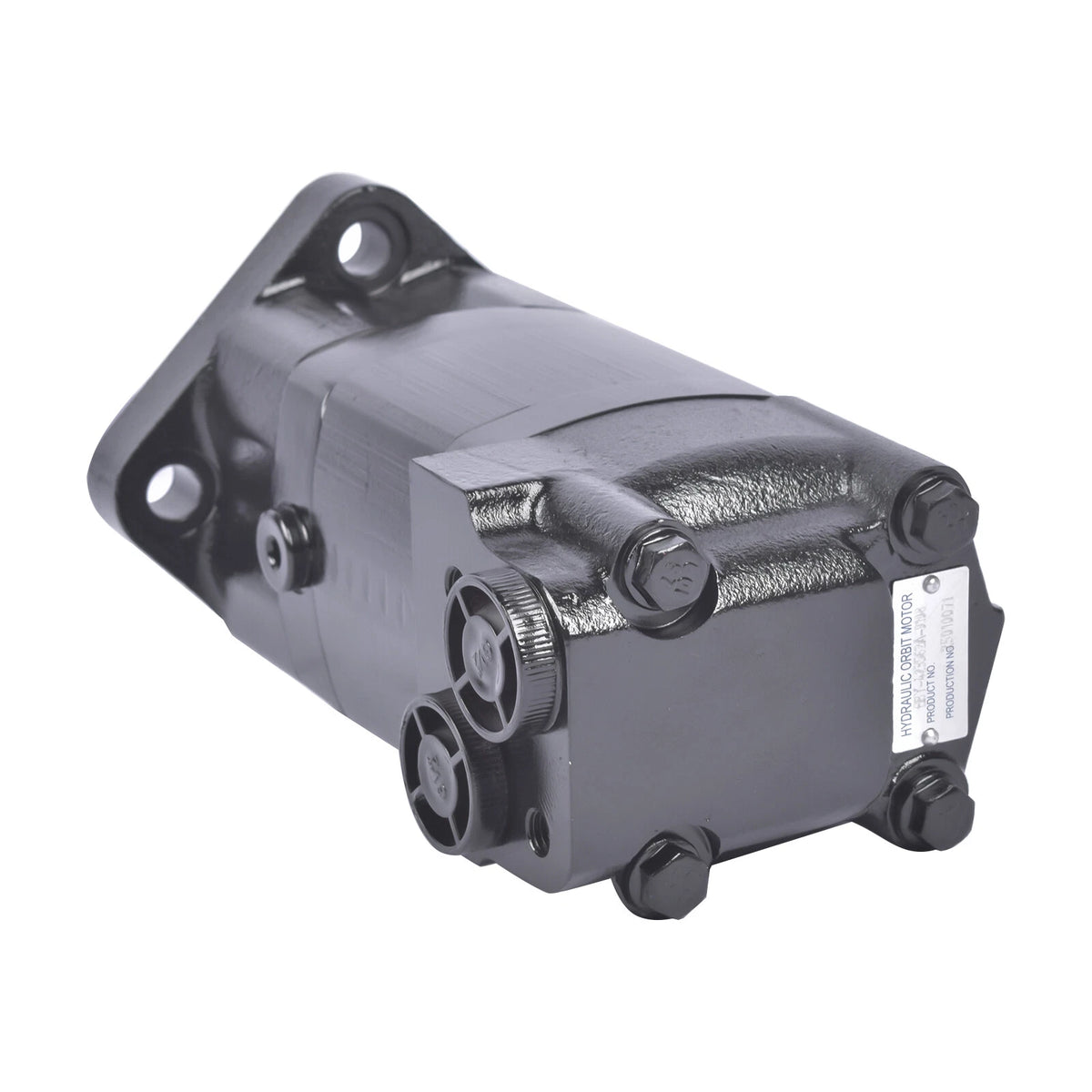

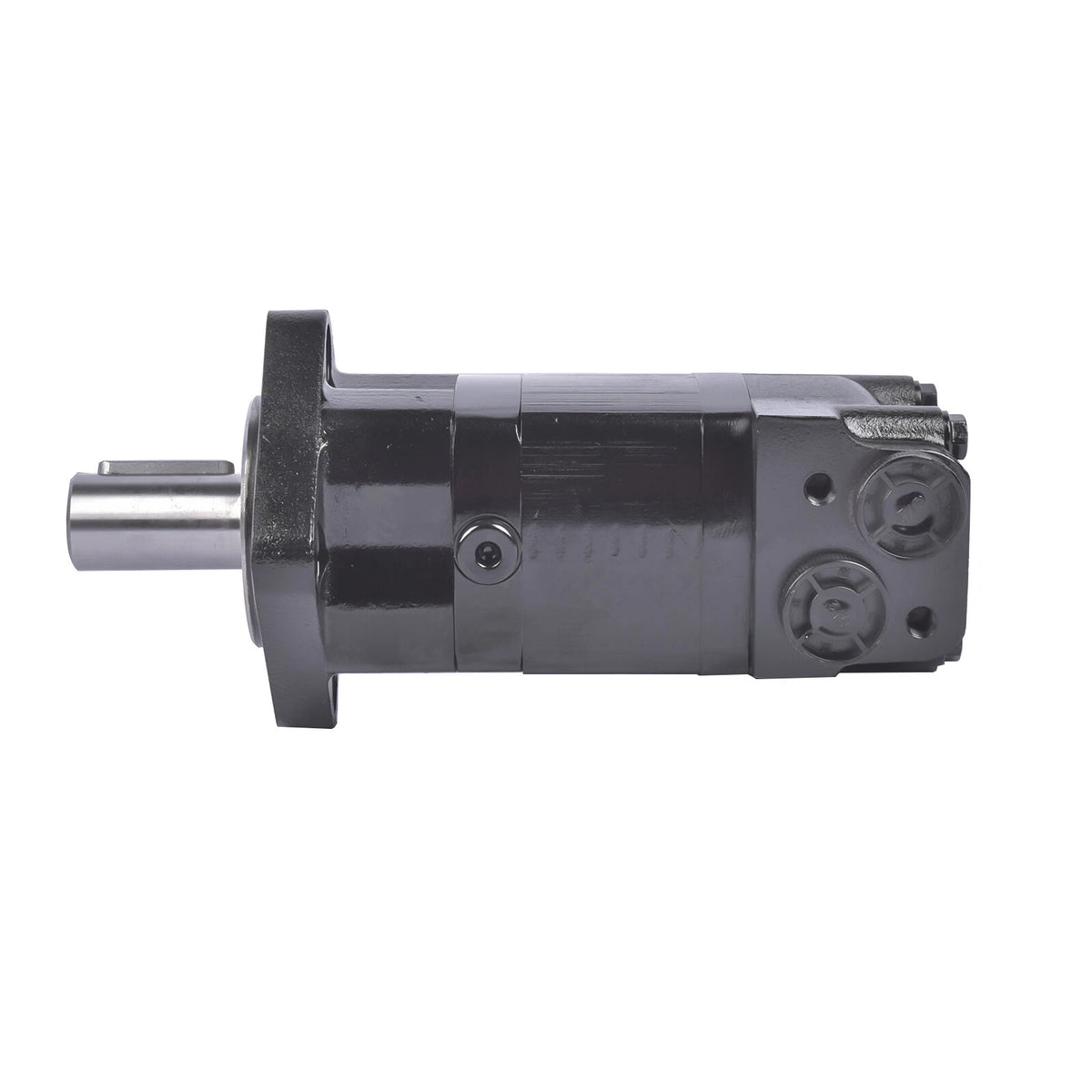

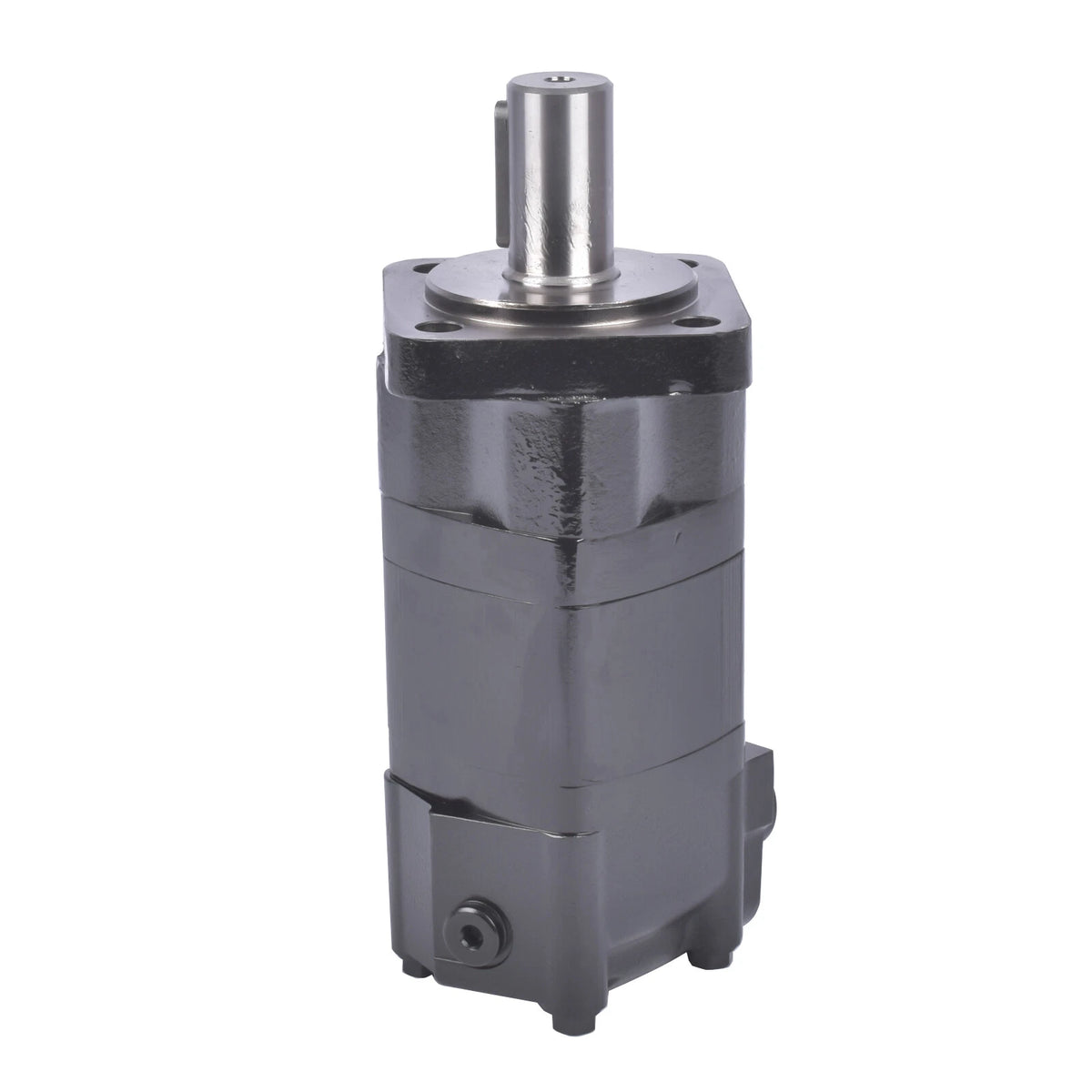

The Danfoss 151F0506 is an OMS 315 low-speed, high-torque hydraulic orbital motor designed for hydraulic drive systems requiring controlled rotation and substantial torque. It features a displacement of 314.9 cm³ per revolution and a cylindrical 32 mm shaft for mechanical integration into compatible equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Components |
| Part Number | 151F0506 |
| Subcategory | Hydraulic Orbital Motors |
| Motor Series | OMS 315 |
| Motor Type | Low-Speed, High-Torque Hydraulic Orbital Motor |
| Displacement | 314.9 cm³/rev |
| Shaft Type | Cylindrical |
| Shaft Diameter | 32 mm |
| Mounting Type | Standard square, four-bolt mount |
| Maximum Speed | 240 rpm |
| Maximum Flow | 75 L/min |
| Maximum Torque | 825 Nm |
| Maximum Pressure Drop | 200 bar |
| Weight | 27.1 lb |
Information About 151F0506
The 151F0506 is a Danfoss OMS 315 hydraulic orbital motor intended for low-speed, high-torque applications. Its 314.9 cm³ displacement supports high torque output at relatively low rotational speeds. The motor uses a 32 mm cylindrical shaft and a standard square four-bolt mounting arrangement. It is specified for a maximum speed of 240 rpm and a maximum pressure drop of 200 bar.
-
Hydraulic Motor Design: Orbital motor for hydraulic power transmission.
-
Model Series: OMS 315 motor series.
-
Displacement: 314.9 cm³ per revolution.
-

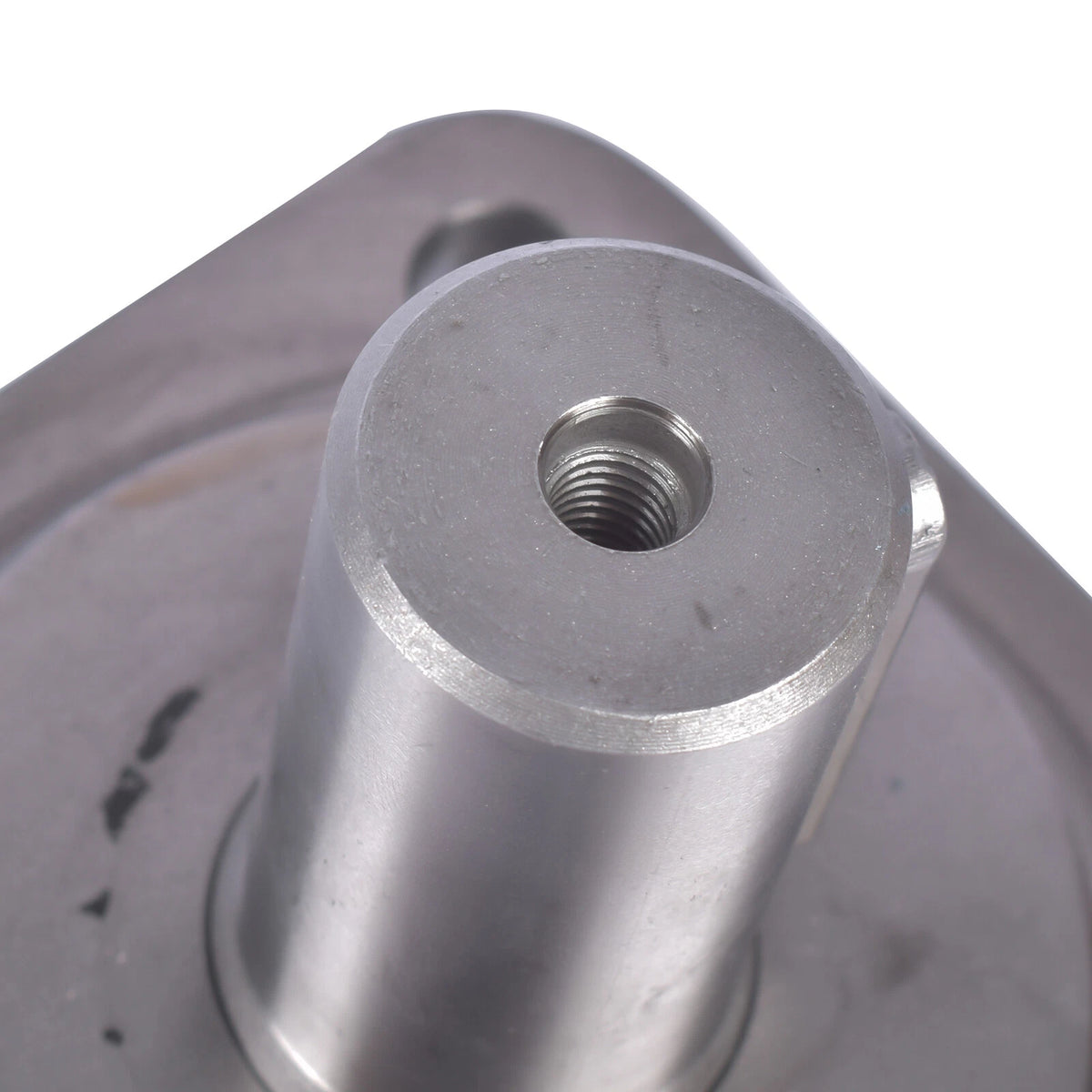

Shaft Type: Cylindrical shaft with a 32 mm diameter.
-

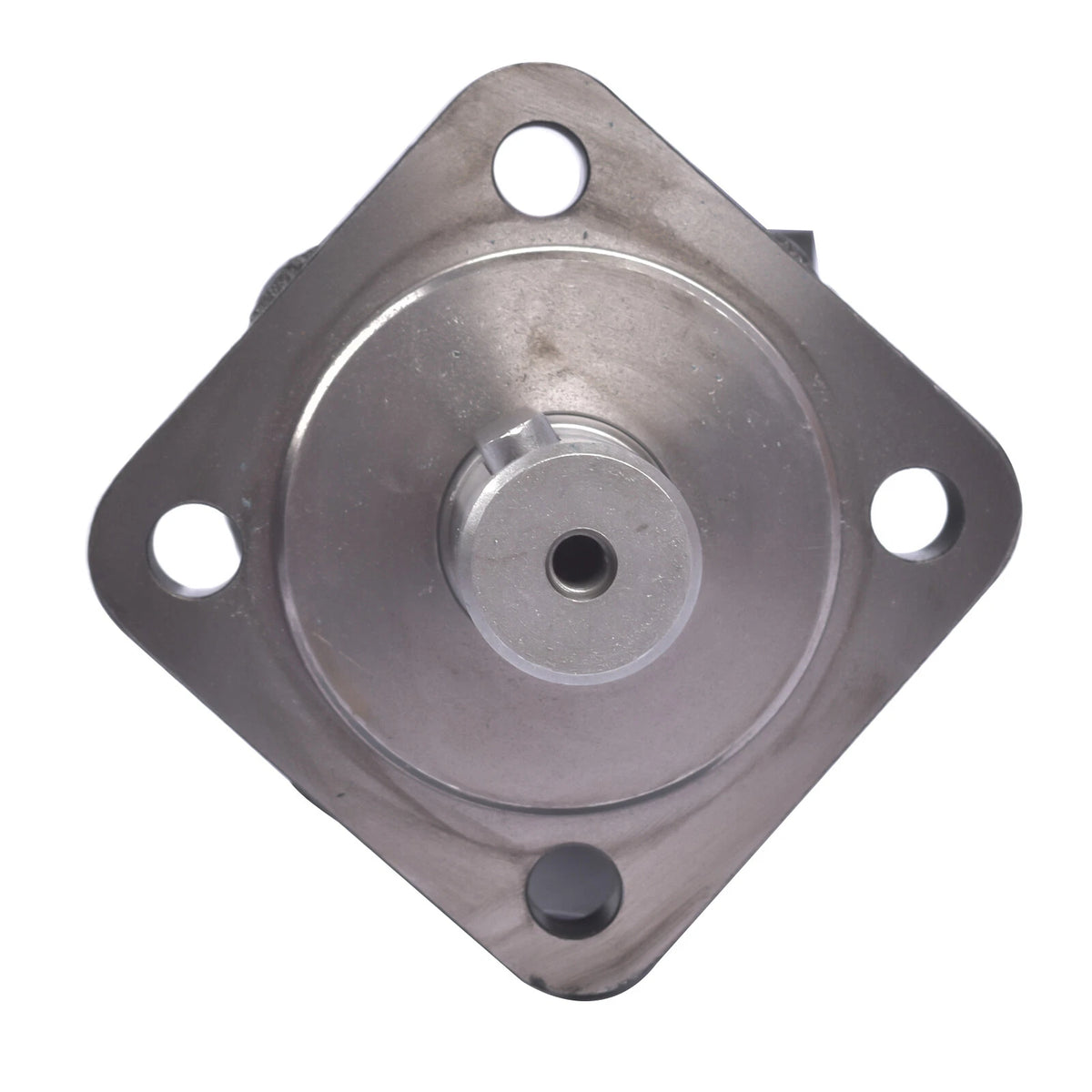

Mounting: Standard square four-bolt mounting configuration.
-
Maximum Speed: Rated up to 240 rpm.
-
Maximum Pressure Drop: 200 bar.
-
Maximum Torque: Listed at 825 Nm by a product distributor.
The 151F0506 delivers the reliability and precision required for low-speed hydraulic drive applications in compatible industrial and mobile machinery.
