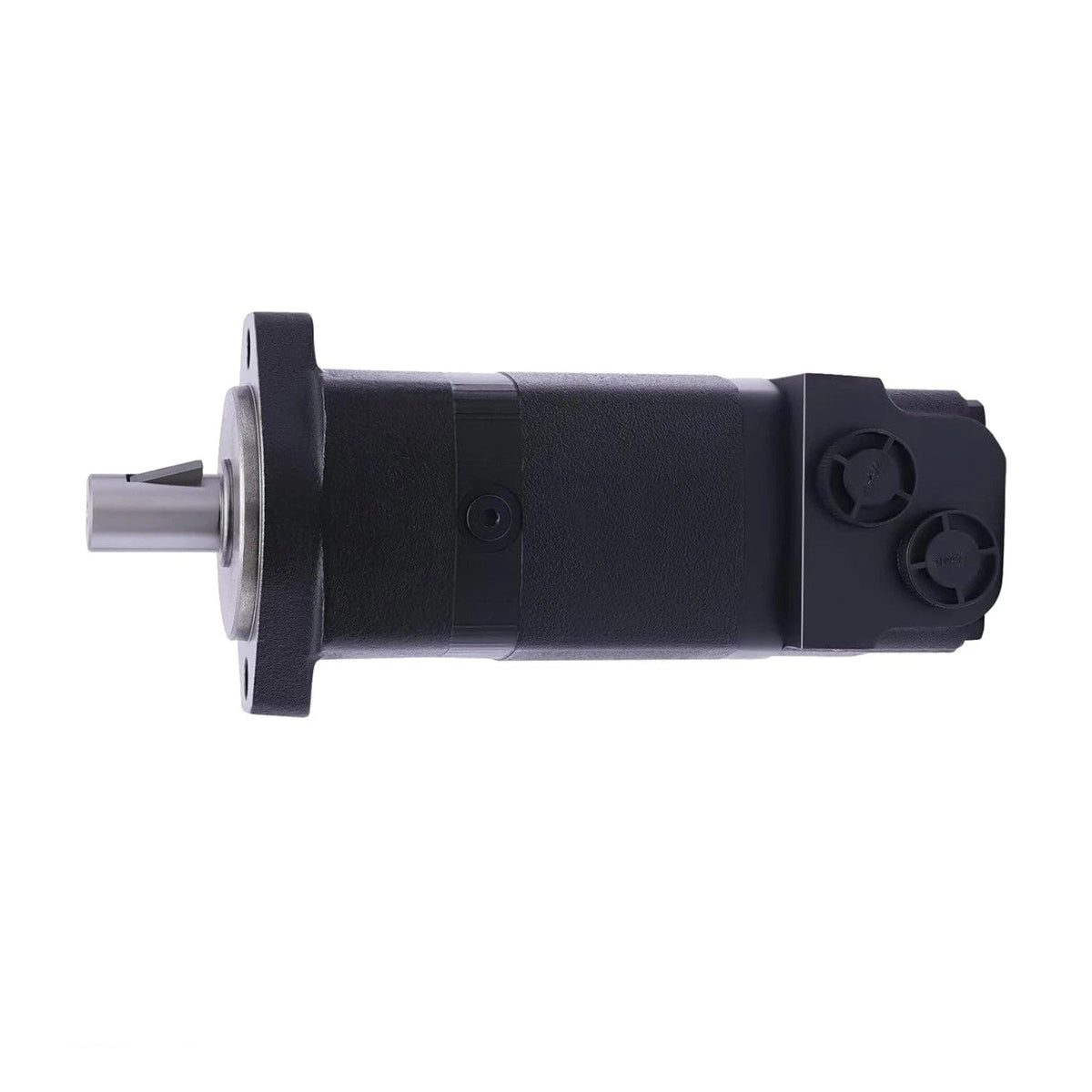

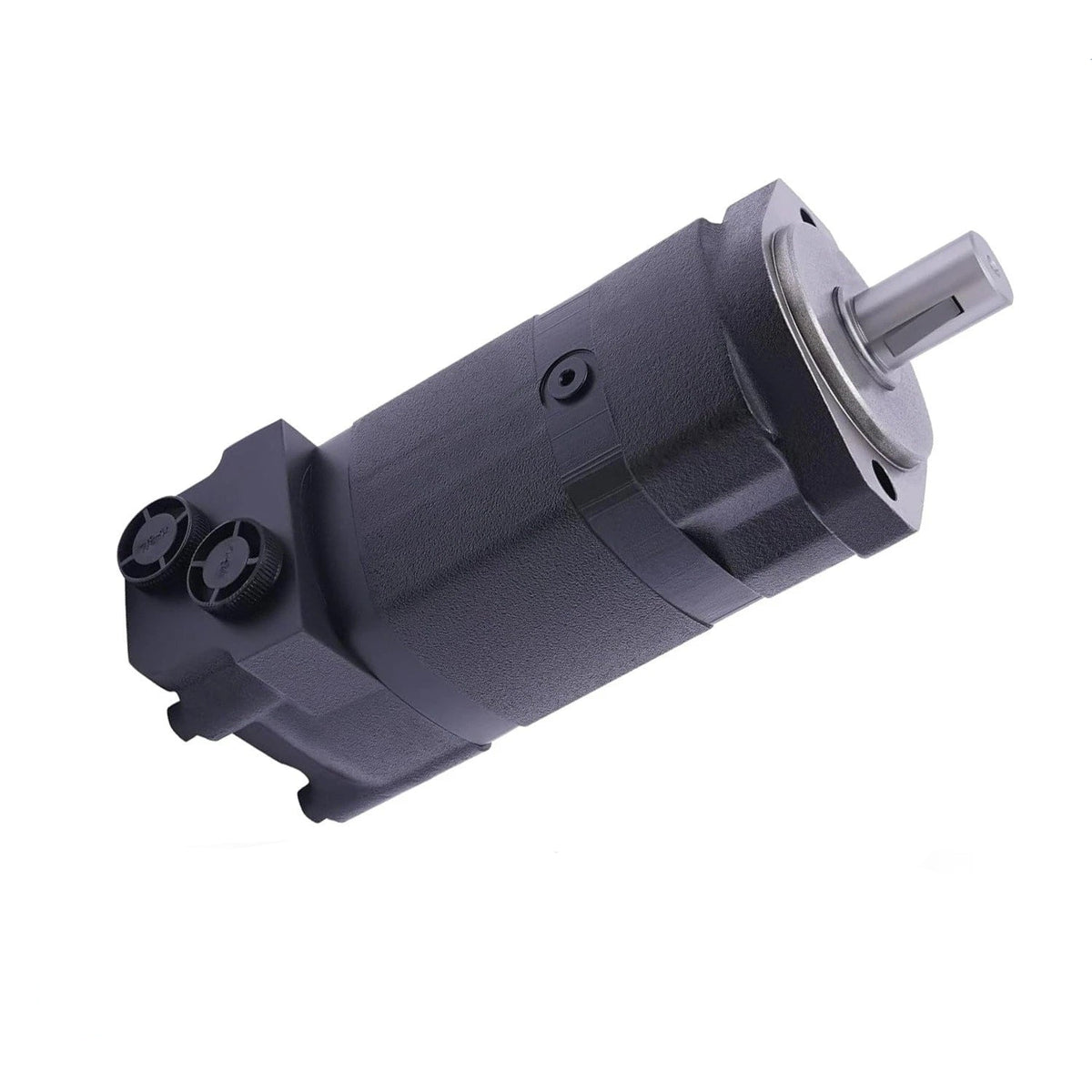

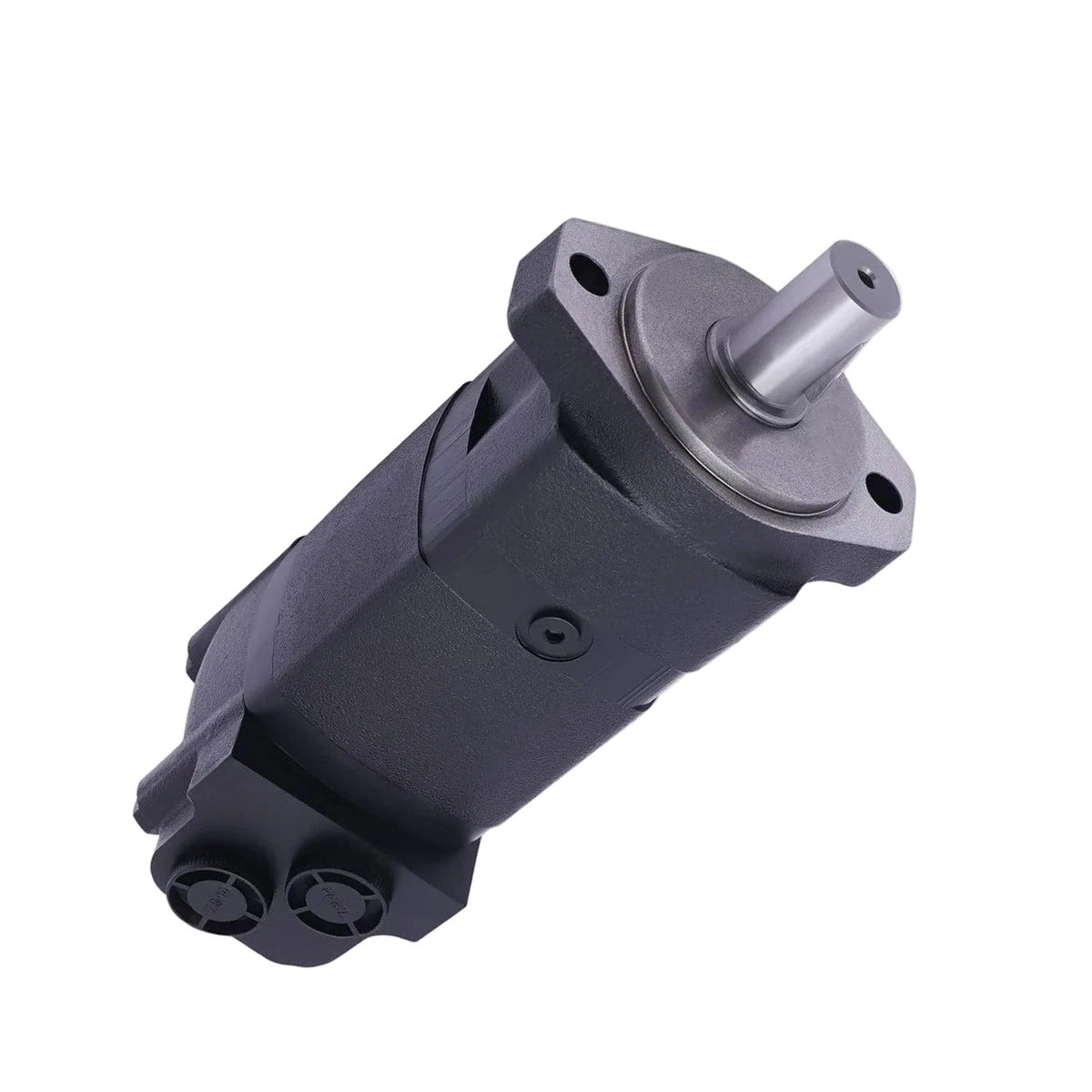

Danfoss 151F2323 OMS 400 Orbital Hydraulic Motor with Cylindrical Shaft and Two-Bolt Mounting Flange
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 151F2323
Description
Danfoss 151F2323 is an OMS 400 orbital hydraulic motor that converts hydraulic flow and pressure into rotary mechanical power. Its low-speed, high-torque operating characteristics suit machinery drives used in material handling, agriculture, and industrial equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulics |
| Part Number | 151F2323 |
| Subcategory | Orbital Hydraulic Motors |
| Model | OMS 400 |
| Motor Type | Fixed-displacement orbital |
| Geometric Displacement | 393 cubic centimeters per revolution |
| Mounting Flange | A-2, two-bolt |
| Output Shaft | Cylindrical, 1 1/4-inch diameter |
| Hydraulic Port Threads | 7/8-14 Unified National Fine |
| Maximum Continuous Speed | 190 revolutions per minute |
| Maximum Continuous Torque | 865 newton-meters |
| Maximum Continuous Pressure Drop | 160 bar |
| Maximum Continuous Oil Flow | 75 liters per minute |
| Maximum Continuous Output | 11 kilowatts |
| Lifecycle Status | Discontinued |
| Weight | 28.9 lbs |
Information About 151F2323
The 151F2323 is a fixed-displacement motor from the Danfoss OMS family. This configuration combines an A-2 mounting flange with a cylindrical output shaft. Its nominal size is 400, with a geometric displacement of 393 cubic centimeters per revolution. Integration requires matching the mounting arrangement, shaft coupling, hydraulic connections, and operating limits.
Key Features:
- Orbital Operation: Produces rotary output through a hydraulic displacement mechanism.
- Low-Speed Drive: Provides a continuous speed rating up to 190 revolutions per minute.
- Torque Capacity: Delivers up to 865 newton-meters under specified continuous operating conditions.
- Cylindrical Shaft: Incorporates a 1 1/4-inch output shaft for a matching coupling.
- Two-Bolt Mounting: Uses the A-2 flange arrangement.
- Threaded Hydraulic Ports: Provides 7/8-14 Unified National Fine connections.
- Fixed Displacement: Maintains a defined displacement per revolution, with operating speed governed by supplied flow.
The 151F2323 delivers the reliability and precision required for hydraulic rotary drives operating within the specified load and speed limits.
