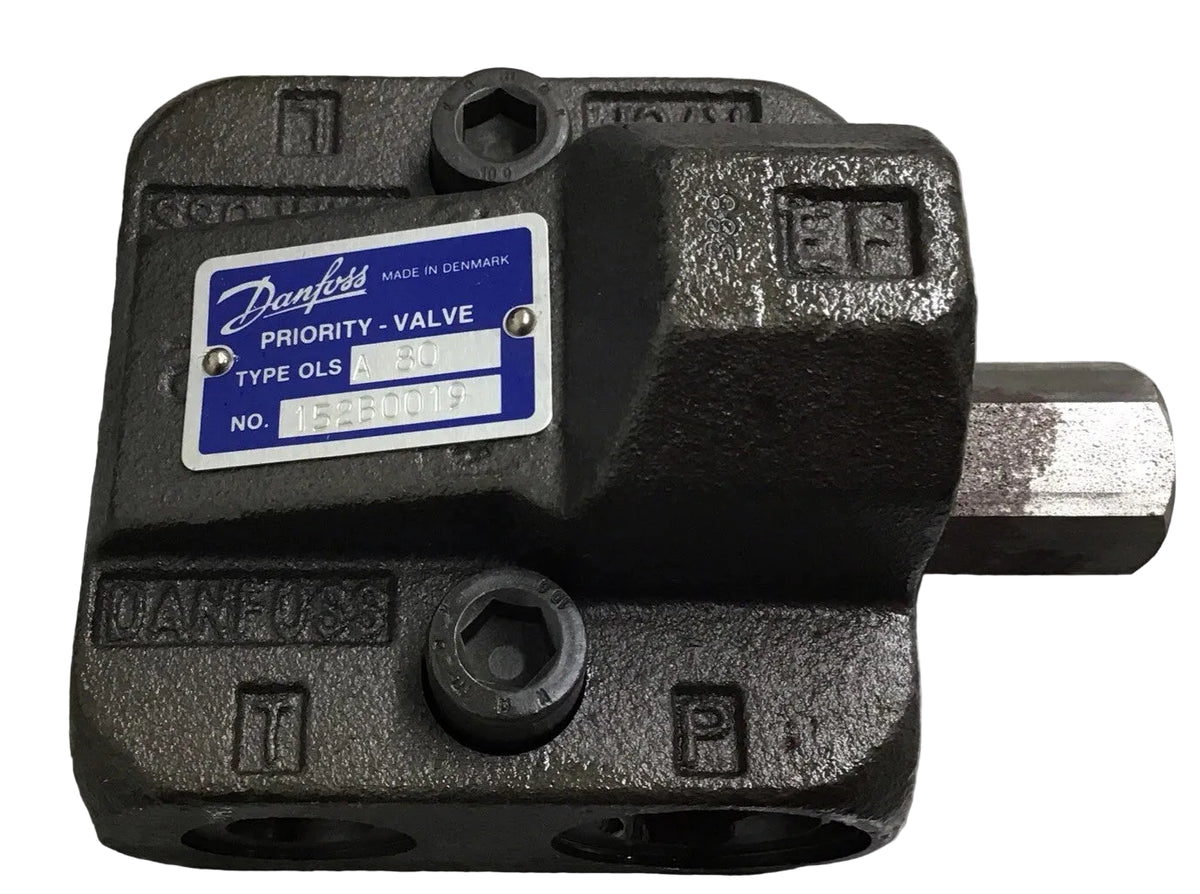

Danfoss 152B0019 OLSA 80 Static Load-Sensing Hydraulic Steering Priority Valve, 4 Bar, UNF Ports
- Regular price
- $687.00
- Sale price
- $687.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 152B0019
Description
The Danfoss 152B0019 is an OLSA 80 hydraulic priority valve for static load-sensing steering systems in mobile machinery. It prioritizes hydraulic flow to the steering circuit while directing excess flow to working hydraulics, supporting systems with pump flow up to 21.13 GPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulics & Fluid Power |
| Part Number | 152B0019 |
| Subcategory | Hydraulic Steering Priority Valves |
| Model | OLSA 80 |
| Product Family | OLS priority valves |
| Load-Sensing Type | Static |
| Mounting Configuration | Flange-mounted onto a compatible steering unit |
| Compatible Steering Units | OSPC LS and OSPD LS with OLSA mounting configuration |
| Maximum Pump Flow | 80 L/min / 21.13 GPM |
| Control Spring Pressure | 4 bar / 58 psi |
| Pilot-Pressure Connection | Internal PP |
| P and EF Port Threads | 7/8-14 UNF |
| T, R, and L Port Threads | 9/16-18 UNF |
| Maximum P and EF Port Pressure | 250 bar / 3,625 psi |
| Maximum CF and LS Pressure | 240 bar / 3,480 psi |
| Maximum L and R Port Pressure | 280 bar / 4,061 psi |
| Maximum T Port Pressure | 20 bar / 290 psi |
| Weight | Approximately 4.63 lb |
Information About 152B0019

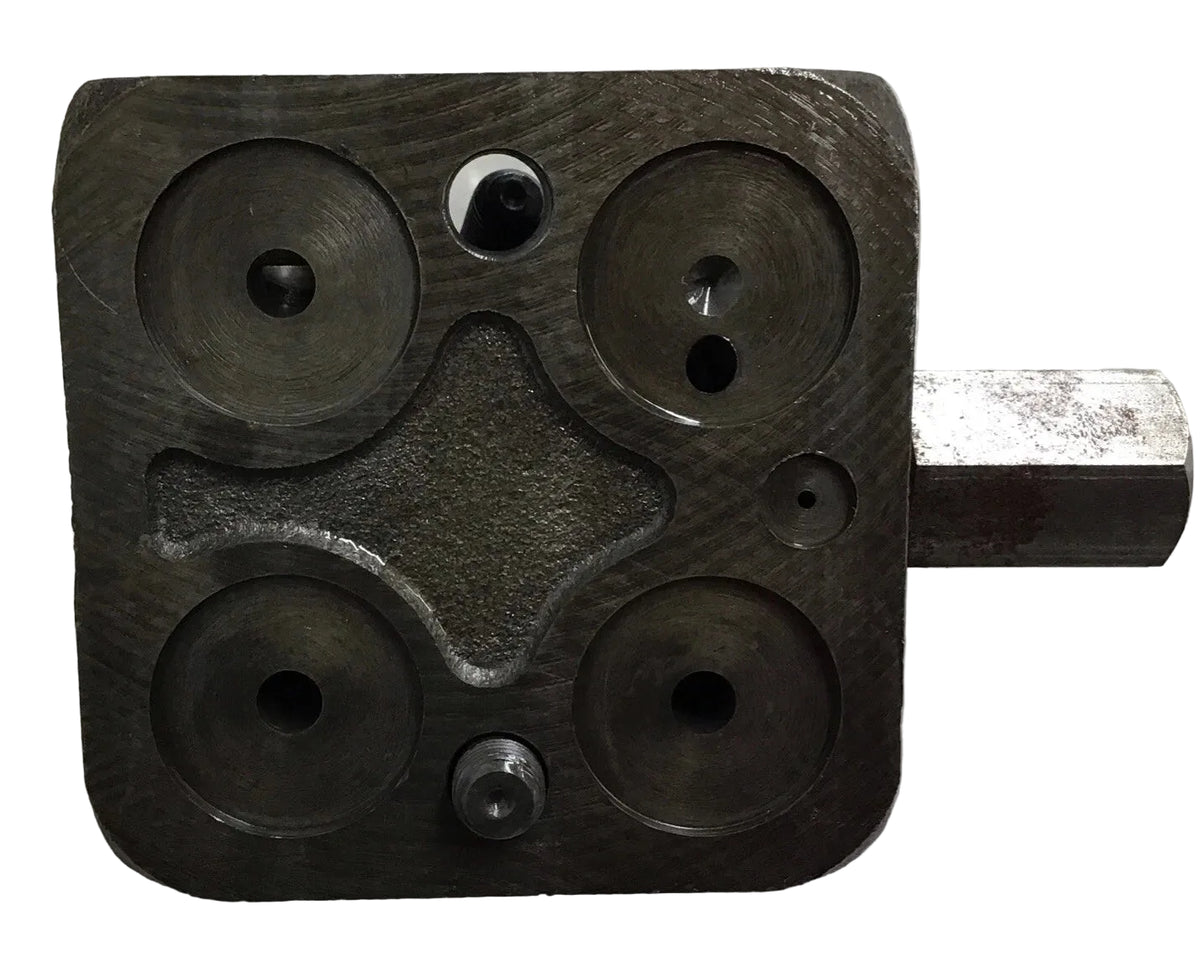

The 152B0019 is a flange-mounted priority valve within the Danfoss OLS steering component family. It mounts directly onto compatible OSPC LS and OSPD LS steering units configured for OLSA installation. This version features a 4 bar control spring and internal pilot-pressure connection. Its U.S. port configuration uses UNF threads for integration with matching hydraulic connections.
Key Features:
- Steering Priority: Allocates required hydraulic flow to steering before supplying excess flow to auxiliary functions.
- Static Load Sensing: Designed for compatible LS static steering systems.
- OLSA 80 Configuration: Supports maximum pump flow of 80 L/min / 21.13 GPM.
- Direct Mounting: Flanges onto compatible steering units for a compact assembly.
- Control Spring: Uses a 4 bar / 58 psi spring-pressure configuration.
- Internal Pilot Pressure: Incorporates an internal PP connection.
- Pump and Excess-Flow Ports: Features 7/8-14 UNF connections at P and EF.
- Steering and Return Ports: Uses 9/16-18 UNF connections at T, R, and L.
The 152B0019 delivers the reliability and precision required for hydraulic flow prioritization in compatible mobile steering systems.
