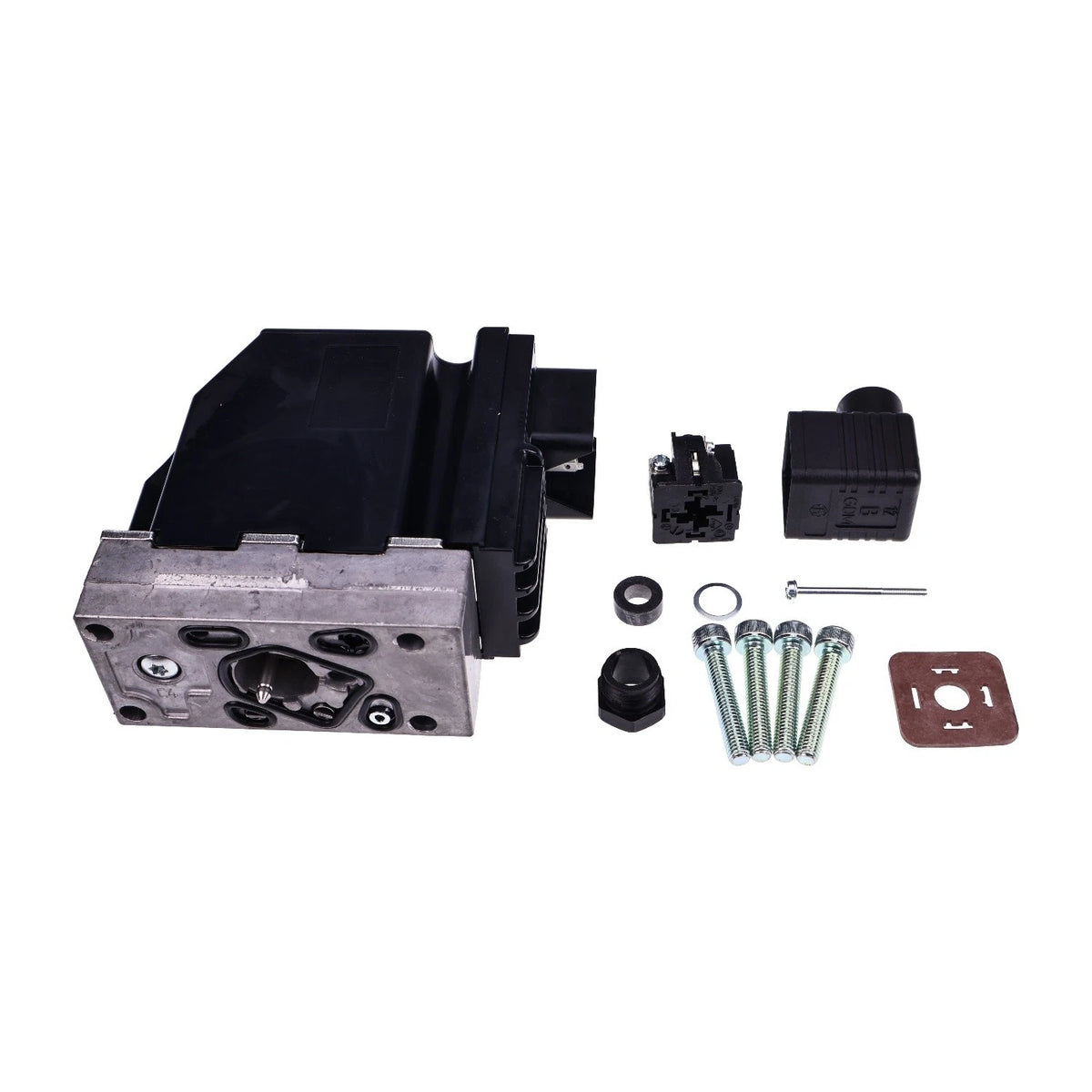

Danfoss 157B4116 PVEM Series 4 Proportional Electrohydraulic Valve Actuator
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 157B4116
Description
The Danfoss 157B4116 is a PVEM electrohydraulic actuator for proportional operation of compatible PVG hydraulic valve assemblies. It uses a 12 VDC supply and a Hirschmann-style DIN connector to translate an electrical control signal into valve actuation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Controls |
| Part Number | 157B4116 |
| Subcategory | Electrohydraulic Valve Actuators |
| Product Designation | PVEM32-ACTUATOR--S4-1x4DIN-H-12V-1MM |
| Actuator Type | PVEM, standard proportional-medium configuration |
| Series | PVE Series 4 |
| Nominal Supply Voltage | 12 VDC |
| Control Signal | Ratiometric proportional |
| Connector Type | 1 × 4-pin DIN 43650-A / ISO 4400, Hirschmann style |
| Connector Orientation | 90°, upward |
| Ingress Protection | IP65 |
| Coil Power | 8 W |
| Valve-Side Interface | PVE32 O-ring |
| Manufacturer Product Status | Obsolete |
| Weight | 0.9 kg (2.0 lb) |
Information About 157B4116
The 157B4116 is a standard PVEM32 module from the Danfoss PVE Series 4 range. Its ratiometric input provides proportional control referenced to the supply voltage. The assembly uses a PVE32 O-ring interface and carries an IP65 protection rating. Danfoss identifies this configuration as obsolete, making exact electrical and mechanical matching important for replacement selection.
Key Features:
- Proportional Actuation: Provides medium-performance PVEM control for a compatible hydraulic valve section.
- Ratiometric Input: Uses a control signal referenced to the actuator’s supply voltage.
- Low-Voltage Operation: Requires a nominal 12 VDC power supply.
- DIN Electrical Connector: Incorporates one four-pin DIN 43650-A / ISO 4400 connection.
- Series 4 Configuration: Uses the PVEM32 S4 actuator design.
- Valve-Side Interface: Connects through the specified PVE32 O-ring interface.
- IP65 Protection: Provides dust-tight protection and resistance to water jets when correctly installed.
- Standard Stroke Configuration: Does not include a float-position function.
The 157B4116 delivers the reliability and precision required for proportional electrohydraulic valve operation in compatible hydraulic systems.
