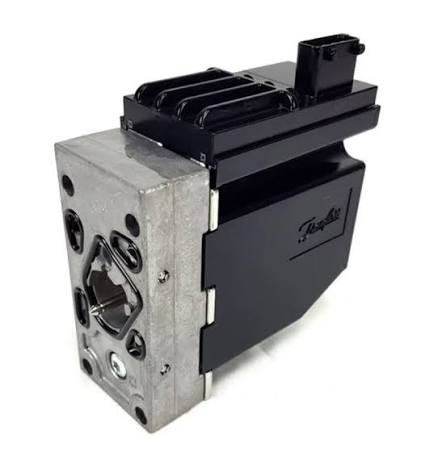

Danfoss 157B4734 PVEA Electrohydraulic Proportional Valve Actuator
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 157B4734
Description
The Danfoss 157B4734 electrohydraulic actuator provides proportional control of compatible PVG directional valves using a ratiometric input signal. Its low-hysteresis design and active fault monitoring support controlled hydraulic movement in mobile machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Controls |
| Part Number | 157B4734 |
| Subcategory | Electrohydraulic Valve Actuators |
| Actuator Type | PVEA32 |
| Series | Series 4 |
| Supply Voltage | 11–32 VDC |
| Control Signal | Ratiometric |
| Connector Type | 1 × 4-pin AMP JPT SAAB |
| Connector Orientation | 90° upward |
| Valve Interface | PVE32 O-ring |
| Hysteresis | 2.0% |
| On-Stroke Response | 350 ms, directions A and B |
| De-Stroke Reaction | 225 ms, directions A and B |
| Fault Monitoring | Active; solenoid disable with automatic recovery |
| Coil Power | 8 W |
| Enclosure Rating | IP66 |
| Weight | 0.9 kg (2.0 lb) |
Information About 157B4734
The 157B4734 is a PVEA Series 4 actuator with a PVE32 O-ring mounting interface. It operates from an 11–32 VDC supply and connects through a single four-pin AMP JPT SAAB connector. The IP66-rated assembly uses hydraulic pilot actuation to position the valve spool according to the electrical command. Active fault monitoring disables the solenoids when a fault is detected and provides automatic recovery.
Key Features:
- Proportional Operation: Regulates valve spool movement according to a ratiometric command signal.
- Low Hysteresis: Specified hysteresis is 2.0% for repeatable control response.
- Wide Supply Range: Accepts 11–32 VDC for compatible machine electrical systems.
- AMP Connection: Uses one four-pin AMP JPT SAAB connector oriented upward at 90°.
- Active Fault Monitoring: Disables solenoid operation upon a detected fault.
- Automatic Recovery: Supports recovery after the detected fault condition clears.
- Environmental Protection: IP66 enclosure resists dust ingress and powerful water jets.
- Hydraulic Interface: Incorporates the PVE32 O-ring interface for compatible valve assemblies.
The 157B4734 delivers the reliability and precision required for proportional hydraulic valve actuation in mobile equipment.
