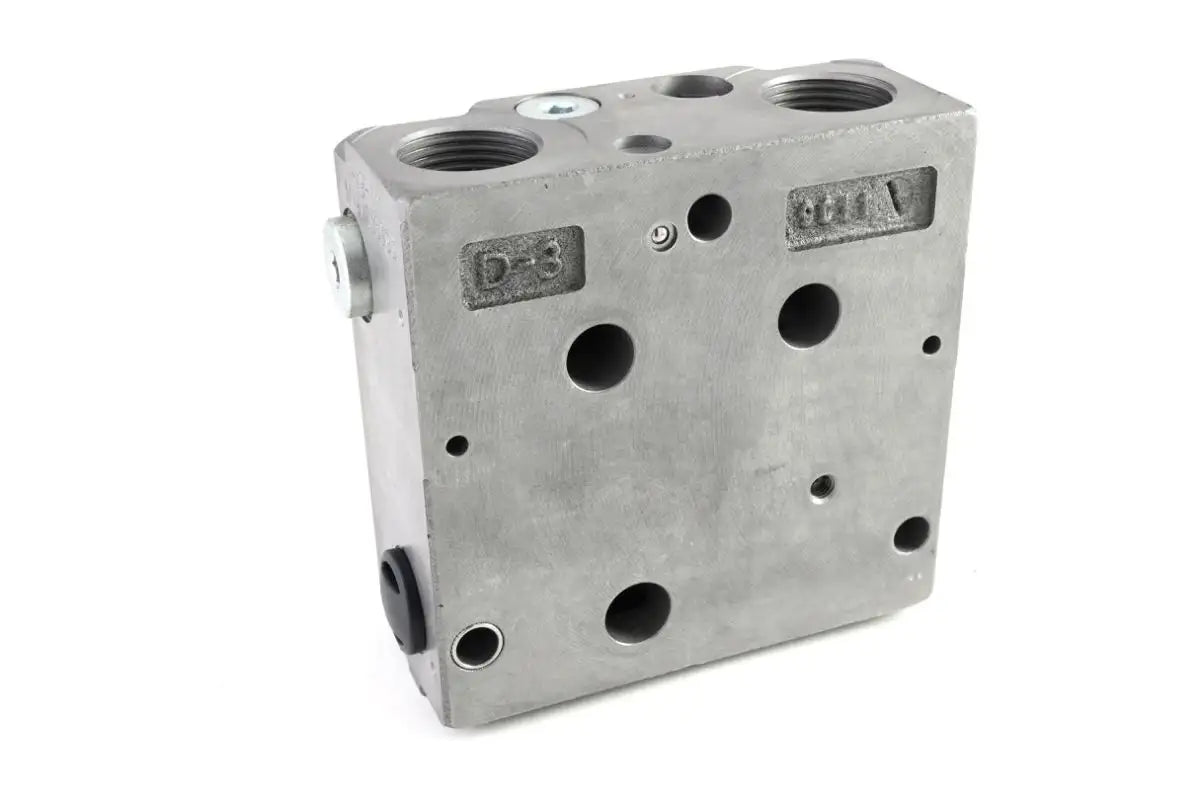

Danfoss 157B5111 PVG 32 PVP Pump Side Hydraulic Valve Module 350 Bar 150 L/min Closed Center
- Regular price
- $1,485.00
- Sale price
- $1,485.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 157B5111
Description
The Danfoss 157B5111 is a PVG 32 Series pump-side module (PVP) designed to manage hydraulic oil supply, pressure regulation, and load-sensing functions in proportional directional control valve assemblies. Configured for closed-center hydraulic systems, it supports nominal flow rates of 150 L/min and maximum operating pressures up to 350 bar (5,076 psi). Its integrated load-sensing relief function, pilot pressure supply, and standardized BSP hydraulic connections make it suitable for mobile machinery and industrial hydraulic applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Hydraulics & Fluid Power |
|
Part Number |
157B5111 |
|
Subcategory |
Hydraulic Valve Modules |
|
Series |
PVG 32 |
|
Product Family |
PVG 32/120 Proportional Valves |
|
Product Type |
Pump-Side Module (PVP) |
|
Pump Configuration |
Closed Center (CC) |
|
Maximum Operating Pressure |
350 bar (5,076 psi) |
|
Nominal Flow Rate |
150 L/min (39.6 GPM) |
|
Pressure Matching Function |
10–16 bar at 10–150 L/min |
|
Nominal Pilot Pressure |
13.5 bar (196 psi) |
|
Load-Sensing Relief |
Yes |
|
Load-Sensing Damping |
Fixed Orifice LS |
|
LS Port Size |
G1/4 |
|
Pressure Port (P) |
G3/4, Top-Mounted |
|
Tank Port (T) |
G3/4, Top-Mounted |
|
Pump Pressure Gauge Port |
G1/4, Position A |
|
Hydraulic Connection Type |
BSP |
|
Port Connection Standard |
DIN 3852-2 |
|
Mounting Interface |
Mounting Feet A/B |
|
Mounting Thread Size |
M8 |
|
PVPC Facility |
Yes |
|
Tie Rod Length |
48 mm |
|
Valve System Compatibility |
Danfoss PVG 32 Modular Proportional Valve Assemblies |
|
Primary Applications |
Construction Equipment, Agricultural Machinery, Material Handling Equipment, Mobile Hydraulic Systems |
|
Weight |
4.4 lb |
Information About 157B5111
The 157B5111 is part of the Danfoss PVG 32/120 proportional valve family, serving as the pump-side inlet module in modular hydraulic directional control systems. Its construction incorporates a closed-center pump configuration, fixed-orifice load-sensing damping, and integrated pressure regulation features for hydraulic circuits requiring controlled oil distribution. The module includes G3/4 pressure and tank ports, G1/4 load-sensing and pressure gauge connections, and an M8 mounting arrangement for installation within compatible PVG 32 valve assemblies. With a nominal pilot pressure of 13.5 bar, pressure matching characteristics of 10–16 bar, and provision for PVPC functionality, it supports hydraulic control systems used in construction, agricultural, material handling, and other mobile equipment.
Key Features:
-
Closed-Center Configuration: Designed for closed-center hydraulic systems using compatible pressure-compensated pump arrangements.
-
High-Pressure Operation: Supports maximum hydraulic operating pressures up to 350 bar (5,076 psi).
-
Nominal Flow Capacity: Accommodates a nominal hydraulic flow rate of 150 L/min (39.6 GPM).
-
Integrated Load-Sensing Relief: Incorporates an LS relief function for pressure management in load-sensing hydraulic circuits.
-
Fixed-Orifice LS Damping: Uses fixed-orifice damping to stabilize load-sensing pressure signals.
-
Pressure Matching Function: Provides a specified pressure matching range of 10–16 bar at 10–150 L/min.
-
Pilot Pressure Supply: Features a nominal pilot pressure of 13.5 bar for compatible proportional valve control functions.
-
BSP Hydraulic Connections: Uses threaded ports conforming to DIN 3852-2 for integration into hydraulic piping systems.
-
Main Pressure and Tank Ports: Includes top-mounted G3/4 P and T connections for hydraulic supply and return.
-
Load-Sensing Interface: Features a G1/4 LS port for connection to the hydraulic pump control circuit.
-
Pressure Gauge Connection: Provides a G1/4 pump pressure measurement port for testing and diagnostics.
-
Modular Valve Integration: Supports assembly with compatible Danfoss PVG 32 proportional directional valve sections.
The 157B5111 delivers the reliability and precision required for hydraulic pressure management, load-sensing pump control, and proportional flow distribution in mobile and industrial machinery.
