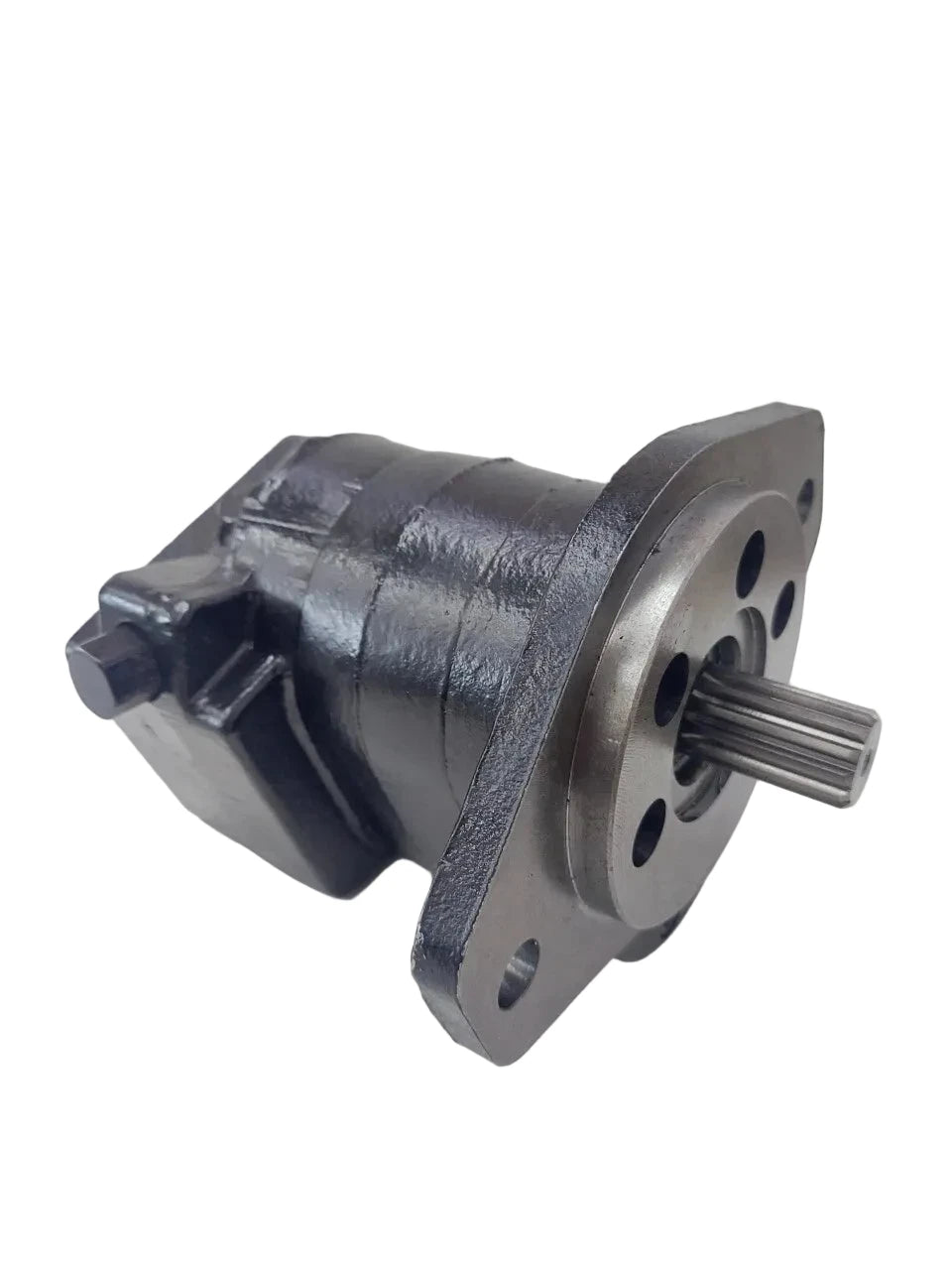

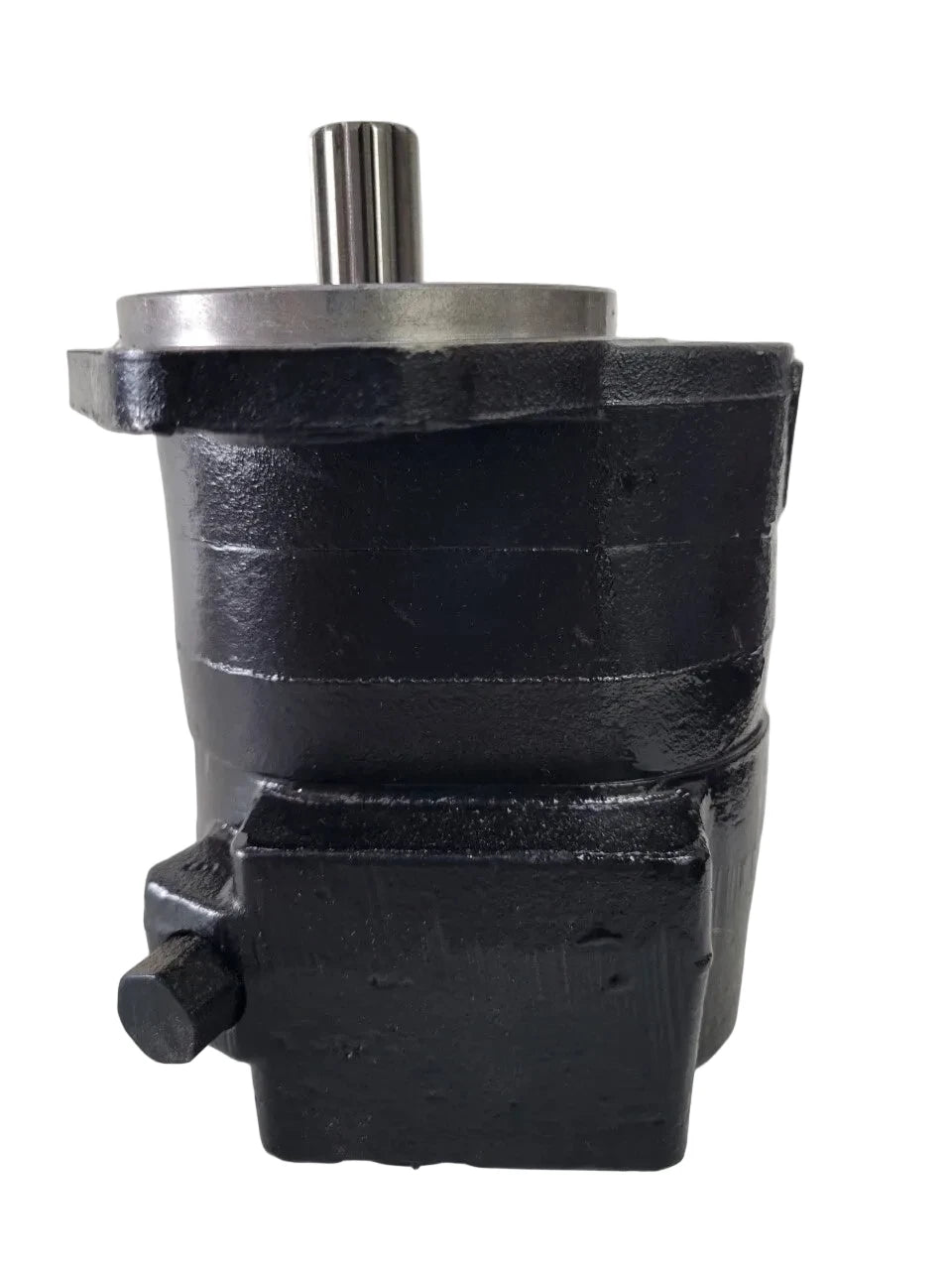

Danfoss 163D70546 D-Series Hydraulic Gear Pump
- Regular price
- $2,055.00
- Sale price
- $2,055.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 163D70546
Description
The Danfoss 163D70546 is a right-hand, single-stage hydraulic gear pump designed for mobile hydraulic systems. It features a 45.1 cm³ displacement, an SAE B two-bolt mounting flange, and an integrated pressure-flow-demand (PFD) configuration with a 2,200 psi relief pressure setting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulic Components |
| Part Number | 163D70546 |
| Subcategory | Hydraulic Gear Pumps |
| Product Type | Single-Stage Hydraulic Gear Pump |
| Series | D-Series |
| Model Code | DE1R-45SH-BC-P13B-15N-152-DU-AN-NNN |
| Rotation | Right-hand |
| Displacement | 45.1 cm³/rev |
| Shaft Type | SAE 13-tooth spline |
| Shaft Extension | 1.62 in |
| Mounting Flange | SAE B, 2-bolt |
| Rear Inlet Port | 1-5/8-12 ORB |
| Rear Case-Flow Outlet | 3/4-16 ORB |
| Rear Excess-Flow Outlet | 7/8-14 ORB |
| PFD Control Setting | 4 GPM (15.1 L/min) |
| Relief Valve Pressure | 2,200 psi (152 bar) |
| Housing Material | Cast iron |
| Weight | 25 lb |
Information About 163D70546
The 163D70546 is a Danfoss D-Series cast-iron hydraulic gear pump. Its model code is DE1R-45SH-BC-P13B-15N-152-DU-AN-NNN, identifying a right-hand single pump with a 45.1 cm³ displacement and a 13-tooth SAE splined shaft. The pump uses an SAE B two-bolt mounting flange and rear-port configuration with ORB hydraulic connections. Its PFD control setting is specified at 4 GPM, with a relief valve pressure of 152 bar (2,200 psi).
-
Pump Type: Right-hand, single-stage hydraulic gear pump.
-
Displacement: 45.1 cm³ per revolution.
-
Shaft Configuration: SAE 13-tooth splined shaft with 1.62-inch extension.
-
Mounting Flange: SAE B, two-bolt mounting pattern.
-
Hydraulic Porting: Rear inlet and outlet ports with specified ORB connections.
-
PFD Control: Configured for a nominal 4 GPM control setting.
-
Relief Pressure: Factory configuration specifies 2,200 psi (152 bar).
-
Housing: Cast-iron D-Series pump construction.
The 163D70546 delivers the reliability and precision required for hydraulic flow delivery in compatible mobile equipment.
