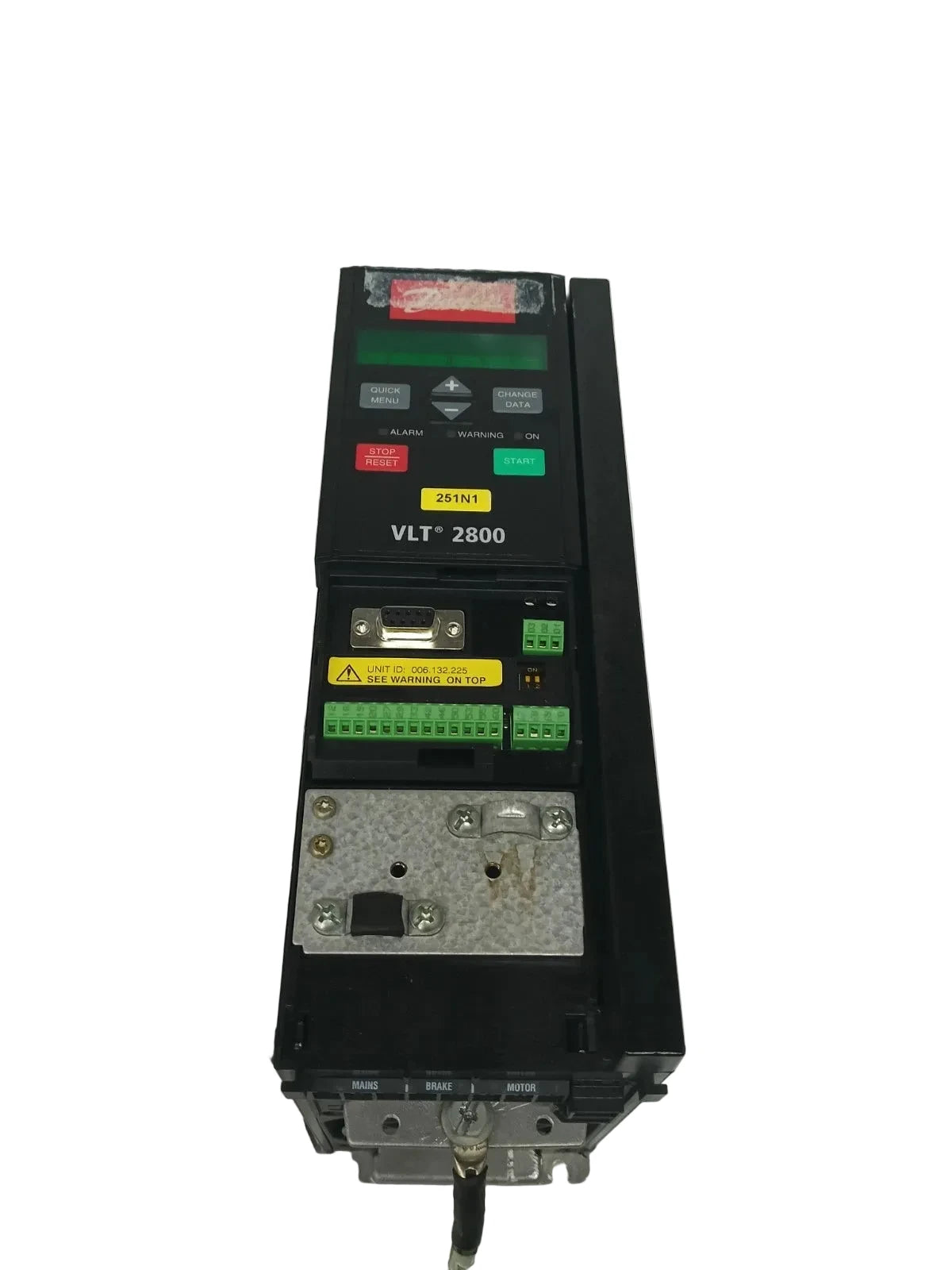

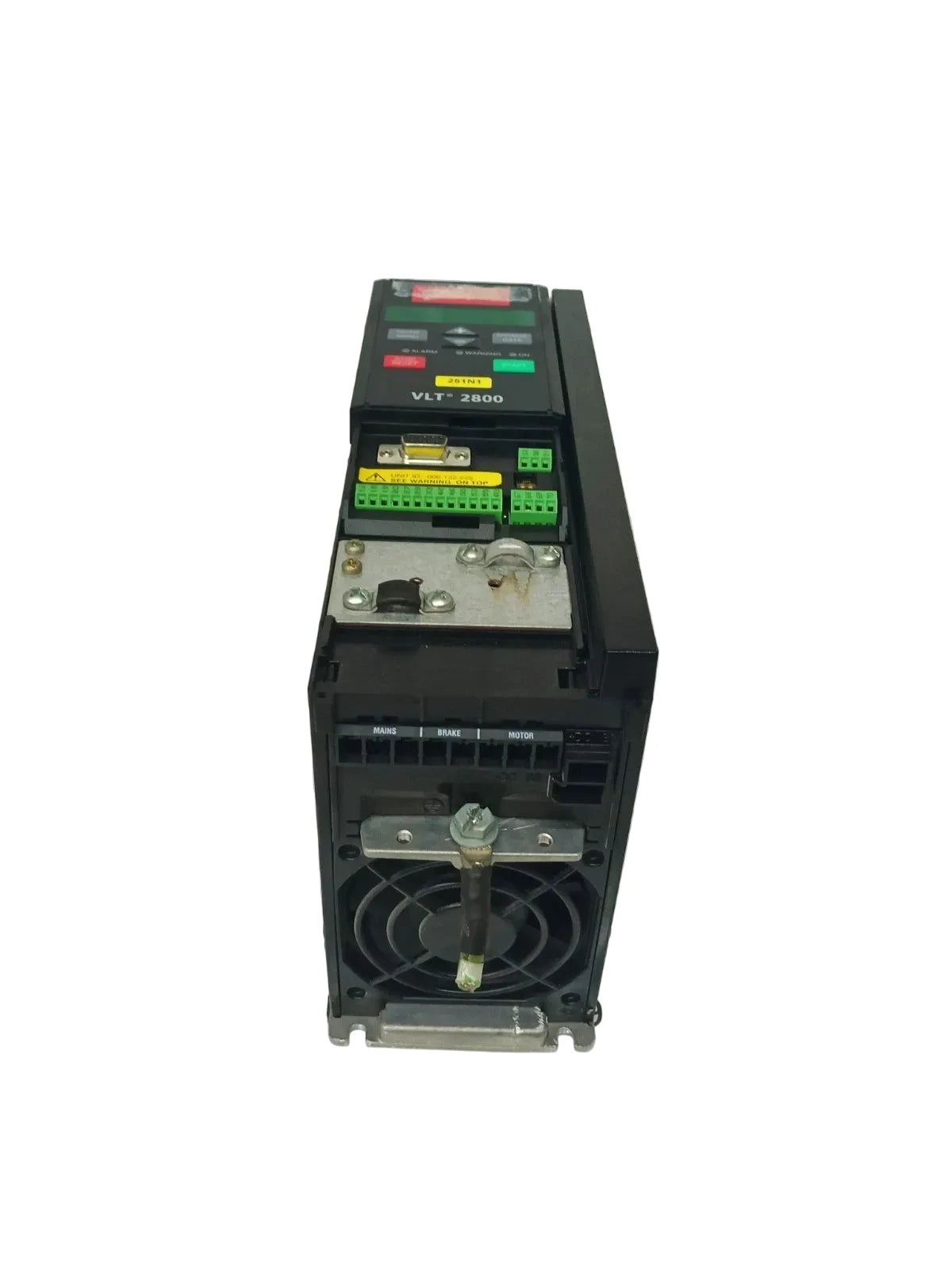

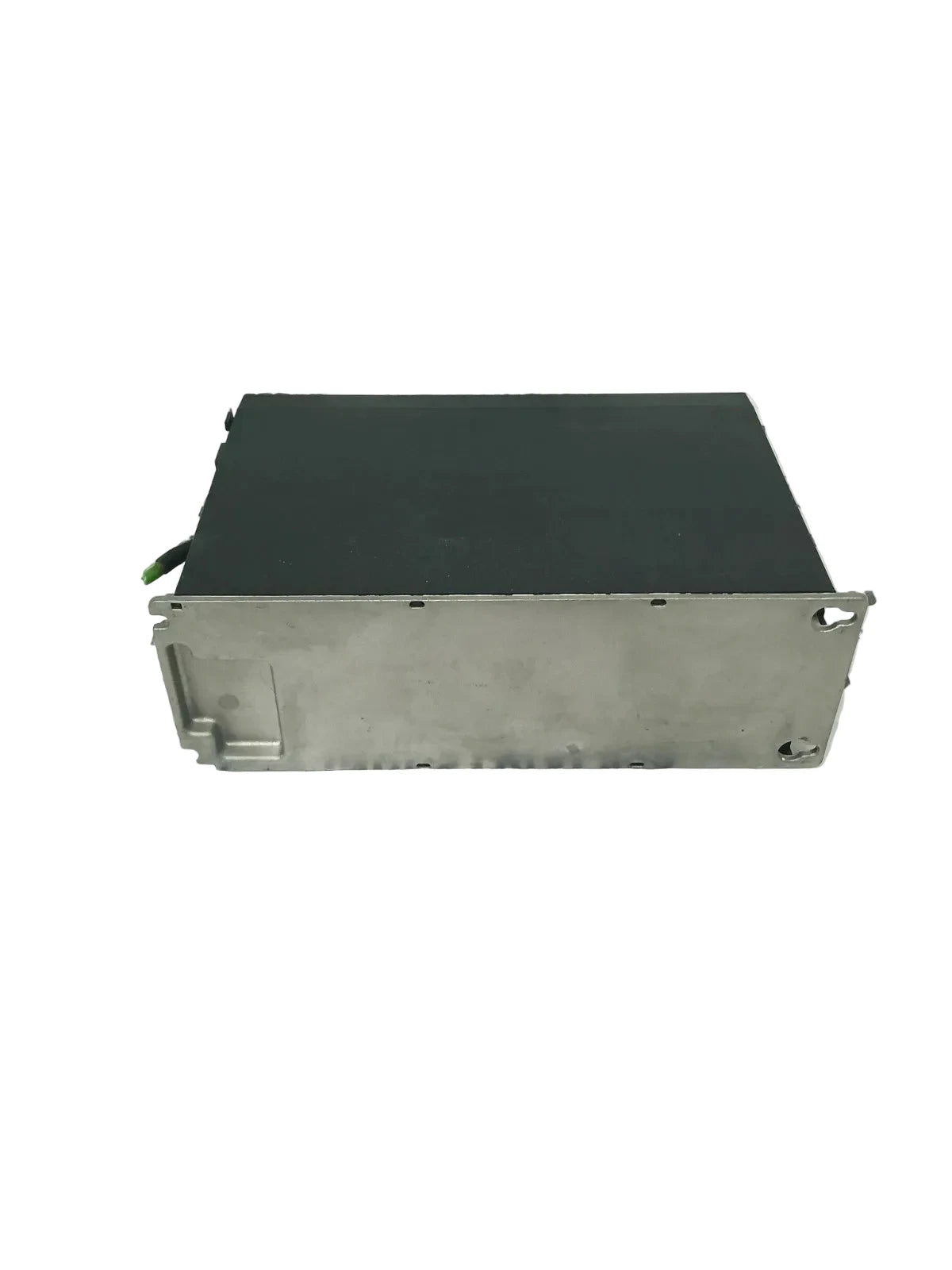

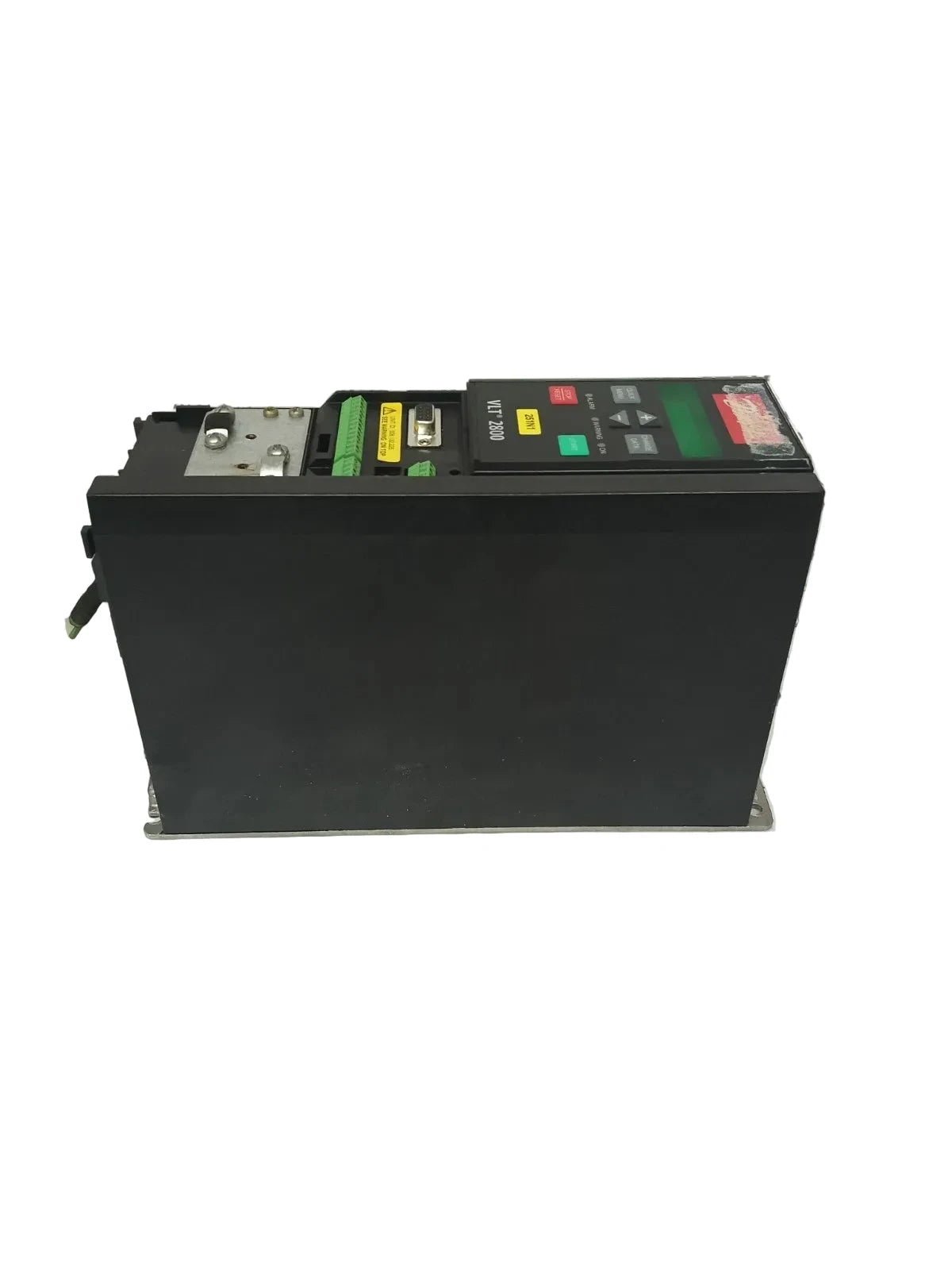

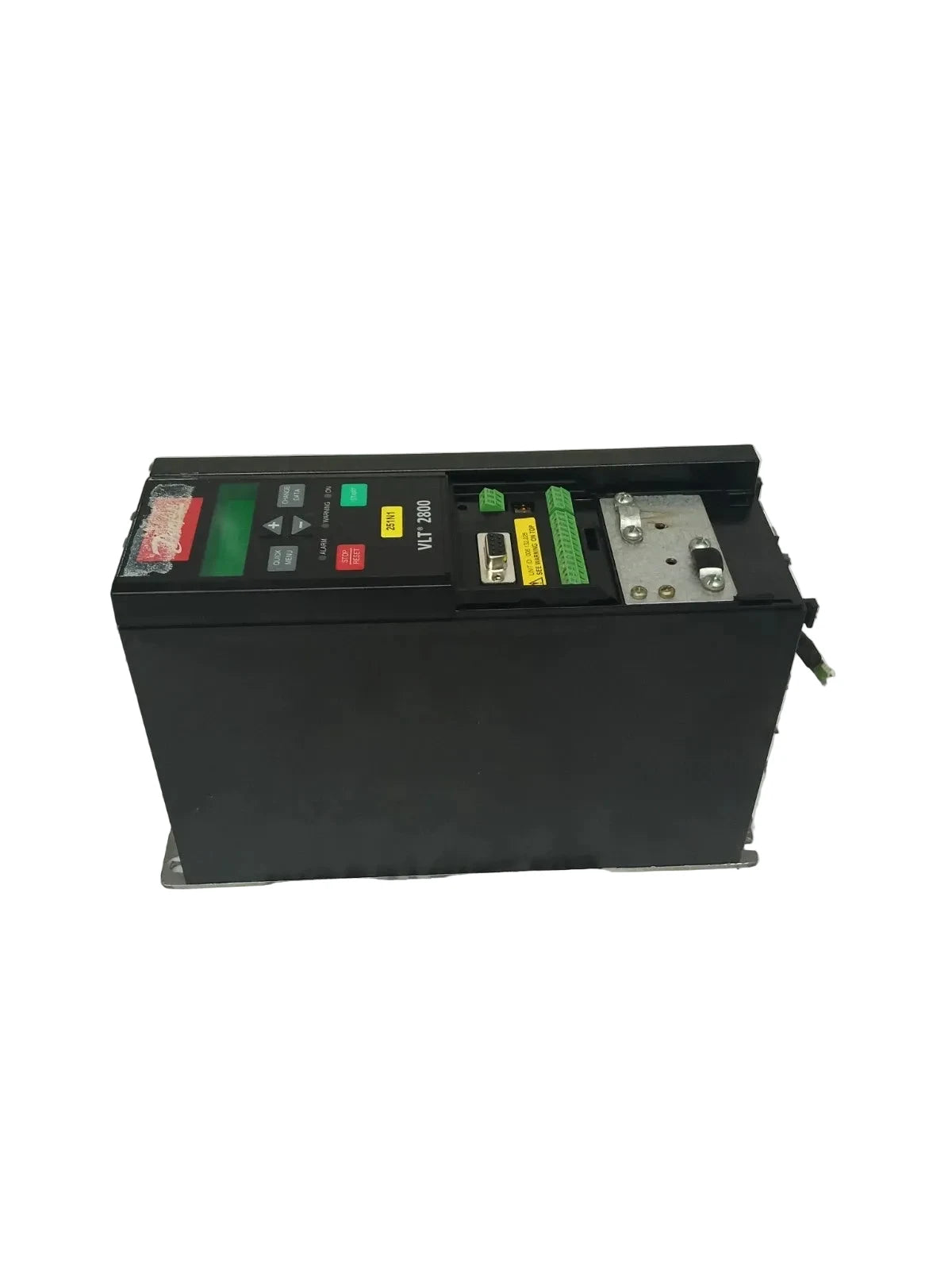

Danfoss 178B2110 VLT 2800 3 HP Variable Frequency Drive

Description

The Danfoss 178B2110 VLT 2800 Series Variable Frequency Drive is designed to regulate the speed of compatible AC motors in industrial and automation applications. It features a 2.2 kW (3 HP) power rating, three-phase 380–480 V AC input, an IP20 enclosure, and PROFIBUS DP communication.

Technical Specifications

Information About 178B2110

The 178B2110 is a Danfoss VLT 2800 Series frequency converter, identified by model code VLT2822PT4B20STR1DBF12A00C0. It provides variable-speed control for compatible three-phase AC motors. The drive is rated at 2.2 kW (3 HP) and operates on a three-phase 380–480 V AC supply at 50/60 Hz. Its configuration includes an IP20 enclosure, an EMC/RFI filter, and PROFIBUS DP communication at 12 Mbaud.

Key Features:

• Variable Frequency Control: Adjusts the speed of compatible AC motors.

• VLT 2800 Series: Designed for industrial motor-control applications.

• 2.2 kW Power Rating: Supports compatible motors rated at 3 HP.

• Three-Phase Input: Operates with a 380–480 V AC supply.

• 50/60 Hz Compatibility: Supports common industrial supply frequencies.

• IP20 Enclosure: Intended for installation inside a suitable electrical cabinet.

• PROFIBUS DP Communication: Supports fieldbus communication at 12 Mbaud.

• Integrated RFI Filtering: Meets the specified EN 55011 Class A1 classification.

The 178B2110 delivers the motor speed regulation and communication capabilities required for compatible industrial automation systems.
