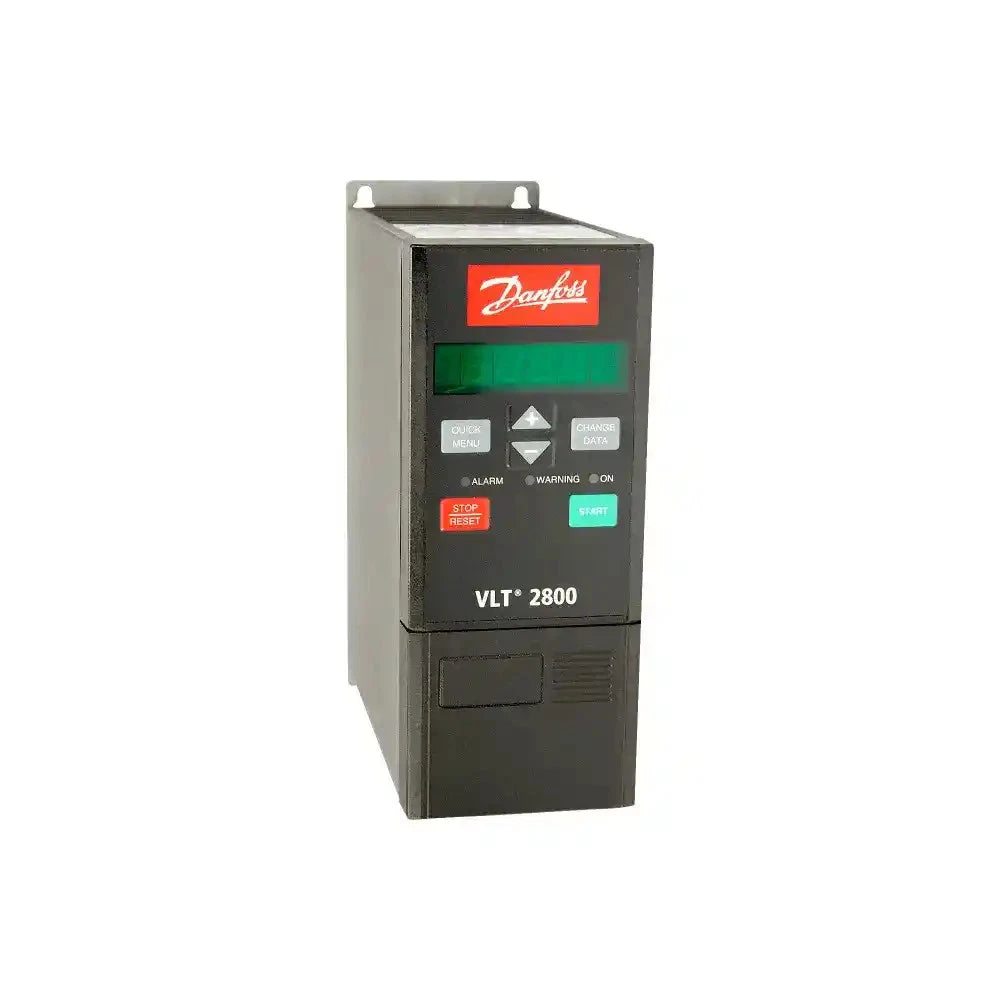

Danfoss 195N1013 VLT 2800 Variable Frequency Drive, 0.75 kW, Three-Phase 380–480 VAC, IP20
- Regular price
- $1,212.00
- Sale price
- $1,212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 195N1013
Description
The Danfoss 195N1013 is a VLT 2800 Series variable frequency drive for controlling compatible three-phase AC motors rated at 0.75 kW / 1.0 horsepower. It accepts a 380–480 VAC supply and varies motor speed for industrial machinery requiring adjustable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Drives |
| Part Number | 195N1013 |
| Subcategory | Variable Frequency Drives |
| Product Series | VLT 2800 |
| Drive Model | VLT 2807 |
| Full Type Code | VLT2807PT4B20STR0DBF00A00C0 |
| Typical Motor Shaft Output | 0.75 kW / 1.0 horsepower |
| Input Supply | Three-phase, 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Continuous Output Current | 2.1 A |
| Maximum Output Current | 3.3 A for 60 seconds |
| Rated Output Apparent Power | 1.7 kVA at 400 V |
| Nominal Input Current | 1.9 A |
| Enclosure Rating | IP20 |
| Integral Interference Filter | Not fitted |
| Operator Interface | Built-in display and local controls |
| Lifecycle Status | Discontinued by manufacturer |
| Weight | 4.70 lbs |
Information About 195N1013
The 195N1013 is the VLT 2807 configuration identified by type code VLT2807PT4B20STR0DBF00A00C0. Its IP20 construction is intended for installation within a suitable control panel. The built-in display provides local access to operating information and parameter settings. This ordering configuration does not include an integral radio-frequency interference filter, Profibus option, or DeviceNet option.
Key Features:
- Adjustable motor speed: Regulates output frequency to control compatible AC motor operation.
- Motor power rating: Supports a typical motor shaft output of 0.75 kW / 1.0 horsepower.
- Three-phase supply: Accepts 380–480 VAC input at 50/60 Hz.
- Rated output current: Provides 2.1 A continuous output for the specified voltage class.
- Short-term overload: Supports a published maximum output current of 3.3 A for 60 seconds.
- Local interface: Includes a built-in display for parameter adjustment and operating information.
- Panel installation: Uses an IP20 enclosure suitable for mounting inside an appropriate electrical cabinet.
- Filter configuration: Supplied without the integral radio-frequency interference filter.
The 195N1013 delivers the reliability and precision required for adjustable-speed motor operation in correctly matched industrial drive applications.
