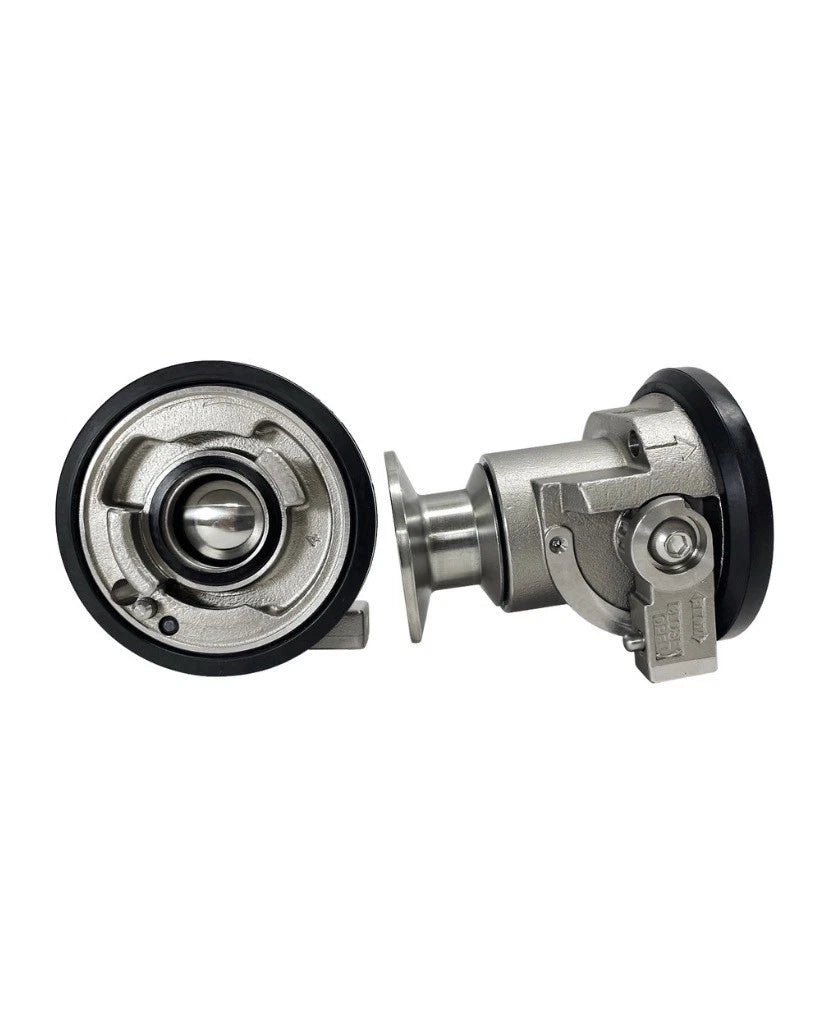

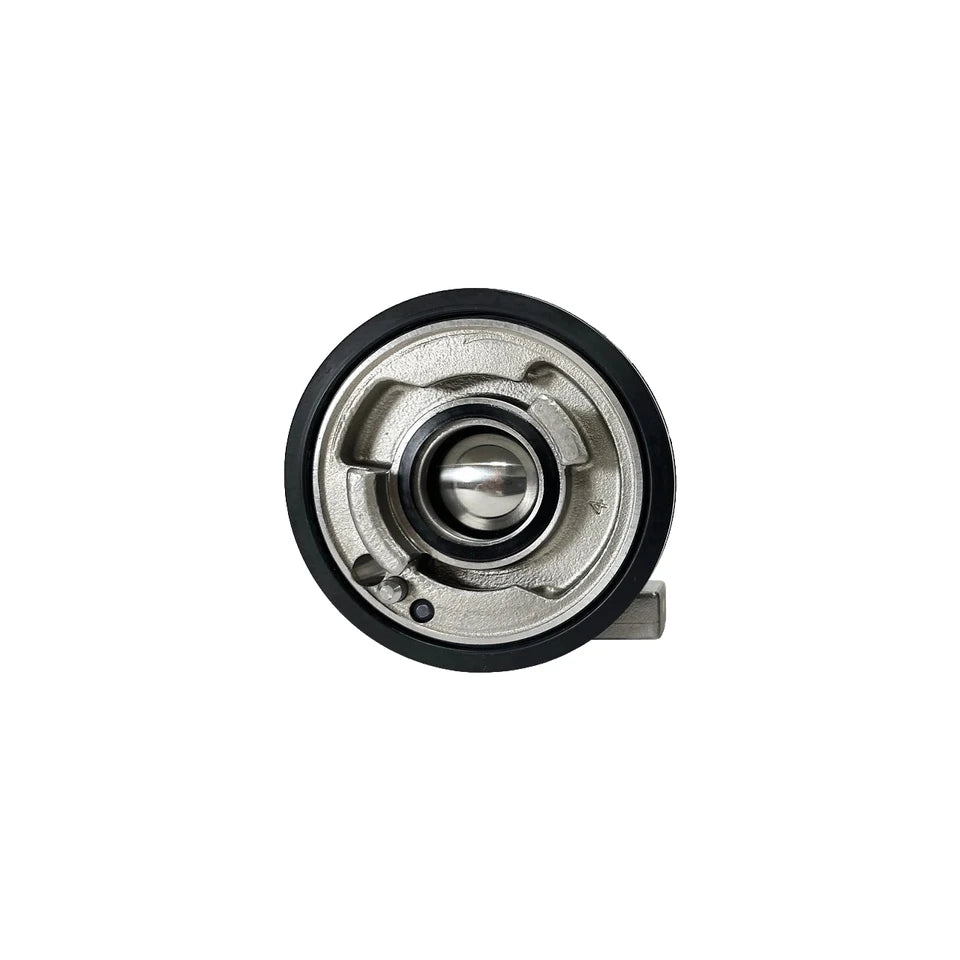

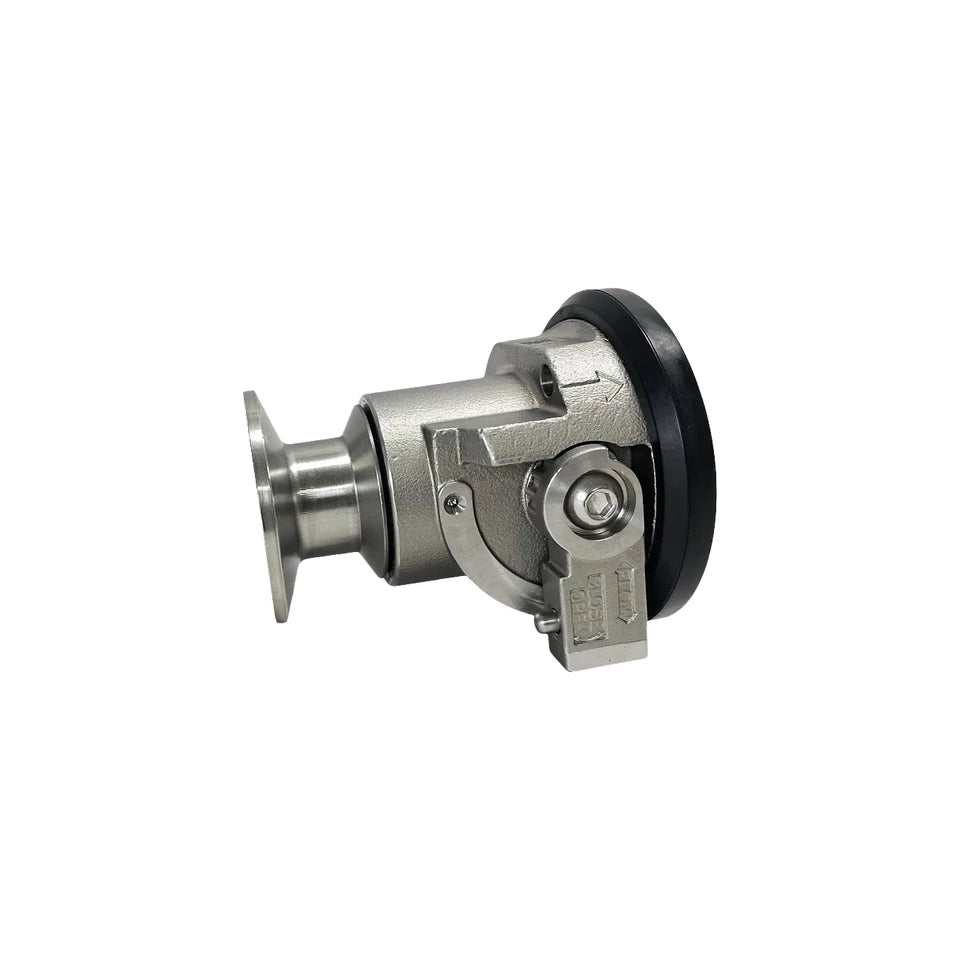

Danfoss FD83-2128-32-32 2-Inch Stainless Steel Quick-Disconnect Coupling
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FD83-2128-32-32
Description
The Danfoss FD83-2128-32-32 is a 2-inch Hansen FD83 quick-disconnect coupling with sanitary flange connections for liquid cooling and fluid transfer systems. Its stainless-steel construction, EPDM seal, and dual interlock are suited to data center thermal management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Fluid Transfer Components |
| Part Number | FD83-2128-32-32 |
| Subcategory | Quick-Disconnect Couplings |
| Series | Hansen FD83 |
| Coupling Size | 2 in |
| Connection Type | Sanitary flange |
| Flange Standards | DIN 32676, ISO 2852, BS 4825 |
| Body Material | Stainless steel |
| Seal Material | EPDM |
| Valve Type | Two-way |
| Safety Mechanism | Dual interlock |
| Maximum Working Pressure | 10 bar (150 psi) |
| Minimum Burst Pressure | 21 bar (300 psi) |
| Flow Rate | Up to 211 L/min (800 gpm) |
| Working Temperature Range | −3°C to 60°C (27°F to 140°F) |
| Weight | 2.3 kg |
Information About FD83-2128-32-32
The FD83-2128-32-32 is part of Danfoss Hansen’s FD83 coupling series, developed for high-flow thermal management and industrial fluid circuits. This model has 2-inch sanitary flange ends compatible with DIN 32676, ISO 2852, and BS 4825 standards. The coupling uses a two-way valve arrangement and a dual-interlock safety mechanism that controls connection and disconnection. Verify flange standard, fluid compatibility, and operating limits against the system before installation.
Key Features:
- Quick-Disconnect Design: Provides a connection point for liquid cooling and fluid transfer circuits that require coupling halves to be connected and disconnected.
- 2-Inch Sanitary Flanges: Uses 2-inch flange ends designed for DIN 32676, ISO 2852, and BS 4825 sanitary flange standards.
- FD83 Series Construction: Belongs to the Danfoss Hansen FD83 series, intended for data center cooling, thermal management, and industrial fluid transfer.
- Stainless-Steel Body: Uses stainless steel for the coupling body in fluid circuit applications.
- EPDM Seal Material: Uses an ethylene propylene seal; confirm compatibility with the specific circulating fluid and temperature conditions.
- Dual Interlock: Safety mechanism helps prevent the valves from opening before connection and prevents disconnection until the valves are closed.
- High-Flow Capacity: Manufacturer data lists a flow rate of up to 211 L/min for the 2-inch FD83 coupling.
- Operating Limits: Rated for up to 10 bar working pressure and 21 bar minimum burst pressure, with a listed working temperature range of −3°C to 60°C.
The FD83-2128-32-32 delivers the reliability and precision required for high-flow thermal management and fluid transfer connections.
