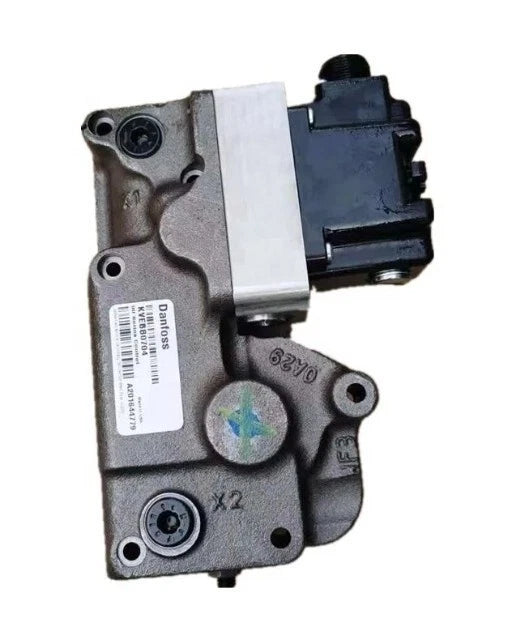

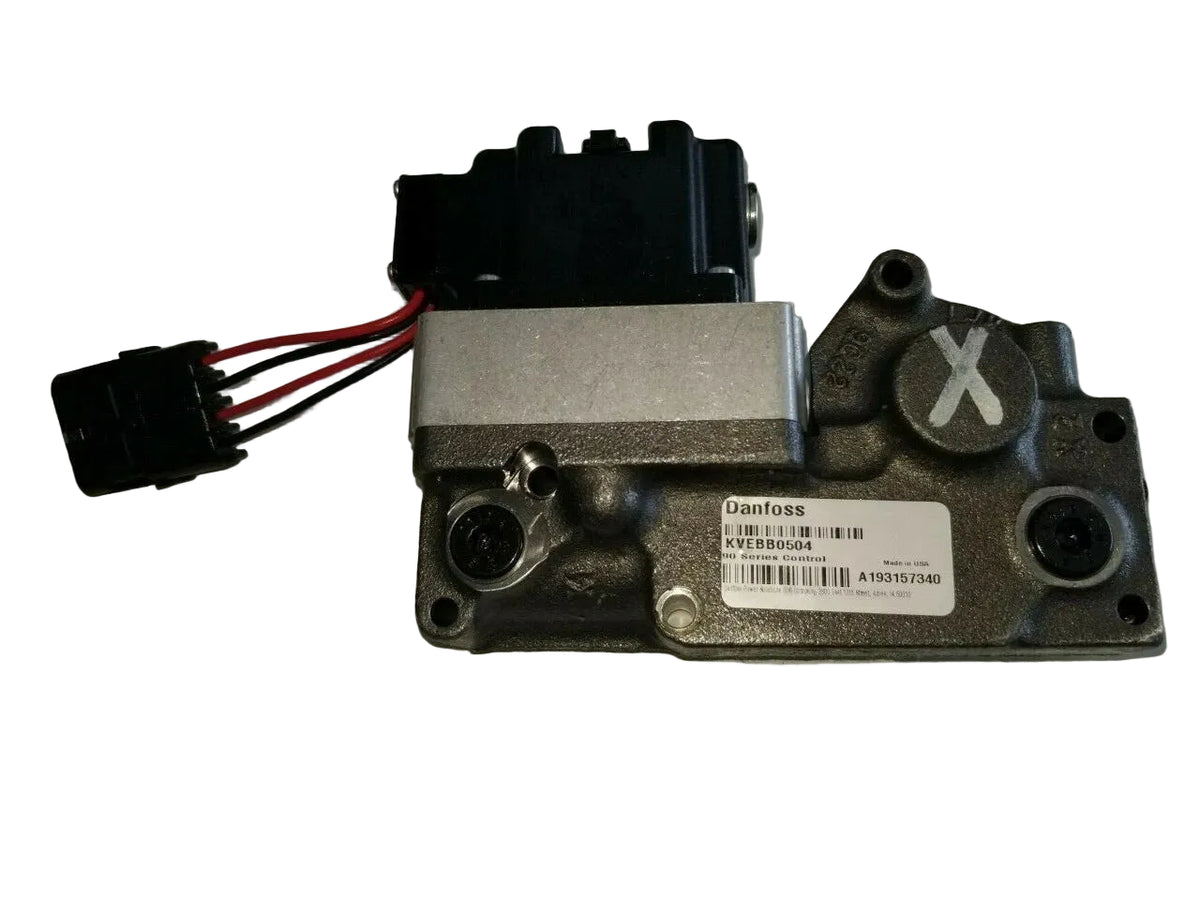

Danfoss KVEBB0504 Series 90 Hydraulic Pump Displacement Control with Dual Coils and Weather Pack Connector
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KVEBB0504
Description
Danfoss KVEBB0504 is an electrical displacement control for compatible Series 90 hydraulic pumps with 55 cubic centimeter displacement. It converts an electrical command into hydraulic servo action to regulate pump output and flow direction in hydrostatic systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulics |
| Part Number | KVEBB0504 |
| Subcategory | Hydraulic Pump Displacement Controls |
| Product Family | KVEB |
| Compatible Pump Series | Series 90 |
| Compatible Pump Displacement | 55 cubic centimeters per revolution |
| Control Configuration | B, dual coil |
| Operating Principle | Two-stage electrohydraulic |
| Pilot Stage | MCV116 pressure control pilot |
| Feedback Mechanism | Mechanical swashplate position feedback |
| Electrical Connector | Weather Pack |
| Nominal Individual-Coil Command Range | 14–85 milliamperes |
| Nominal Coil Resistance at 24°C | 20 ohms across A–B; 16 ohms across C–D |
| Pulse Width Modulation Frequency | At least 200 hertz when used |
| Catalog Dimensions | 23.4 × 15.2 × 11 centimeters, length × width × height |
| Associated Service Kit | 8510114 |
| Weight | 8.3 Ibs |
Information About KVEBB0504

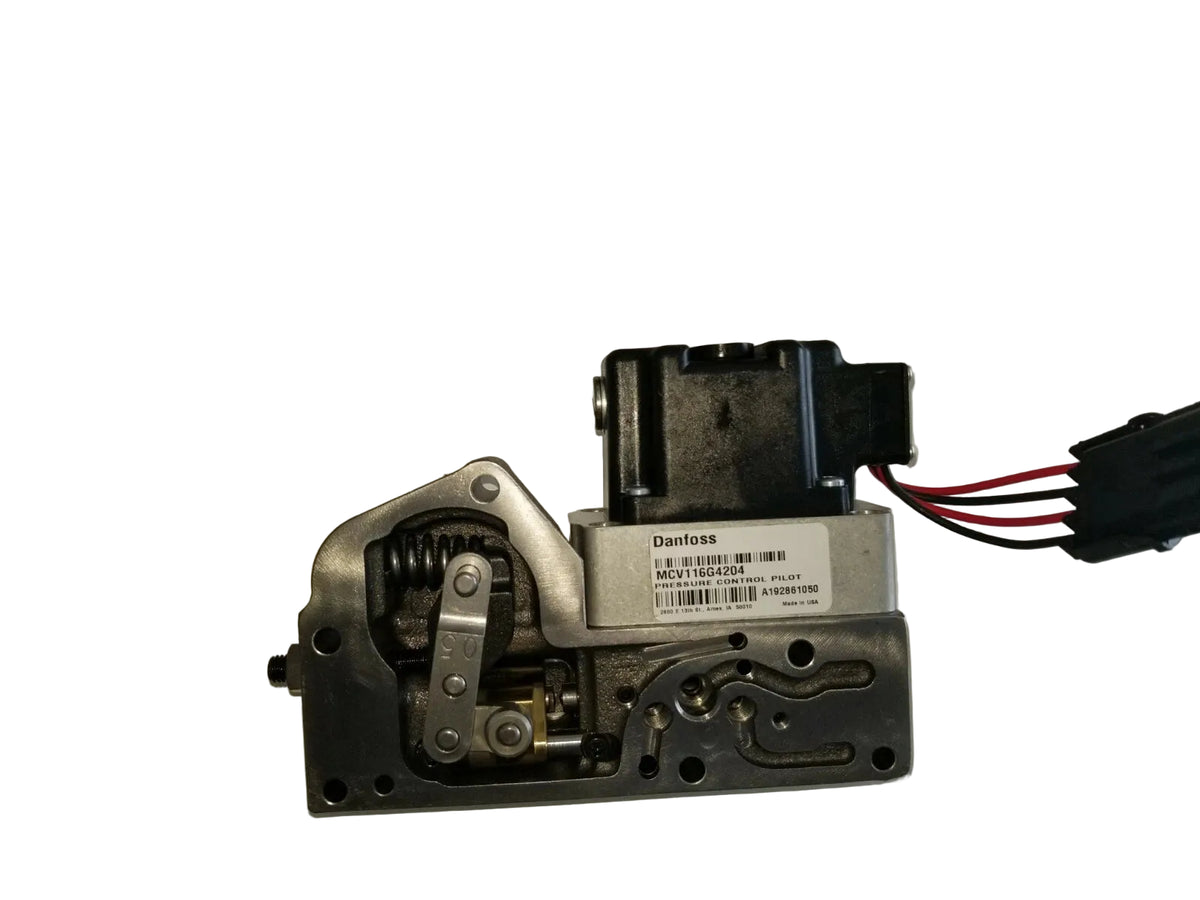

The KVEBB0504 is a B-configuration model in the Danfoss KVEB control family. Its two-stage assembly combines an MCV116 pressure control pilot with a main servo spool. The torque-motor-operated, double-nozzle flapper produces differential pressure that directs oil to the pump servo cylinders. Mechanical feedback establishes closed-loop control of the swashplate angle, while the spool arrangement provides a neutral deadband.
Key Features:
- Pump Matching: Configured for compatible Series 90 pumps with 55 cubic centimeter displacement.
- Dual-Coil Input: Allows two command signals to be combined at the torque motor.
- Proportional Positioning: Adjusts swashplate angle in relation to the electrical input.
- Mechanical Feedback: Corrects position changes caused by varying operating forces.
- Weather Pack Connection: Provides the electrical connector specified for this model.
- Environmental Sealing: Incorporates a silicone-oil-filled torque motor and sealed stage interface.
- Independent Deadband: Separates servo control deadband from electrical signal null deadband.
The KVEBB0504 delivers the reliability and precision required for commanded displacement adjustment in compatible Series 90 hydraulic pumps.
