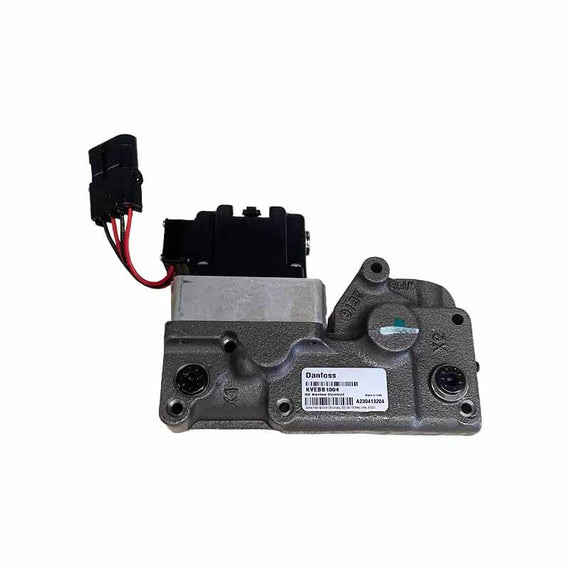

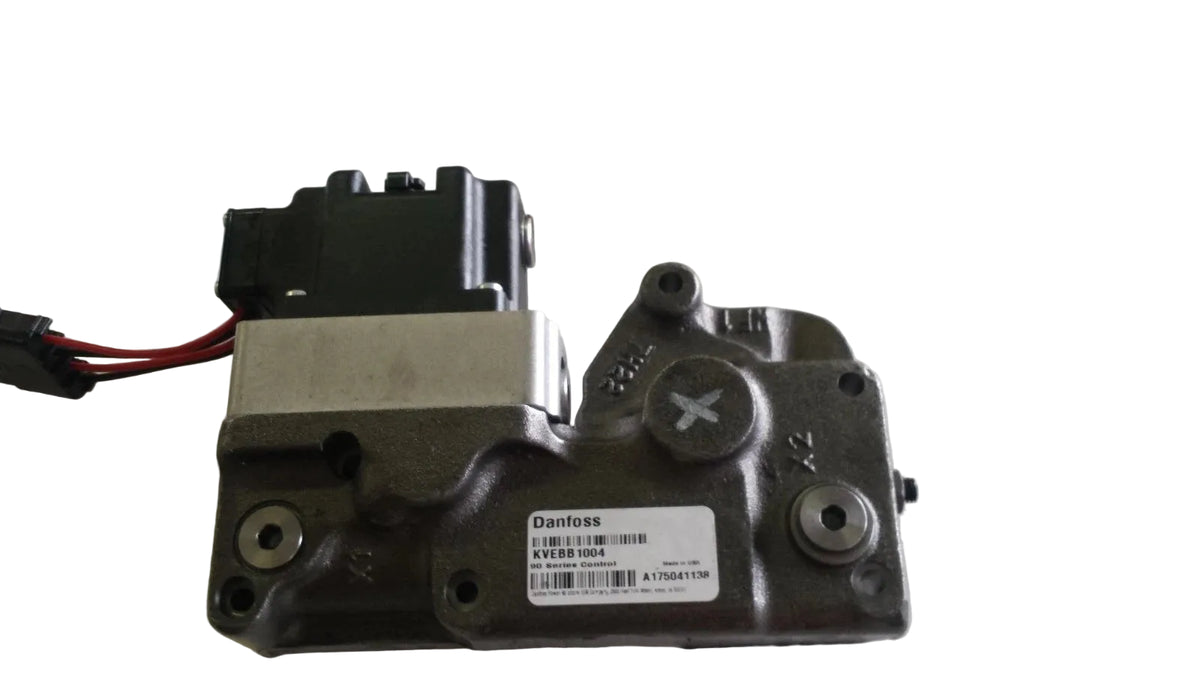

Danfoss KVEBB1004 Series 90 Hydraulic Pump Electrical Displacement Control Valve with Dual Coils
- Regular price
- $2,202.00
- Sale price
- $2,202.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KVEBB1004
Description
Danfoss KVEBB1004 is an electrohydraulic displacement control valve for compatible Series 90 hydraulic pumps with 100 cubic centimeter displacement. It adjusts pump stroke through an electrical command, regulating hydraulic output for hydrostatic drive applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Valves |
| Part Number | KVEBB1004 |
| Subcategory | Control Valve |
| Product Type | Electrical Displacement Control |
| Control Family | KVEB |
| Pump Series | Series 90 |
| Compatible Pump Displacement | 100 cubic centimeters per revolution |
| Configuration | B, dual coil |
| Control Mechanism | Two-stage electrohydraulic |
| Feedback Type | Mechanical swashplate position feedback |
| Connector Type | Weather Pack |
| Nominal Command Current Range | 14–85 milliamperes, individual coil operation |
| Nominal Coil Resistance | 20 ohms across A–B; 16 ohms across C–D at 24°C |
| Pulse Width Modulation Frequency | At least 200 hertz when used |
| Catalog Dimensions | 15 × 19 × 7.4 centimeters, length × width × height |
| Manufacturer Service Kit Reference | 8510118 |
| Weight | 5.00 lbs |
Information About KVEBB1004
The KVEBB1004 is a B-configuration control within the Danfoss KVEB family. Its two-stage construction combines a pressure control pilot with a hydraulic servo spool. This model incorporates a dual-coil torque motor and a Weather Pack electrical connector. Mechanical linkage provides swashplate position feedback to maintain the commanded pump displacement as operating forces change.
Key Features:
- Pump Compatibility: Configured for compatible Series 90 pumps with 100 cubic centimeter displacement.
- Dual-Coil Design: Allows two electrical command sources to be summed at the torque motor.
- Proportional Operation: Relates pump displacement to the applied electrical command.
- Mechanical Feedback: Corrects swashplate position deviations through the servo mechanism.
- Weather Pack Connector: Provides the model-specific electrical connection.
- Environmental Protection: Uses a silicone-oil-filled torque motor and sealed stage interface.
- Neutral Deadband: Separates servo control deadband from signal null deadband.
The KVEBB1004 delivers the reliability and precision required for hydraulic pump displacement regulation in compatible Series 90 hydrostatic systems.
