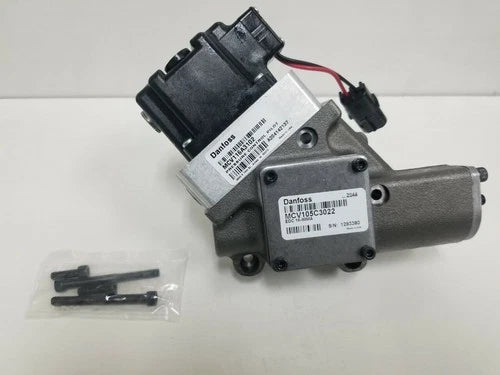

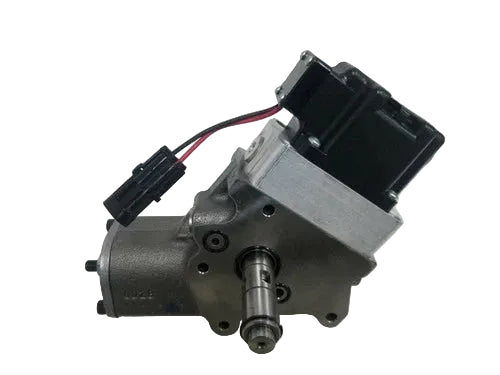

Danfoss MCV105C3022 Electrohydraulic Pump Displacement Control with Single-Coil Weather Pack Pilot
- Regular price
- $2,167.00
- Sale price
- $2,167.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MCV105C3022
Description
Danfoss MCV105C3022 is an electrohydraulic electrical displacement control that regulates the swashplate position of compatible medium-duty hydraulic pumps. It converts an electrical current command into hydraulic actuation to adjust pump displacement and flow direction.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Hydraulics |
| Part Number | MCV105C3022 |
| Subcategory | Hydraulic Pump Displacement Controls |
| Series | MCV105C |
| Product Type | Electrical Displacement Control |
| Pump Compatibility | Danfoss 46 cubic centimeter medium-duty pumps |
| Control Construction | Two-stage electrohydraulic mechanism |
| Feedback Type | Mechanical swashplate feedback |
| Pilot Style | 22, single coil |
| Electrical Connector | Packard Weather Pack |
| Coil Resistance | 23 ohms at 24°C |
| Threshold Current | 16 ± 3.5 milliamperes |
| Full-Stroke Current | 90 ± 12 milliamperes |
| Fluid Temperature for Rated Performance | 21°C to 82°C |
| Associated Pump Control Kit | 11013624 |
| Weight | 0.44 lbs |
Information About MCV105C3022
The MCV105C3022 is a member of the MCV105C pump control family. Its style 22 configuration incorporates a single-coil torque motor and a Packard Weather Pack connector. Mechanical feedback establishes closed-loop swashplate control. Danfoss also identifies this model in the M46 pump control kit numbered 11013624.
Key Features:
- Proportional Command: Adjusts pump output through an electrical current signal.
- Mechanical Feedback: Links swashplate position to the control mechanism.
- Single-Coil Pilot: Uses the style 22 pilot configuration.
- Weather Pack Connection: Provides the specified electrical connector interface.
- Moisture Protection: Incorporates a silicone-oil-filled torque motor.
- Serviceable Filtration: Includes an externally accessible upstream pilot screen.
- Separate Control Stages: Allows individual replacement of the pilot and second stage.
The MCV105C3022 delivers the reliability and precision required for controlled hydraulic pump displacement in compatible hydrostatic systems.
