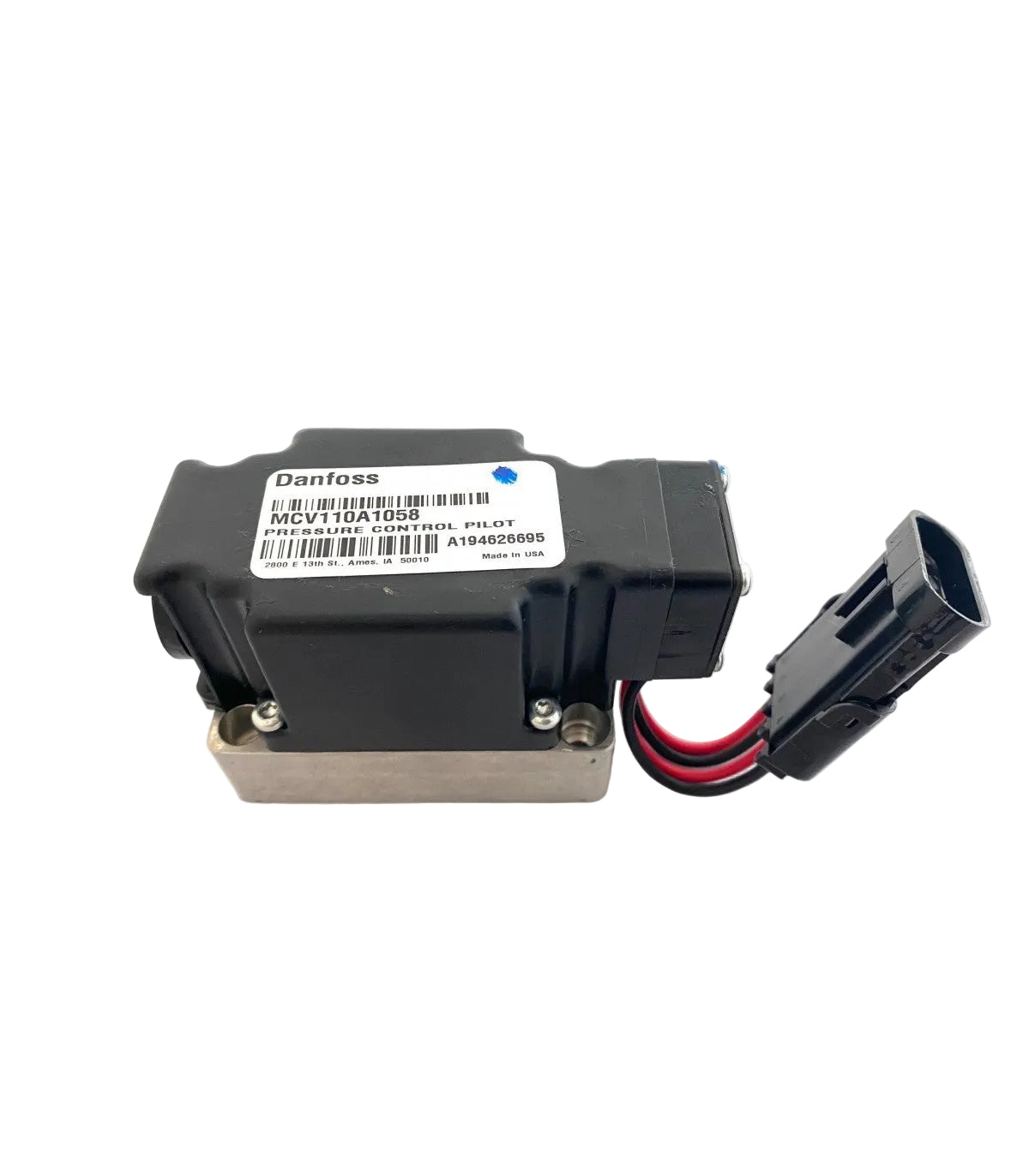

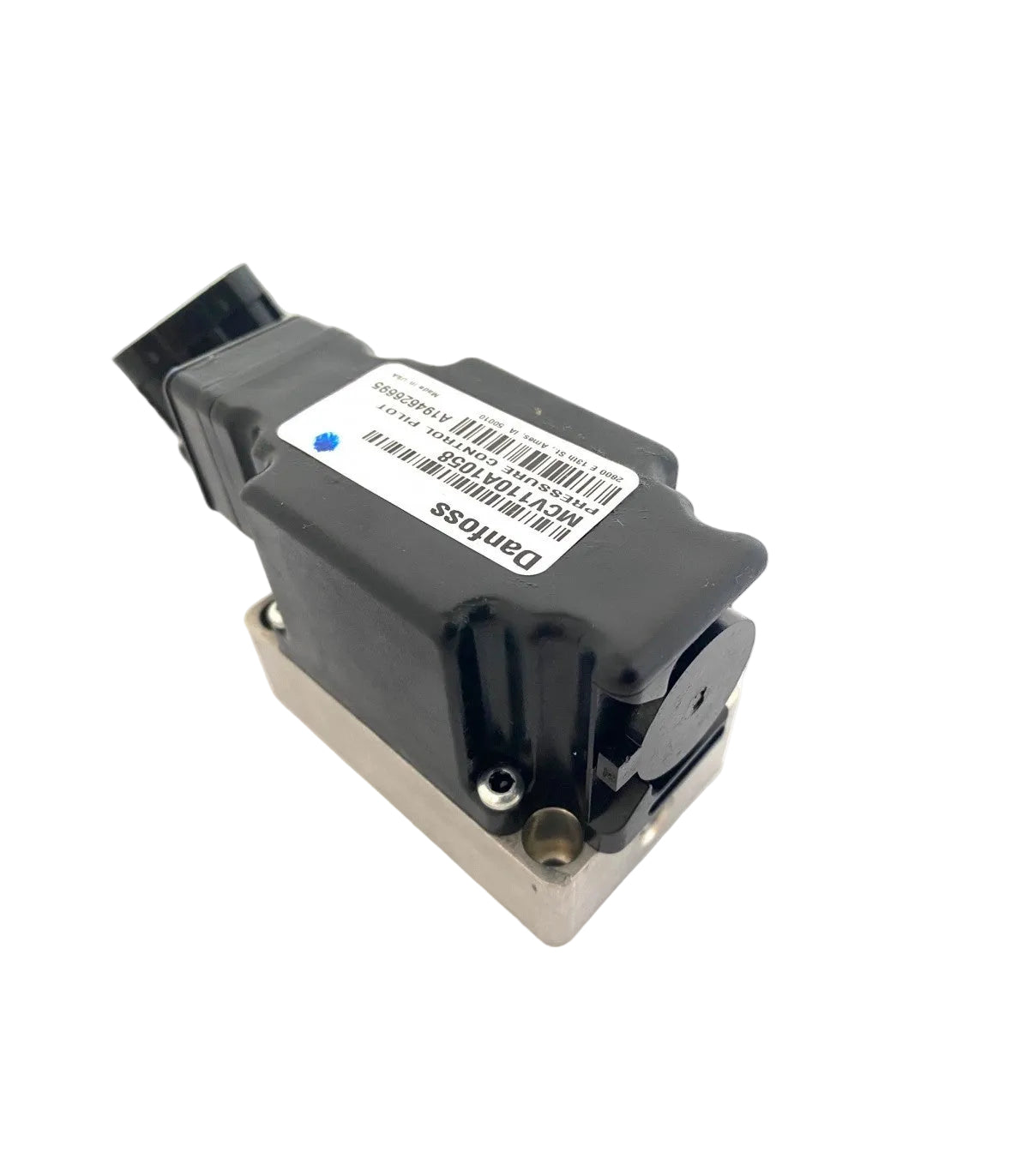

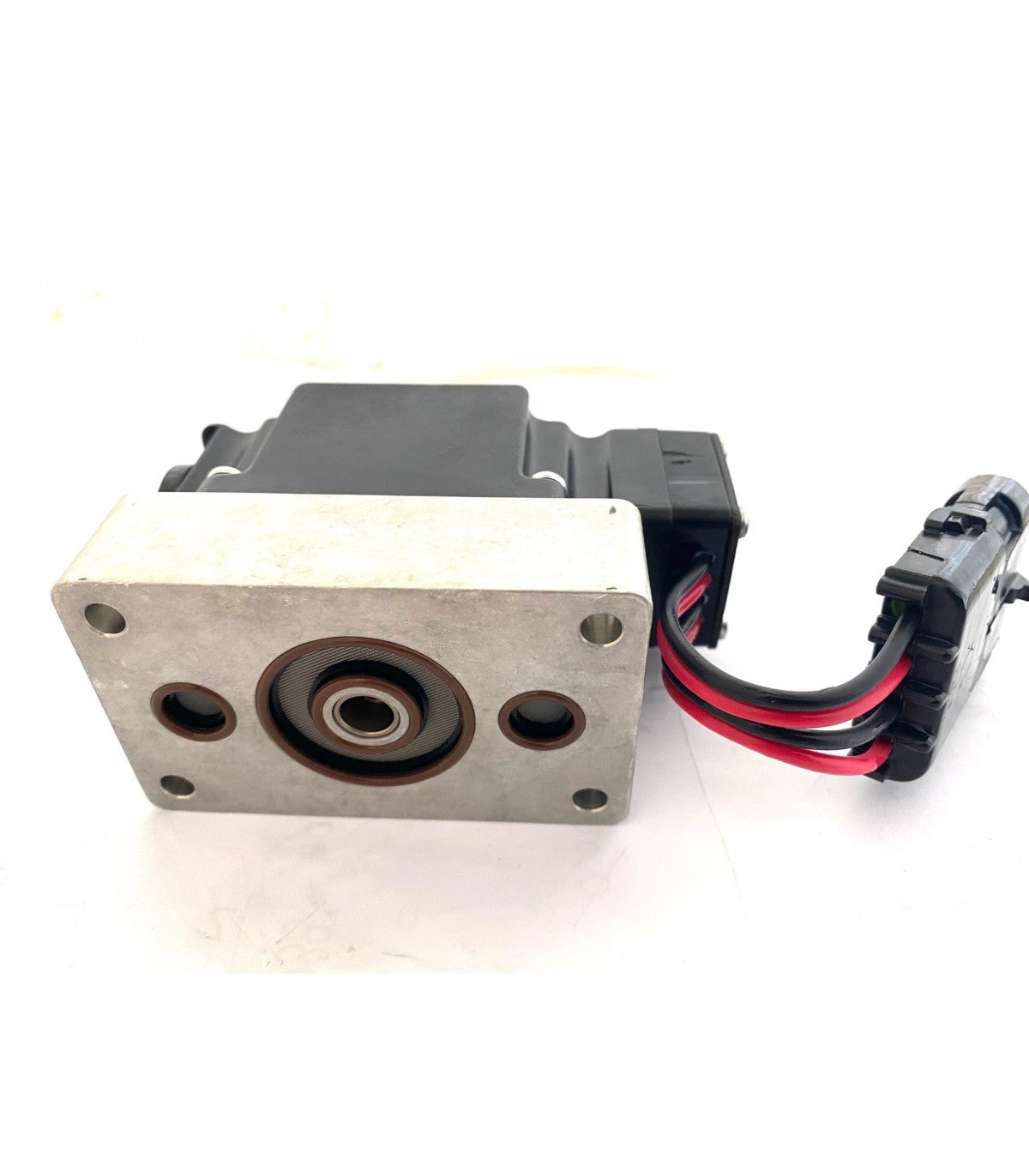

Danfoss MCV110A1058 Electrohydraulic Pressure Control Pilot Valve with Packard Connector
- Regular price
- $1,689.00
- Sale price
- $1,689.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MCV110A1058
Description
The Danfoss MCV110A1058 is an electrohydraulic pressure control pilot valve designed to generate a proportional hydraulic control signal for compatible variable-displacement pumps and motors. It uses an electrically actuated torque-motor and double-nozzle flapper mechanism to convert a direct-current command into differential output pressure for precise hydrostatic transmission control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Valves |
| Part Number | MCV110A1058 |
| Subcategory | Pressure Control Pilot Valve |
| Series | MCV110A |
| Product Type | Electrohydraulic Pressure Control Pilot Valve |
| Configuration | Type IIID, Oil-Filled |
| Electrical Connector | Four-Pin Packard Connector |
| Control Principle | Torque-Motor Actuated Double-Nozzle Flapper |
| Hydraulic Supply Pressure | 150–1000 pounds per square inch above return pressure |
| Maximum Return Pressure | Less than 200 pounds per square inch |
| Maximum Voltage | 7.5 volts direct current |
| Coil Resistance | 24.7 ohms at 75°F |
| Compatible Hydraulic Fluid | Petroleum-Based Hydraulic Fluid |
| Hydraulic Oil Temperature | -20°F to 225°F |
| Ambient Operating Temperature | -40°F to 200°F |
| Minimum Service Life | 10,000 hours or 10,000,000 cycles |
| Weight | 1.60 lbs |
Information About MCV110A1058
The MCV110A1058 is a Danfoss MCV110A Series pressure control pilot valve configured as a Type IIID oil-filled model with a Packard electrical connector. Its single-stage closed-loop construction uses internal hydraulic pressure feedback to maintain a differential pressure output proportional to the applied electrical command. The valve is documented for Danfoss Series 90 variable-displacement pumps and Series 51 variable-displacement motors, with current Danfoss parts manuals identifying MCV110A1058 in multiple electric proportional control configurations. It is designed for petroleum-based hydraulic fluids and incorporates a manual control override, accessible filtration, and construction suitable for vibration and shock encountered in mobile hydraulic equipment.
Key Features:
- Proportional Pressure Control: Converts a direct-current electrical input into a proportional hydraulic differential pressure output for hydrostatic control applications.
- Type IIID Configuration: MCV110A1058 is specifically identified as an oil-filled Type IIID pressure control pilot valve.
- Packard Connector: Uses a four-pin Packard weather-resistant electrical connector for integration with the control circuit.
- Closed-Loop Pressure Feedback: Uses internal hydraulic pressure reactions to provide self-contained feedback and maintain controlled output characteristics.
- Wide Supply Pressure Range: Operates with hydraulic supply pressure from 150 to 1000 pounds per square inch above return pressure.
- Series 90 Compatibility: Danfoss parts documentation identifies MCV110A1058 as a pressure control pilot component for multiple Series 90 variable-displacement pump sizes.
- Series 51 Compatibility: The valve is also documented in electric proportional control arrangements for Series 51 variable-displacement motors.
- Mobile Equipment Construction: Designed to withstand vibration, shock, temperature variation, and other operating conditions associated with mobile hydrostatic equipment.
The MCV110A1058 delivers the reliability and precision required for proportional pressure control of compatible hydrostatic pumps and variable-displacement motors.
