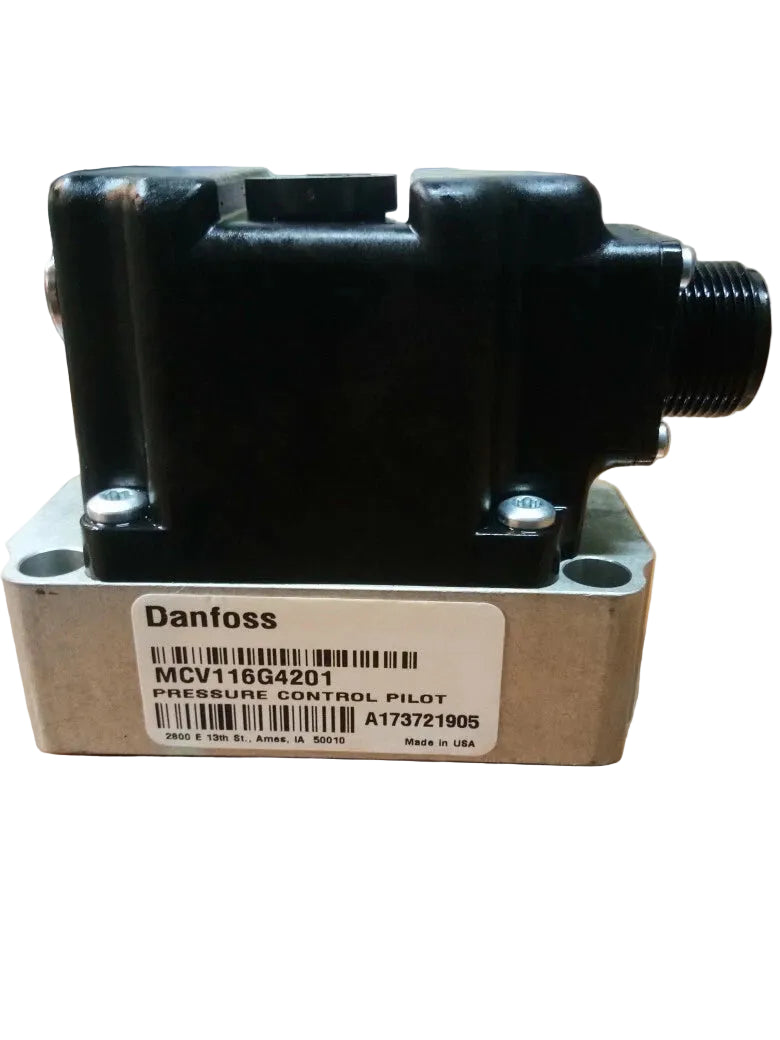

Danfoss MCV116G4201 Pressure Control Pilot Valve for Series 90 Pumps
- Regular price
- $1,529.00
- Sale price
- $1,529.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MCV116G4201
Description
The Danfoss MCV116G4201 is a Pressure Control Pilot (PCP) valve designed for precise hydraulic pressure control in Series 90 hydrostatic systems. It is a torque-motor actuated, double-nozzle flapper valve that generates differential output pressure proportional to the applied electrical input signal, providing closed-loop pressure control through internal hydraulic pressure feedback.
Technical Specifications
| Brand | Danfoss |
| Part Number | MCV116G4201 |
| Category | Valves |
| Subcategory | Control Valve |
| Product Type | Pressure Control Pilot (PCP) Valve |
| Product Group | Hydrostatics |
| Product Line | Series 90 |
| Product Set | Spare Parts Unique to Series 90 |
| Valve Design | Single-Stage, Standalone |
| Control Type | Closed-Loop Pressure Control |
| Actuation | Torque Motor |
| Flapper Design | Double-Nozzle |
| Configuration | Dual |
| Connection | MS Connector |
| Service Factor | 1.15 |
| Description Code | PCP, IV, DUAL, MS CONN, 1.15 SF, .003 NULL GAP |
| Weight | 1.8 lbs |
Information About MCV116G4201
The Danfoss MCV116G4201 is a Pressure Control Pilot (PCP) valve designed for Series 90 hydrostatic systems. It is a torque-motor actuated, double-nozzle flapper valve that produces a differential output pressure proportional to the applied electrical input signal. The MCV116G4201 operates as a single-stage, standalone, closed-loop pressure control valve and uses internal hydraulic pressure reactions to achieve its closed-loop control characteristics. The valve features a dual configuration, MS connector, 1.15 service factor, and .003 null gap. As part of the Danfoss Hydrostatics Series 90 product line, the MCV116G4201 is classified as a spare part unique to Series 90 and is designed to provide precise pressure control in compatible hydraulic systems.
Key Features:
- Pressure Control: Produces a differential hydraulic output pressure proportional to the applied electrical input signal.
- Closed-Loop Operation: Uses internal hydraulic pressure reactions to provide stable closed-loop pressure control.
- Torque-Motor Actuation: Employs an electrically controlled torque motor for accurate response to command signals.
- Double-Nozzle Flapper Design: Uses a double-nozzle flapper mechanism to regulate differential hydraulic pressure precisely.
- Single-Stage Configuration: Provides pressure control through a compact standalone single-stage valve design.
- Dual Configuration: Features a dual PCP arrangement for integration with compatible Series 90 hydraulic control systems.
- MS Connector: Equipped with an MS connection for reliable electrical integration within industrial hydraulic equipment.
- Series 90 Compatibility: Designed as a dedicated spare component for Danfoss Series 90 hydrostatic systems.
The Danfoss MCV116G4201 delivers precise and responsive hydraulic pressure control for Series 90 applications, supporting reliable operation and consistent performance in demanding hydrostatic systems.
