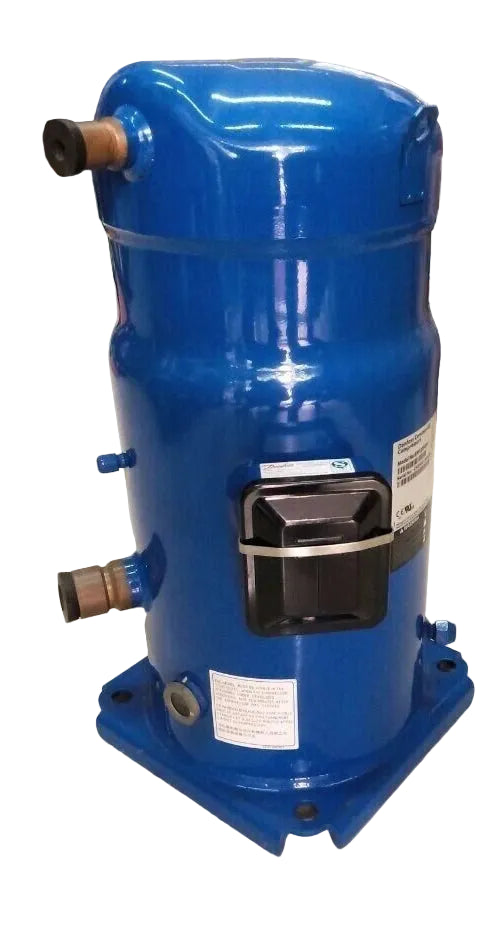

Danfoss SH161A4ALC Hermetic Scroll Compressor for Commercial HVAC Systems
- Regular price
- $2,685.00
- Sale price
- $2,685.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SH161A4ALC
Description
The Danfoss SH161A4ALC is a hermetic scroll compressor designed for commercial and industrial HVAC and refrigeration systems. It provides refrigerant compression for air-conditioning applications and features a three-phase electric motor, with specifications varying by electrical frequency and system configuration.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Compressors |
|
Part Number |
SH161A4ALC |
|
Subcategory |
Scroll Compressors |
|
Compressor Series |
SH |
|
Compressor Type |
Scroll |
|
Compressor Housing |
Hermetic |
|
Refrigerant |
R-410A (confirm compatibility for the exact unit) |
|
Voltage |
460 VAC or 380–420 V, depending on version |
|
Power Phase |
Three-phase |
|
Frequency |
50 Hz or 60 Hz, depending on version |
|
Rated Load Amps (RLA) |
23.6 A |
|
Locked Rotor Amps (LRA) |
158 A |
|
Coefficient of Performance (COP) |
3.19 |
|
Displacement |
151.7 cm³/rev |
|
Discharge Connection Size |
7/8 in OD |
|
Suction Line Size |
1 3/8 in OD |
|
Connection Type |
Sweat or braze |
|
Oil Charge |
3.3 L |
|
Oil Type |
Mineral oil or POE listed; confirm exact model requirements |
|
Mounting Dimensions |
7.5 × 7.5 in |
|
Weight |
69 kg |
Information About SH161A4ALC
The SH161A4ALC belongs to the Danfoss SH series of scroll compressors developed for air-conditioning and refrigeration equipment. Its hermetic construction integrates the motor and compression mechanism within a sealed housing to reduce refrigerant leakage risk. The scroll compression technology uses intermeshing spiral elements to compress refrigerant continuously during operation. The supplied specifications identify R-410A as the refrigerant and list both 460 VAC, three-phase, 60 Hz and 380–420 V, three-phase, 50 Hz configurations, so the exact unit rating should be verified before installation.
Key Features:
-
Scroll Compression Technology: Uses intermeshing spiral elements to compress refrigerant for HVAC applications.
-
Hermetic Construction: Encloses the motor and compressor mechanism within a sealed housing.
-
Three-Phase Power: Designed for three-phase electrical supply, with voltage and frequency dependent on the specific version.
-
R-410A Refrigerant: Listed for use with R-410A in the supplied technical specifications.
-
Cooling Capacity: Listed capacity of 132.4 kBtu/h in the provided 50 Hz specification table.
-
Motor Performance: Listed input power of 12.15 kW and COP of 3.19 in the supplied specification table.
-
Refrigerant Connections: Features a 7/8-inch discharge connection and a 1 3/8-inch suction connection, listed as sweat or braze fittings.
-
Lubrication System: Listed oil charge of 3.3 litres, with oil type and compatibility to be confirmed for the exact compressor version.
The SH161A4ALC delivers the compression performance and operating characteristics required for commercial air-conditioning and compatible refrigeration systems.
