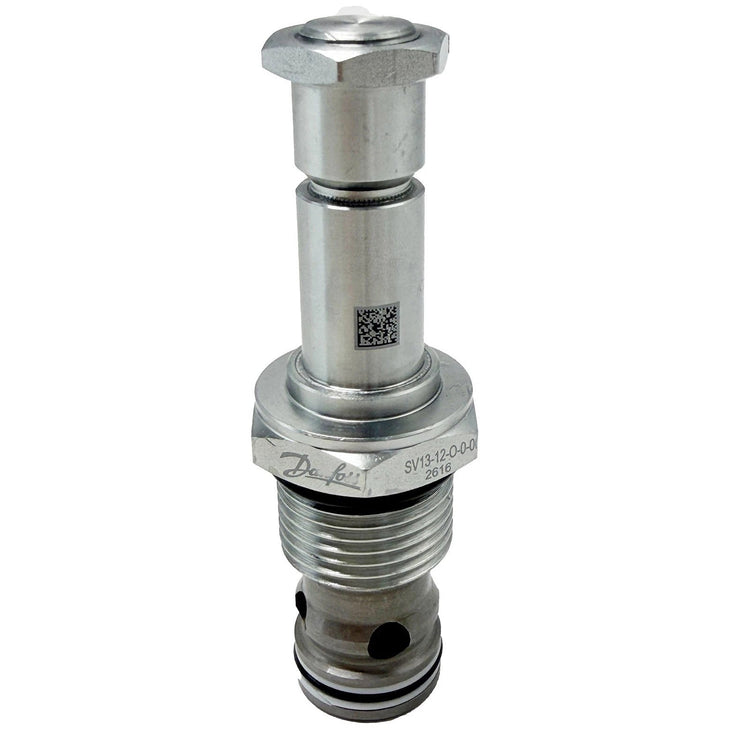

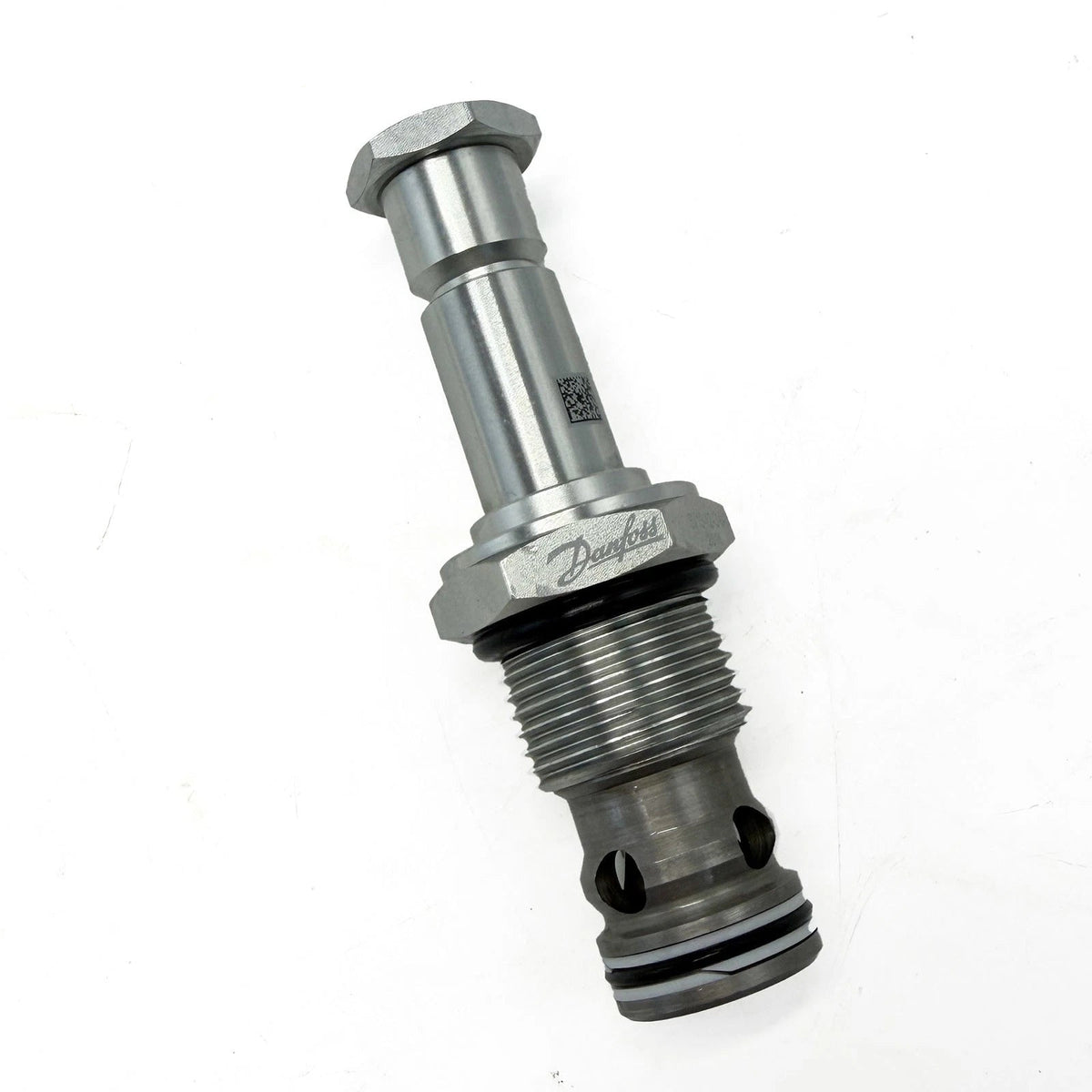

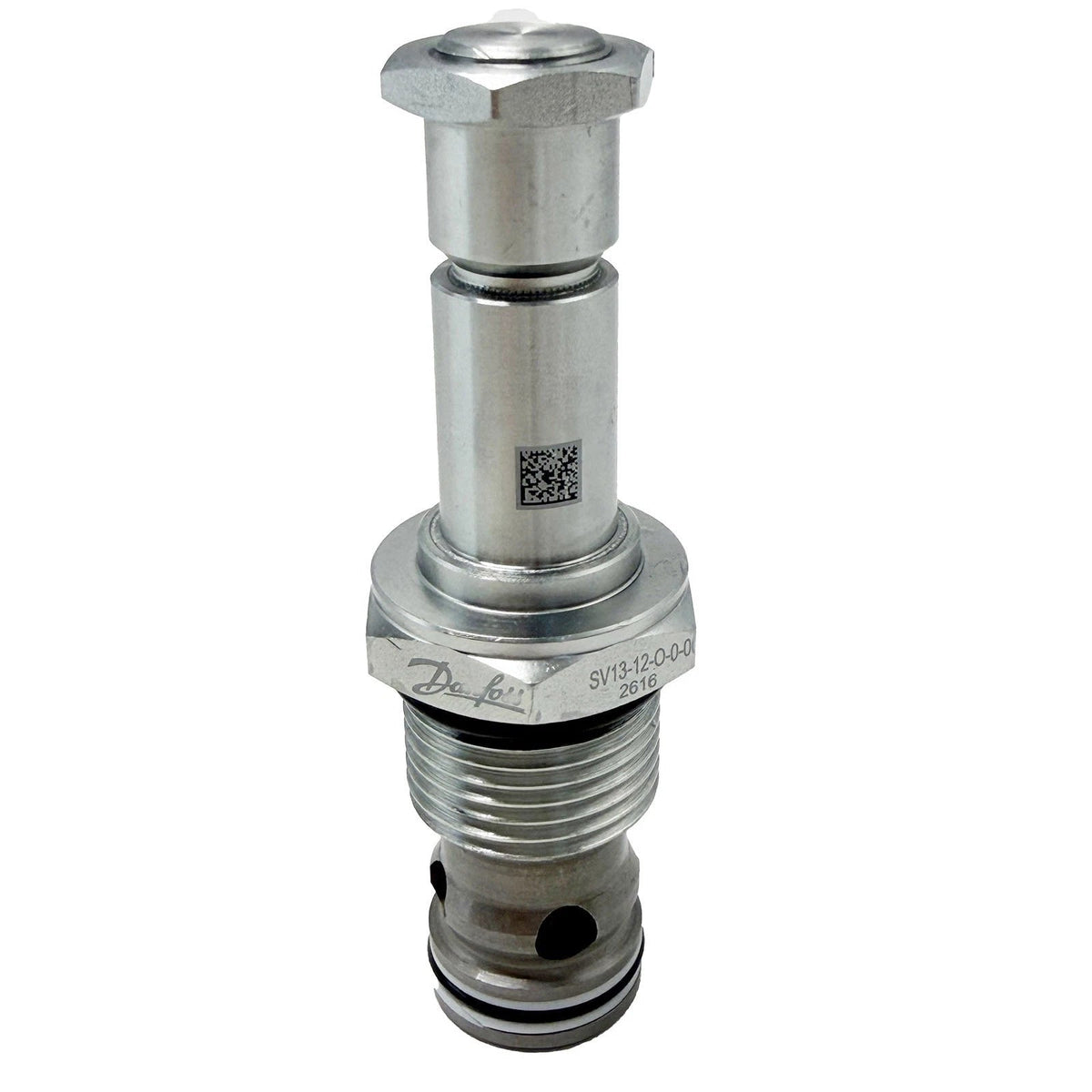

Danfoss SV13-12-0-0-00 Normally Open Hydraulic Solenoid Cartridge Valve 5000 PSI 30 GPM
- Regular price
- $375.00
- Sale price
- $375.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SV13-12-0-0-00
Description
The Danfoss SV13-12-0-0-00 is a pilot-operated hydraulic solenoid cartridge valve designed for directional flow control in mobile and industrial hydraulic systems. Featuring a two-way, two-position normally open poppet configuration, it supports flow rates up to 30 GPM (114 L/min) and operating pressures up to 5,000 psi (350 bar). Its screw-in cartridge design, Buna-N seals, and low-leakage poppet mechanism make it suitable for hydraulic load holding, pressure line isolation, and controlled oil bypass applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Hydraulics & Fluid Power |
|
Part Number |
SV13-12-0-0-00 |
|
Subcategory |
Hydraulic Solenoid Valves |
|
Manufacturer Reference Number |
02-175825 |
|
Series |
SV13 |
|
Product Type |
Pilot-Operated Hydraulic Solenoid Cartridge Valve |
|
Valve Configuration |
2-Way, 2-Position |
|
Normal Valve Position |
Normally Open (NO) |
|
Valve Mechanism |
Pilot-Operated Poppet |
|
Maximum Operating Pressure |
350 bar (5,000 psi) |
|
Maximum Flow Rate |
114 L/min (30 GPM) |
|
Cartridge Size |
Size 12 |
|
Cavity Type |
C-12-2 |
|
Installation Type |
Screw-In Cartridge |
|
Valve Housing |
Not Included |
|
Solenoid Coil |
Not Included |
|
Operating Voltage |
Determined by Separately Selected Coil |
|
Manual Override |
None |
|
Seal Material |
Buna-N (NBR) |
|
Operating Temperature Range |
-40°C to +120°C (-40°F to +248°F) |
|
Recommended Fluid Cleanliness |
ISO 4406 18/16/13 |
|
Cartridge Installation Torque |
102–115 Nm (75–85 ft-lb) |
|
Coil Nut Torque |
5–8 Nm (4–6 ft-lb) |
|
Compatible Seal Kit |
Buna-N: 02-165889 |
|
Optional Viton Seal Kit |
02-165888 |
|
Primary Applications |
Hydraulic Manifolds, Mobile Machinery, Industrial Equipment, Pressure Line Control |
|
Weight |
0.59 lb |
Information About SV13-12-0-0-00
The SV13-12-0-0-00 is part of the Danfoss SV13 Series of solenoid-operated hydraulic cartridge valves, developed for high-pressure fluid control in compact hydraulic manifolds. Its pilot-operated poppet mechanism allows bidirectional flow when de-energized, while energizing a compatible solenoid coil blocks flow from port 2 to port 1 and permits flow in the opposite direction. The valve features hardened steel operating components, Buna-N sealing elements, and a standardized C-12-2 cartridge cavity for installation in compatible hydraulic manifolds. Supplied in a cartridge-only configuration without a solenoid coil, it allows equipment manufacturers and maintenance technicians to select an appropriate coil and housing arrangement for their hydraulic systems.
Key Features:
-
Normally Open Configuration: Permits hydraulic flow in both directions when the solenoid is de-energized.
-
Two-Way, Two-Position Operation: Provides electrically controlled switching between unrestricted and directional flow conditions.
-
High-Pressure Capability: Supports operating pressures up to 350 bar (5,000 psi).
-
Maximum Flow Capacity: Handles hydraulic flow rates up to 114 L/min (30 GPM).
-
Pilot-Operated Poppet Design: Uses hydraulic pilot pressure to control the internal poppet mechanism.
-
Low-Leakage Construction: Minimizes internal leakage through precision-machined sealing surfaces.
-
Screw-In Cartridge Installation: Fits a standard C-12-2 hydraulic manifold cavity.
-
Buna-N Sealing: Incorporates nitrile rubber seals for compatibility with suitable hydraulic fluids.
-
Coil-Free Configuration: Supplied without an electrical solenoid coil, allowing selection of the required operating voltage.
-
No Manual Override: Uses electrical solenoid actuation without an integrated manual override mechanism.
-
Wide Operating Temperature Range: Supports temperatures from -40°C to +120°C (-40°F to +248°F), subject to seal and fluid limitations.
-
Industrial Fluid Compatibility: Suitable for compatible petroleum-based and general-purpose hydraulic oils.
The SV13-12-0-0-00 delivers the reliability and precision required for hydraulic directional switching, pressure line isolation, load control, and automated fluid management in mobile and industrial equipment.
Description
The Danfoss SV13-12-0-0-00 is a pilot-operated hydraulic solenoid cartridge valve designed for directional flow control in mobile and industrial hydraulic systems. Featuring a two-way, two-position normally open poppet configuration, it supports flow rates up to 30 GPM (114 L/min) and operating pressures up to 5,000 psi (350 bar). Its screw-in cartridge design, Buna-N seals, and low-leakage poppet mechanism make it suitable for hydraulic load holding, pressure line isolation, and controlled oil bypass applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Hydraulics & Fluid Power |
|
Part Number |
SV13-12-0-0-00 |
|
Subcategory |
Hydraulic Solenoid Valves |
|
Manufacturer Reference Number |
02-175825 |
|
Series |
SV13 |
|
Product Type |
Pilot-Operated Hydraulic Solenoid Cartridge Valve |
|
Valve Configuration |
2-Way, 2-Position |
|
Normal Valve Position |
Normally Open (NO) |
|
Valve Mechanism |
Pilot-Operated Poppet |
|
Maximum Operating Pressure |
350 bar (5,000 psi) |
|
Maximum Flow Rate |
114 L/min (30 GPM) |
|
Cartridge Size |
Size 12 |
|
Cavity Type |
C-12-2 |
|
Installation Type |
Screw-In Cartridge |
|
Valve Housing |
Not Included |
|
Solenoid Coil |
Not Included |
|
Operating Voltage |
Determined by Separately Selected Coil |
|
Manual Override |
None |
|
Seal Material |
Buna-N (NBR) |
|
Operating Temperature Range |
-40°C to +120°C (-40°F to +248°F) |
|
Recommended Fluid Cleanliness |
ISO 4406 18/16/13 |
|
Cartridge Installation Torque |
102–115 Nm (75–85 ft-lb) |
|
Coil Nut Torque |
5–8 Nm (4–6 ft-lb) |
|
Compatible Seal Kit |
Buna-N: 02-165889 |
|
Optional Viton Seal Kit |
02-165888 |
|
Primary Applications |
Hydraulic Manifolds, Mobile Machinery, Industrial Equipment, Pressure Line Control |
|
Weight |
0.59 lb |
Information About SV13-12-0-0-00
The SV13-12-0-0-00 is part of the Danfoss SV13 Series of solenoid-operated hydraulic cartridge valves, developed for high-pressure fluid control in compact hydraulic manifolds. Its pilot-operated poppet mechanism allows bidirectional flow when de-energized, while energizing a compatible solenoid coil blocks flow from port 2 to port 1 and permits flow in the opposite direction. The valve features hardened steel operating components, Buna-N sealing elements, and a standardized C-12-2 cartridge cavity for installation in compatible hydraulic manifolds. Supplied in a cartridge-only configuration without a solenoid coil, it allows equipment manufacturers and maintenance technicians to select an appropriate coil and housing arrangement for their hydraulic systems.
Key Features:
-
Normally Open Configuration: Permits hydraulic flow in both directions when the solenoid is de-energized.
-
Two-Way, Two-Position Operation: Provides electrically controlled switching between unrestricted and directional flow conditions.
-
High-Pressure Capability: Supports operating pressures up to 350 bar (5,000 psi).
-
Maximum Flow Capacity: Handles hydraulic flow rates up to 114 L/min (30 GPM).
-
Pilot-Operated Poppet Design: Uses hydraulic pilot pressure to control the internal poppet mechanism.
-
Low-Leakage Construction: Minimizes internal leakage through precision-machined sealing surfaces.
-
Screw-In Cartridge Installation: Fits a standard C-12-2 hydraulic manifold cavity.
-
Buna-N Sealing: Incorporates nitrile rubber seals for compatibility with suitable hydraulic fluids.
-
Coil-Free Configuration: Supplied without an electrical solenoid coil, allowing selection of the required operating voltage.
-
No Manual Override: Uses electrical solenoid actuation without an integrated manual override mechanism.
-
Wide Operating Temperature Range: Supports temperatures from -40°C to +120°C (-40°F to +248°F), subject to seal and fluid limitations.
-
Industrial Fluid Compatibility: Suitable for compatible petroleum-based and general-purpose hydraulic oils.
The SV13-12-0-0-00 delivers the reliability and precision required for hydraulic directional switching, pressure line isolation, load control, and automated fluid management in mobile and industrial equipment.
