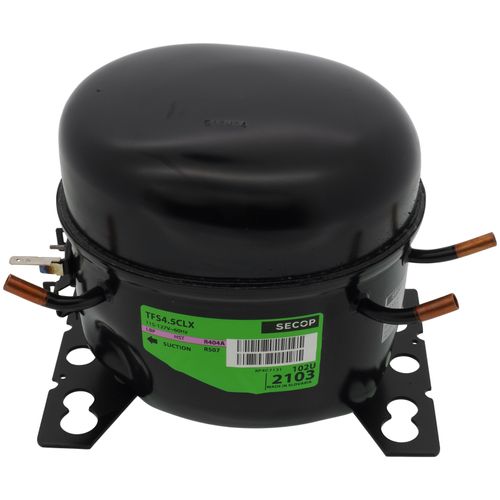

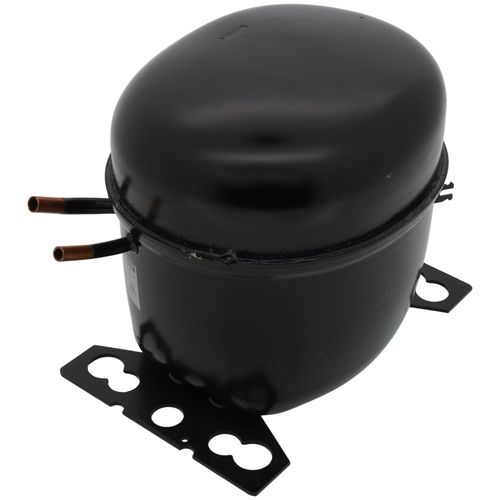

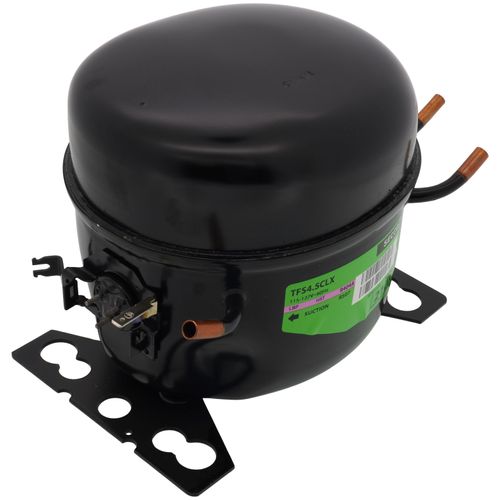

Danfoss TFS4.5CLX Hermetic Refrigeration Compressor
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TFS4.5CLX
Description
The Danfoss TFS4.5CLX is a hermetic reciprocating refrigeration compressor designed for low-back-pressure (LBP) applications. It operates with R404A and R507 refrigerants and uses a single-phase 115–127 V, 60 Hz power supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC and Refrigeration |
| Part Number | TFS4.5CLX |
| Subcategory | Refrigeration Compressors |
| Product Type | Hermetic Reciprocating Compressor |
| Application | Low-Back-Pressure (LBP) Refrigeration |
| Compatible Refrigerants | R404A, R507 |
| Nominal Voltage | 115–127 V AC |
| Voltage Range | 103–135 V AC |
| Frequency | 60 Hz |
| Phase | Single-phase |
| Motor Configuration | CSIR |
| Motor Rating | 225 W |
| Displacement | 4.63 cm³ (0.28 cu in) |
| Oil Type | Polyolester (POE) |
| Oil Viscosity | 32 cSt |
| Oil Quantity | 283 cm³ (9.6 fl oz) |
| Start Capacitor | 280 µF |
| Locked-Rotor Current (LRA) | 20 A |
| Rated Load Current (RLA) | 3.2 A |
| Evaporating Temperature Range | −45°C to −6.7°C (−49°F to 20°F) |
| Maximum Ambient Temperature | 43°C (110°F) |
| Weight | 17.9 lb |
Information About TFS4.5CLX
The TFS4.5CLX is a Danfoss refrigeration compressor intended for low-temperature cooling systems. Its hermetic reciprocating design compresses refrigerant within a sealed housing to support refrigeration-cycle operation. The compressor has a displacement of 4.63 cm³ and uses polyolester (POE) oil with a viscosity of 32 cSt. Its CSIR motor configuration and specified electrical requirements must be matched to the refrigeration system and starting components.
-
Compressor Design: Hermetic reciprocating mechanism for refrigeration applications.
-
Application Range: Designed for low-back-pressure operation.
-
Refrigerant Compatibility: Suitable for R404A and R507.
-
Electrical Supply: 115–127 V AC, single-phase, 60 Hz.
-
Motor Configuration: CSIR starting system.
-
Displacement: 4.63 cm³ per revolution.
-
Lubrication: Uses POE oil with a viscosity of 32 cSt.
-
Starting Requirements: Uses a starting relay and 280 µF start capacitor in the documented configuration.
The TFS4.5CLX delivers the reliability and precision required for compatible low-temperature refrigeration systems.
