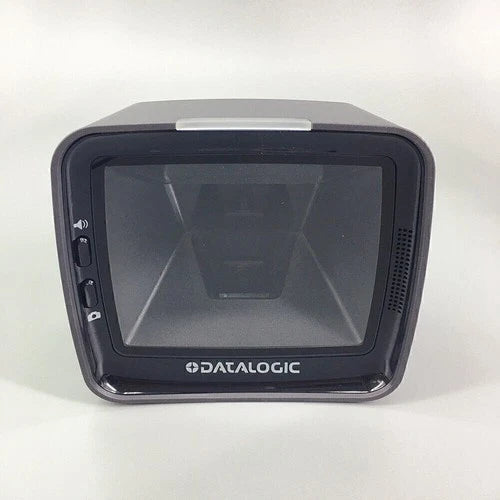

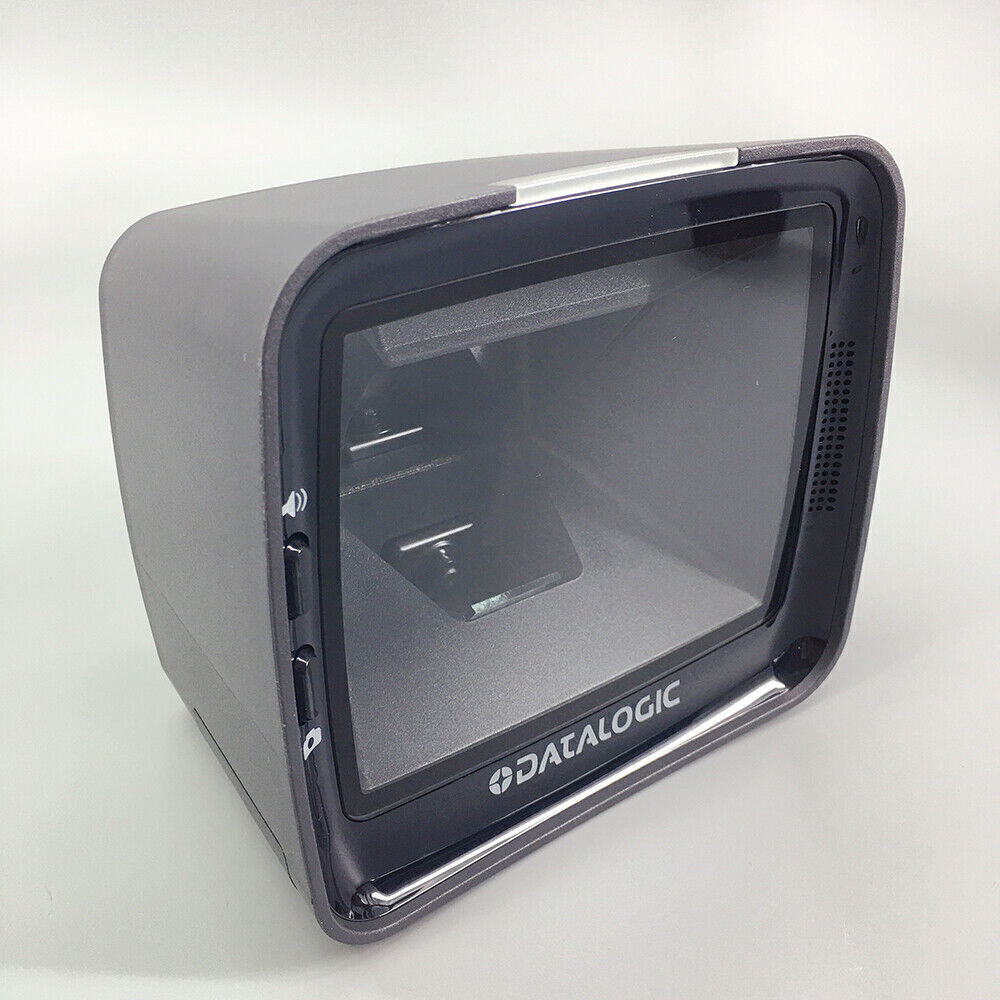

Datalogic 3450VSi Magellan 1D/2D Presentation Barcode Scanner
- Regular price
- $797.00
- Sale price
- $797.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3450VSi
Description
The Datalogic 3450VSi is a fixed presentation barcode scanner designed to rapidly read 1D and 2D barcodes at retail checkout counters and other point-of-sale workstations. Its 1280 × 1024 image sensor supports omnidirectional barcode reading, while its compact design allows installation on counters or integration into self-checkout systems. The scanner also supports image capture and multiple host interfaces for integration with compatible retail equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Barcode Scanners & Data Capture |
| Part Number | 3450VSi |
| Subcategory | Fixed Presentation Barcode Scanners |
| Product Family | Magellan 34xxVSi |
| Scanner Type | Single-plane area imager |
| Barcode Types | 1D, 2D, GS1 DataBar, supported stacked codes |
| Image Sensor | 1280 × 1024 pixels |
| Maximum Reading Rate | 39 million pixels per second |
| Maximum Resolution | 5 mil |
| Interfaces | USB and RS-232 options; configuration-dependent |
| Power Requirements | 100–240 V AC, 50–60 Hz; 12 V DC input |
| Power Consumption | 3.6 W nominal; 3.8 W maximum |
| Protection Rating | IP52 |
| Operating Temperature | 10 to 40 °C (50 to 104 °F) |
| Dimensions (W × D × H) | Approx. 5.4 × 6.0 × 3.7 in |
| Weight | 1.32 lb |
Information About 3450VSi
The 3450VSi belongs to Datalogic's Magellan 34xxVSi family of vertical, single-plane imaging scanners. It reads standard linear barcodes, GS1 DataBar codes, QR codes, Data Matrix, Aztec, and supported stacked barcode formats. The scanner provides USB and RS-232 connectivity options, with interface availability depending on the specific model configuration. Its IP52-rated housing, adjustable audio feedback, and compact enclosure make it suitable for supported retail and commercial scanning applications.
Key Features:
-
1D and 2D Barcode Reading: Reads standard linear and supported two-dimensional barcode formats.
-
1280 × 1024 Image Sensor: Captures barcode images for decoding and supported image-capture functions.
-
High-Speed Imaging: Processes up to 39 million pixels per second.
-
Omnidirectional Reading: Supports scanning without requiring a single fixed barcode orientation.
-
Multiple Interfaces: Supports USB and RS-232 options, depending on configuration.
-
Compact Countertop Design: Fits retail checkout counters and compatible embedded installations.
-
IP52 Protection: Provides protection against specified dust ingress and dripping water conditions.
-
Adjustable Read Feedback: Includes an audio speaker with adjustable tone and volume, plus visual reading indicators.
The 3450VSi delivers the barcode-reading performance and integration capabilities required for high-throughput retail, pharmacy, and point-of-sale applications.
Description
The Datalogic 3450VSi is a fixed presentation barcode scanner designed to rapidly read 1D and 2D barcodes at retail checkout counters and other point-of-sale workstations. Its 1280 × 1024 image sensor supports omnidirectional barcode reading, while its compact design allows installation on counters or integration into self-checkout systems. The scanner also supports image capture and multiple host interfaces for integration with compatible retail equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Barcode Scanners & Data Capture |
| Part Number | 3450VSi |
| Subcategory | Fixed Presentation Barcode Scanners |
| Product Family | Magellan 34xxVSi |
| Scanner Type | Single-plane area imager |
| Barcode Types | 1D, 2D, GS1 DataBar, supported stacked codes |
| Image Sensor | 1280 × 1024 pixels |
| Maximum Reading Rate | 39 million pixels per second |
| Maximum Resolution | 5 mil |
| Interfaces | USB and RS-232 options; configuration-dependent |
| Power Requirements | 100–240 V AC, 50–60 Hz; 12 V DC input |
| Power Consumption | 3.6 W nominal; 3.8 W maximum |
| Protection Rating | IP52 |
| Operating Temperature | 10 to 40 °C (50 to 104 °F) |
| Dimensions (W × D × H) | Approx. 5.4 × 6.0 × 3.7 in |
| Weight | 1.32 lb |
Information About 3450VSi
The 3450VSi belongs to Datalogic's Magellan 34xxVSi family of vertical, single-plane imaging scanners. It reads standard linear barcodes, GS1 DataBar codes, QR codes, Data Matrix, Aztec, and supported stacked barcode formats. The scanner provides USB and RS-232 connectivity options, with interface availability depending on the specific model configuration. Its IP52-rated housing, adjustable audio feedback, and compact enclosure make it suitable for supported retail and commercial scanning applications.
Key Features:
-
1D and 2D Barcode Reading: Reads standard linear and supported two-dimensional barcode formats.
-
1280 × 1024 Image Sensor: Captures barcode images for decoding and supported image-capture functions.
-
High-Speed Imaging: Processes up to 39 million pixels per second.
-
Omnidirectional Reading: Supports scanning without requiring a single fixed barcode orientation.
-
Multiple Interfaces: Supports USB and RS-232 options, depending on configuration.
-
Compact Countertop Design: Fits retail checkout counters and compatible embedded installations.
-
IP52 Protection: Provides protection against specified dust ingress and dripping water conditions.
-
Adjustable Read Feedback: Includes an audio speaker with adjustable tone and volume, plus visual reading indicators.
The 3450VSi delivers the barcode-reading performance and integration capabilities required for high-throughput retail, pharmacy, and point-of-sale applications.
