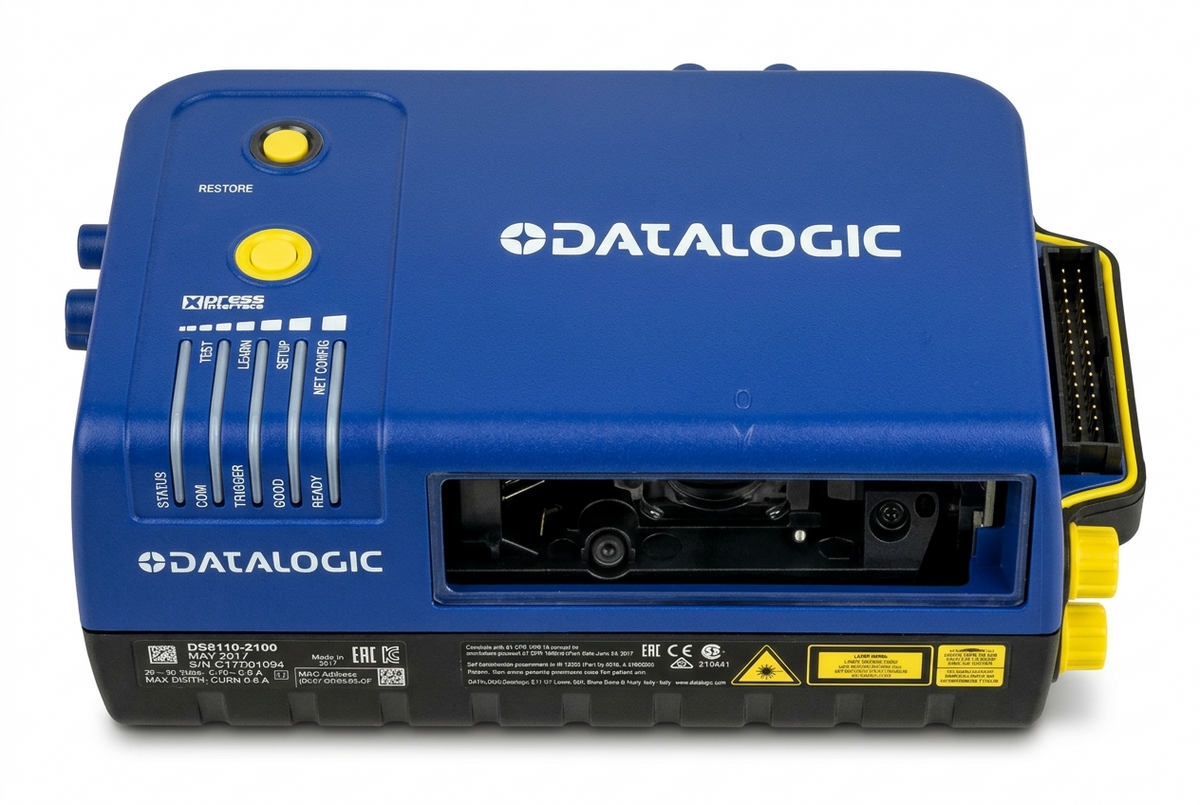

Datalogic DS8110-2100 Fixed-Mount Laser Barcode Scanner
- Regular price
- $9,999.00
- Sale price
- $9,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DS8110-2100
Description
The Datalogic DS8110-2100 is a fixed-mount laser barcode scanner for automated identification in parcel sorting, baggage handling, and distribution systems. This standard-resolution model uses a linear scan pattern at approximately 1,000 scans per second to read barcodes on moving items.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Barcode Identification Systems |
| Part Number | DS8110-2100 |
| Subcategory | Fixed-Mount Laser Barcode Scanners |
| Model Configuration | Standard resolution |
| Scan Pattern | Linear |
| Typical Scan Rate | 1,000 scans/second |
| Supply Voltage | 20–30 V DC |
| Power Consumption | 20 W |
| Main Serial Port | RS232/RS422, up to 115.2 kbit/s |
| Auxiliary Serial Port | RS232, up to 115.2 kbit/s |
| Ethernet Interfaces | 2 × Ethernet TCP/IP |
| Internal Communication | EBC — Ethernet Bus Connection |
| Digital Inputs | 3 optocoupled NPN/PNP inputs, including one encoder input |
| Digital Outputs | 2 software-programmable, optocoupled, event-driven NPN outputs |
| Enclosure / Protection | Aluminum alloy / IP65 |
| Dimensions | 216 × 96 × 127 mm |
| Operating Temperature | 0 to +50°C (32 to 122°F) |
| Weight | 4.40 lb (2.0 kg) |
Information About DS8110-2100
The DS8110-2100 is part of Datalogic’s DS8110 industrial scanner series and carries order number 932500001. Its aluminum-alloy enclosure houses the scanning optics and processing electronics. Digital Signal Technology and ASTRA G3 support barcode reading across varying target positions. Ethernet Bus Connection technology enables communication and synchronization within compatible multi-scanner installations.
Key Features:
- Barcode Identification: Reads linear barcodes for automated item identification and tracking.
- Standard-Resolution Model: Provides the DS8110-2100 configuration identified by order number 932500001.
- Scanning Speed: Delivers a typical scan rate of 1,000 scans per second.
- Optical Processing: Uses Digital Signal Technology and ASTRA G3 for barcode acquisition.
- Serial Interfaces: Provides an RS232/RS422 main port and an RS232 auxiliary port.
- EBC Communication: Supports data exchange and synchronization in compatible multi-scanner systems.
- Programmable Outputs: Includes two optocoupled, event-driven NPN outputs.
- Industrial Enclosure: Uses an aluminum-alloy housing with an IP65 protection rating.
The DS8110-2100 delivers the reliability and precision required for automated barcode identification in compatible logistics, sorting, and material-handling systems.
