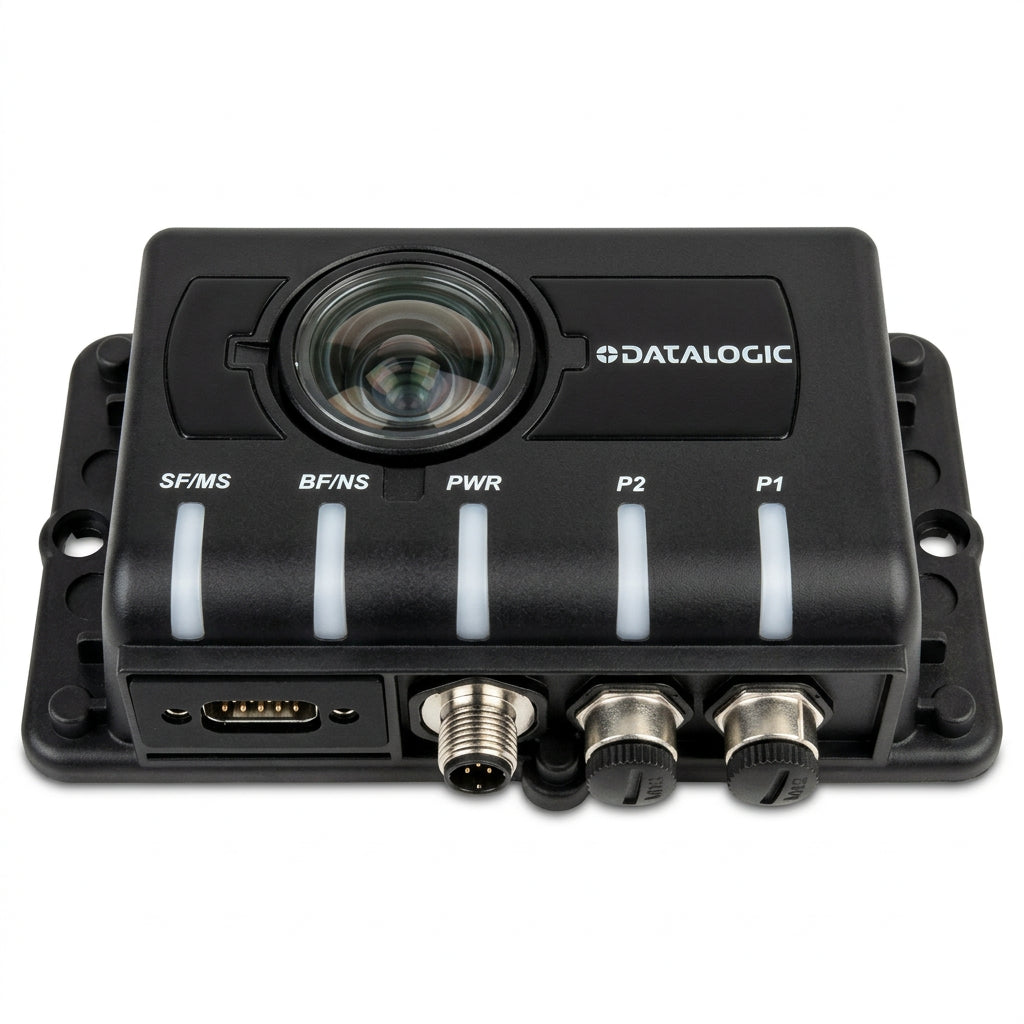

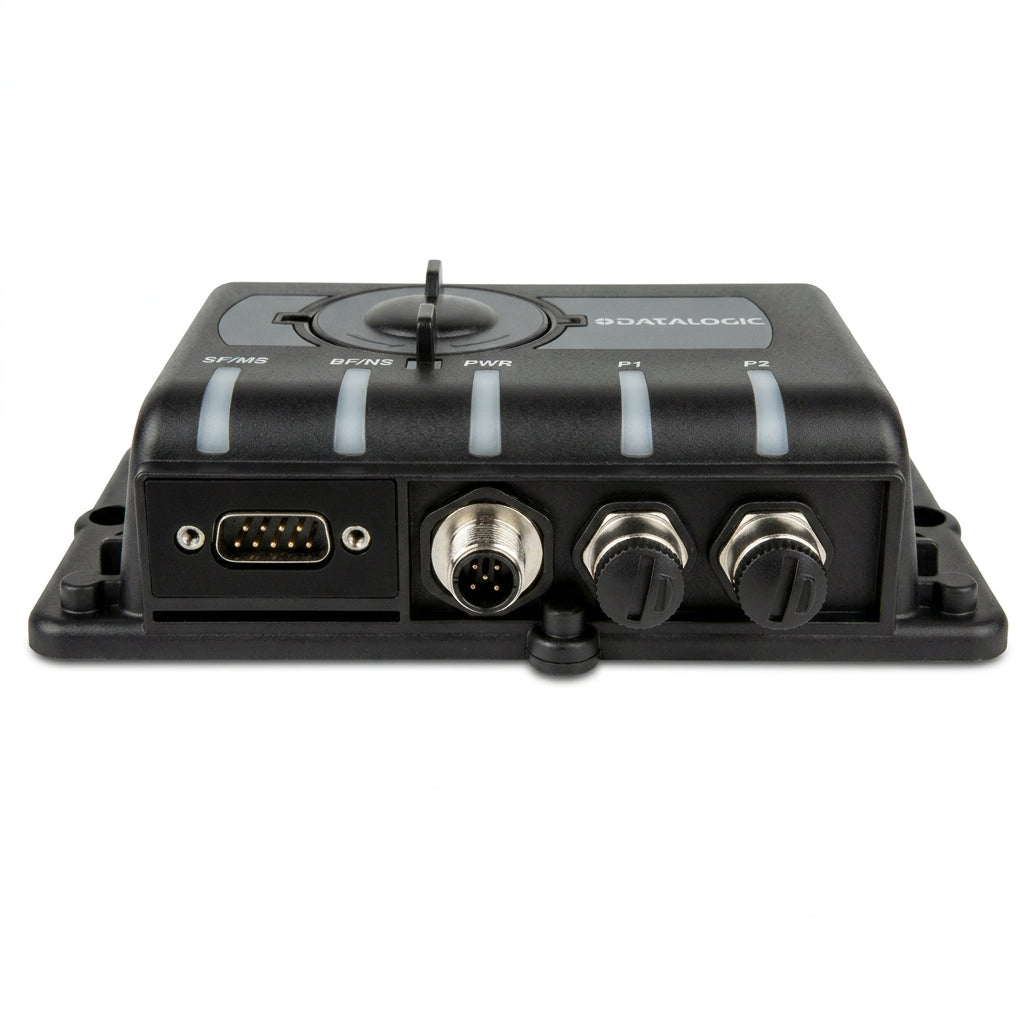

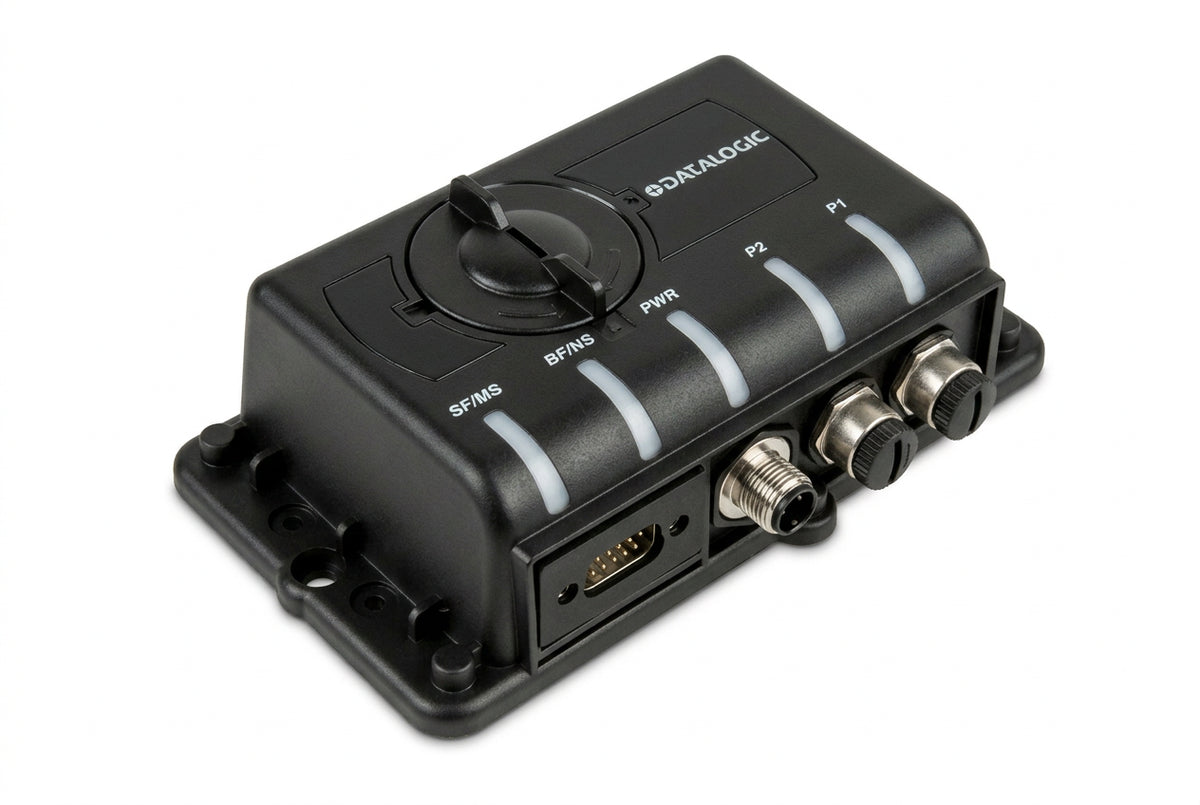

Datalogic FBC9080-N100 Industrial PROFINET Fieldbus Converter
- Regular price
- $602.00
- Sale price
- $602.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FBC9080-N100
Description
The Datalogic FBC9080-N100 is an industrial fieldbus converter designed to connect barcode scanners and other devices with standard RS-232 interfaces to PROFINET IO-based automation networks. It features dual Ethernet ports with an integrated switch, industrial M12 connectors, and an IP65-rated enclosure for demanding industrial environments. The converter also supports Ethernet TCP/IP communication and can be configured using Datalogic Aladdin software.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Industrial Automation |
| Part Number | FBC9080-N100 |
| Subcategory | Industrial Fieldbus Converters |
| Product Family | FBC9080 |
| Product Type | Industrial Fieldbus Converter / Gateway |
| Fieldbus Protocol | PROFINET IO |
| Additional Communication | Ethernet TCP/IP |
| Reader Interface | RS-232, up to 115.2 kbit/s |
| Supply Voltage | 10–30 V DC |
| Scanner Power Output | 5 V DC, 500 mA maximum |
| Ethernet Ports | Dual ports with integrated switch |
| Protection Rating | IP65 |
| Operating Temperature | −20 to +50 °C |
| Dimensions (L × W × H) | 158 × 43 × 98 mm |
| Weight | 0.64 lb |
Information About FBC9080-N100
The FBC9080-N100 belongs to Datalogic's FBC9080 fieldbus converter family, developed to integrate handheld scanners into industrial PLC systems. Its PROFINET IO interface supports communication between compatible reading devices and automation controllers, while the RS-232 connection links the converter to the scanner. The unit operates from a 10–30 V DC supply and can provide 5 V DC power to a connected scanner, up to 500 mA. Its configuration switch, USB interface, and Aladdin software support setup and maintenance without requiring a separate external Ethernet switch.
Key Features:
-
PROFINET IO Connectivity: Connects compatible scanners to PLC-based industrial automation networks.
-
RS-232 Reader Interface: Supports reading devices equipped with a standard RS-232 connection.
-
Dual Ethernet Ports: Provides an integrated two-port switch for network connectivity.
-
Ethernet TCP/IP Support: Enables bidirectional point-to-point communication with connected devices.
-
10–30 V DC Input: Supports a wide range of industrial DC power supplies.
-
Scanner Power Output: Provides 5 V DC at up to 500 mA for compatible connected scanners.
-
IP65 Protection: Helps protect the enclosure against dust and water jets when correctly installed.
-
Aladdin Configuration: Supports device setup and configuration using Datalogic software.
The FBC9080-N100 delivers the industrial network connectivity and scanner integration required for compatible PROFINET-based automation systems.
