Datalogic TL46-WL-815L RGB Horizontal Contrast Sensor
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TL46-WL-815L
Description
The Datalogic TL46-WL-815L is an RGB photoelectric contrast sensor for detecting printed registration marks on moving materials. Its horizontal sensing spot, 20 kHz switching frequency, and 25 µs response time support mark detection in packaging, labeling, and printing machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Sensors & Switches |
| Part Number | TL46-WL-815L |
| Subcategory | Photoelectric Contrast Sensors |
| Series / Order Number | TL46 / 954601030 |
| Sensing Principle | Reflective contrast-mark detection |
| Working Distance | 9 mm nominal, ±3 mm depth of field; model webpage lists 12 mm |
| Spot Size and Orientation | 1.5 × 5 mm; horizontal |
| Optical Position | Axial |
| Light Source | RGB LED |
| Supply Voltage | 10–30 V DC |
| Switching Outputs | NPN/PNP; dark/light operation |
| Maximum Output Current | 100 mA |
| Switching Frequency | 20 kHz |
| Response Time | 0.025 ms (25 µs) |

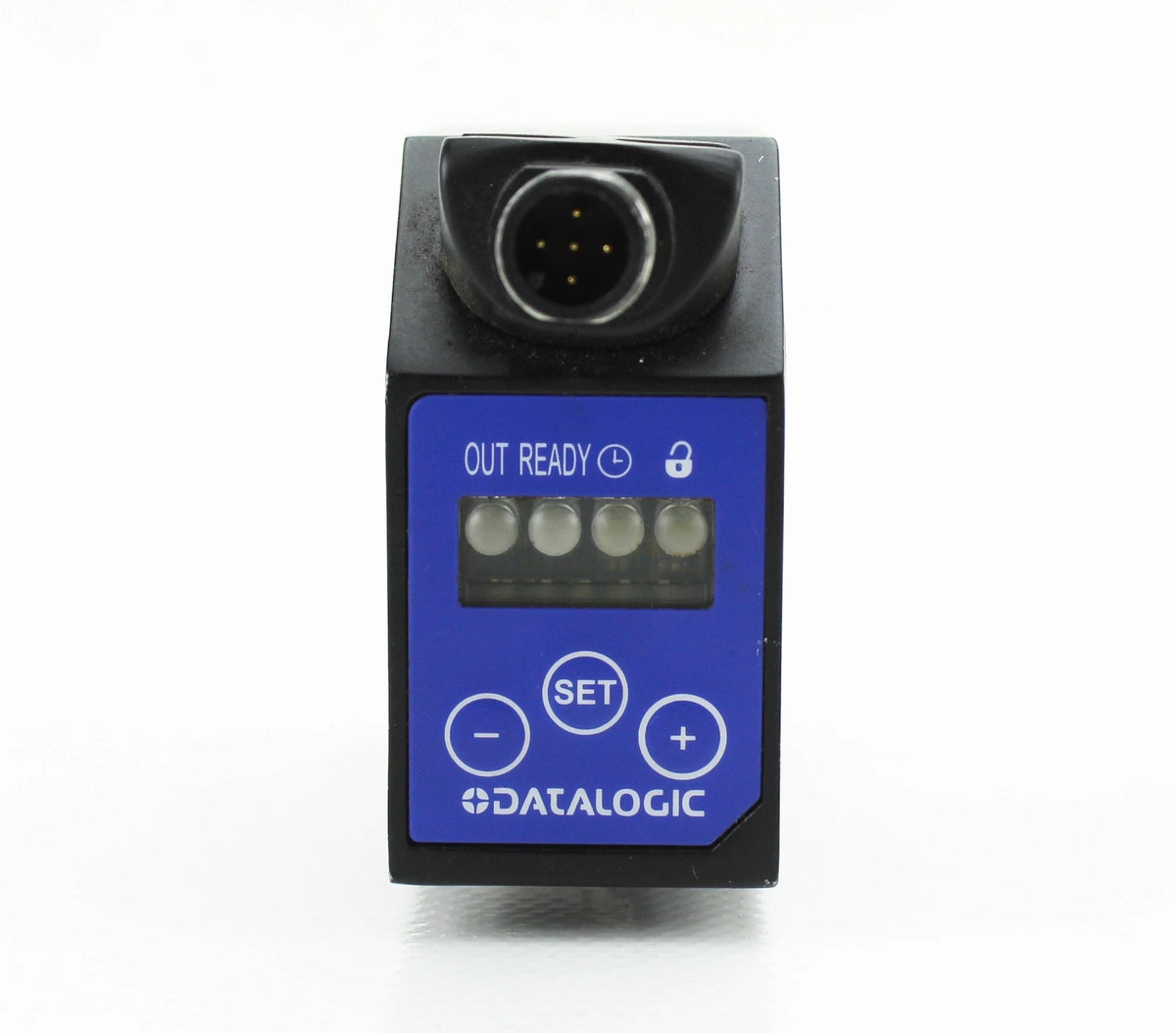

| Adjustment and Indication | Pushbutton teach-in/manual threshold adjustment; LEDs and five-segment bargraph |

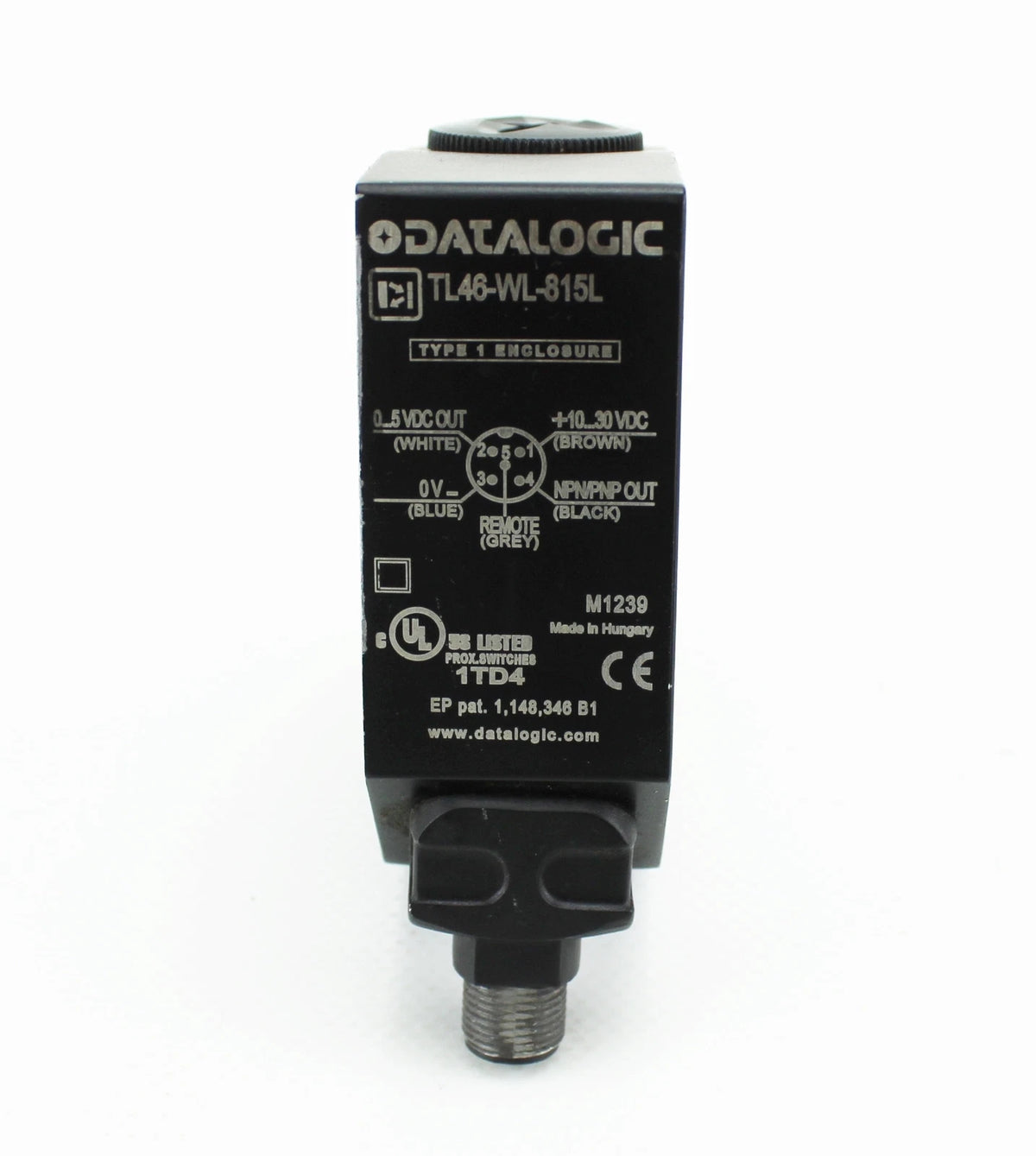

| Connection | Five-pin M12 connector |

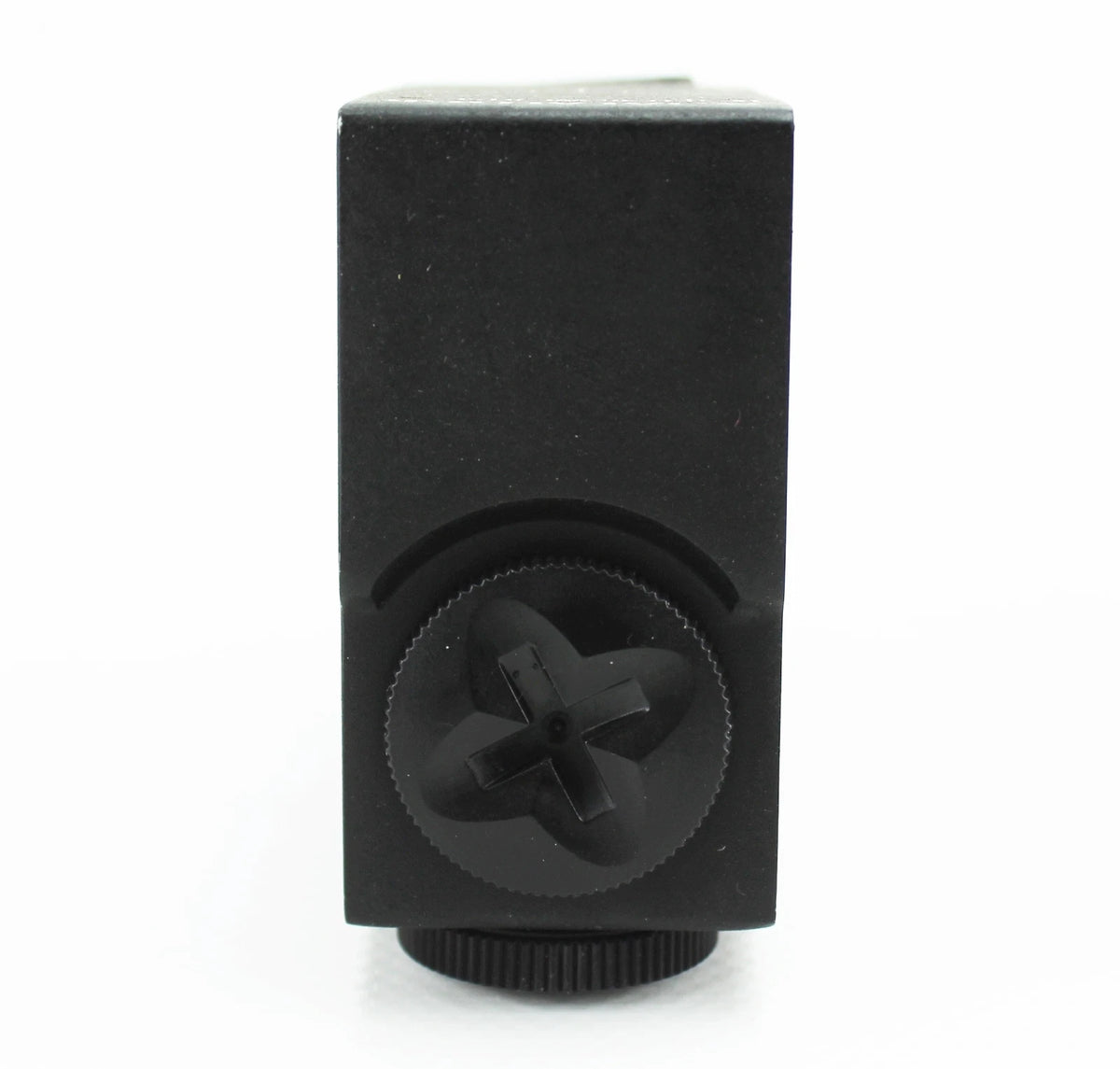

| Construction / Protection | Aluminum housing, glass optics; IP67 |
| Operating Temperature | −10 to +55°C |
| Weight | 170 g (0.375 lb) |
Information About TL46-WL-815L
The TL46-WL-815L is the horizontal-spot standard model within the TL46 contrast sensor series. Its aluminum housing incorporates glass optics and an M12 connector. Pushbutton teach-in and manual threshold adjustment allow setup for different mark and background combinations. NPN/PNP switching outputs connect the sensor to compatible machine control inputs.
Key Features:
- Contrast Mark Detection: Identifies differences between printed marks and their surrounding backgrounds.
- RGB LED Emission: Uses red, green, and blue light for detecting different mark and background colors.
- Horizontal Sensing Spot: Produces a 1.5 × 5 mm spot for the specified detection geometry.
- Fast Switching: Supports a 20 kHz switching frequency with a 25 µs response time.
- Teach-In Adjustment: Acquires target and background signals to establish the switching threshold.
- Manual Threshold Setting: Provides pushbutton adjustment with a five-segment bargraph.
- Output Compatibility: Provides NPN/PNP switching outputs with dark/light operation.
- Protected Construction: Combines an IP67-rated metal housing, glass optics, and an M12 connector.
The TL46-WL-815L delivers the reliability and precision required for registration-mark detection in compatible packaging, labeling, and printing equipment.
