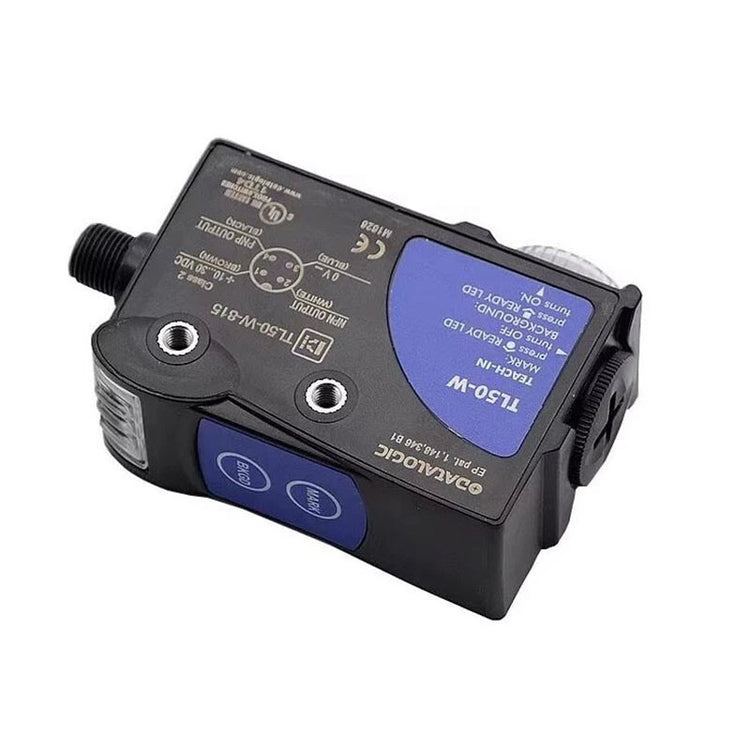

Datalogic TL50-W-815 RGB Photoelectric Contrast Sensor
- Regular price
- $357.00
- Sale price
- $357.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TL50-W-815
Description
The Datalogic TL50-W-815 is a photoelectric contrast sensor that detects differences between printed marks and their backgrounds. Its RGB LED emission, 15 kHz switching frequency, and 33 µs response time support registration-mark detection on packaging and labeling machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Sensors & Switches |
| Part Number | TL50-W-815 |
| Subcategory | Photoelectric Contrast Sensors |
| Series / Order Number | TL50 / 954651000 |
| Sensing Principle | Contrast mark detection |
| Nominal Sensing Distance | 9 mm |
| Spot Size and Orientation | 1.5 × 5 mm; vertical spot, axial optics |
| Light Source | RGB LED |
| Sensitivity Adjustment | Teach-in |
| Output Type | NPN/PNP; dark/light operation |
| Switching Frequency | 15 kHz |
| Response Time | 0.033 ms (33 µs) |
| Supply Voltage | 10–30 V DC |
| No-Load Supply Current | ≤50 mA |
| Connection | M12 plug |
| Housing and Dimensions | ABS/PMMA plastic; 31 × 53 × 80 mm |
| Protection | IP67; short-circuit, reverse-polarity, and impulsive overvoltage protection |
| Operating Temperature | −10 to +55°C |
| Weight | 90 g (0.20 lb) |
Information About TL50-W-815
The TL50-W-815 is part of the TL50 contrast sensor series and carries order number 954651000. Its axial optics produce a vertical sensing spot measuring 1.5 × 5 mm at the nominal 9 mm working distance. Teach-in adjustment acquires the mark and background signals to establish the switching threshold. The plastic housing incorporates an M12 connection and separate indicators for output, readiness, and delay status.
Key Features:
- Read/Write Function: Allows stored identification and process information to be read and updated.
- Memory Capacity: Provides 32 KB of data storage.
- Active RFID Design: Uses a replaceable lithium battery.
- Data Transfer: Supports reading and writing at up to 3,000 bytes per second.
- Protected Construction: Combines an ABS shell with epoxy encapsulation.
- Equipment Compatibility: Works with specified HS500-series antennas and HS814 or HS816 portable reader/writers.
- Industrial Tracking: Supports material handling, sorting, and work-in-progress monitoring.
- Environmental Protection: Carries a published NEMA 4X and IP67 protection rating.
The HS232R delivers the reliability and precision required for identification and process-data tracking in compatible industrial RFID systems.
