Datalogic TLU-115 Red/Green Contrast Mark Sensor
- Regular price
- $609.00
- Sale price
- $609.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TLU-115
Description

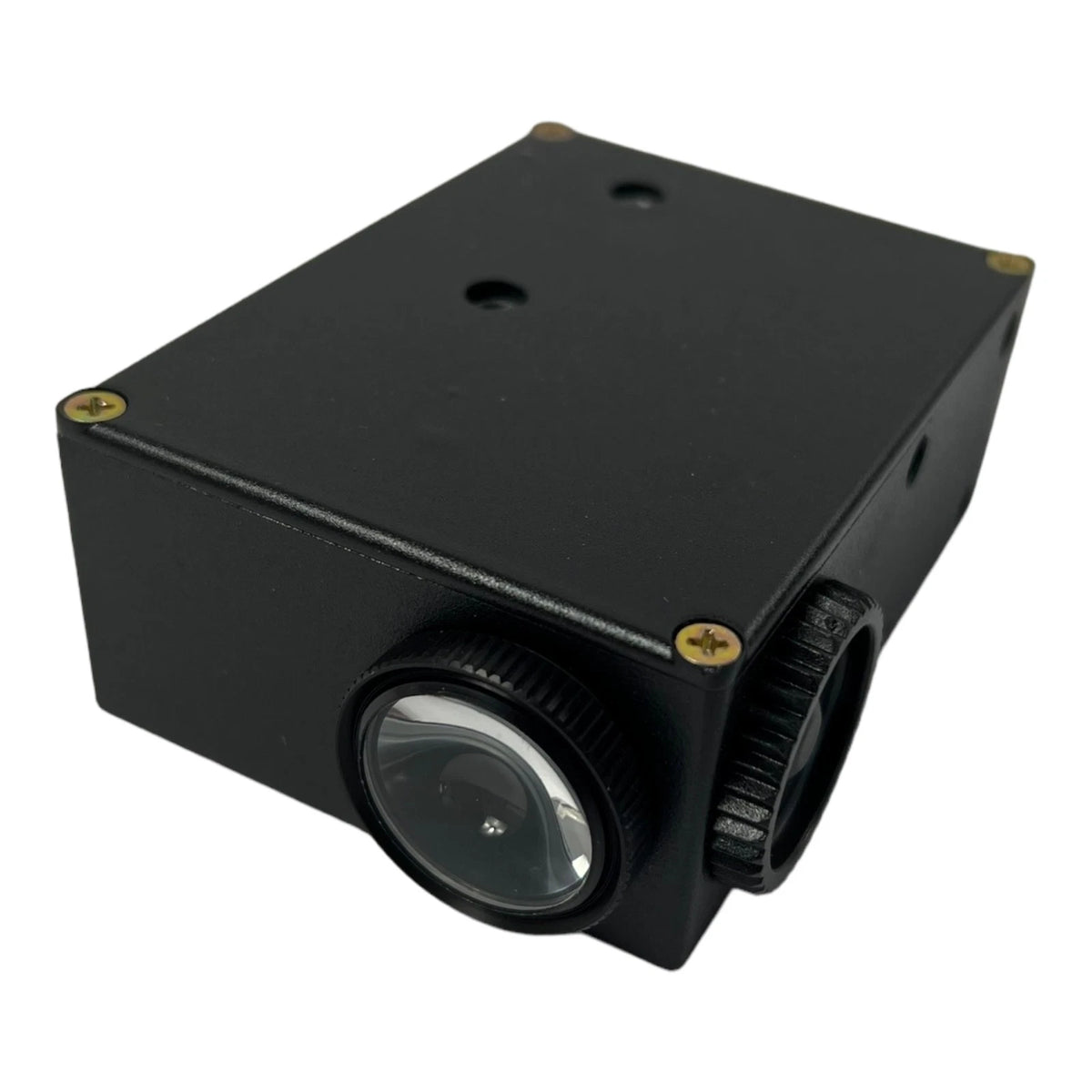

The Datalogic TLU-115 is a contrast sensor that detects printed marks by measuring differences in reflected light between a mark and its background. Its red/green LED emission and vertical sensing spot support registration detection on packaging, labels, and moving printed materials.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Sensors & Switches |
| Part Number | TLU-115 |
| Subcategory | Photoelectric Contrast Sensors |
| Series | TLU |
| Sensing Method | Reflective contrast-mark detection |
| Nominal Working Distance | 9 mm |
| Depth of Field | ±3 mm; nominal working range 6–12 mm |
| Light Source | Red 630 nm / green 526 nm LEDs |
| Spot Size | 1.5 × 5 mm; vertical |
| Supply Voltage | 10–30 V DC |
| Output Configuration | NPN/PNP selectable; supports PNP operation |
| Maximum Output Current | 200 mA |
| Maximum Switching Frequency | 10 kHz |
| Maximum Response Time | 50 µs |
| Sensitivity Adjustment | Mark/background teach-in |

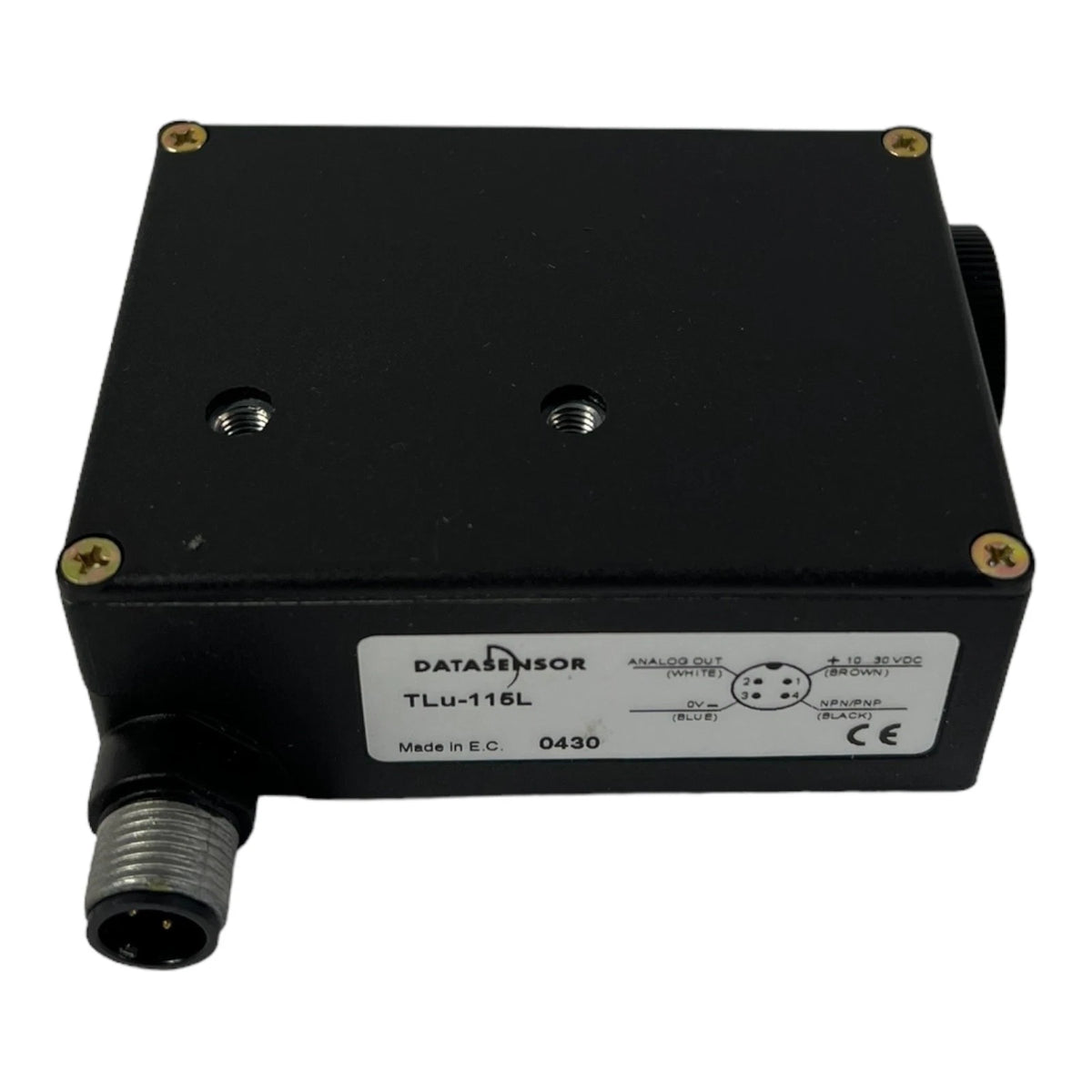

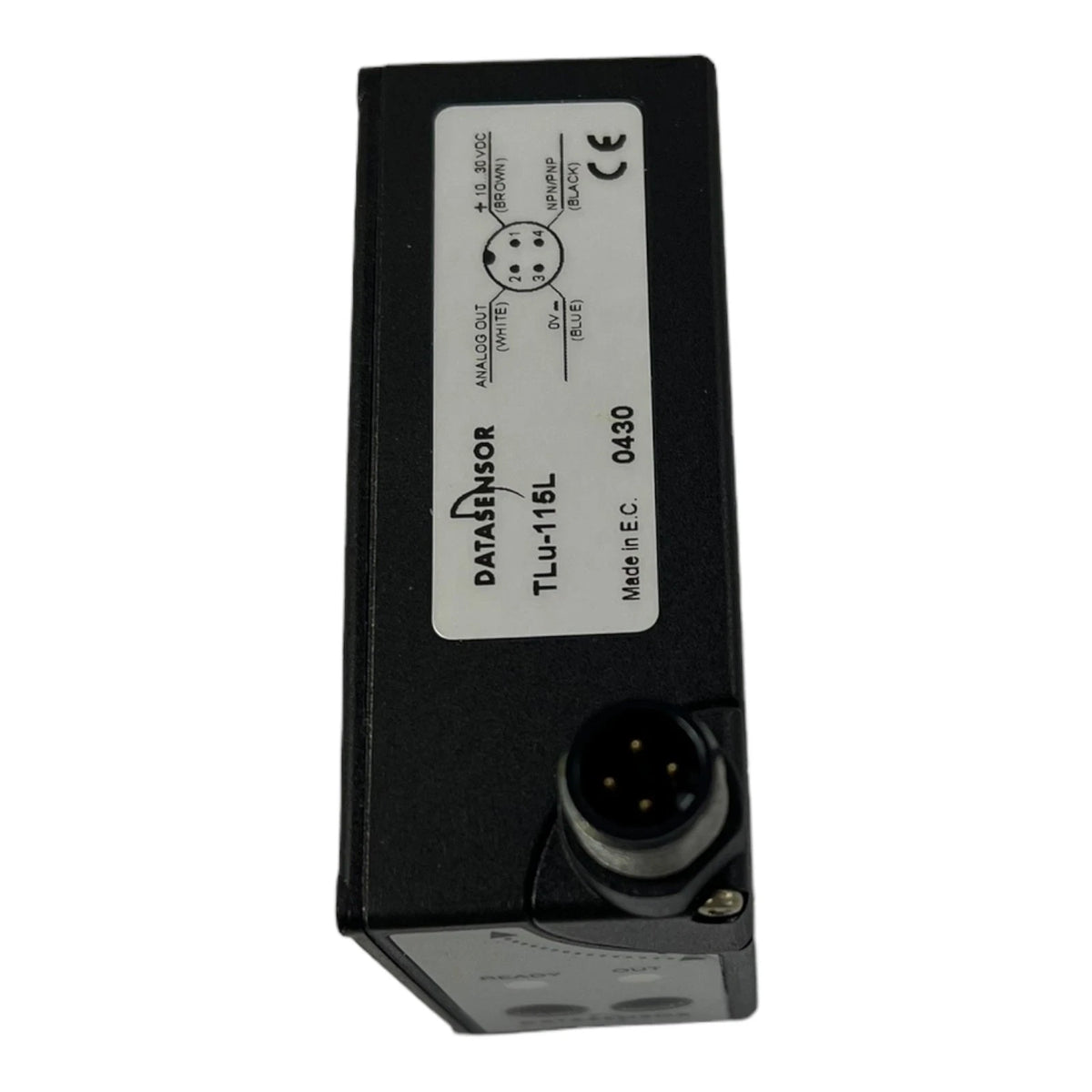

| Connection | Four-pin M12 connector |

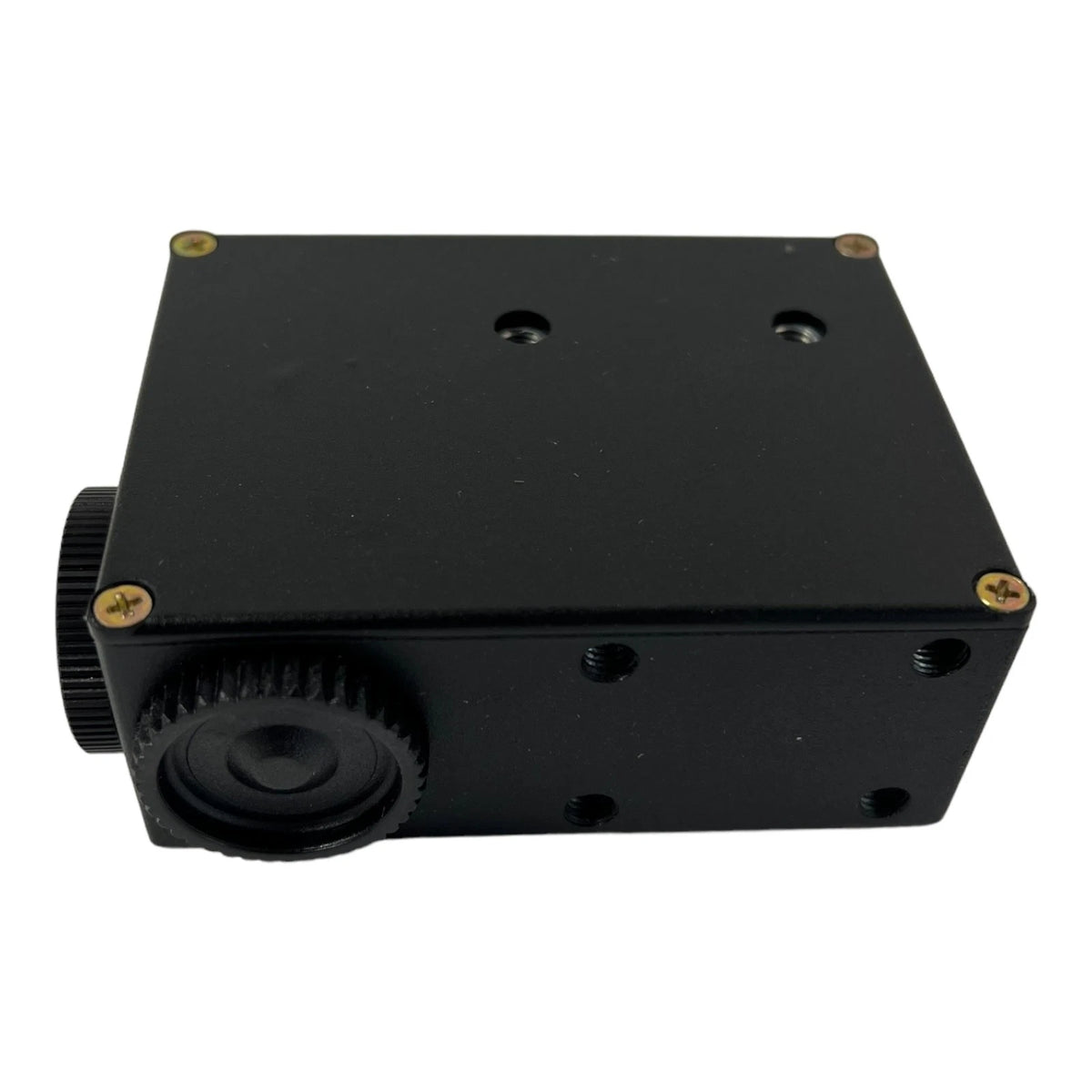

| Housing / Protection Rating | ZAMA metal alloy / IP67 |
| Operating Temperature | −10 to +55°C |
| Weight | 310 g (0.68 lb) |
Information About TLU-115

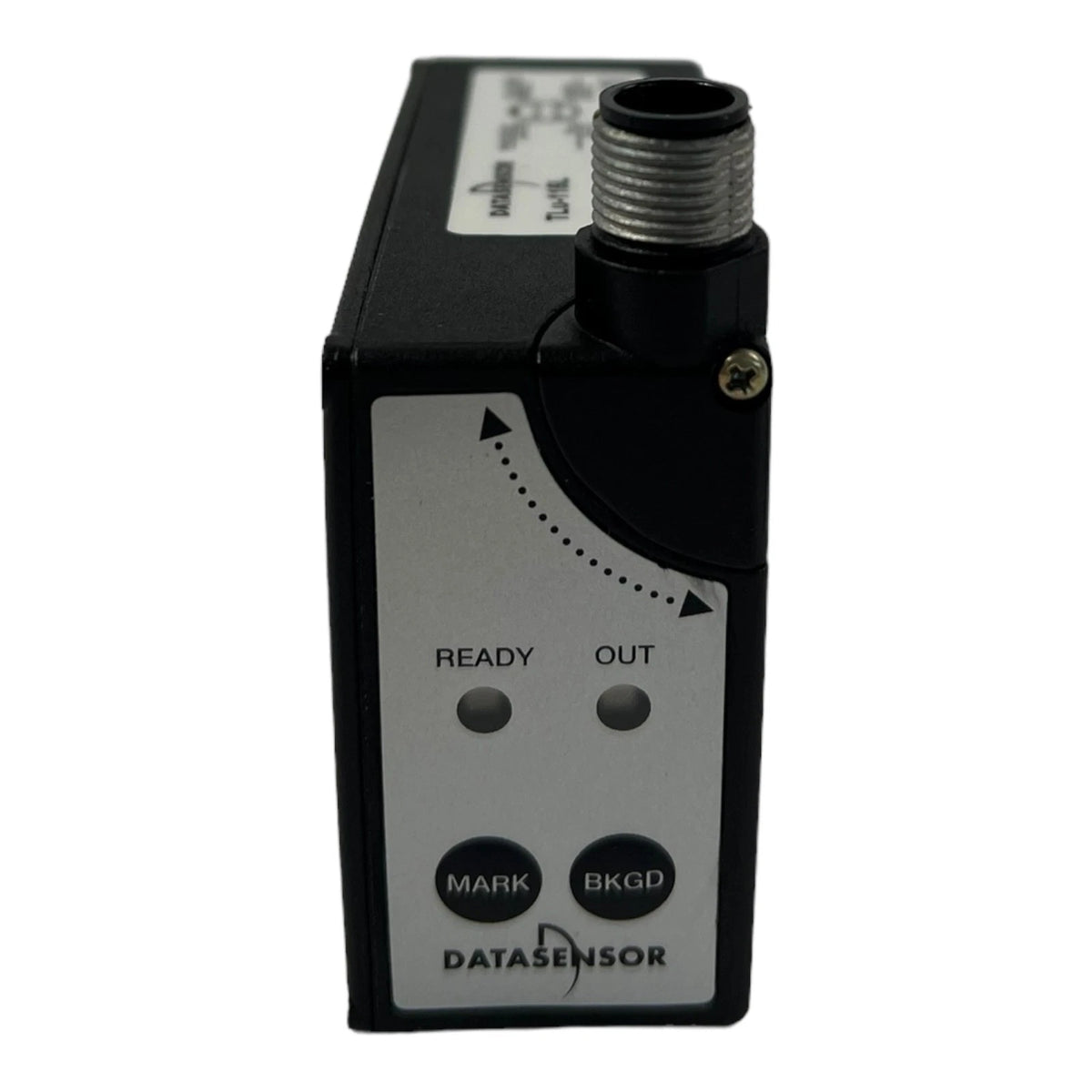

The TLU-115 is part of Datalogic’s TLU series of photoelectric contrast sensors. It uses a nominal 9 mm working distance with a ±3 mm depth of field. Mark and background pushbuttons establish the switching threshold through a teach-in procedure. Its metal housing incorporates an M12 connector for connection to the machine control system.
Key Features:
- Contrast Detection: Identifies differences in reflected light between a printed mark and its background.
- Dual-Color Emission: Uses 630 nm red and 526 nm green LEDs with automatic color selection.
- Working Distance: Provides a nominal sensing distance of 9 mm with a ±3 mm depth of field.
- Vertical Sensing Spot: Produces a 1.5 × 5 mm spot at the nominal working distance.
- Teach-In Adjustment: Uses mark and background acquisition to establish the switching threshold.
- Digital Output: Supports PNP operation for connection to compatible control inputs.
- Supply Compatibility: Operates on 10–30 V DC power.
- Protected Construction: Combines an IP67-rated housing with a four-pin M12 connector.
The TLU-115 delivers the reliability and precision required for print-mark detection and registration sensing in compatible packaging and industrial automation equipment.
