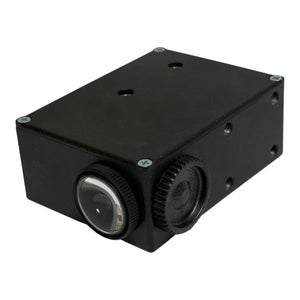

Datalogic TLU-515C White LED Circular Spot Contrast Sensor
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TLU-515C
Description
The Datalogic TLU-515C is a photoelectric contrast sensor for detecting registration marks on printed materials and packaging. It uses white LED illumination with a circular sensing spot and a PNP output to signal mark detection to compatible machine controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Datalogic |
| Category | Sensors & Switches |
| Part Number | TLU-515C |
| Subcategory | Photoelectric Contrast Sensors |
| Series / Order Number | TLU / 954151360 |
| Sensing Principle | Reflective contrast-mark detection |
| Nominal Working Distance | 9 mm |
| Depth of Field | ±3 mm; nominal working range 6–12 mm |
| Light Source | White LED |
| Spot Size | 3 mm diameter, circular |
| Supply Voltage | 10–30 V DC |
| No-Load Supply Current | Maximum 80 mA |
| Output | PNP; light-on/dark-on operation |
| Maximum Output Current | 200 mA |
| Response Time / Switching Frequency | 25 µs / maximum 20 kHz |
| Sensitivity Adjustment | Teach-in |
| Connection | Four-pin M12 connector |
| Construction / Dimensions | Zamak housing, glass optics / 31 × 58 × 82 mm |
| Protection / Operating Temperature | IP67 / −10 to +55°C |
| Weight | 310 g (0.68 lb) |
Information About TLU-515C

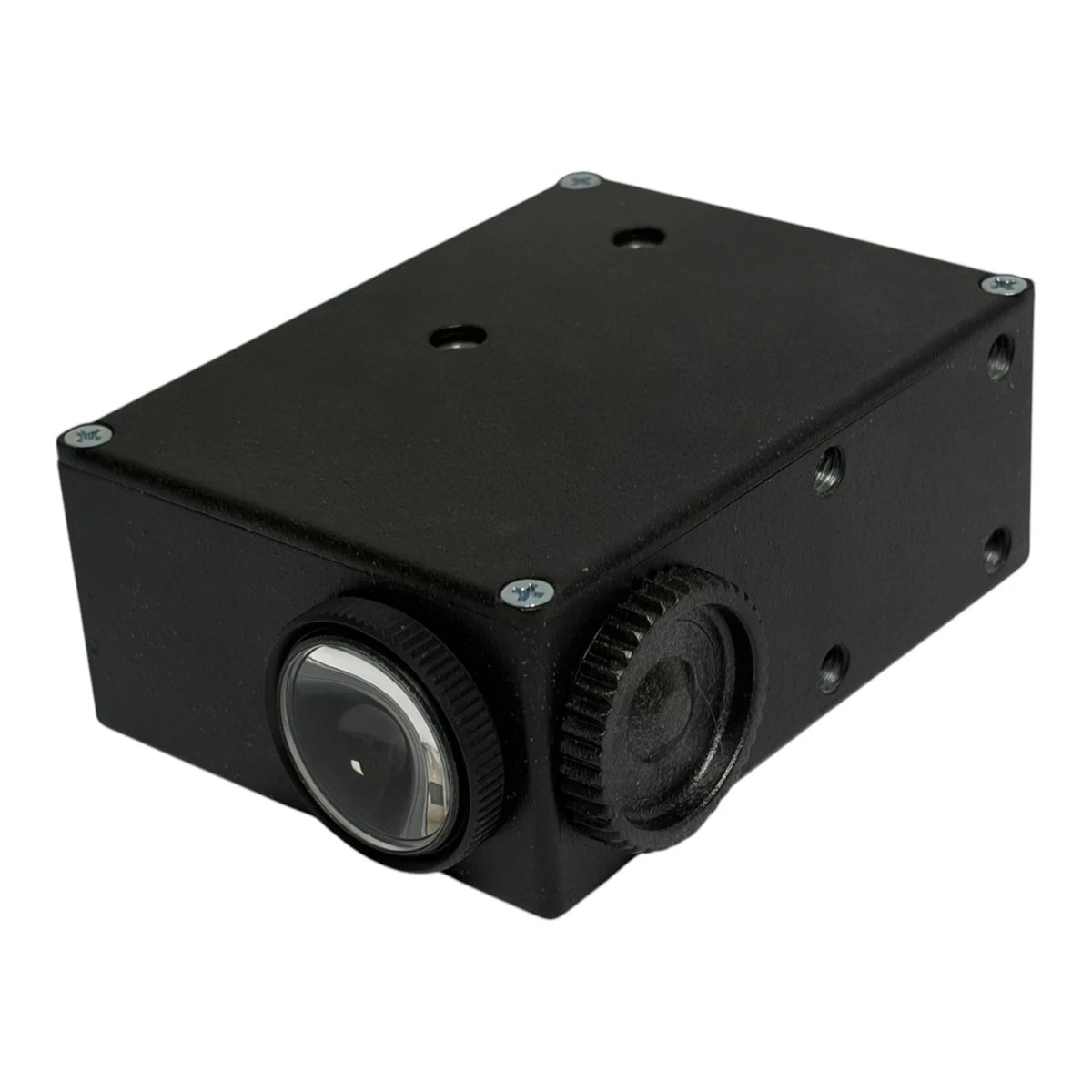

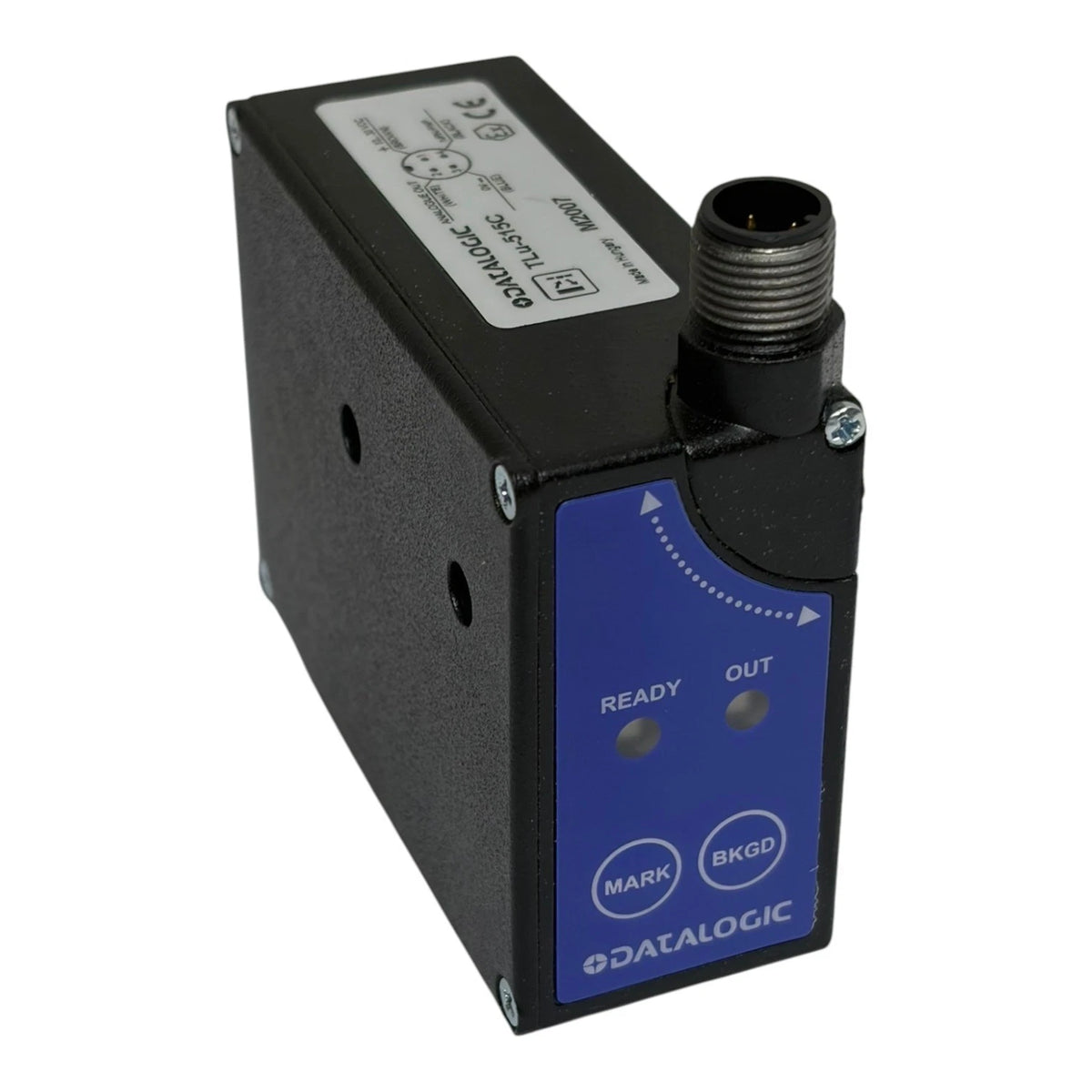

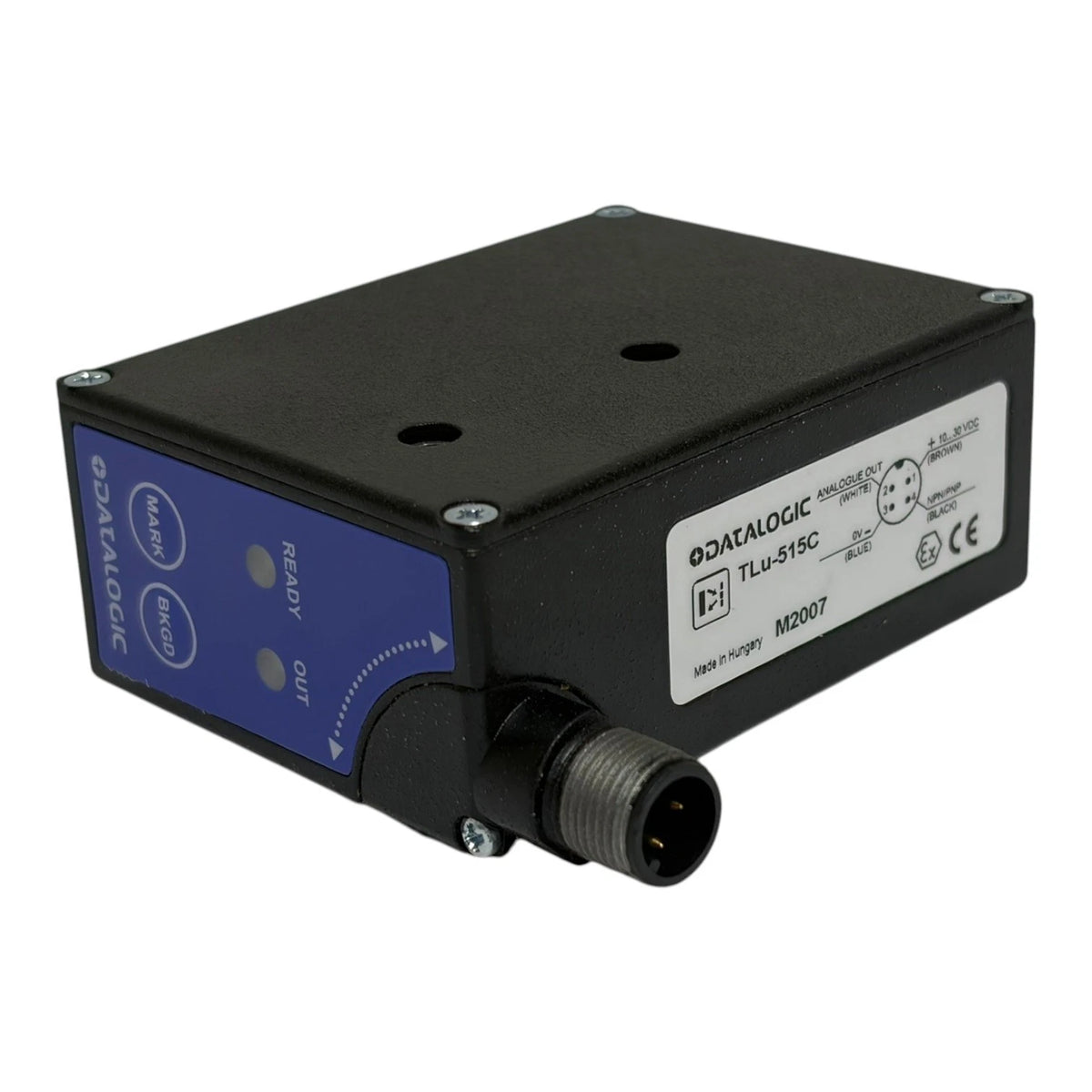

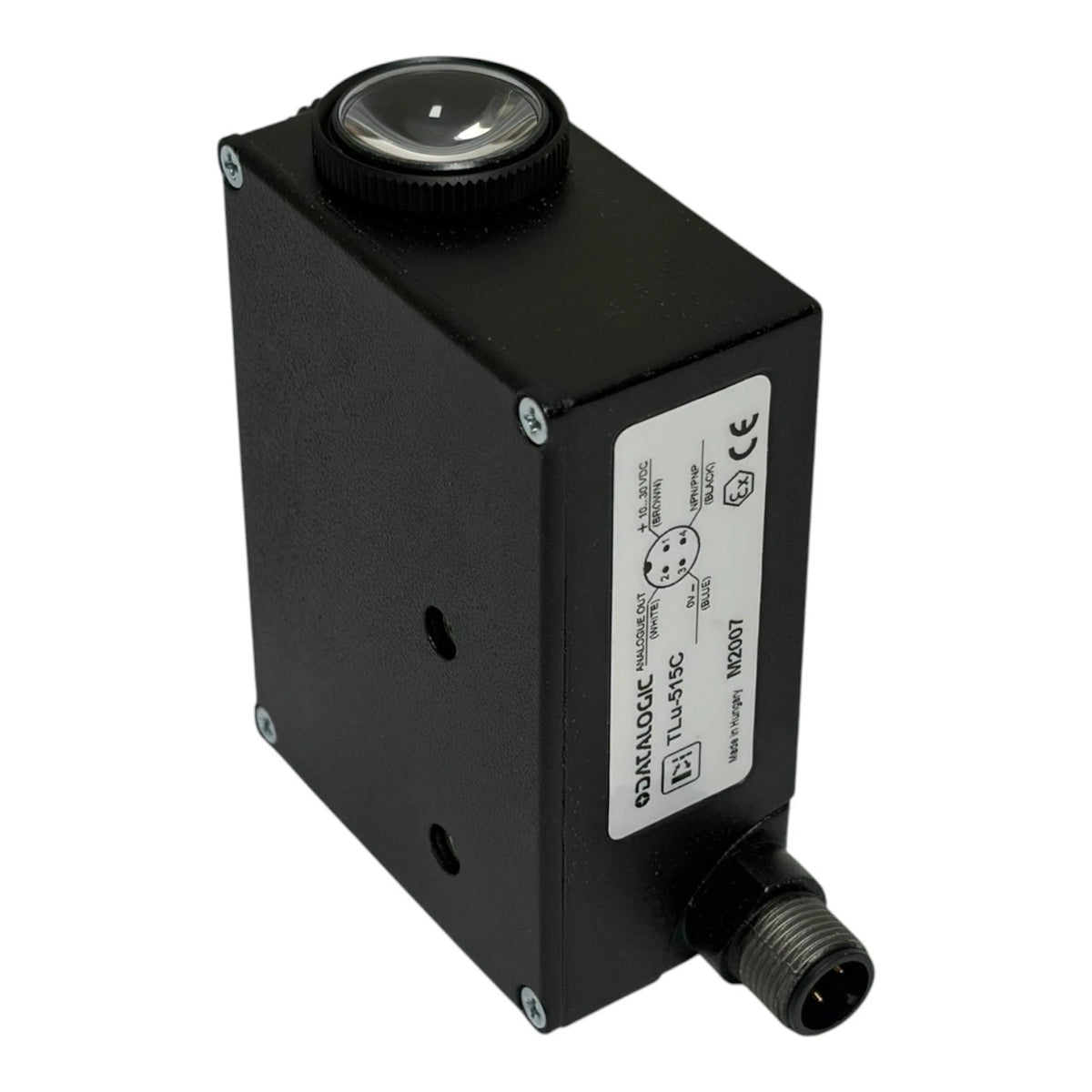

The TLU-515C is part of the TLU series and carries order number 954151360. Its Zamak metal housing incorporates glass optics and an orientable M12 connector. Teach-in adjustment establishes the switching threshold from acquired mark and background signals. The sensor operates from a 10–30 V DC supply and includes output and readiness indicators.
Key Features:
- Contrast Mark Detection: Identifies differences between printed marks and their surrounding backgrounds.
- White LED Emission: Illuminates the target with white light for contrast evaluation.
- Circular Sensing Spot: Produces a 3 mm diameter spot at the nominal working distance.
- Working Distance: Provides a nominal sensing distance of 9 mm with a ±3 mm depth of field.
- Teach-In Adjustment: Acquires mark and background signals to establish the switching threshold.
- PNP Output: Provides a digital output with light-on/dark-on operation.
- Fast Response: Supports a 25 µs response time and switching frequency up to 20 kHz.
- Protected Construction: Combines an IP67-rated metal housing, glass optics, and an M12 connector.
The TLU-515C delivers the reliability and precision required for registration-mark detection in compatible packaging, labeling, and printing equipment.
